Is the High-Efficiency Rear Wing Kit for ZN8 a good fit for a stock-power GR86 or BRZ?

Yes. Verus Engineering designed the High-Efficiency Rear Wing Kit for ZN8 around the limited horsepower these cars make in stock form, keeping drag low so corner speeds climb without a large loss of straight-line speed or street fuel economy. It is rated to generate and withstand more than 300 lb.

How does the High-Efficiency wing compare with the UCW wings?

The High-Efficiency wing is rated beyond 300 lb, adjusts from 0 to 12 degrees and belongs to the Verus Engineering Ventus 2 kit. The UCW wings, in bottom mount and swan neck forms, are rated beyond 500 lb, adjust from 0 to 15 degrees and anchor Ventus 3 for a significant front aero package.

Does the High-Efficiency wing use a swan neck mount?

Yes. Verus Engineering hangs the element from swan neck uprights so the wing is fed clean airflow, which the company says keeps efficiency higher than a typical bottom-mount design. Uprights and trunk mounts are 6061-T6 aluminum machined on 5-axis CNC equipment, with two machined trunk bottom supports.

What front aero should I run with this wing?

Verus Engineering sized the wing to balance most off-the-shelf front aero and names its own front splitter as the match, forming the Ventus 2 package. The GR86 and BRZ need different splitters because their bumpers differ, so order the one for your car and fine-tune with the 0 to 12 degree range.

How was the wing developed and tested?

Verus Engineering created the airfoil in-house with the ANSYS adjoint solver, raised its lift-to-drag ratio through CFD shape optimization and refined it in the wind tunnel. Track testing followed, and Verus reports close correlation between its CFD predictions and real-world data, with the wing meeting its simulation goals.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering High-Efficiency Rear Wing Kit for ZN8 Toyota GR86 and ZD8 Subaru BRZ

Verus Engineering’s High-Efficiency Rear Wing Kit for ZN8 Toyota GR86 and ZD8 Subaru BRZ is matched to the modest stock output of these cars, adding real rear downforce for little drag so corner speeds rise without a large hit to top speed or fuel economy. Verus drew its own airfoil from a clean sheet with the ANSYS adjoint solver and rates the wing past 300 lb. For a track-day car running a front splitter it is the right size; the UCW wings suit far heavier front aero.

Design and Performance

Swan neck uprights feed the element clean airflow, keeping efficiency above a typical bottom-mount wing, and the angle adjusts from 0 to 12 degrees. The 2×2 twill pre-preg carbon element, autoclave cured, sits on 6061-T6 mounts machined in-house on 5-axis CNC machines, and Verus reports close agreement between CFD and track testing.

Features

Airfoil refined in the wind tunnel
Low drag suited to the limited stock horsepower of the ZN8 and ZD8
Sized to balance most off-the-shelf front aero
Stainless hardware and installation templates supplied

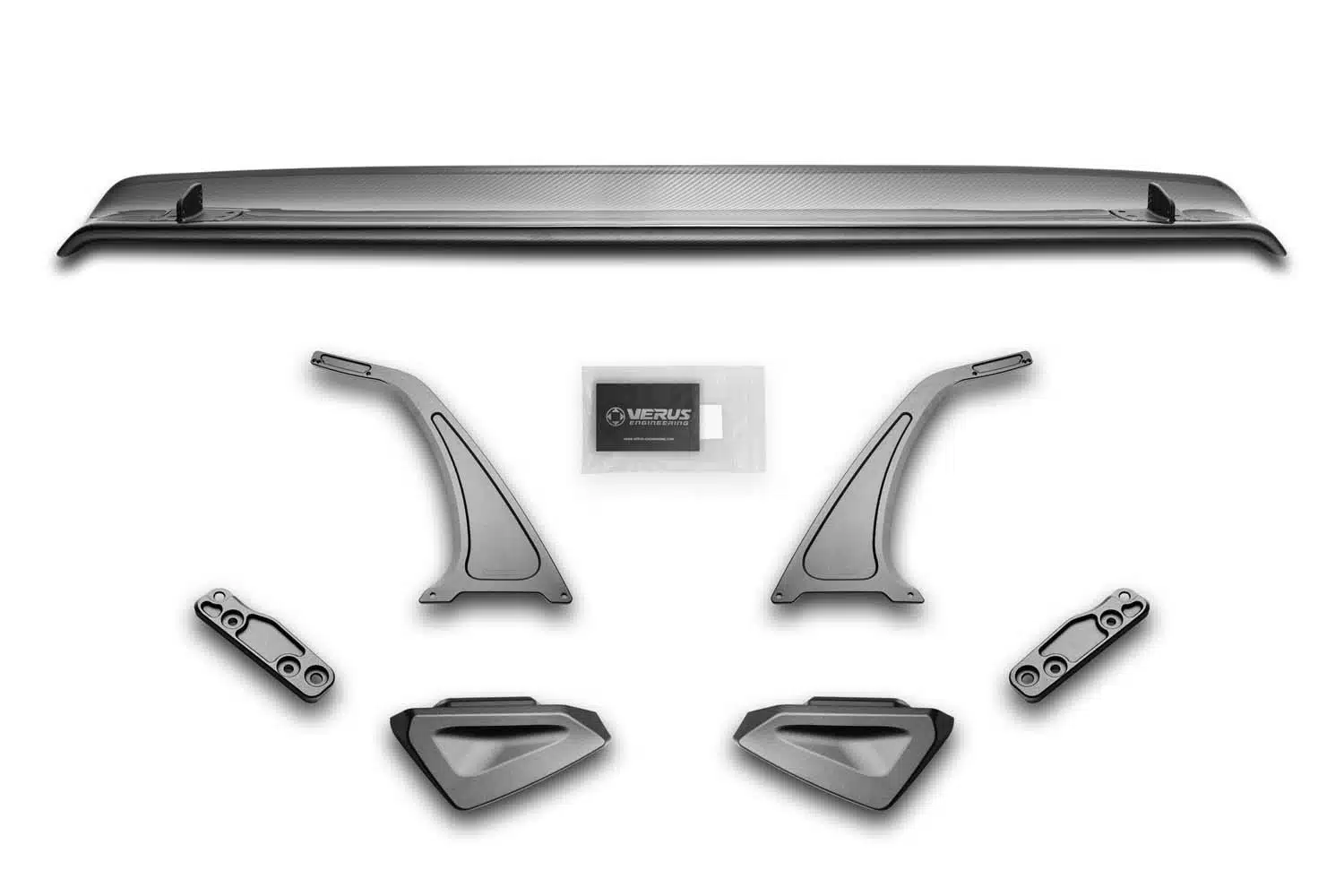

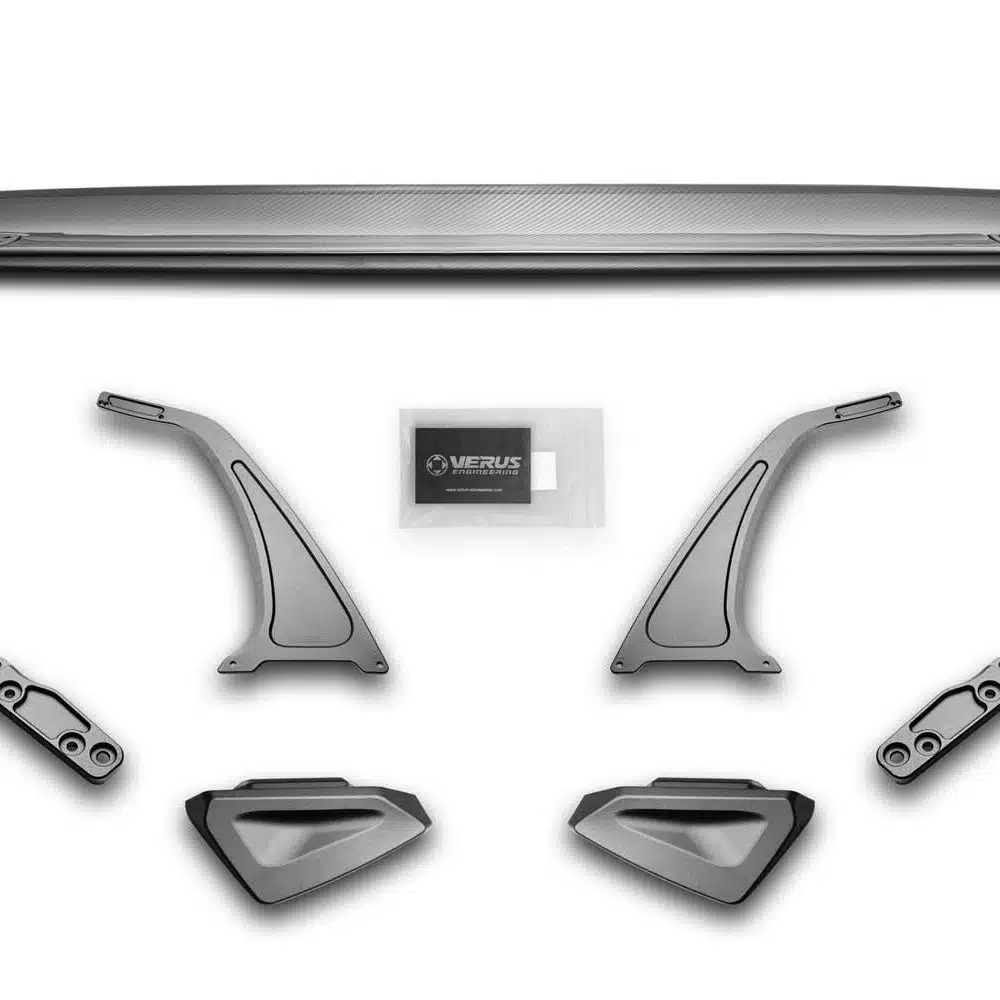

What’s Included

Carbon fiber rear wing assembly
Machined aluminum rear wing uprights (x2)
Machined aluminum rear wing trunk mounts (x2)
Machined aluminum rear trunk bottom supports (x2)
Hardware kit with all parts needed for a complete install

Applications

Subaru BRZ: ZD8 | 2022-present
Toyota GR86: ZN8 | 2022-present

Notes

Verus assembles the High-Efficiency Rear Wing Kit for ZN8 to order and ships it within 5 business days unless otherwise stated
Mounts to the factory trunk; Verus supplies the templates and publishes an informative packet, install manual and install video
Part of the Verus Ventus 2 package with the Verus Engineering Front Splitter for ZN8 Toyota GR86; BRZ owners pair it with the Front Splitter for ZD8 Subaru BRZ
For a bigger step in rear load, see the Bottom Mount UCW Rear Wing Kit and the Swan Neck UCW Rear Wing Kit, both rated past 500 lb
See every Verus Engineering part for the ZN8 Toyota GR86 and ZD8 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Is the High-Efficiency Rear Wing Kit for ZN8 a good fit for a stock-power GR86 or BRZ? Yes. Verus Engineering designed the High-Efficiency Rear Wing Kit for ZN8 around the limited horsepower these cars make in stock form, keeping drag low so corner speeds climb without a large loss of straight-line speed or street fuel economy. It is rated to generate and withstand more than 300 lb.
How does the High-Efficiency wing compare with the UCW wings? The High-Efficiency wing is rated beyond 300 lb, adjusts from 0 to 12 degrees and belongs to the Verus Engineering Ventus 2 kit. The UCW wings, in bottom mount and swan neck forms, are rated beyond 500 lb, adjust from 0 to 15 degrees and anchor Ventus 3 for a significant front aero package.
Does the High-Efficiency wing use a swan neck mount? Yes. Verus Engineering hangs the element from swan neck uprights so the wing is fed clean airflow, which the company says keeps efficiency higher than a typical bottom-mount design. Uprights and trunk mounts are 6061-T6 aluminum machined on 5-axis CNC equipment, with two machined trunk bottom supports.
What front aero should I run with this wing? Verus Engineering sized the wing to balance most off-the-shelf front aero and names its own front splitter as the match, forming the Ventus 2 package. The GR86 and BRZ need different splitters because their bumpers differ, so order the one for your car and fine-tune with the 0 to 12 degree range.
How was the wing developed and tested? Verus Engineering created the airfoil in-house with the ANSYS adjoint solver, raised its lift-to-drag ratio through CFD shape optimization and refined it in the wind tunnel. Track testing followed, and Verus reports close correlation between its CFD predictions and real-world data, with the wing meeting its simulation goals.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
