Does the Bottom Mount UCW Rear Wing Kit for ZN8 come with carbon endplates?

No, not on every version. Verus Engineering sells the Bottom Mount UCW Rear Wing Kit for ZN8 with or without a pair of carbon fiber endplates, the carbon pair costing more. Verus does not describe what the wing tips carry without them, so ask BA before ordering that version.

How much downforce can the UCW wing make on a GR86 or BRZ?

Verus Engineering rates the UCW element to generate and withstand more than 500 lb of downforce. Actual load depends on road speed and the angle of attack, adjustable from 0 to 15 degrees, so treat 500 lb as a structural ceiling, not a typical track figure.

Bottom mount or swan neck UCW wing, which suits a GR86?

Both share the V1X-derived UCW airfoil, the 500 lb rating and 0 to 15 degrees of adjustment. The bottom mount carries the element on uprights fixed to its underside; the swan neck hangs it from above, which Verus Engineering says improves efficiency by feeding the wing cleaner airflow.

Do I need a front splitter with a UCW wing on my GR86?

Yes, for a balanced car. Verus Engineering built the UCW to match a significant front aero package, such as its own front splitter. On a stock front end the wing moves the aero balance rearward, which tends to cause understeer in fast corners.

Will the UCW wing work with the factory trunk lid?

Yes. Verus Engineering designed the kit to mount to the factory trunk and handle the downforce it creates, spreading load through wide machined trunk mounts and a pair of trunk bottom supports. Every template the install calls for is in the box, alongside an install manual and video.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Bottom Mount UCW Rear Wing Kit for ZN8 Toyota GR86 and ZD8 Subaru BRZ

Verus Engineering’s Bottom Mount UCW Rear Wing Kit for ZN8 Toyota GR86 and ZD8 Subaru BRZ is the big-wing option for the second-generation twins: a carbon element seated on machined aluminum uprights and rated to generate and withstand more than 500 lb of downforce. Its airfoil derives from the larger Verus V1X, optimized with the ANSYS adjoint solver. Fit it to a track car that already wears serious front aero; on a stock nose, that much rear load leaves the car pushing wide.

Construction and Adjustment

The element is 2×2 twill pre-preg carbon, autoclave cured under high-gloss clear; the 6061-T6 uprights and mounts are machined in-house on 5-axis CNC machines from Verus scan data. Angle of attack runs from 0 to 15 degrees, and Verus reports close agreement between CFD and track results.

Features

Airfoil developed with the ANSYS adjoint solver and refined in the wind tunnel
CFD shape optimization for a higher lift-to-drag ratio
All stainless hardware and the installation templates come in the box

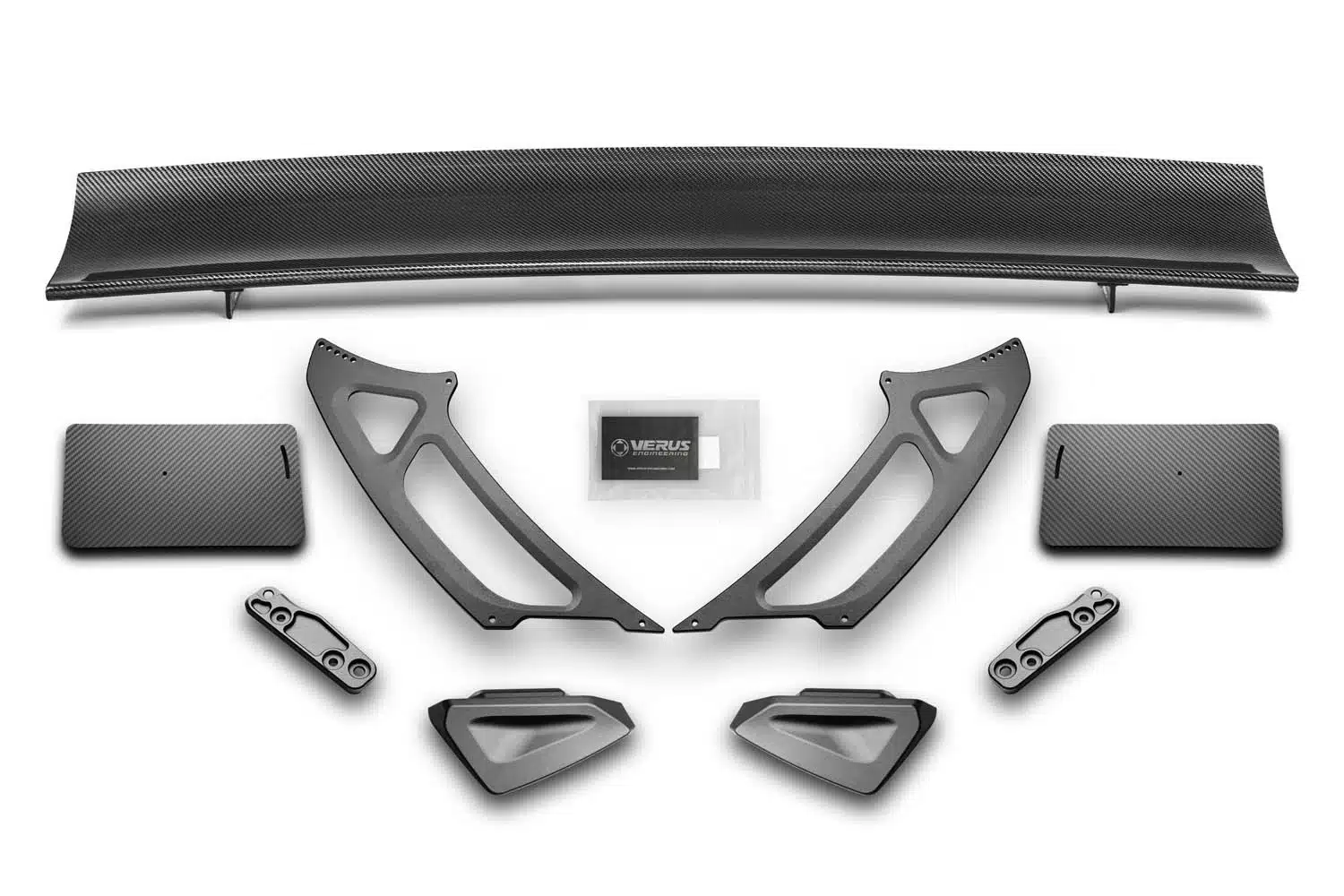

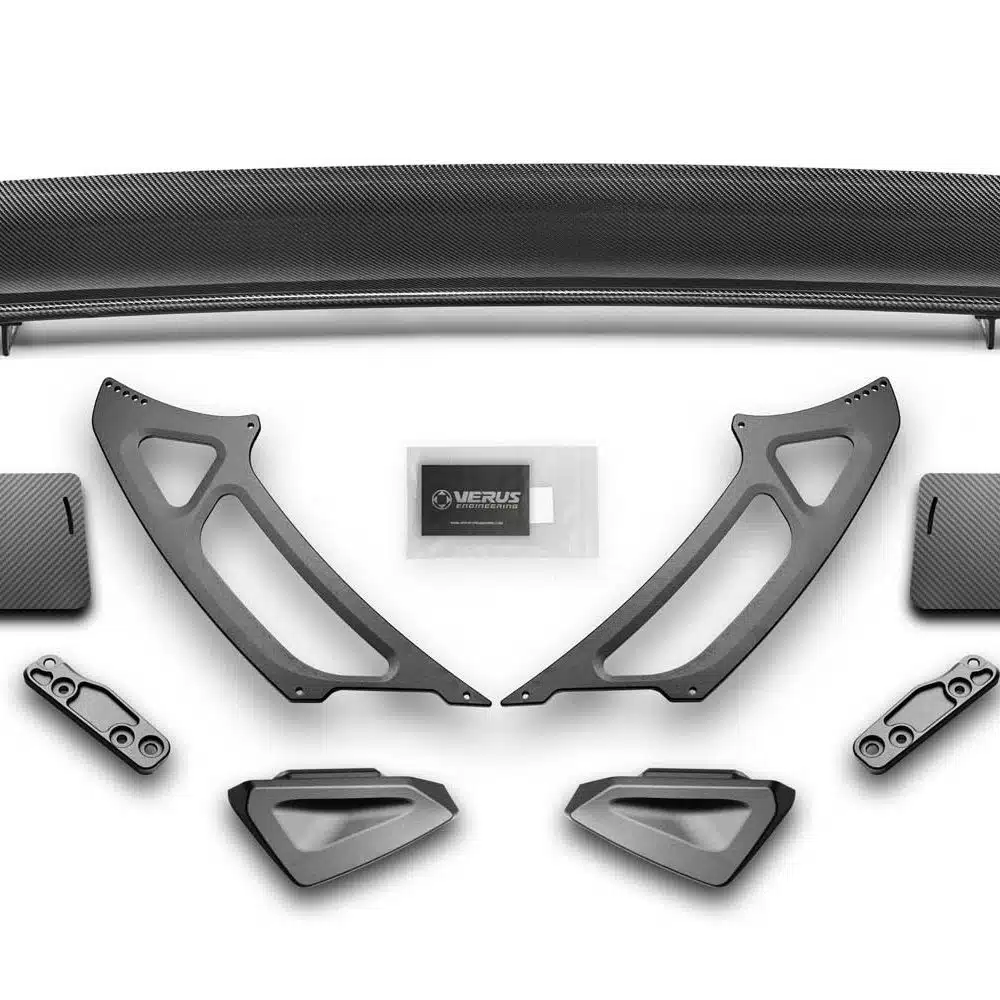

What’s Included

Carbon fiber rear wing assembly
Machined aluminum rear wing uprights (x2)
Machined aluminum rear wing trunk mounts (x2)
Machined aluminum rear trunk bottom supports (x2)
Carbon fiber rear wing endplates (x2), Carbon Endplates Included option only
Hardware kit with all install parts

Applications

Subaru BRZ: ZD8 | 2022-present
Toyota GR86: ZN8 | 2022-present

Notes

Carbon fiber endplates (x2) ship only with the Carbon Endplates Included option; Verus does not say what the other version carries, so confirm with BA first
Verus assembles each UCW wing to order and ships it within 5 business days unless it states otherwise
Verus provides an informative packet, install manual and install video for the Bottom Mount UCW Rear Wing Kit for ZN8
Rear element of the Verus Ventus 3 package; balance it with the Verus Engineering Front Splitter for ZN8 Toyota GR86 or the Front Splitter for ZD8 Subaru BRZ
Also offered as the Swan Neck UCW Rear Wing Kit; the High-Efficiency Rear Wing Kit is the smaller, lower-drag choice
See every Verus Engineering part for the ZN8 Toyota GR86 and ZD8 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the Bottom Mount UCW Rear Wing Kit for ZN8 come with carbon endplates? No, not on every version. Verus Engineering sells the Bottom Mount UCW Rear Wing Kit for ZN8 with or without a pair of carbon fiber endplates, the carbon pair costing more. Verus does not describe what the wing tips carry without them, so ask BA before ordering that version.
How much downforce can the UCW wing make on a GR86 or BRZ? Verus Engineering rates the UCW element to generate and withstand more than 500 lb of downforce. Actual load depends on road speed and the angle of attack, adjustable from 0 to 15 degrees, so treat 500 lb as a structural ceiling, not a typical track figure.
Bottom mount or swan neck UCW wing, which suits a GR86? Both share the V1X-derived UCW airfoil, the 500 lb rating and 0 to 15 degrees of adjustment. The bottom mount carries the element on uprights fixed to its underside; the swan neck hangs it from above, which Verus Engineering says improves efficiency by feeding the wing cleaner airflow.
Do I need a front splitter with a UCW wing on my GR86? Yes, for a balanced car. Verus Engineering built the UCW to match a significant front aero package, such as its own front splitter. On a stock front end the wing moves the aero balance rearward, which tends to cause understeer in fast corners.
Will the UCW wing work with the factory trunk lid? Yes. Verus Engineering designed the kit to mount to the factory trunk and handle the downforce it creates, spreading load through wide machined trunk mounts and a pair of trunk bottom supports. Every template the install calls for is in the box, alongside an install manual and video.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
