Does the Drivetrain Package for VB fit a CVT WRX?

No. GrimmSpeed lists the Street Transmission Mount in the Drivetrain Package for VB as a manual transmission part that is not compatible with CVT models, so the full package suits the 6-speed WRX. CVT owners interested in engine mounts alone should confirm that fitment with GrimmSpeed before buying.

Will these mounts make the cabin vibrate?

A little more feedback is normal with any firmer mount, but every part in this package is GrimmSpeed street spec. The pitch stop uses 80A urethane and the engine and transmission mounts use 75A polyurethane, compounds GrimmSpeed selected to cut movement while keeping vibration on a daily drive modest.

What is included in the package?

Three parts: the GrimmSpeed Street Pitch Stop Mount, the Street Transmission Mount and the Street Engine Mount Kit built for the 2022 and newer WRX. The set costs less than the three parts bought individually, and the transmission mount arrives fully assembled with hardware.

Street or Race pitch stop for a VB WRX?

This package uses the Street pitch stop with 80A urethane bushings, which GrimmSpeed designs to keep ride quality in check. GrimmSpeed also makes a Race version with 95A urethane that it says brings engine pitch close to zero, a better match for a car that spends most of its time on track.

Can I install the mounts one at a time?

Yes. Each mount is a separate direct replacement that GrimmSpeed also sells individually, so the work can be split over several sessions. The package simply delivers all three together, at a lower combined price than buying each mount on its own.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

GrimmSpeed Drivetrain Package for VB Subaru WRX

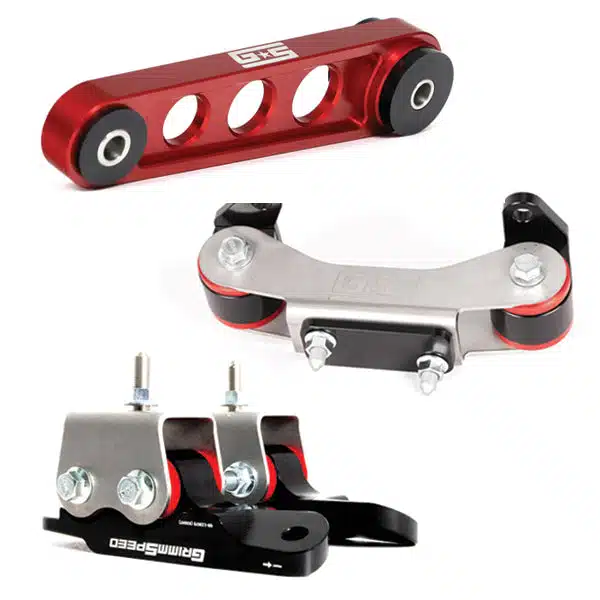

The GrimmSpeed Drivetrain Package for VB WRX models gathers the three mounts that locate the 2.4L FA24 and its gearbox: a single-piece billet 6061 Street Pitch Stop Mount on 80A urethane, the Street Transmission Mount on 75A bushings, and the Street Engine Mount Kit, also on 75A. Together they cover fore and aft pitch, engine rock and gearbox float, the sources of the loose feel on launches and quick shifts. Every part is GrimmSpeed street spec, so this is the set for a daily driven car; a dedicated track build may want the 95A Race pitch stop instead.

Design and Performance

The pitch stop links the engine to the firewall and stops it nodding under throttle and braking. The transmission mount pairs 6061 billet with 304 stainless and arrives fully assembled with a press-fit stud, and GrimmSpeed rates it at twice the stiffness of the Subaru Group N part. The engine mounts use 10-gauge stainless brackets and a slotted body that is set by hand before it slides home.

Features

Reversible pitch stop with an anodized finish and two laser-etched logos, so either side can face up.
Transmission mount bushings picked by GrimmSpeed for a minimal increase in cabin vibration.
Engine mounts secured with zinc-plated Class 10.9 hardware.
Direct replacements for all three factory mounts.

Specifications

Pitch stop body: single-piece billet 6061 aluminum, anodized
Pitch stop bushings: 80A urethane with stainless sleeves
Transmission mount bushings: 75A polyurethane
Transmission mount construction: 6061 billet aluminum, 304 stainless steel
Engine mount bushings: 75A polyurethane
Engine mount bracket: 10-gauge 304 stainless steel
Engine mount hardware: Class 10.9, zinc-plated

What’s Included

GrimmSpeed Street Pitch Stop Mount (x1)
GrimmSpeed Street Transmission Mount (x1)
GrimmSpeed Street Engine Mount Kit for VB WRX (x1)

Applications

Subaru WRX: VB | 2022-present | 2.4L FA24DIT, 6-speed manual

Notes

GrimmSpeed lists its Street Transmission Mount as not compatible with CVT models, so the Drivetrain Package for VB suits 6-speed manual cars
The engine mounts in this package are also sold alone as the GrimmSpeed Engine Mount Kit for VB Subaru WRX
The Street Pitch Stop Mount and Street Transmission Mount are supplied here and not listed separately on BA

Frequently Asked Questions

Does the Drivetrain Package for VB fit a CVT WRX? No. GrimmSpeed lists the Street Transmission Mount in the Drivetrain Package for VB as a manual transmission part that is not compatible with CVT models, so the full package suits the 6-speed WRX. CVT owners interested in engine mounts alone should confirm that fitment with GrimmSpeed before buying.
Will these mounts make the cabin vibrate? A little more feedback is normal with any firmer mount, but every part in this package is GrimmSpeed street spec. The pitch stop uses 80A urethane and the engine and transmission mounts use 75A polyurethane, compounds GrimmSpeed selected to cut movement while keeping vibration on a daily drive modest.
What is included in the package? Three parts: the GrimmSpeed Street Pitch Stop Mount, the Street Transmission Mount and the Street Engine Mount Kit built for the 2022 and newer WRX. The set costs less than the three parts bought individually, and the transmission mount arrives fully assembled with hardware.
Street or Race pitch stop for a VB WRX? This package uses the Street pitch stop with 80A urethane bushings, which GrimmSpeed designs to keep ride quality in check. GrimmSpeed also makes a Race version with 95A urethane that it says brings engine pitch close to zero, a better match for a car that spends most of its time on track.
Can I install the mounts one at a time? Yes. Each mount is a separate direct replacement that GrimmSpeed also sells individually, so the work can be split over several sessions. The package simply delivers all three together, at a lower combined price than buying each mount on its own.

About GrimmSpeed

GrimmSpeed began in 2006 in a single-stall garage in Maplewood, Minnesota, porting and polishing Subaru manifolds. After building parts for several other makes, the company narrowed its focus back to Subaru, and its range now covers intercoolers, charge pipes, intakes, bypass valves, headers, up-pipes, catback exhausts, turbochargers, brake caliper kits, drivetrain mounts and titanium engine bay parts for the WRX, STI, Forester XT, Legacy GT, Ascent and BRZ, along with the Toyota 86 and GR86. GrimmSpeed engineers and manufactures as much of that range as it can in-house, and its front mount intercoolers are welded and inspected by hand in the USA.
