Which endplates come with the Swan Neck UCW Rear Wing Kit for ZN8?

The Swan Neck UCW Rear Wing Kit for ZN8 ships with a pair of aluminum endplates unless you choose the carbon fiber option, which swaps in a carbon pair at a higher price. The rest of the kit is identical: carbon wing assembly, machined uprights, trunk mounts, trunk bottom supports and hardware.

Why pick a swan neck wing over a bottom mount wing for a GR86 or BRZ?

A swan neck mount attaches to the top of the element and leaves its lower surface clear, the side doing most of the work. Verus Engineering says this layout makes the UCW more efficient than bottom-mount formats. The bottom mount version shares the airfoil and the 500 lb rating, and costs less.

Can I adjust the angle of the swan neck UCW wing?

Yes. The element generates downforce from 0 to 15 degrees angle of attack, so one wing can balance front setups from the Verus Engineering front splitter up to the full Ventus 3 kit. Lower angles trim drag on fast circuits; steeper settings add rear grip where slow corners dominate.

How long does Verus take to ship a UCW wing?

Verus Engineering assembles every UCW wing to order and ships it within 5 business days of receiving the order unless otherwise stated. Add that build time to transit when planning around a track day, and ask BA for a current estimate if your event is close.

What is the UCW wing made from?

The element is 2x2 twill pre-preg carbon fiber, autoclave cured and finished in automotive high-gloss clear. Verus Engineering machines the 6061-T6 aluminum uprights and mounts in-house on 5-axis CNC machines, every fastener is stainless, and the endplates are aluminum or carbon fiber depending on the option chosen.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Swan Neck UCW Rear Wing Kit for ZN8 Toyota GR86 and ZD8 Subaru BRZ

Verus Engineering’s Swan Neck UCW Rear Wing Kit for ZN8 Toyota GR86 and ZD8 Subaru BRZ keeps the classic UCW silhouette but hangs the carbon element from swan neck uprights, a layout Verus credits with better efficiency than bottom-mount formats. The V1X-derived airfoil generates and withstands more than 500 lb of downforce across 0 to 15 degrees of adjustment. Choose it for a hard-driven track car with a full front aero package, where lift-to-drag efficiency matters as much as peak load.

Endplates and Construction

Endplates come in machined aluminum as standard or carbon fiber at extra cost. The element is 2×2 twill pre-preg carbon, autoclave cured under high-gloss clear, and Verus machines the 6061-T6 uprights and trunk mounts in-house on 5-axis CNC machines, shaped from scan data to follow the trunk.

Features

Swan neck mounting feeds the element cleaner airflow than a bottom-mount layout
Airfoil optimized with the ANSYS adjoint solver, then refined in wind tunnel testing
Large-footprint mounts complement the rear styling of the ZN8 and ZD8

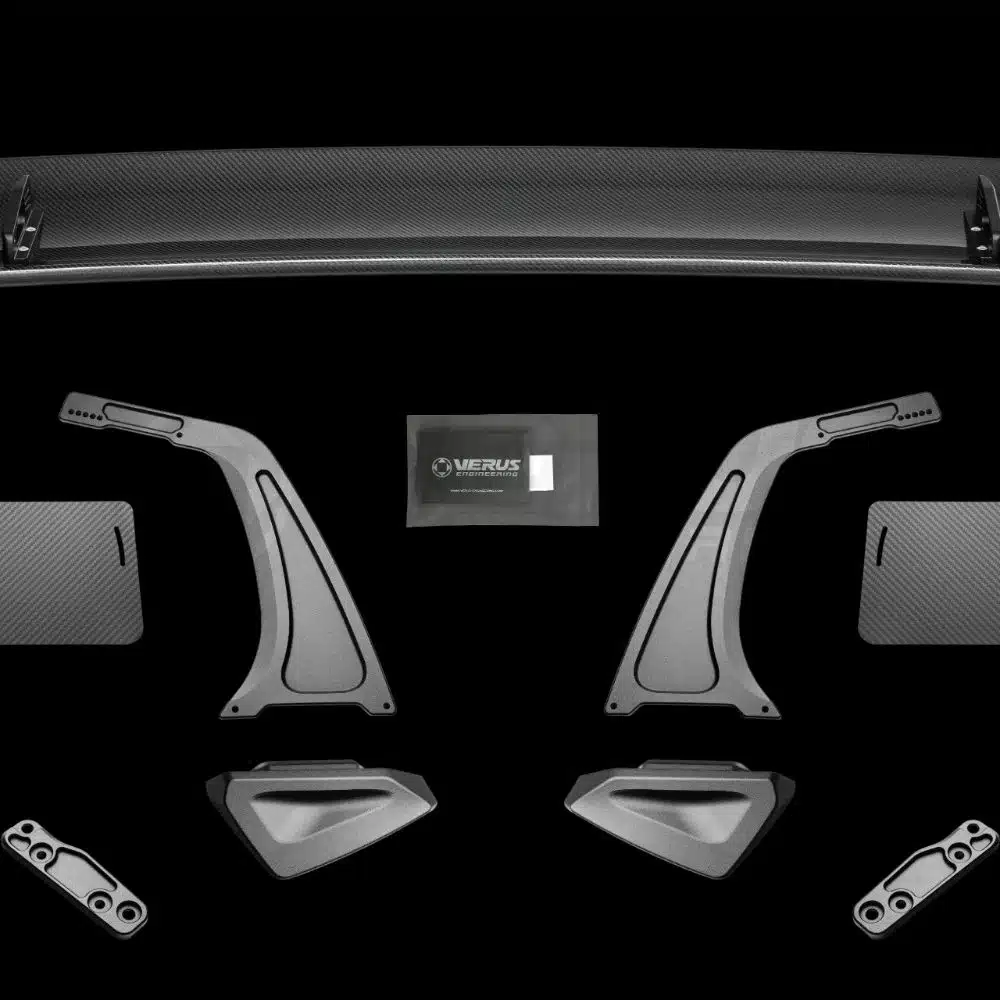

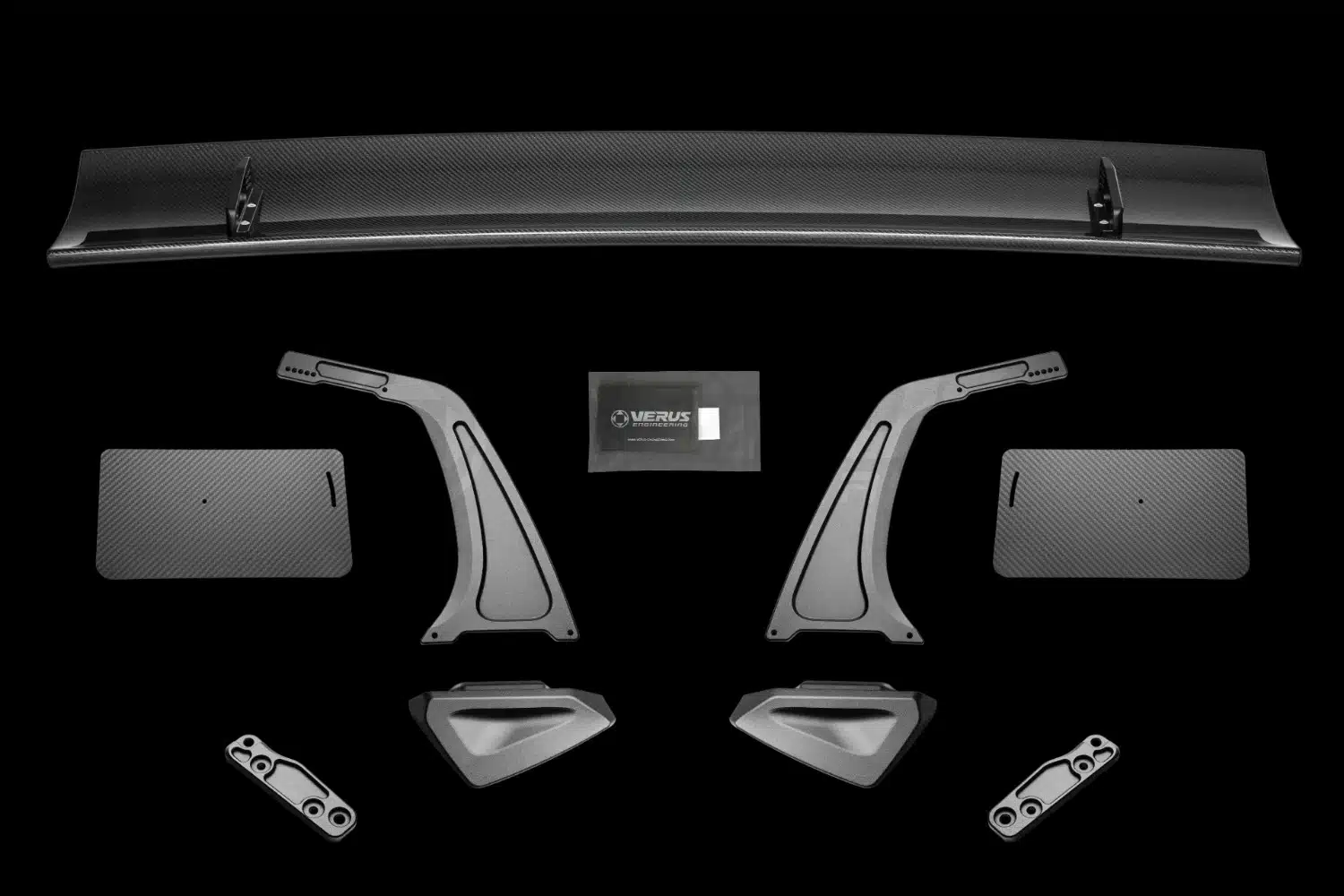

What’s Included

Carbon fiber rear wing assembly
Machined aluminum rear wing uprights (x2)
Machined aluminum rear wing trunk mounts (x2)
Machined aluminum rear trunk bottom supports (x2)
Rear wing endplates (x2), aluminum or carbon fiber as selected
Hardware kit with all parts for the install

Applications

Subaru BRZ: ZD8 | 2022-present
Toyota GR86: ZN8 | 2022-present

Notes

Each Swan Neck UCW Rear Wing Kit for ZN8 is assembled to order and ships from Verus within 5 business days unless Verus says otherwise
Mounts to the factory trunk with the supplied templates; Verus publishes an informative packet, install manual and install video
Rear of the Verus Ventus 3 package, balanced at the front by the Verus Engineering Front Splitter for ZN8 Toyota GR86 or the Front Splitter for ZD8 Subaru BRZ
The same element comes as the Bottom Mount UCW Rear Wing Kit; the High-Efficiency Rear Wing Kit suits a lighter aero build
See every Verus Engineering part for the ZN8 Toyota GR86 and ZD8 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Which endplates come with the Swan Neck UCW Rear Wing Kit for ZN8? The Swan Neck UCW Rear Wing Kit for ZN8 ships with a pair of aluminum endplates unless you choose the carbon fiber option, which swaps in a carbon pair at a higher price. The rest of the kit is identical: carbon wing assembly, machined uprights, trunk mounts, trunk bottom supports and hardware.
Why pick a swan neck wing over a bottom mount wing for a GR86 or BRZ? A swan neck mount attaches to the top of the element and leaves its lower surface clear, the side doing most of the work. Verus Engineering says this layout makes the UCW more efficient than bottom-mount formats. The bottom mount version shares the airfoil and the 500 lb rating, and costs less.
Can I adjust the angle of the swan neck UCW wing? Yes. The element generates downforce from 0 to 15 degrees angle of attack, so one wing can balance front setups from the Verus Engineering front splitter up to the full Ventus 3 kit. Lower angles trim drag on fast circuits; steeper settings add rear grip where slow corners dominate.
How long does Verus take to ship a UCW wing? Verus Engineering assembles every UCW wing to order and ships it within 5 business days of receiving the order unless otherwise stated. Add that build time to transit when planning around a track day, and ask BA for a current estimate if your event is close.
What is the UCW wing made from? The element is 2×2 twill pre-preg carbon fiber, autoclave cured and finished in automotive high-gloss clear. Verus Engineering machines the 6061-T6 aluminum uprights and mounts in-house on 5-axis CNC machines, every fastener is stainless, and the endplates are aluminum or carbon fiber depending on the option chosen.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
