Will the 2021 and later Heat Shield and AOS Bundle fit a 2020 Supra?

No. This Heat Shield and AOS Bundle is shaped for the six-port exhaust manifold found on 3.0 Supras from the 2021 model year onward. The 2020 car uses a two-port manifold, and Verus Engineering sells a separate bundle with a heat shield to suit it. The four-cylinder 2.0 model is not covered by either kit.

Does the bundle work with a Pure800 turbo upgrade?

Yes. Verus Engineering states the 2021 and later bundle works with the Pure800 turbo upgrade. The shield is shaped around the six-port manifold from Verus scan data, and the AOS and resonator delete mount nearby, so an upgraded car can still take the full bundle.

Is the resonator delete included?

Yes. The bundle contains the Verus Engineering resonator delete, machined from 6061-T6 aluminum, which is required to install the air oil separator. Removing the factory resonator creates the room the AOS needs, and the resonator delete closes the opening the original part leaves behind, finishing the engine bay neatly around the new separator.

What does the air oil separator protect against?

Blow-by gases from the crankcase carry oil mist toward the intake. Once there, the oil reduces effective octane, which can lead to detonation, lost power and carbon buildup on the intake valves. Verus Engineering stops it at the separator, where a stack of four 5-micron coalescent filters, baffling and stainless mesh pull the oil out before the air moves on.

What finish does the heat shield have?

In this bundle the shield is black high-temperature Cerakote over 2.0mm 304 stainless steel, and Verus Engineering also lists a titanium Cerakote finish for the shield. The AOS is anodized in blue, black or red, and Verus notes anodized finishes can fade over time from engine bay heat.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Turbo Heat Shield and AOS Bundle for A90 Toyota GR Supra (2021-2026)

Verus Engineering’s Turbo Heat Shield and AOS Bundle for A90 Toyota GR Supra models from 2021 onward is matched to the six-port exhaust manifold the B58 gained that year, and Verus states it works with the Pure800 turbo upgrade. The Verus air oil separator and the machined resonator delete that frees room for it complete the set. It suits the owner of a later 3.0 Supra tackling heat soak and crankcase oil together; 2020 cars need the two-port version.

Inside the Bundle

Verus scanned the engine bay to shape the six-port shield, then laser cuts it from 2.0mm 304 stainless, forms it on a CNC press brake and coats it in black high-temperature Cerakote to improve heat rejection over the turbo manifold area. The AOS body is CNC machined from 6061-T6 with Mil-spec O-ring bosses, and its four 5-micron coalescent filters stop crankcase oil reaching the intake, where it would lower octane.

Features

Shaped for the 2021 and later six-port manifold
Compatible with the Pure800 turbo upgrade
Cerakote-coated 304 stainless, 2.0mm thick
Separator machined from 6061-T6 in Indianapolis
Large molded hoses keep pressure drop low

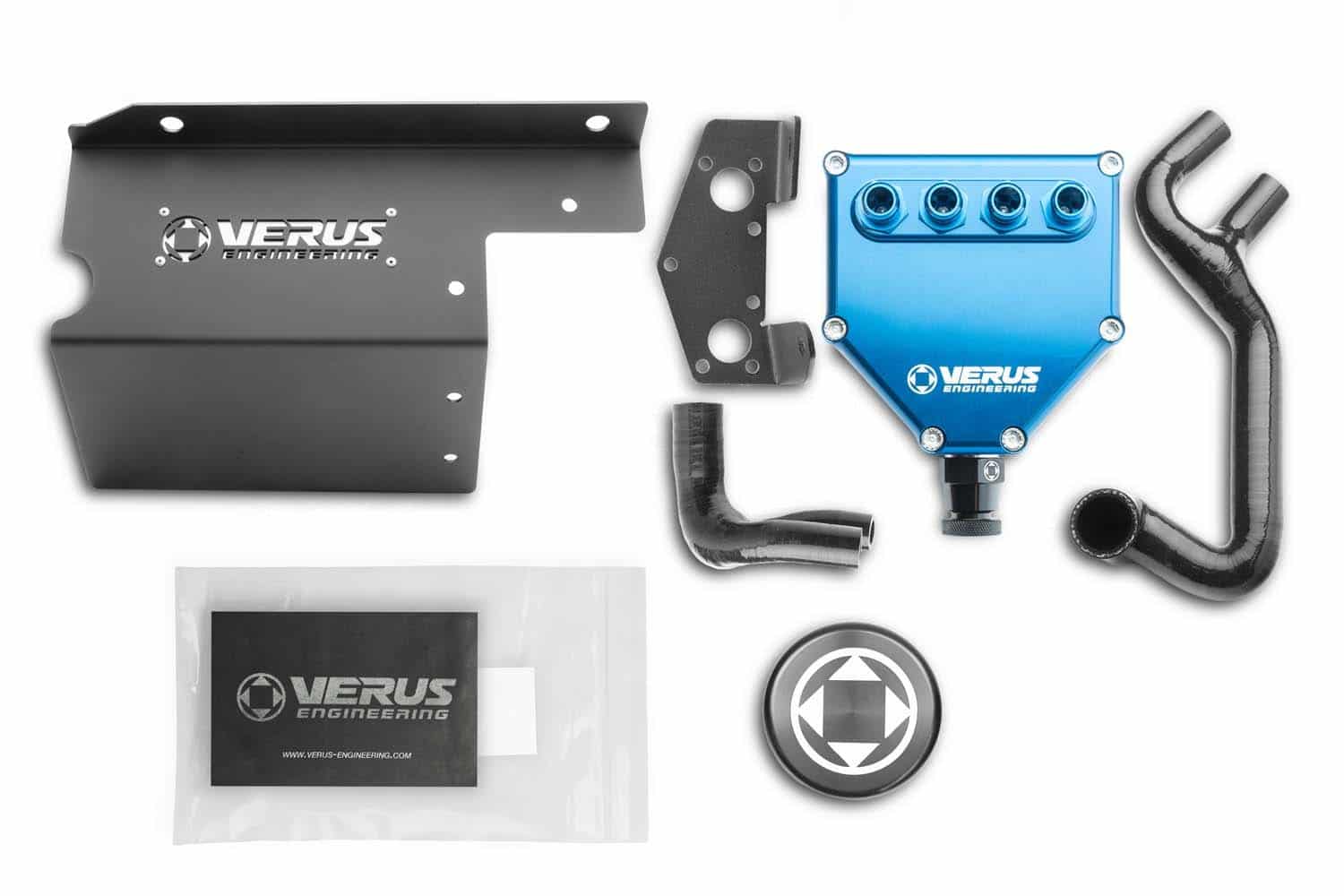

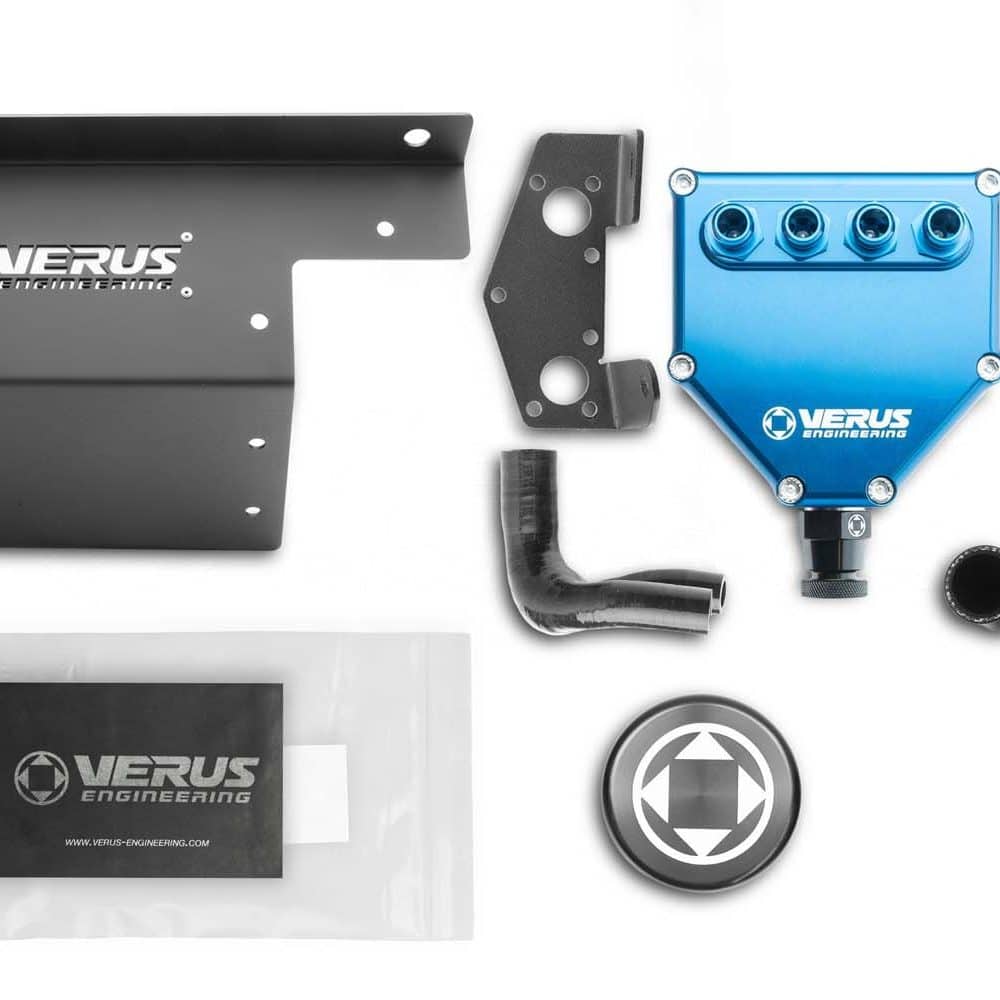

What’s Included

6-Port Turbo Heat Shield Kit for the 2021 and later Supra, black Cerakote
Air Oil Separator for A90 Toyota GR Supra 3.0, color of your choice
Resonator Delete for A90 Toyota GR Supra

Applications

Toyota GR Supra: A90 | 2021-2026 | 3.0L B58

Notes

Made only for 2021 and later 3.0 Supras with the six-port manifold; 2020 cars take the Turbo Heat Shield and AOS Bundle for the 2020 Supra
The resonator delete the AOS depends on is already in the box
This Heat Shield and AOS Bundle supplies the shield in black Cerakote and the AOS in blue, black or red
Check your intake first: AMS, Eventuri, MST and open-filter HKS intakes fit, Injen and Mishimoto need bracket work, and Armaspeed and full HKS cold air intakes do not
See every Verus Engineering part for the A90 Toyota GR Supra
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Will the 2021 and later Heat Shield and AOS Bundle fit a 2020 Supra? No. This Heat Shield and AOS Bundle is shaped for the six-port exhaust manifold found on 3.0 Supras from the 2021 model year onward. The 2020 car uses a two-port manifold, and Verus Engineering sells a separate bundle with a heat shield to suit it. The four-cylinder 2.0 model is not covered by either kit.
Does the bundle work with a Pure800 turbo upgrade? Yes. Verus Engineering states the 2021 and later bundle works with the Pure800 turbo upgrade. The shield is shaped around the six-port manifold from Verus scan data, and the AOS and resonator delete mount nearby, so an upgraded car can still take the full bundle.
Is the resonator delete included? Yes. The bundle contains the Verus Engineering resonator delete, machined from 6061-T6 aluminum, which is required to install the air oil separator. Removing the factory resonator creates the room the AOS needs, and the resonator delete closes the opening the original part leaves behind, finishing the engine bay neatly around the new separator.
What does the air oil separator protect against? Blow-by gases from the crankcase carry oil mist toward the intake. Once there, the oil reduces effective octane, which can lead to detonation, lost power and carbon buildup on the intake valves. Verus Engineering stops it at the separator, where a stack of four 5-micron coalescent filters, baffling and stainless mesh pull the oil out before the air moves on.
What finish does the heat shield have? In this bundle the shield is black high-temperature Cerakote over 2.0mm 304 stainless steel, and Verus Engineering also lists a titanium Cerakote finish for the shield. The AOS is anodized in blue, black or red, and Verus notes anodized finishes can fade over time from engine bay heat.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
