Do I need the Verus resonator delete to install the Air Oil Separator for A90?

Yes. Verus Engineering lists its Resonator Delete as a necessary component for the Air Oil Separator for A90, because removing the factory intake resonator frees the engine bay space the AOS needs. The billet aluminum resonator delete is sold separately and installs like a factory part.

Will the Verus AOS fit a 2.0 Supra?

No. Verus Engineering designed the air oil separator for the B58 3.0 liter engine only, and it will not fit the four-cylinder 2.0 Supra. It suits every B58-powered A90 from 2020 onward, and Verus sells turbo heat shields for both the two-port and six-port manifold cars to pair with it.

Will the Verus AOS fit with my aftermarket intake?

Yes, with several popular intakes. Verus Engineering confirms fitment with AMS and Eventuri intakes, the MST Performance intake when pushed forward, and the open filter HKS intake with heat shield. Injen and Mishimoto intakes need bracket modification, while the Armaspeed and full HKS cold air intake kits do not fit.

What is the difference between an air oil separator and a catch can?

Many brands use the two names for the same job, which is stopping crankcase oil vapor from reaching the intake. The Verus unit separates oil with four 5-micron coalescent filters, baffles and stainless mesh, then holds it for draining through a petcock. Verus Engineering explains its view in a dedicated video.

Will the anodized color fade over time?

Yes, it can. Verus Engineering notes that anodized parts may fade over time because of engine bay heat, whichever of the blue, black or red finishes is chosen. The fade is cosmetic, since the body is CNC machined from 6061-T6 aluminum with Mil-spec O-ring bosses and laser engraving.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

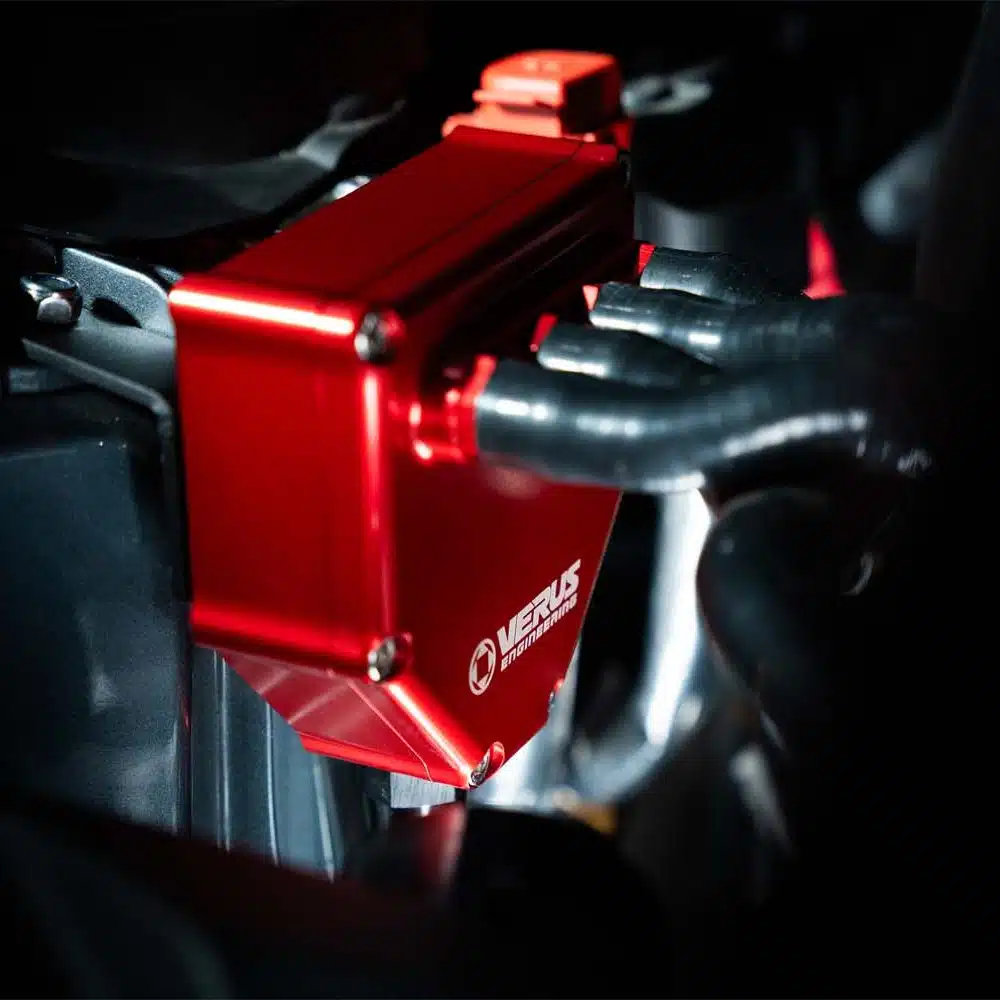

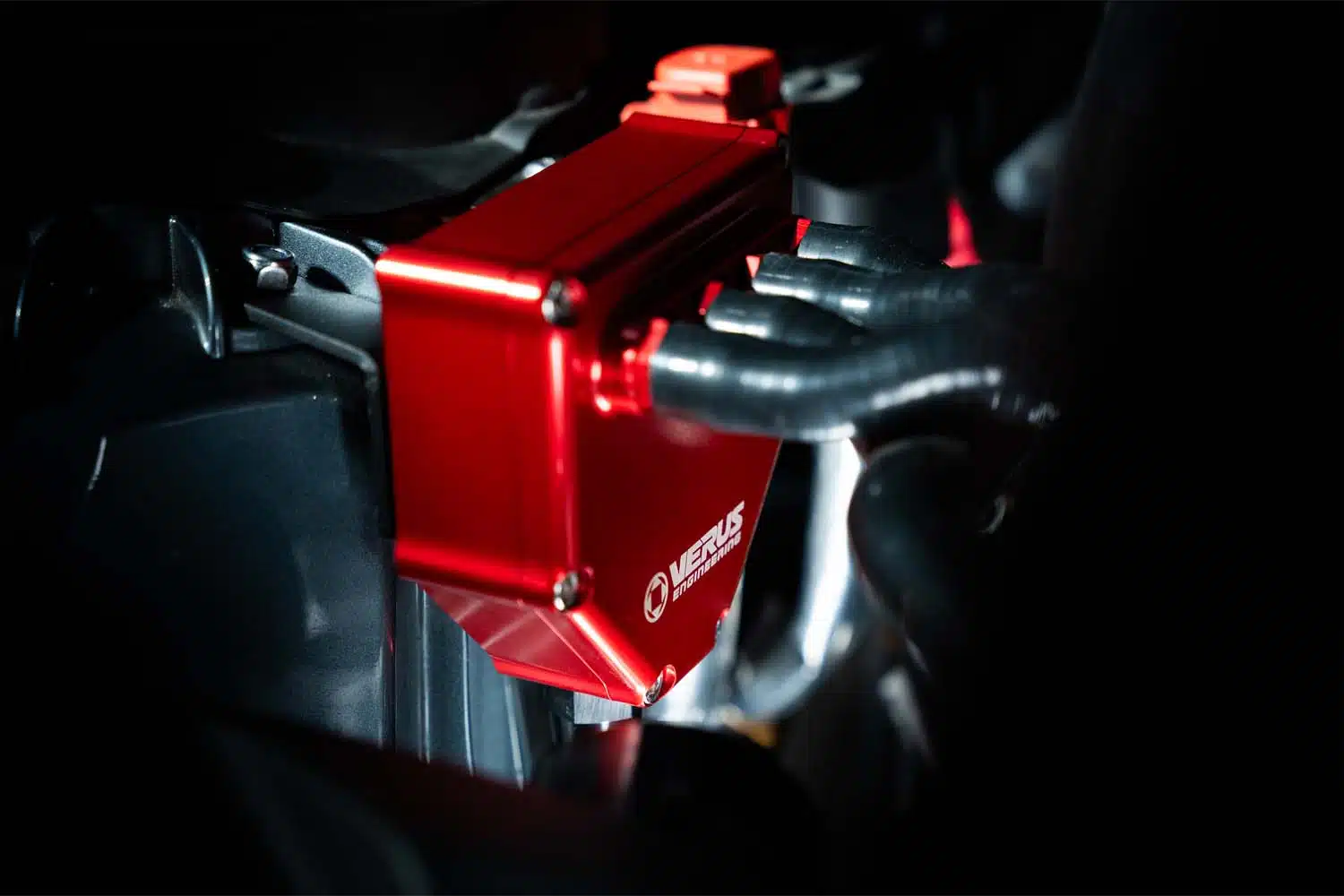

Verus Engineering Air Oil Separator for A90 Toyota GR Supra 3.0

Verus Engineering’s Air Oil Separator for A90 Toyota GR Supra 3.0 stops crankcase blow-by from coating the B58 intake tract with oil, the residue that lowers effective octane and invites detonation, lost power and carbon on the intake valves. Four 5-micron coalescent filters, internal baffles and stainless mesh strip oil from the crankcase air, and a drain petcock empties what the unit catches. Engines running more boost or regular track sessions push the most oil vapor through, and gain the most.

Bolt-On and Go

Molded silicone hoses make the install simple, and their large diameter keeps the pressure drop low. The separator mounts on a sheet aluminum bracket in the room the Verus resonator delete frees up.

Features

CNC machined from 6061-T6 aluminum with CNC laser engraving
Mil-spec O-ring bosses for leak-free fittings
Compact package for the A90 engine bay
Anodized in blue, black or red
Made in the U.S.A.

What’s Included

Preassembled AOS with internal baffling and stainless mesh
5-micron coalescent filters (x4)
Drain petcock
Sheet aluminum mounting bracket
Preformed silicone hoses
Hardware bag

Applications

Toyota GR Supra: A90 | 2020-2026 | 3.0L B58

Notes

The Verus Engineering Resonator Delete for A90 Toyota GR Supra (A0216A) is required to install this AOS
The Air Oil Separator for A90 fits B58-powered Supras only, not the 2.0
Verus recommends its turbo heat shield alongside the AOS, offered for 2020 two-port and 2021-on six-port manifold cars
Confirmed intake fitment: AMS, Eventuri, MST Performance (pushed forward, bracket on rubber padding) and the HKS open filter intake with heat shield
Injen and Mishimoto intakes need bracket modification; the Armaspeed cold air intake and the full HKS cold air intake kit do not fit
Anodized finishes can fade over time from engine bay heat
See every Verus Engineering part for the A90 Toyota GR Supra
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Do I need the Verus resonator delete to install the Air Oil Separator for A90? Yes. Verus Engineering lists its Resonator Delete as a necessary component for the Air Oil Separator for A90, because removing the factory intake resonator frees the engine bay space the AOS needs. The billet aluminum resonator delete is sold separately and installs like a factory part.
Will the Verus AOS fit a 2.0 Supra? No. Verus Engineering designed the air oil separator for the B58 3.0 liter engine only, and it will not fit the four-cylinder 2.0 Supra. It suits every B58-powered A90 from 2020 onward, and Verus sells turbo heat shields for both the two-port and six-port manifold cars to pair with it.
Will the Verus AOS fit with my aftermarket intake? Yes, with several popular intakes. Verus Engineering confirms fitment with AMS and Eventuri intakes, the MST Performance intake when pushed forward, and the open filter HKS intake with heat shield. Injen and Mishimoto intakes need bracket modification, while the Armaspeed and full HKS cold air intake kits do not fit.
What is the difference between an air oil separator and a catch can? Many brands use the two names for the same job, which is stopping crankcase oil vapor from reaching the intake. The Verus unit separates oil with four 5-micron coalescent filters, baffles and stainless mesh, then holds it for draining through a petcock. Verus Engineering explains its view in a dedicated video.
Will the anodized color fade over time? Yes, it can. Verus Engineering notes that anodized parts may fade over time because of engine bay heat, whichever of the blue, black or red finishes is chosen. The fade is cosmetic, since the body is CNC machined from 6061-T6 aluminum with Mil-spec O-ring bosses and laser engraving.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
