Which Heat Shield and AOS Bundle fits my Supra?

This version of the Heat Shield and AOS Bundle fits only the 2020 GR Supra 3.0, the one year with a two-port exhaust manifold. Cars from 2021 onward have six ports, so Verus Engineering builds them their own bundle around a differently shaped shield. Neither bundle fits the four-cylinder 2.0 Supra.

Do I need to buy the resonator delete separately?

No. Verus Engineering includes its billet 6061-T6 resonator delete in the bundle, because the air oil separator needs the space the factory resonator occupies. The resonator delete also covers the opening left behind once the factory resonator comes out, which gives the finished engine bay a cleaner, more complete look.

What does the turbo heat shield do?

It covers the turbo manifold area of the B58 to improve heat rejection, reduce heat soak and tidy the look of the bay. Verus Engineering forms it from 2.0mm 304 stainless sheet, CNC laser cut and press brake formed, then coats it in black high-temperature Cerakote and fits it with stainless hardware.

Why fit an air oil separator to a B58?

Crankcase blow-by carries oil vapor into the intake, where it lowers effective octane and raises the risk of knock, power loss and carbon deposits on the intake valves. The Verus Engineering AOS strips that oil out with four 5-micron coalescent filters, baffling and stainless mesh, and large molded hoses keep pressure drop low.

Which aftermarket intakes work with the AOS in this bundle?

Several do, according to Verus Engineering. AMS and Eventuri intakes fit as they are, the MST Performance intake fits once moved forward with its bracket resting on rubber padding, and the HKS open filter intake with heat shield also works. Injen and Mishimoto need a modified bracket, and neither the Armaspeed nor the full HKS cold air intake kit will fit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Turbo Heat Shield and AOS Bundle for A90 Toyota GR Supra (2020)

Verus Engineering’s Turbo Heat Shield and AOS Bundle for the 2020 A90 Toyota GR Supra collects three parts that share one corner of the B58 engine bay: a turbo heat shield cut for the two-port exhaust manifold of 2020 cars, the Verus air oil separator and the billet resonator delete it needs. Model year decides the choice, since 2021 and later Supras carry a six-port manifold. For a 2020 3.0 owner already planning the AOS, it handles heat soak and crankcase oil in one job.

Heat Shield and AOS

The shield is 2.0mm 304 stainless sheet, CNC laser cut, press brake formed and finished in black high-temperature Cerakote, shaped from Verus scan data for an OE-like fit over the turbo manifold area, where it rejects heat and cuts heat soak. The separator traps oil from the crankcase gases with four 5-micron coalescent filters, baffling and stainless mesh before it can reach the intake and lower octane, and its 6061-T6 body is anodized in the color you choose.

Features

Shield cut for the 2020 two-port manifold
2.0mm 304 stainless in black high-temperature Cerakote
Four 5-micron coalescent filters, baffles and stainless mesh
Resonator delete covers the hole left by the factory resonator
Preformed silicone hoses

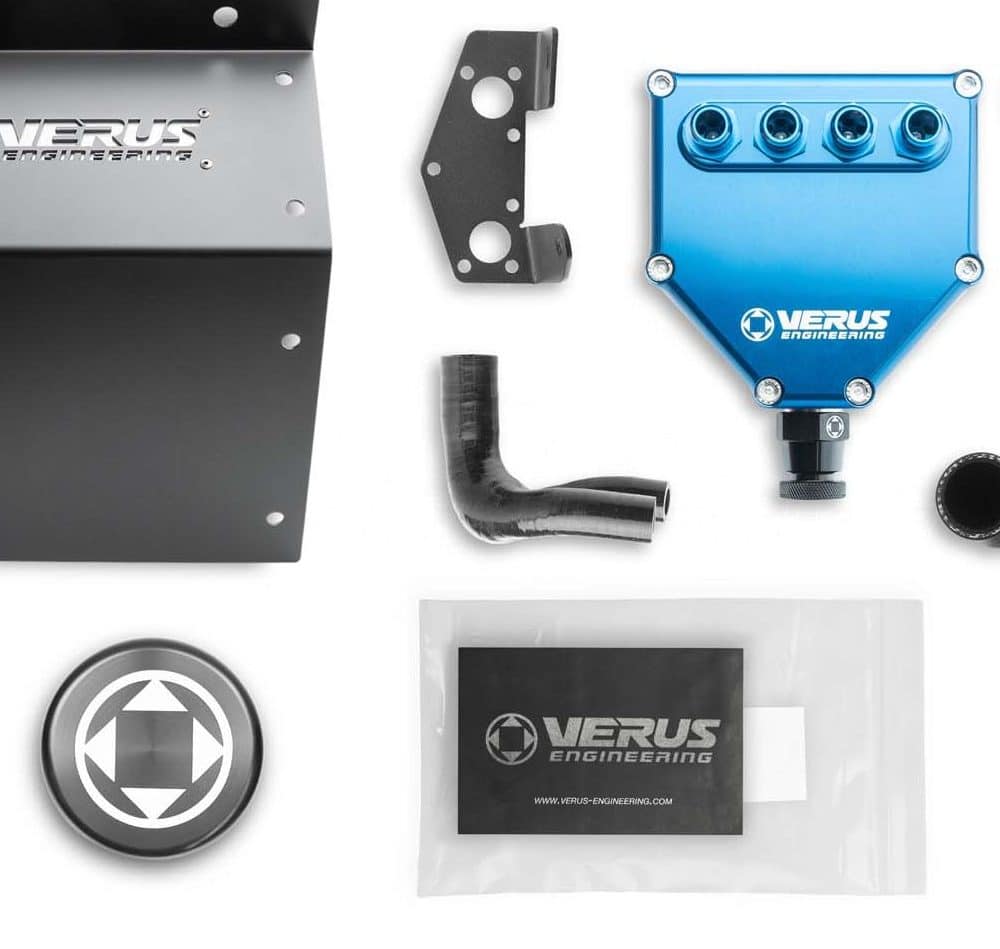

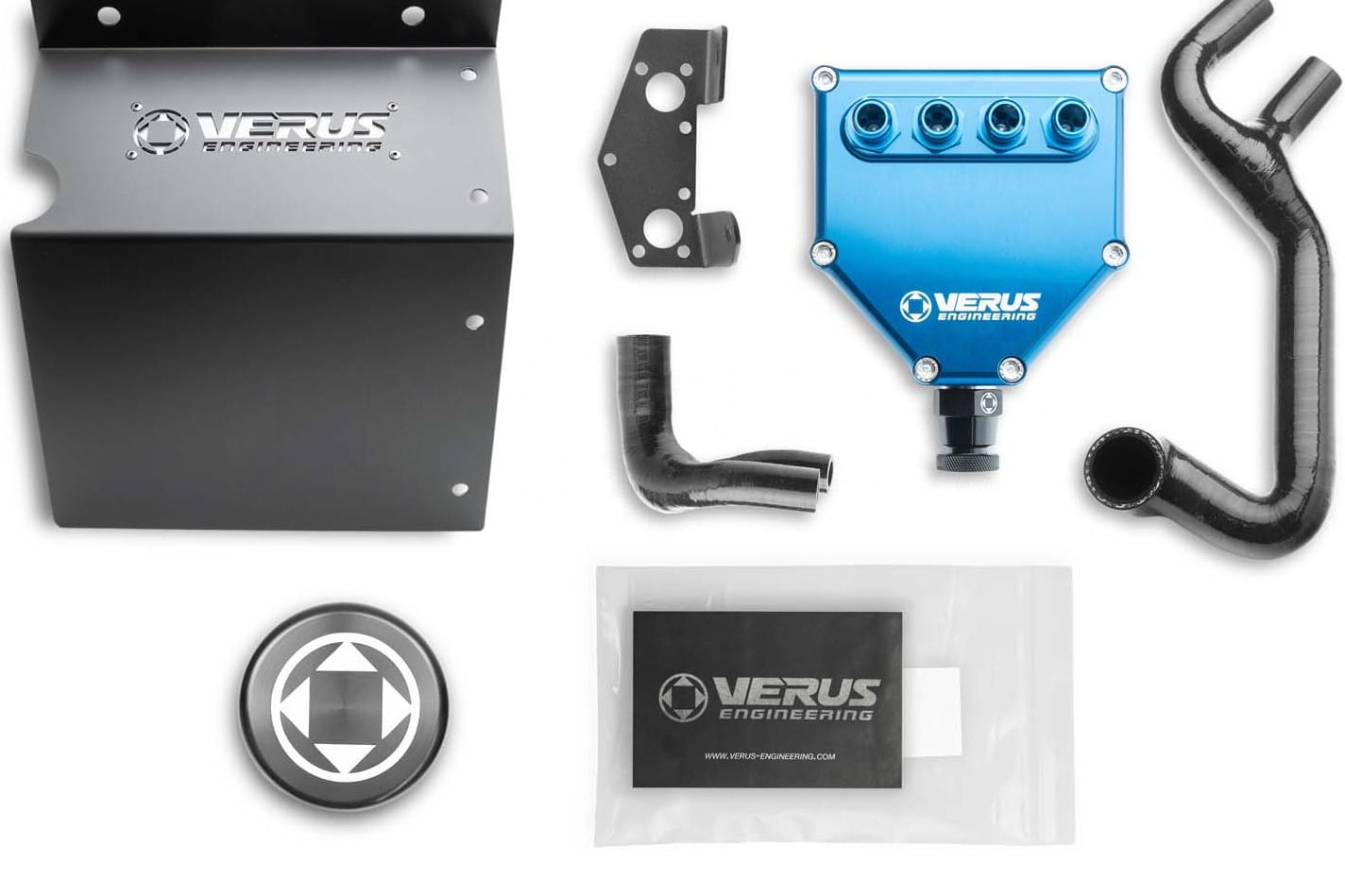

What’s Included

2-Port Turbo Heat Shield for the 2020 Supra, black Cerakote
Air Oil Separator for A90 Toyota GR Supra 3.0, in blue, black or red
Resonator Delete for A90 Toyota GR Supra

Applications

Toyota GR Supra: A90 | 2020 | 3.0L B58

Notes

Fits only 2020 GR Supras with the two-port manifold and the 3.0L engine; later cars need the Turbo Heat Shield and AOS Bundle for 2021 and later Supras
The AOS cannot be installed without the resonator delete, and this bundle includes it
The Heat Shield and AOS Bundle ships with a black Cerakote shield; only the AOS color is selectable
See every Verus Engineering part for the A90 Toyota GR Supra
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Which Heat Shield and AOS Bundle fits my Supra? This version of the Heat Shield and AOS Bundle fits only the 2020 GR Supra 3.0, the one year with a two-port exhaust manifold. Cars from 2021 onward have six ports, so Verus Engineering builds them their own bundle around a differently shaped shield. Neither bundle fits the four-cylinder 2.0 Supra.
Do I need to buy the resonator delete separately? No. Verus Engineering includes its billet 6061-T6 resonator delete in the bundle, because the air oil separator needs the space the factory resonator occupies. The resonator delete also covers the opening left behind once the factory resonator comes out, which gives the finished engine bay a cleaner, more complete look.
What does the turbo heat shield do? It covers the turbo manifold area of the B58 to improve heat rejection, reduce heat soak and tidy the look of the bay. Verus Engineering forms it from 2.0mm 304 stainless sheet, CNC laser cut and press brake formed, then coats it in black high-temperature Cerakote and fits it with stainless hardware.
Why fit an air oil separator to a B58? Crankcase blow-by carries oil vapor into the intake, where it lowers effective octane and raises the risk of knock, power loss and carbon deposits on the intake valves. The Verus Engineering AOS strips that oil out with four 5-micron coalescent filters, baffling and stainless mesh, and large molded hoses keep pressure drop low.
Which aftermarket intakes work with the AOS in this bundle? Several do, according to Verus Engineering. AMS and Eventuri intakes fit as they are, the MST Performance intake fits once moved forward with its bracket resting on rubber padding, and the HKS open filter intake with heat shield also works. Injen and Mishimoto need a modified bracket, and neither the Armaspeed nor the full HKS cold air intake kit will fit.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
