What comes in the Intake Full Kit for GZEA14H?

The Intake Full Kit for GZEA14H, part 70026-BT001, includes the HKS Carbon Racing Suction with its Super Power Flow filter and heat insulator, plus the dry carbon intake box, cover, upper duct, radiator cover duct, rain cover and US lower duct. HKS ships it in two boxes.

How much cooler does the intake run?

On the HKS circuit test at Fuji Speedway, average intake air temperature fell to 48°F with the full kit, against 71°F for the Carbon Racing Suction alone and 78°F for the stock intake, on a 42°F day. That is about 30°F below stock, and results in warmer weather will differ.

Should I buy the full kit or the box kit?

The full kit suits a GR Corolla on the factory intake, because it includes the Carbon Racing Suction. HKS built the box kit, 70026-BT002, as an upgrade for owners who already run the HKS Carbon Racing Suction, and it does not include the suction pipe or filter.

Can the GR Corolla be driven in the rain with this intake?

Yes. HKS supplies a rain cover that protects the filter from water coming through the front ducts, so the car can be driven in the rain. As with any intake, avoid standing water deep enough to reach the intake openings.

What should California owners know before installing this intake?

HKS publishes no CARB Executive Order number for part 70026-BT001. Bulletproof Automotive sells this intake kit for off-road and competition use where emissions laws apply, so owners in California and other inspection states should check local rules before fitting it to a street car.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

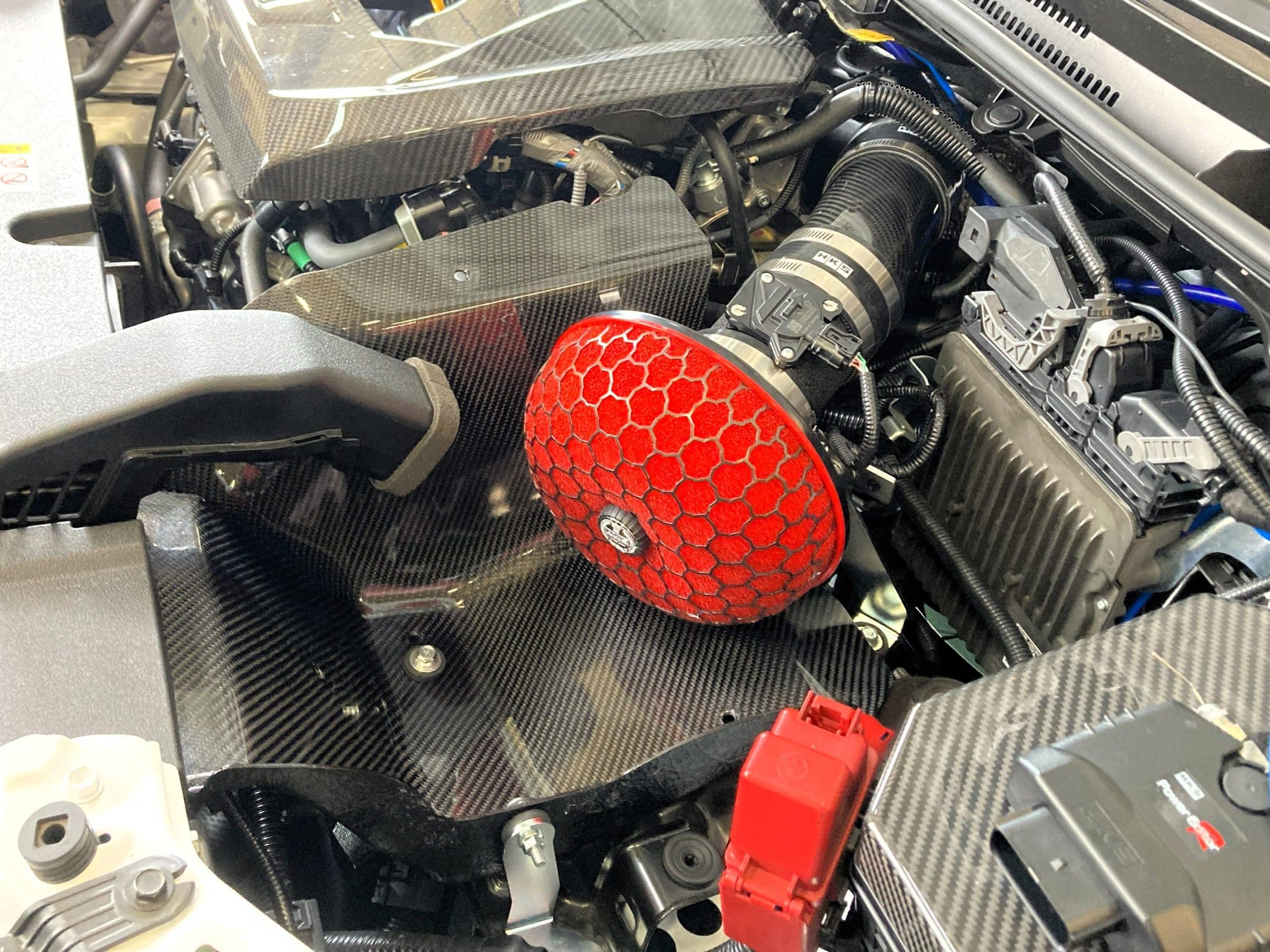

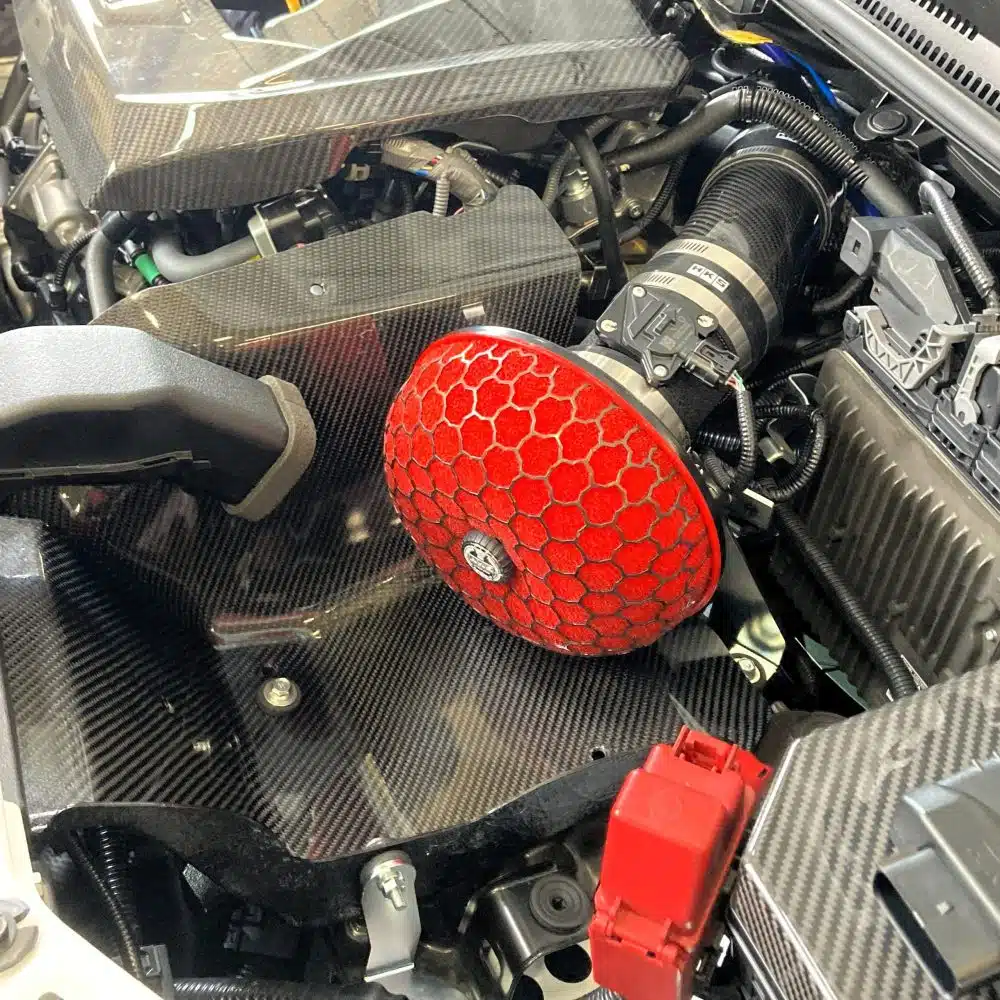

HKS Cold Air Intake Full Kit for GZEA14H Toyota GR Corolla

HKS’s Cold Air Intake Full Kit for GZEA14H Toyota GR Corolla combines the HKS Carbon Racing Suction with the dry carbon cold air intake box for the US-market GR Corolla, under part number 70026-BT001. The box closes the Super Power Flow filter off from the engine bay and feeds it through larger ducts, and in HKS testing it cut average intake air temperature by about 30°F against stock. For a GR Corolla still on its factory intake, this is the complete HKS package.

Development and Testing

HKS tested the Intake Full Kit for GZEA14H on a stock-engine GR Corolla Morizo Edition at Fuji Speedway, on a 42°F (5.8°C) day over four hard laps. Average intake air temperature was 48°F (8.9°C) with the full kit, against 71°F (21.8°C) with the Carbon Racing Suction alone and 78°F (25.4°C) on the stock intake. The car also ran an HKS LEGAMAX Sports exhaust and the stock engine control.

Features

HKS Carbon Racing Suction with a Super Power Flow filter and heat insulator
Dry carbon air cleaner box and cover, made by autoclave with a 3K twill surface and a gloss clear finish
High-capacity air cleaner upper duct and a duct built into the radiator cover
Rain cover that protects the filter from water through the front ducts
US-only lower duct shaped around the headlight backs of North American cars

Specifications

Kit Contents: HKS Carbon Racing Suction plus the dry carbon cold air intake box kit
Material: Dry carbon, autoclave cured, 3K twill
HKS Test Intake Temperature: 48°F (8.9°C) average, against 78°F (25.4°C) stock
Packaging: 2 boxes, 7.4lb (3.36kg) and 11.6lb (5.24kg), per HKS

Applications

Toyota GR Corolla: GZEA14H | 2023-2025 | G16E-GTS

Notes

The kit ships in two boxes, so expect two cartons for a single order
HKS designed and tested part 70026-BT001 for US-specification vehicles only
HKS intake temperatures come from a GR Corolla Morizo Edition at Fuji Speedway with an HKS LEGAMAX Sports exhaust; results vary with weather and setup
Owners who already run the HKS Carbon Racing Suction can add the HKS Cold Air Intake Box for GZEA14H, instead
This part is intended for off-road or competition use where emissions laws apply, and the buyer is responsible for checking local regulations before installing it on a street vehicle

Frequently Asked Questions

What comes in the Intake Full Kit for GZEA14H? The Intake Full Kit for GZEA14H, part 70026-BT001, includes the HKS Carbon Racing Suction with its Super Power Flow filter and heat insulator, plus the dry carbon intake box, cover, upper duct, radiator cover duct, rain cover and US lower duct. HKS ships it in two boxes.
How much cooler does the intake run? On the HKS circuit test at Fuji Speedway, average intake air temperature fell to 48°F with the full kit, against 71°F for the Carbon Racing Suction alone and 78°F for the stock intake, on a 42°F day. That is about 30°F below stock, and results in warmer weather will differ.
Should I buy the full kit or the box kit? The full kit suits a GR Corolla on the factory intake, because it includes the Carbon Racing Suction. HKS built the box kit, 70026-BT002, as an upgrade for owners who already run the HKS Carbon Racing Suction, and it does not include the suction pipe or filter.
Can the GR Corolla be driven in the rain with this intake? Yes. HKS supplies a rain cover that protects the filter from water coming through the front ducts, so the car can be driven in the rain. As with any intake, avoid standing water deep enough to reach the intake openings.
What should California owners know before installing this intake? HKS publishes no CARB Executive Order number for part 70026-BT001. Bulletproof Automotive sells this intake kit for off-road and competition use where emissions laws apply, so owners in California and other inspection states should check local rules before fitting it to a street car.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
