Which Turbo Heat Shield Kit for A90 fits a 2021 or newer Supra?

This six-port kit does. The 3.0 Supra B58 has carried a six-port exhaust manifold since the 2021 model year, and Verus Engineering shaped this shield around it. A 2020 car has a two-port manifold and needs its own Turbo Heat Shield Kit for A90, and neither version fits the four-cylinder 2.0 model.

Will the 6 port heat shield work with a Pure800 turbo?

Yes. Verus Engineering states this shield works with the Pure800 turbo upgrade, so a 2021 or later 3.0 Supra that has moved to that turbo can still run it. The covers bolt on over the turbine and manifold area with the supplied stainless hardware.

Does this kit come with the Verus air oil separator?

No. The box holds the Cerakote coated main cover, the side cover and a hardware kit. Verus Engineering offers a 2021 and later bundle that pairs this shield with its air oil separator and the resonator delete the separator needs, which suits an owner fitting all three during the same visit to the engine bay.

What does the heat shield change in the engine bay?

Verus Engineering lists three results: a better looking engine bay, better thermal properties and less heat soak. The covers trap heat at the turbo so less of it reaches the intake air, a gain that matters most on cars with an aftermarket intake.

Is the six-port heat shield difficult to install?

No. Verus Engineering describes it as a simple bolt-on install with stainless hardware from the supplied kit, and supports it with a written manual plus an install video. The covers are shaped from in-house scan data, so they sit the way factory parts do.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering 6 Port Turbo Heat Shield Kit for A90 Toyota GR Supra (2021-2026)

Verus Engineering’s 6 Port Turbo Heat Shield Kit for A90 Toyota GR Supra 3.0 models from 2021 onward is drawn around the six-port exhaust manifold the B58 has used since that model year, and Verus confirms it works with the Pure800 turbo upgrade. Fit it to a later Supra running an aftermarket intake, where heat soak is a real concern, including cars already on the Pure800; a 2020 car takes the two-port version instead.

Built From Scan Data

A main cover and a side cover shroud the turbine and manifold area, drawn from scan data captured in-house for an OE-like fit. The 2.0mm 304 stainless blanks are CNC laser cut, bent on a CNC press brake and coated in black high-temperature Cerakote. Verus lists the results as a better looking engine bay, improved thermal behavior and less heat soak.

Features

Covers the turbine and manifold area
Holds heat at the turbo to cut heat soak
2.0mm 304 stainless, laser cut and press brake formed
High-temperature black Cerakote coating
Bolts on with stainless fasteners

What’s Included

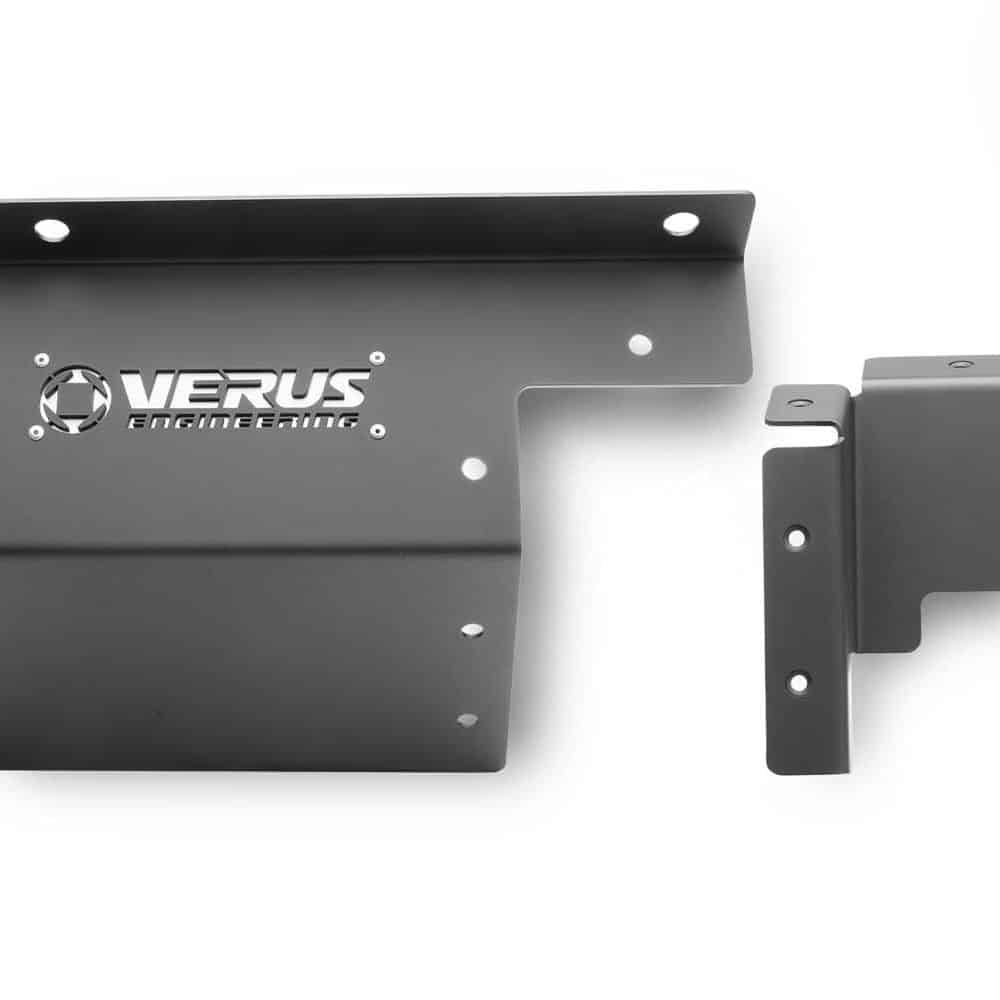

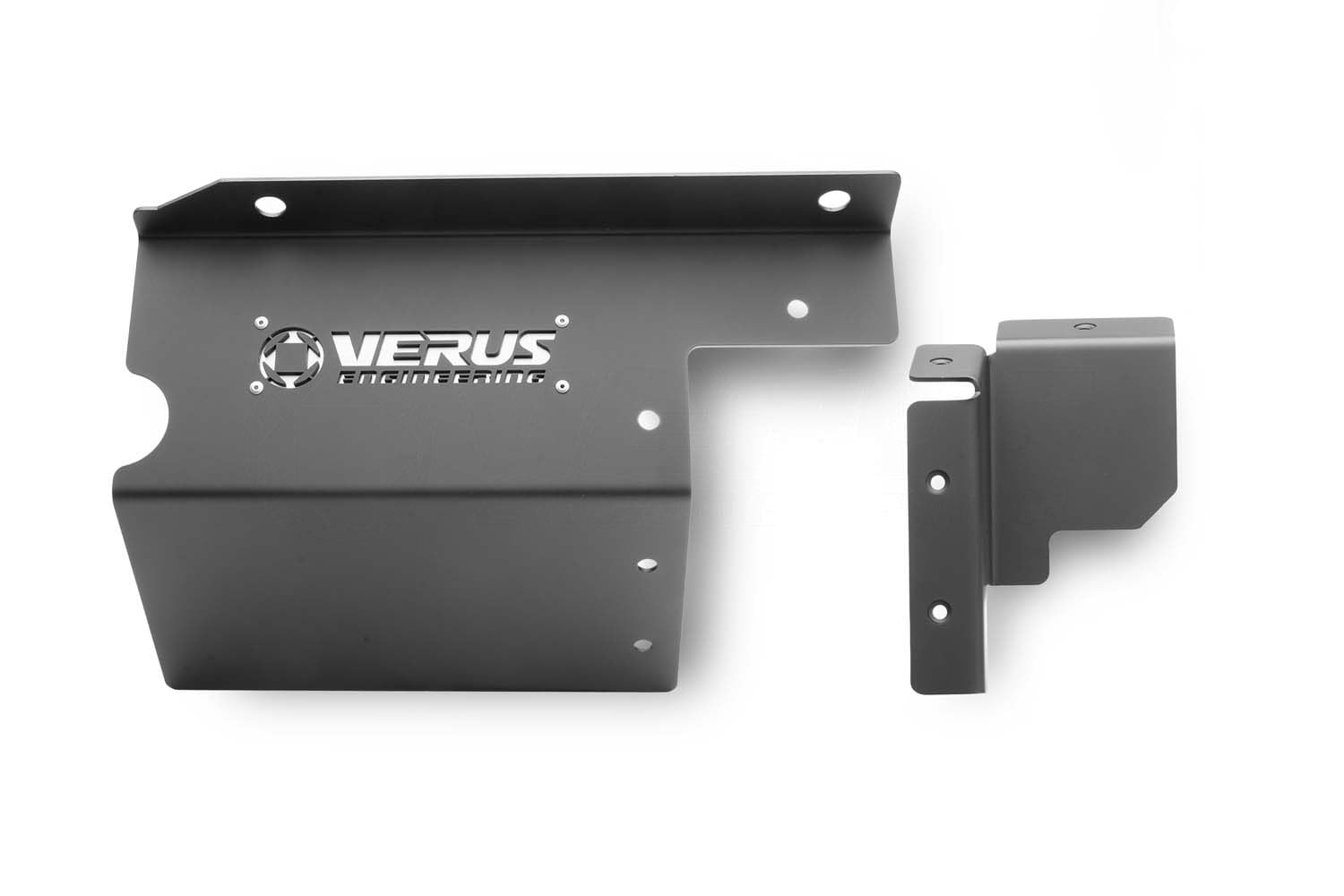

Main heat shield cover, Cerakote coated stainless
Side heat shield cover, Cerakote coated stainless
Hardware kit containing all install hardware

Applications

Toyota GR Supra: A90 | 2021-2026 | 3.0L B58

Notes

Built for 2021 and later GR Supra 3.0 cars with the six-port manifold; a 2020 car has the two-port manifold and takes the 2020 Turbo Heat Shield Kit for A90 Toyota GR Supra
Verus states the 6 Port Turbo Heat Shield Kit for A90 works with the Pure800 turbo upgrade
Not compatible with the four-cylinder 2.0 Supra; 3.0L B58 models only
Heat shield only: the Turbo Heat Shield and AOS Bundle for 2021 and later Supras packages it with the Verus AOS and the billet resonator delete
Verus recommends it with the Verus Engineering Air Oil Separator for A90 Toyota GR Supra 3.0, which installs only alongside the Resonator Delete
Bolt-on install; Verus provides an install manual and an install video
See every Verus Engineering part for the A90 Toyota GR Supra
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Which Turbo Heat Shield Kit for A90 fits a 2021 or newer Supra? This six-port kit does. The 3.0 Supra B58 has carried a six-port exhaust manifold since the 2021 model year, and Verus Engineering shaped this shield around it. A 2020 car has a two-port manifold and needs its own Turbo Heat Shield Kit for A90, and neither version fits the four-cylinder 2.0 model.
Will the 6 port heat shield work with a Pure800 turbo? Yes. Verus Engineering states this shield works with the Pure800 turbo upgrade, so a 2021 or later 3.0 Supra that has moved to that turbo can still run it. The covers bolt on over the turbine and manifold area with the supplied stainless hardware.
Does this kit come with the Verus air oil separator? No. The box holds the Cerakote coated main cover, the side cover and a hardware kit. Verus Engineering offers a 2021 and later bundle that pairs this shield with its air oil separator and the resonator delete the separator needs, which suits an owner fitting all three during the same visit to the engine bay.
What does the heat shield change in the engine bay? Verus Engineering lists three results: a better looking engine bay, better thermal properties and less heat soak. The covers trap heat at the turbo so less of it reaches the intake air, a gain that matters most on cars with an aftermarket intake.
Is the six-port heat shield difficult to install? No. Verus Engineering describes it as a simple bolt-on install with stainless hardware from the supplied kit, and supports it with a written manual plus an install video. The covers are shaped from in-house scan data, so they sit the way factory parts do.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
