Will the Turbo Heat Shield Kit for A90 from 2020 fit a 2021 or later Supra?

No. This version is shaped around the two-port exhaust manifold found only on 2020 GR Supra 3.0 cars. From the 2021 model year the B58 carries a six-port manifold, and Verus Engineering makes a separate 6 Port Turbo Heat Shield Kit for those cars. Contact us before ordering if you are unsure which manifold your car has.

Does this heat shield fit the 2.0 Supra?

No. Verus Engineering states the kit works only with 3.0L models, meaning the B58 inline six. The four-cylinder 2.0 Supra uses a different engine, so neither this shield nor the six-port version applies to it. Order this kit for a 2020 GR Supra 3.0.

Is the air oil separator included with this heat shield?

No. The Turbo Heat Shield Kit for A90 contains a main cover, a side cover and the hardware to fit them. Verus Engineering sells a 2020 bundle that adds the Verus AOS together with the machined resonator delete that the AOS requires, for owners planning all three parts at once.

How does a turbo heat shield help with an aftermarket intake?

Heat radiating from the turbo and exhaust manifold can warm the air on its way into the engine, which is what heat soak means. Verus Engineering covers that area with 2.0mm stainless to keep the heat around the turbo, and calls the shield a strong addition for any 2020 Supra running an aftermarket intake.

What is the 2020 Supra heat shield made from?

Both covers are 2.0mm thick 304 stainless steel sheet, CNC laser cut and formed on a CNC press brake, then coated in black high-temperature Cerakote. Verus Engineering supplies stainless hardware for a simple bolt-on install, with written and video instructions to follow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Turbo Heat Shield Kit for A90 Toyota GR Supra (2020)

Verus Engineering’s Turbo Heat Shield Kit for A90 Toyota GR Supra 3.0 cars from the 2020 model year covers the turbo and two-port exhaust manifold of the early B58 in 2.0mm 304 stainless steel, holding heat around the turbo instead of letting it spread through the bay. It earns its place on a 2020 car with an aftermarket intake, where heat soak is the problem to solve; with the factory intake, expect better heat rejection and a cleaner looking bay.

Construction and Fit

Verus shaped the main and side covers from in-house scan data for an OE-like fit, and the 304 stainless passes through a CNC laser and a CNC press brake before its black high-temperature Cerakote coat. Clearing out the factory resonator and heat shields frees room and tidies the bay, Verus notes, so the shield sits well beside its air oil separator.

Features

Wide coverage over the turbo and exhaust manifold area
Better heat rejection, less heat soak
Thick 2.0mm 304 stainless construction
Black high-temperature Cerakote finish
Stainless hardware for both covers

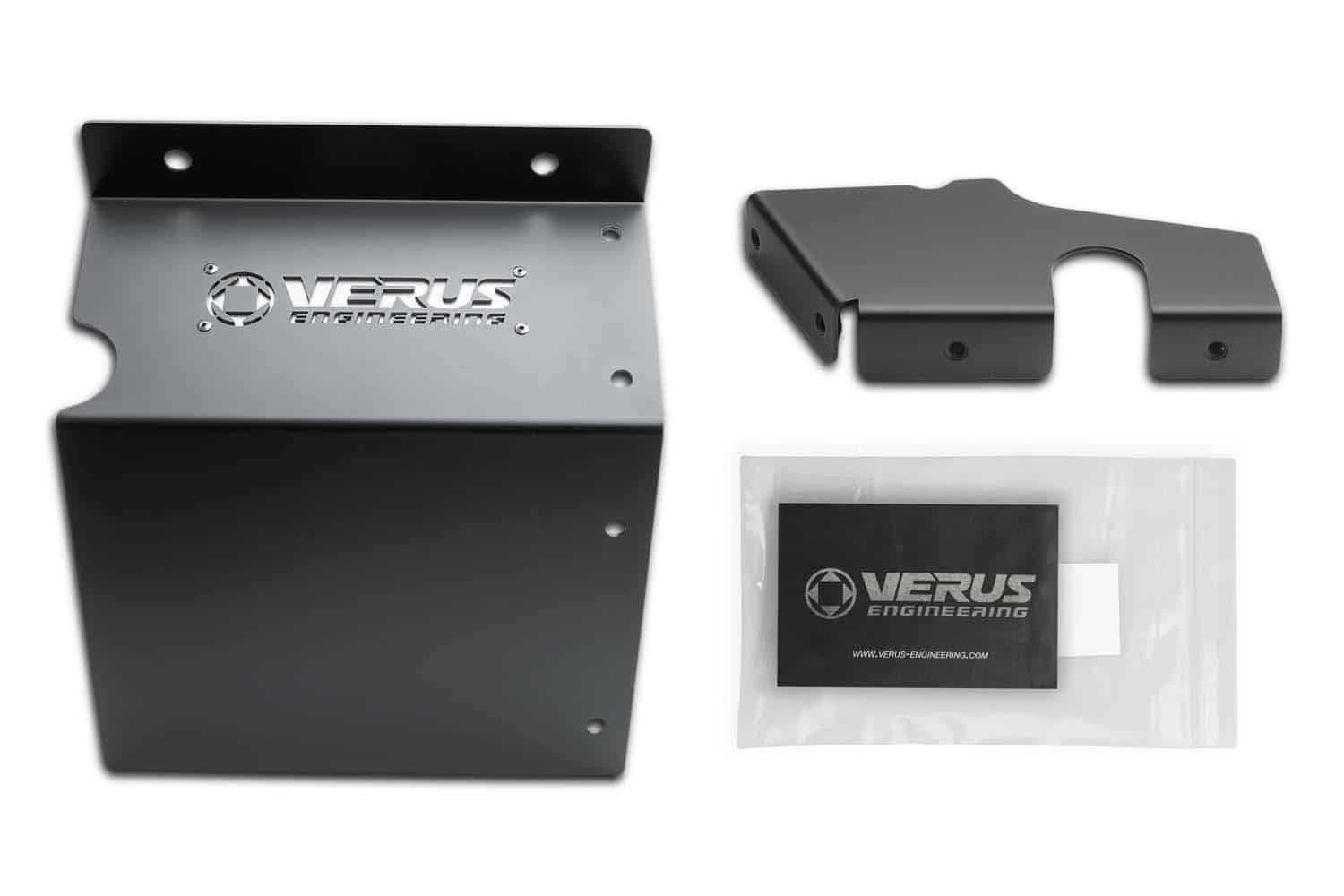

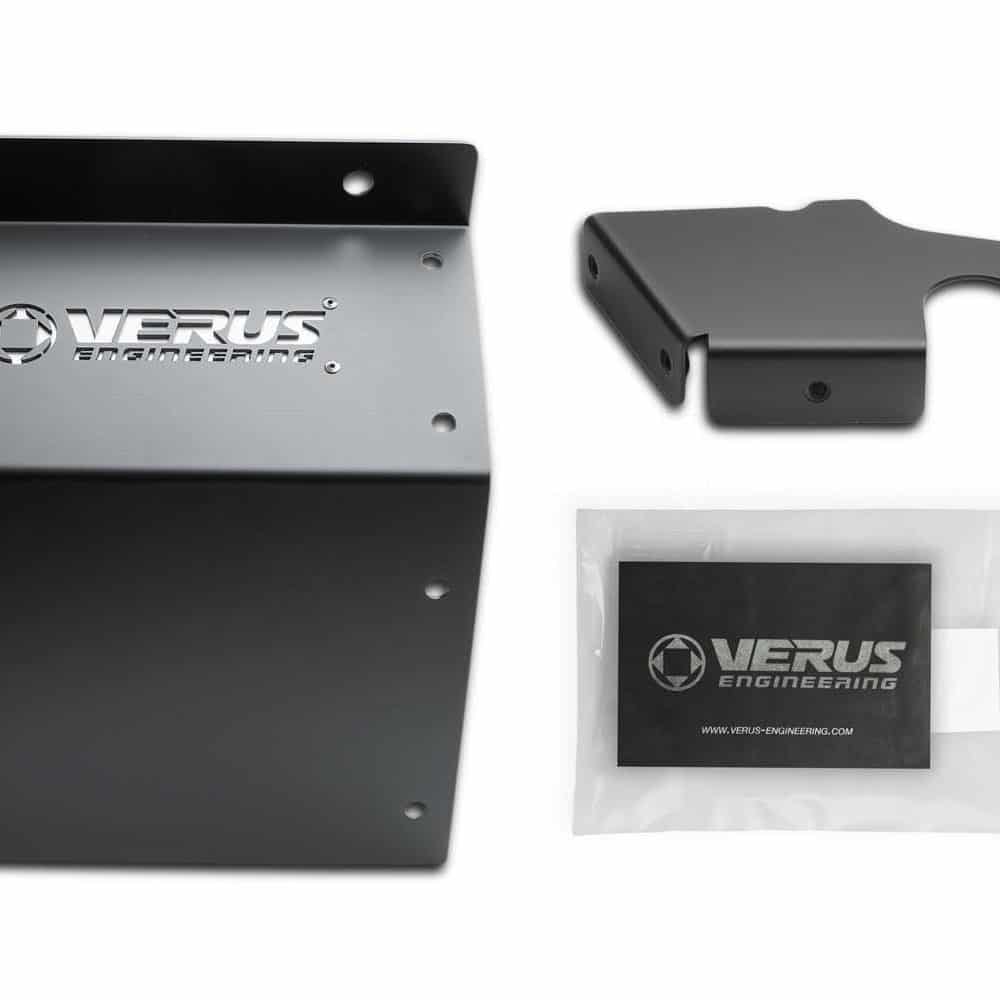

What’s Included

Cerakote coated stainless heat shield main cover
Cerakote coated stainless heat shield side cover
Hardware kit for the full install

Applications

Toyota GR Supra: A90 | 2020 | 3.0L B58

Notes

Fits only 2020 GR Supra 3.0 cars with the two-port exhaust manifold; 2021 and later cars have a six-port manifold and need the 6 Port Turbo Heat Shield Kit for A90 Toyota GR Supra
Made for the 3.0L B58 only; the four-cylinder 2.0 Supra is not covered
This Turbo Heat Shield Kit for A90 is the shield alone; the Turbo Heat Shield and AOS Bundle for the 2020 Supra adds the air oil separator and resonator delete
Verus recommends the shield alongside its Air Oil Separator for A90 Toyota GR Supra 3.0, which needs the Resonator Delete for A90 Toyota GR Supra to install
Simple bolt-on install with a Verus install manual and video
See every Verus Engineering part for the A90 Toyota GR Supra
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Will the Turbo Heat Shield Kit for A90 from 2020 fit a 2021 or later Supra? No. This version is shaped around the two-port exhaust manifold found only on 2020 GR Supra 3.0 cars. From the 2021 model year the B58 carries a six-port manifold, and Verus Engineering makes a separate 6 Port Turbo Heat Shield Kit for those cars. Contact us before ordering if you are unsure which manifold your car has.
Does this heat shield fit the 2.0 Supra? No. Verus Engineering states the kit works only with 3.0L models, meaning the B58 inline six. The four-cylinder 2.0 Supra uses a different engine, so neither this shield nor the six-port version applies to it. Order this kit for a 2020 GR Supra 3.0.
Is the air oil separator included with this heat shield? No. The Turbo Heat Shield Kit for A90 contains a main cover, a side cover and the hardware to fit them. Verus Engineering sells a 2020 bundle that adds the Verus AOS together with the machined resonator delete that the AOS requires, for owners planning all three parts at once.
How does a turbo heat shield help with an aftermarket intake? Heat radiating from the turbo and exhaust manifold can warm the air on its way into the engine, which is what heat soak means. Verus Engineering covers that area with 2.0mm stainless to keep the heat around the turbo, and calls the shield a strong addition for any 2020 Supra running an aftermarket intake.
What is the 2020 Supra heat shield made from? Both covers are 2.0mm thick 304 stainless steel sheet, CNC laser cut and formed on a CNC press brake, then coated in black high-temperature Cerakote. Verus Engineering supplies stainless hardware for a simple bolt-on install, with written and video instructions to follow.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
