J’s Racing Eventuri Turbo Tube for FL5 Honda Civic Type R

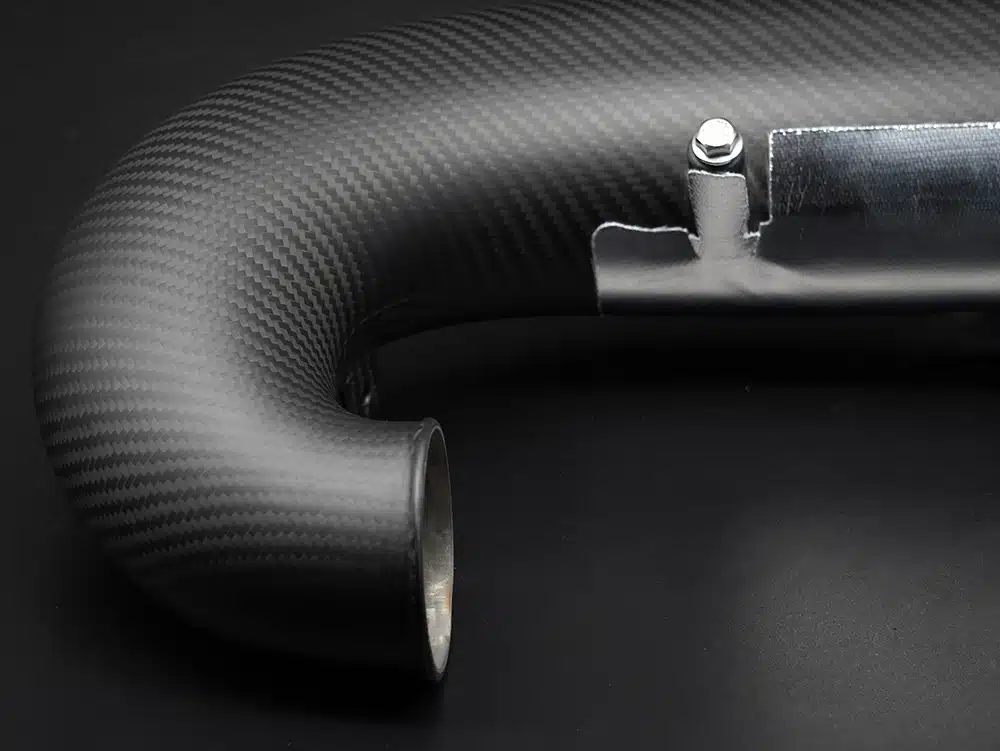

J’s Racing’s Eventuri Turbo Tube for FL5 Civic Type R cars is the second collaboration piece between the two companies, a carbon inlet tube for the turbocharger in the Osaka tuner’s own matte black finish. Its inner diameter grows from the stock 63mm to 88mm, opening the path into the turbo, and a highly heat-resistant silicone hose at the turbo joint limits heat transfer so intake air stays cooler. The carbon structure is also much lighter than the factory part. It only works with an Eventuri intake, so it suits FL5 owners completing that system rather than anyone keeping the stock airbox.

Design and Performance

J’s Racing explains why the tube matters. Intake air temperature affects charging efficiency and knock, so it has to be kept in check. The turbo compresses and heats the air before the intercooler cools it, and the cooler the air arriving at the turbo, the more effective the intercooler can be. The company quotes an output gain of up to about 15 PS, varying with specification and conditions.

Features

Inner diameter enlarged from the stock 63mm to 88mm
Heat-resistant silicone hose at the turbocharger joint
Lightweight carbon construction, far lighter than stock
Matte black finish exclusive to J’s Racing
Designed for the FL5 Civic Type R only

Applications

Honda Civic Type R: FL5 | 2023-present | 2.0L K20C1 turbo

Notes

Requires an Eventuri air intake, such as the J’s Racing Eventuri Carbon Intake for the FL5 Civic Type R, sold separately
The output gain of up to about 15 PS is J’s Racing’s own figure; it varies with car specification and environment, and the test setup is not published
Installation instructions come in Japanese
Shipped from Japan by J’s Racing USA; Bulletproof Automotive confirms whether it is in stock and the lead time when your order arrives

Frequently Asked Questions

Will it work with the factory airbox? No. The Eventuri Turbo Tube for FL5 cars is designed exclusively for use with an Eventuri air intake, so the factory airbox and other aftermarket intakes are not compatible. The matte carbon Eventuri intake from the same collaboration is sold separately and pairs directly with this tube.
What does the larger inner diameter do? Going from the stock 63mm to 88mm widens the passage the turbocharger draws through, which the manufacturer says improves intake efficiency substantially. Paired with the Eventuri intake, it completes a less restrictive route from the filter to the compressor of the K20C1 turbo engine.
How much power does the Eventuri Turbo Tube for FL5 add? The manufacturer quotes an increase of up to about 15 PS and notes that the result varies with the car specification and the environment. It does not publish the test setup, so treat the number as a ceiling rather than a promise, especially on a car that already has other intake or tuning changes.
Why does the silicone hose at the turbo matter? The turbocharger runs hot, and heat conducted through the joint warms the incoming air. A highly heat-resistant silicone hose at the connection suppresses that heat conduction, helping keep intake air temperature down, which the manufacturer links to better charging efficiency and resistance to knock.
Is the carbon tube lighter than the factory part? Yes. The manufacturer describes a significant weight reduction compared with the stock tube thanks to the carbon construction, though it does not publish a weight. The matte black finish is exclusive to the manufacturer and matches the matte carbon Eventuri intake from the same collaboration.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
