Which cars does the Tsuchinoko Air Intake for FD2 fit?

The Tsuchinoko Air Intake for FD2 is designed for the JDM FD2 Civic Type R sedan with the K20A engine, built from 2007 to 2010. It does not fit other Civic grades and may not fit the US-market FG Civic, so contact Bulletproof Automotive before ordering for any other car.

Can I keep my aftermarket hood or front bumper?

It depends. The kit suits the factory bumper and the TYPE-X sport grille and TYPE-S aero bumper from the same manufacturer. A hood from another brand with its own duct or vent may interfere with the intake duct, so check the underside of your hood first.

Should I choose the carbon or the FRP cover?

Both kits share the same FRP chamber box, intake panel, joints and metal duct hose. The carbon kit adds a carbon FRP cover with a wet carbon finish; the FRP kit has an FRP cover in clear black. No performance difference is described, so choose on looks.

How do I look after the filter?

The filter is a large-capacity element made from a special cotton material. When dirty it can be cleaned and refitted using the optional cleaning kit, sold separately, and replacement filters are offered too. Drain holes keep water from sitting around it.

Does the battery or hood stay have to be moved?

No. The Tsuchinoko Air Intake for FD2 takes air from the left side of the bumper grille, and the factory hood stay and battery stay in their original places. Self-locking nuts, bolts, tapping screws and gap tape are supplied for the installation.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

J’s Racing Tsuchinoko Air Intake for FD2 Honda Civic Type R

J’s Racing’s Tsuchinoko Air Intake for FD2 Civic Type R sedans took the Osaka Honda specialist half a year to develop, and it feeds the K20A with fresh air taken directly through a panel set into the left side of the front bumper grille. A metal duct hose carries that air into a 9000cc chamber box built around a large cotton filter, and J’s Racing says the result is a gain you can feel without giving up drivability or comfort. It suits an FD2 that is driven hard; owners with an aftermarket ducted hood should check clearance first.

Design and Performance

Air enters the chamber at the bottom, runs to the back, and is turned by the radiused side walls into the lower rear of the box, so it reaches the whole filter face. J’s Racing removed cross-section restrictions inside the chamber and gave the duct as much area as the space allows. Drain holes stop rainwater from pooling.

Features

9000cc chamber box shaped to spread intake air across the entire filter surface
Large-capacity filter made from a special cotton material
Intake panel draws fresh air through the left side of the bumper grille
Chamber box cover in carbon FRP with a wet carbon finish, or FRP in clear black

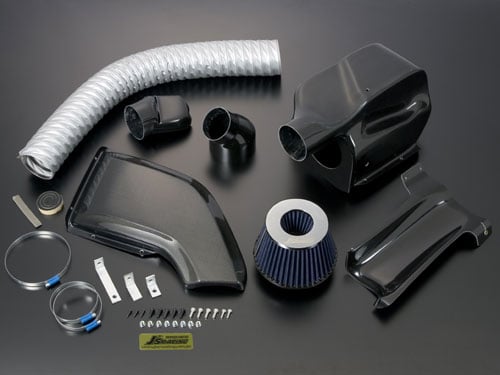

What’s Included

Air chamber box cover (carbon FRP or FRP, per option)
Air chamber box, FRP
Air intake panel, FRP
Air duct joint, FRP
Filter adapter joint, FRP
Metal duct hose
Self-locking nuts, bolts, tapping screws and gap tape

Applications

Honda Civic Type R: FD2 | 2007-2010 | 2.0L K20A

Notes

J’s Racing designs this part for the JDM FD2 Civic Type R sedan; it may not fit the US-market FG Civic
A replacement hood with its own duct or vent may interfere with the intake duct
Options: the Carbon kit adds a carbon FRP chamber box cover; every other part is FRP in both kits
The filter cleaning kit and replacement filters are sold separately
Each kit is made to order in Japan and sent via J’s Racing USA, and Bulletproof Automotive confirms its lead time after you order

Frequently Asked Questions

Which cars does the Tsuchinoko Air Intake for FD2 fit? The Tsuchinoko Air Intake for FD2 is designed for the JDM FD2 Civic Type R sedan with the K20A engine, built from 2007 to 2010. It does not fit other Civic grades and may not fit the US-market FG Civic, so contact Bulletproof Automotive before ordering for any other car.
Can I keep my aftermarket hood or front bumper? It depends. The kit suits the factory bumper and the TYPE-X sport grille and TYPE-S aero bumper from the same manufacturer. A hood from another brand with its own duct or vent may interfere with the intake duct, so check the underside of your hood first.
Should I choose the carbon or the FRP cover? Both kits share the same FRP chamber box, intake panel, joints and metal duct hose. The carbon kit adds a carbon FRP cover with a wet carbon finish; the FRP kit has an FRP cover in clear black. No performance difference is described, so choose on looks.
How do I look after the filter? The filter is a large-capacity element made from a special cotton material. When dirty it can be cleaned and refitted using the optional cleaning kit, sold separately, and replacement filters are offered too. Drain holes keep water from sitting around it.
Does the battery or hood stay have to be moved? No. The Tsuchinoko Air Intake for FD2 takes air from the left side of the bumper grille, and the factory hood stay and battery stay in their original places. Self-locking nuts, bolts, tapping screws and gap tape are supplied for the installation.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
