Does the HKS LEGAMAX Sports Exhaust for FL5 set a check engine light?

No. HKS supplies a dedicated actuator that replicates the factory valve mechanism, and the factory valve motor bolts to it and keeps moving as designed. HKS notes that on the FL5 a valve motor left idling or removed records fault codes in the OBD memory even though the check engine light stays off.

How much power does the LEGAMAX Sports Exhaust for FL5 add on its own?

Very little on its own, and HKS says so directly. The factory ECU manages output on a torque model, so flow alone does not move the peak. HKS measured 2kW and 3.7Nm on a Japan-market FL5 with the HKS Power Editor fitted. The real value is the 30 percent drop in exhaust pressure.

What is the exhaust made from?

S3 and S4L stainless steel through the system, with a titanium tail finished at 119mm carrying the HKS logo pressed into the face. The centre pipe measures 74.7mm and steps down to twin 60.5mm outlets. Total product weight is 18.5kg, which is light for a full stainless system of this diameter.

How loud is it compared to the factory exhaust?

HKS records 93dB at idle against 84dB for the factory system, so it is clearly louder standing still. Because the LEGAMAX Sports Exhaust for FL5 is valveless, the note does not switch character with throttle position the way the factory system does. HKS describes the result as clear and sporty rather than droning.

How does it compare to the HKS Hi-Power Muffler?

Both are valveless, both use a 74.7mm centre pipe stepping to twin 60.5mm outlets, and both drop exhaust pressure about 30 percent. The Hi-Power uses a bullet-shaped main silencer and lifts sound pressure across the whole frequency range, making it louder and more aggressive. This system is the more restrained of the two.

Does fitting require cutting or welding?

No cutting or welding is required. The kit uses the factory front under panel and mounts to the existing hangers. HKS ships it in two boxes because of its length, and the dedicated valve actuator installs in place of the factory valve assembly using the factory motor.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

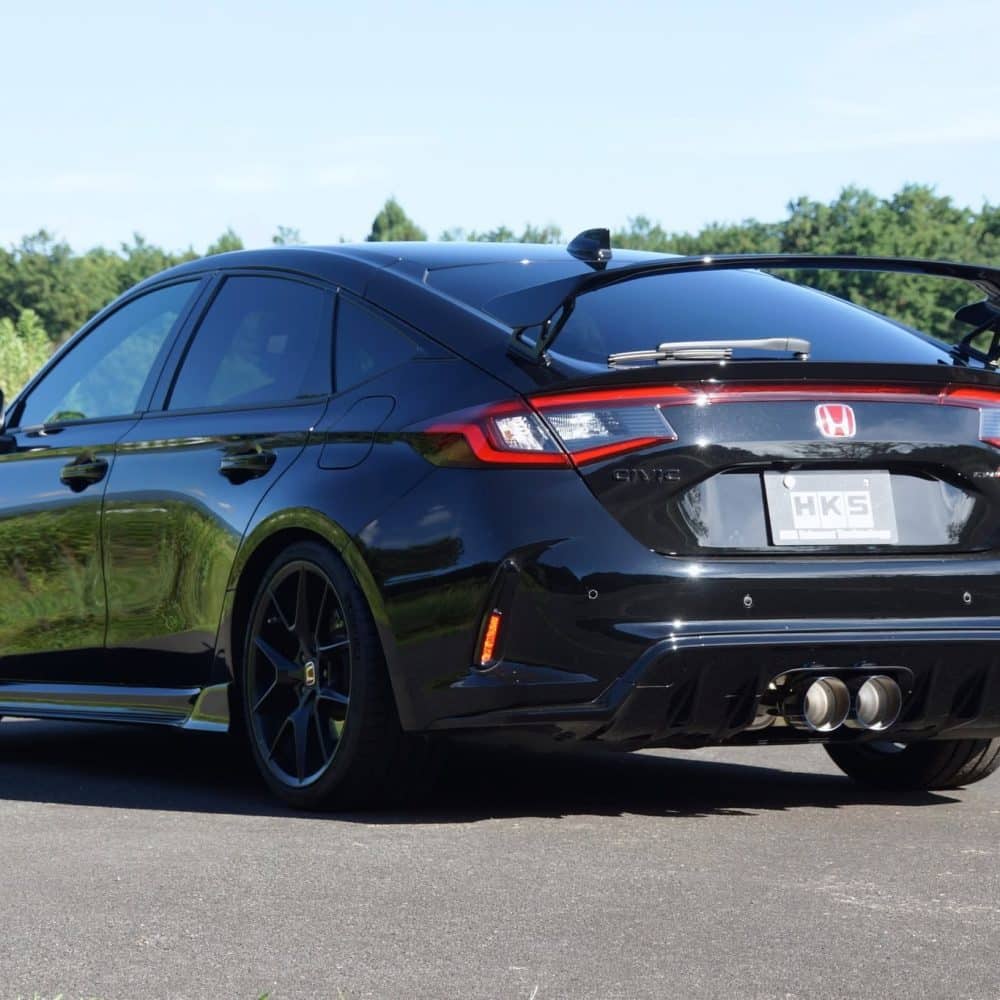

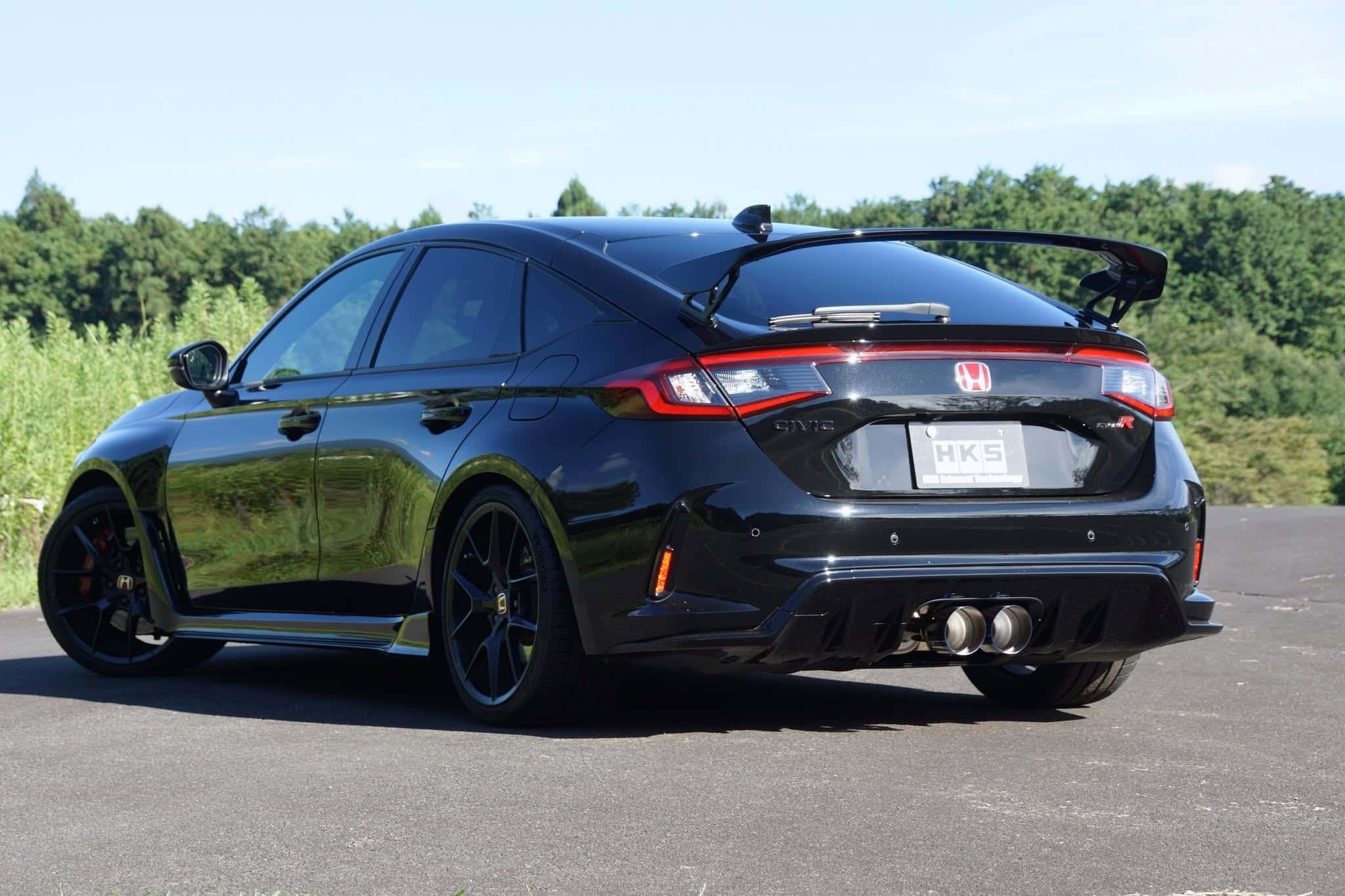

HKS LEGAMAX Sports Exhaust for FL5 Honda Civic Type R

HKS’s LEGAMAX Sports Exhaust for FL5 Honda Civic Type R answers the one thing the factory system holds back, which is flow. HKS removes the factory valve mechanism entirely and spends the volume it frees on a wider, genuinely straight path, dropping exhaust pressure by roughly 30 percent compared to the factory system. A 119mm titanium tail with the logo pressed into its face replaces the muted factory exit, and a dedicated actuator for the factory valve motor ships in the box so the car keeps its valve logic and records no fault codes. Built in S3 and S4L stainless with JQR type approval, it is the system HKS developed alongside its own FL5 programme.

Design and Performance

Removing the valves is what makes the gain possible. The factory pipe runs 60mm into twin 50mm sections with the valve shut and a single 60mm section with it open, while the LEGAMAX Sports Exhaust for FL5 runs 74.7mm into twin 60.5mm at every rpm. Because the factory ECU manages output on a torque model, flow alone will not move the peak far: HKS measured a gain of 2kW and 3.7Nm on a Japan-market FL5 with its own Power Editor fitted, and says plainly that raising boost from there is where the rest of the output sits. The note is clear and sporty across the range, with no valve mechanism left to colour it.

Features

Valveless full-straight layout; the space the factory valves occupied is given over to a larger pipe
Exhaust pressure roughly 30 percent lower than the factory system, measured by HKS
Titanium tail with the HKS logo pressed into the face
Dedicated actuator for the factory valve motor included, so the car records no fault codes once the valves are gone
The LEGAMAX Sports Exhaust for FL5 leaves flow headroom for a boost increase rather than arriving as a finished state

Specifications

Tail diameter: 119mm, titanium
Centre pipe diameter: 74.7mm stepping to 60.5mm x 2
Main material: S3 and S4L stainless steel
Product weight: 18.5kg
Minimum road clearance: 125mm (measured on factory suspension)
Noise level at idle: 93dB (factory system 84dB)
Certification: JQR30233117

What’s Included

HKS LEGAMAX Sports exhaust system
Dedicated actuator for the factory valve motor

Applications

Honda Civic Type R: FL5 | 2023-present | K20C

Notes

Ships in two boxes: 1000 x 820 x 330mm at 17.1kg, and 1520 x 460 x 320mm at 13.4kg
The included actuator replicates the factory valve mechanism so the factory motor still moves as designed. HKS notes that on the FL5 a motor left idling or removed records fault codes even though the check engine light does not illuminate.
The HKS Power Editor for the FL5 (part number 42018-AH013) is what turns this flow gain into output, and Bulletproof Automotive does not currently stock it. Read the 2kW figure as what HKS measured with that device fitted, not as a bolt-on result.
Output and sound figures were recorded by HKS on a Japan-market FL5, which leaves the factory with a different output rating from the US car
The LEGAMAX Sports Exhaust for FL5 is also sold as part of the HKS LEGAMAX Sports and Hipermax R Package for FL5 Honda Civic Type R 99999-BH001
For a fuller, more aggressive note on the same chassis, compare the HKS Hi-Power Muffler for FL5 Honda Civic Type R 31006-KH001
Browse the full HKS range on Bulletproof Automotive

Frequently Asked Questions

Does the HKS LEGAMAX Sports Exhaust for FL5 set a check engine light? No. HKS supplies a dedicated actuator that replicates the factory valve mechanism, and the factory valve motor bolts to it and keeps moving as designed. HKS notes that on the FL5 a valve motor left idling or removed records fault codes in the OBD memory even though the check engine light stays off.
How much power does the LEGAMAX Sports Exhaust for FL5 add on its own? Very little on its own, and HKS says so directly. The factory ECU manages output on a torque model, so flow alone does not move the peak. HKS measured 2kW and 3.7Nm on a Japan-market FL5 with the HKS Power Editor fitted. The real value is the 30 percent drop in exhaust pressure.
What is the exhaust made from? S3 and S4L stainless steel through the system, with a titanium tail finished at 119mm carrying the HKS logo pressed into the face. The centre pipe measures 74.7mm and steps down to twin 60.5mm outlets. Total product weight is 18.5kg, which is light for a full stainless system of this diameter.
How loud is it compared to the factory exhaust? HKS records 93dB at idle against 84dB for the factory system, so it is clearly louder standing still. Because the LEGAMAX Sports Exhaust for FL5 is valveless, the note does not switch character with throttle position the way the factory system does. HKS describes the result as clear and sporty rather than droning.
How does it compare to the HKS Hi-Power Muffler? Both are valveless, both use a 74.7mm centre pipe stepping to twin 60.5mm outlets, and both drop exhaust pressure about 30 percent. The Hi-Power uses a bullet-shaped main silencer and lifts sound pressure across the whole frequency range, making it louder and more aggressive. This system is the more restrained of the two.
Does fitting require cutting or welding? No cutting or welding is required. The kit uses the factory front under panel and mounts to the existing hangers. HKS ships it in two boxes because of its length, and the dedicated valve actuator installs in place of the factory valve assembly using the factory motor.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
