Does the AFlow Catted Downpipe for N55 need a tune?

No. Active Autowerke states that the AFlow Catted Downpipe for N55 cars runs on factory software, and its guarantee against catalyst efficiency codes applies without a tune. A tune can make more of the freer flow, but the downpipe does not depend on one.

Will the downpipe set a check engine light?

Active Autowerke guarantees that the AFlow converter will not set a catalyst efficiency code during the first two years of ownership, and replaces it in full if it does. Light-off happens within 9 seconds of startup, so the rear oxygen sensor sees an active catalyst early in every drive.

Which N55 cars does it fit?

Active Autowerke lists the F22 and F23 M235i, the F30 335i, the F32, F33 and F36 435i and the F87 M2, built from 09/2013 onward to US specification. The S55-engined M2 Competition uses a twin downpipe layout and takes its own part.

What is the difference between the AFlow and GESI N55 downpipes?

Both use the same 3.5 inch stainless pipework. The AFlow version carries an Active AFlow converter rated up to 800 horsepower, with a two-year replacement guarantee against efficiency codes. The GESI version carries a GESI G-Sport UHO converter rated from 500 to 850 horsepower and costs more.

How hard is the downpipe to install?

It bolts into the factory location with no cutting or welding, and the 3.5 inch pipe clears the stock mounting points despite its larger section. A lift or tall stands make the job far easier, and the factory downpipe can be kept for refitting later.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

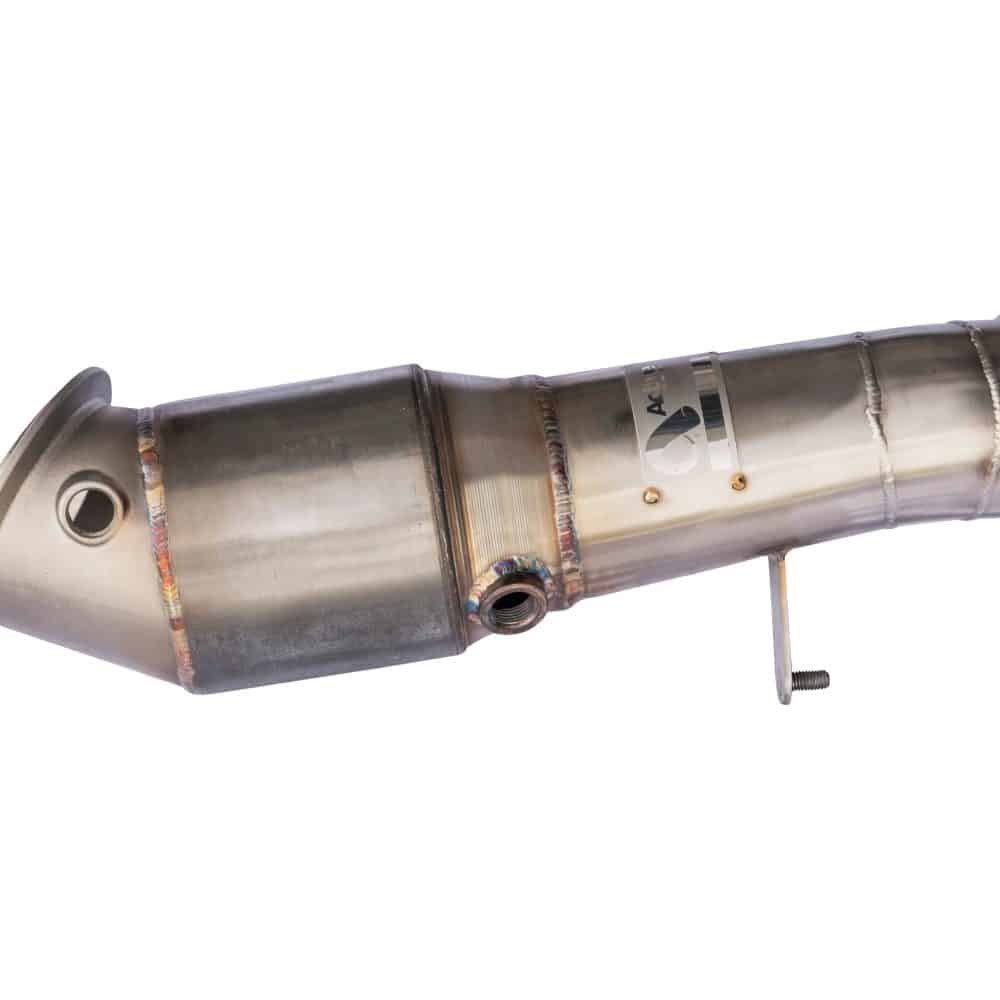

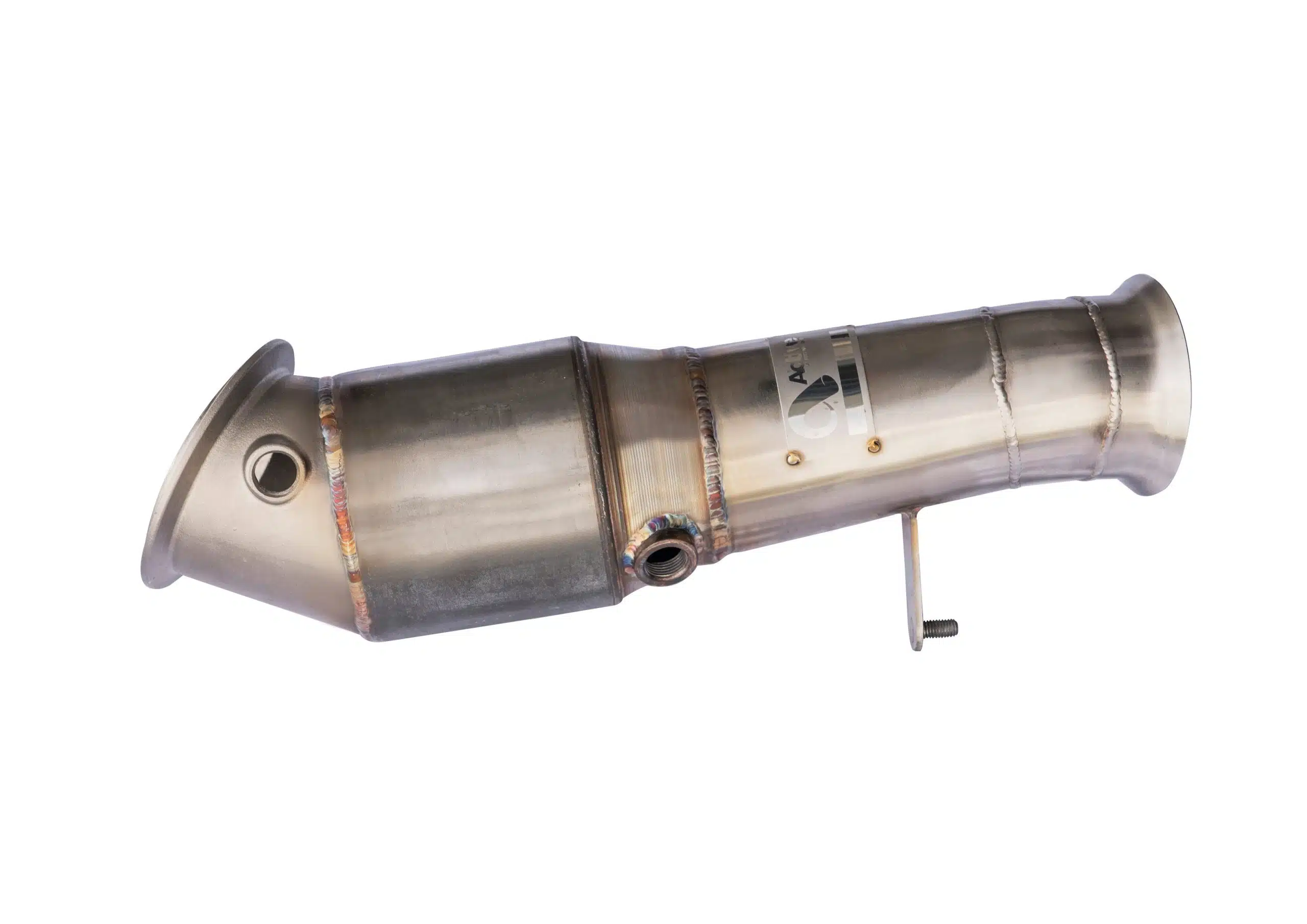

Active Autowerke AFlow Catted Downpipe for N55 BMW M235i, 335i, 435i and M2

Active Autowerke’s AFlow Catted Downpipe for N55 BMW M235i, 335i, 435i and M2 replaces the factory downpipe with a 3.5 inch stainless run carrying a 4.5 inch Active AFlow converter, so spent gas clears the turbine sooner and boost arrives faster while the car keeps a working catalyst. Each one is TIG welded from 304 stainless in Miami, Florida, around a converter core that is itself a stainless substrate furnace brazed to its mantle. On factory software or a mild tune this is the sensible N55 choice; owners building toward big turbo numbers may prefer the GESI Catted Downpipe for N55 and its 500 to 850 horsepower converter.

Design and Performance

Turbo shaft speed is limited by back pressure downstream of the turbine, so Active Autowerke chose 3.5 inch tubing with the fewest bends practical. Even at that size the pipe drops into the factory location, and its modular layout leaves room for later exhaust changes behind it.

Features

Active AFlow high flow converter with a 304 stainless substrate furnace brazed to the mantle
EPA registered and OBD2 compliant converter
Two-year guarantee against catalyst efficiency check engine lights, with full replacement
No performance tune needed
TIG welded 304 stainless steel throughout
Bolt-on installation with no cutting or welding
Made in Miami, Florida

Specifications

Piping diameter: 3.5 in
Wall thickness: 1.5mm
Converter diameter: 4.5 in
Catalyst cell density: 400 cpsi
Rated output: Up to 800 hp
Heat tolerance: Up to 1500F
Light-off time: Within 9 seconds of startup

Applications

BMW 335i: F30 | 2014-2015 | 3.0L N55
BMW 435i: F32 / F33 / F36 | 2014-2016 | 3.0L N55
BMW M2: F87 | 2016-2018 | 3.0L N55
BMW M235i: F22 / F23 | 2014-2016 | 3.0L N55

Notes

The AFlow Catted Downpipe for N55 fits US-specification F-chassis N55 cars built from 09/2013 onward
The S55-powered M2 Competition takes the AFlow Catted Downpipes for F87 M2 Competition
Warranty is 5 years or 50,000 miles on the shell and 2 years or 25,000 miles on the catalytic core, to the original purchaser, and is void on a car tuned for more burble than stock
Pairs with the Gen 2 N55 Valved Rear Exhaust for F30 and F32, the Gen 2 Valved Rear Exhaust for F22 M235i and the Charge Pipe for N55 F-chassis cars

Frequently Asked Questions

Does the AFlow Catted Downpipe for N55 need a tune? No. Active Autowerke states that the AFlow Catted Downpipe for N55 cars runs on factory software, and its guarantee against catalyst efficiency codes applies without a tune. A tune can make more of the freer flow, but the downpipe does not depend on one.
Will the downpipe set a check engine light? Active Autowerke guarantees that the AFlow converter will not set a catalyst efficiency code during the first two years of ownership, and replaces it in full if it does. Light-off happens within 9 seconds of startup, so the rear oxygen sensor sees an active catalyst early in every drive.
Which N55 cars does it fit? Active Autowerke lists the F22 and F23 M235i, the F30 335i, the F32, F33 and F36 435i and the F87 M2, built from 09/2013 onward to US specification. The S55-engined M2 Competition uses a twin downpipe layout and takes its own part.
What is the difference between the AFlow and GESI N55 downpipes? Both use the same 3.5 inch stainless pipework. The AFlow version carries an Active AFlow converter rated up to 800 horsepower, with a two-year replacement guarantee against efficiency codes. The GESI version carries a GESI G-Sport UHO converter rated from 500 to 850 horsepower and costs more.
How hard is the downpipe to install? It bolts into the factory location with no cutting or welding, and the 3.5 inch pipe clears the stock mounting points despite its larger section. A lift or tall stands make the job far easier, and the factory downpipe can be kept for refitting later.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
