Does the Charge Pipe for F30 335i fit xDrive cars?

No. Active Autowerke states that the Charge Pipe for F30 BMW 335i, F32 435i, F22 M235i and F87 M2 is not compatible with xDrive models. It is built for the rear-drive cars, and the F87 M2 was only offered in rear-drive form. Active Autowerke makes a separate charge pipe for xDrive N55 cars.

Can a blow-off valve be added to this N55 charge pipe?

No. Unlike the N54 before it, the N55 has no external diverter valves on the charge pipe. Its diverter valves are built into the turbo compressor housings, so Active Autowerke gives this pipe no flange or provision for a larger blow-off valve. The factory valves continue to do that job.

What happens when the factory N55 charge pipe cracks?

The factory N55 pipe is all plastic, and when it splits at a seam the engine computer detects a large air leak and switches to limp mode. The car then feels flat, much like an engine running on a misfiring cylinder, until the pipe is replaced. Active Autowerke treats the failure as a question of when, not if.

Which factory parts are reused during installation?

The factory throttle clip and O-ring are not supplied, so both come off the original pipe and go onto the new one. The machined throttle body end is shaped to seal on that factory O-ring. Silicone couplers and stainless clamps for the other connections are supplied with the pipe.

What are the two threaded ports on the pipe for?

They are mounting points for water methanol injection nozzles. Active Autowerke notes that the N55 otherwise offers no reliable place to fit them. The raised boss sits upstream so the spray can atomize before reaching the engine, and the threads are depth-checked so the nozzle pattern is not clipped.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

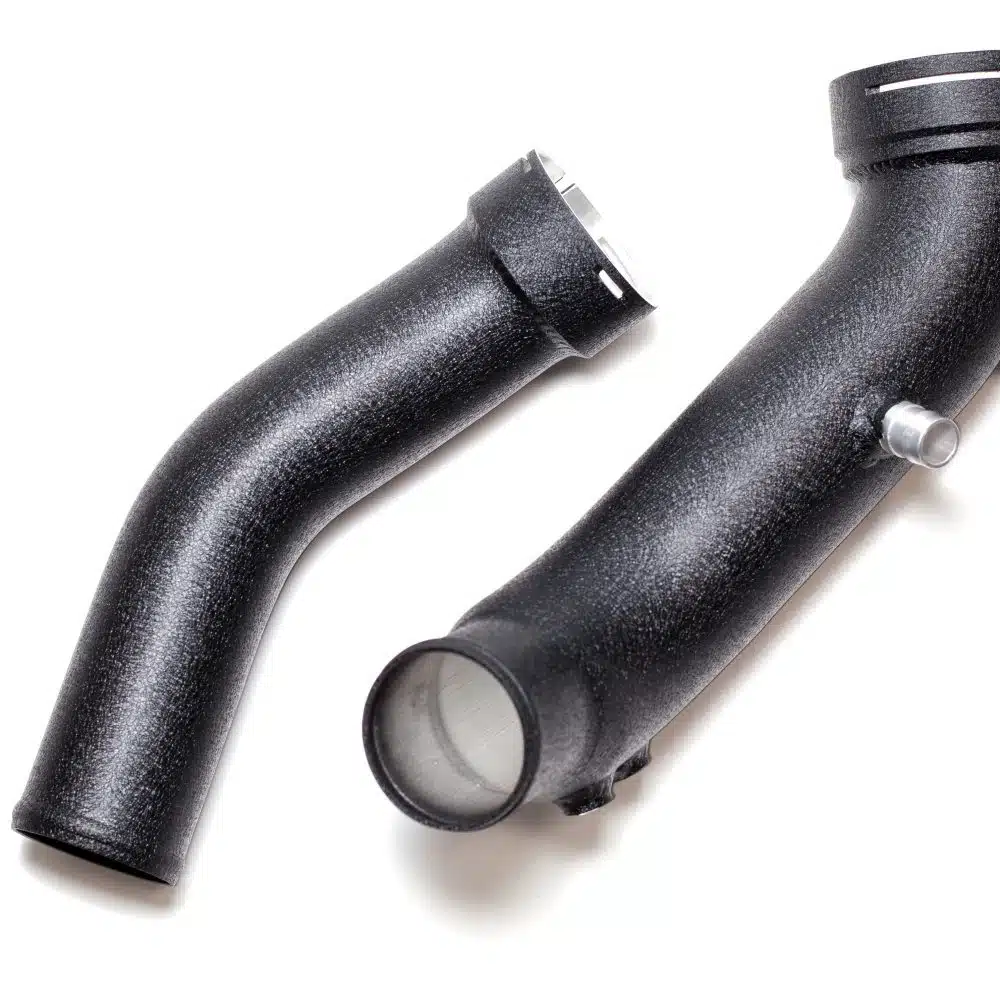

Active Autowerke Charge Pipe for F30 BMW 335i, F32 435i, F22 M235i and F87 M2

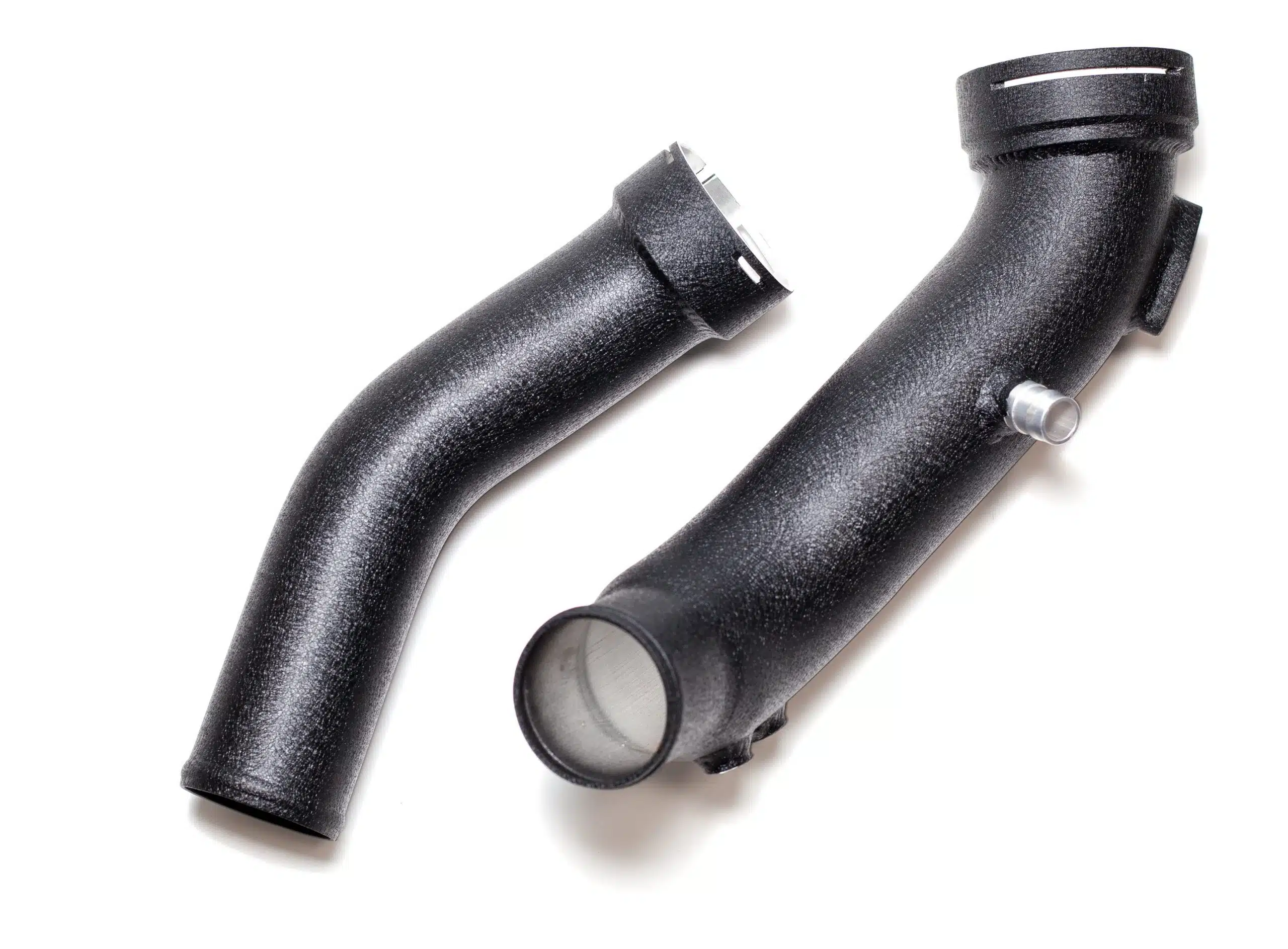

Active Autowerke’s Charge Pipe for F30 BMW 335i, F32 435i, F22 M235i and F87 M2 answers the most predictable failure on the N55: a plastic factory pipe that Active Autowerke expects to crack sooner or later, even at stock boost. The replacement is aluminum throughout, with a CNC machined throttle body end that reproduces the factory shape and seals on the original O-ring. Two threaded nozzle ports on a raised boss leave it ready for water methanol injection. On any N55 car that has been tuned, or soon will be, fitting it is maintenance done ahead of time instead of a repair at the roadside.

Features

Aluminum pipe in place of the plastic N55 original
Throttle body housing CNC machined to duplicate the factory piece
Seals on the factory BMW O-ring
Two water methanol nozzle ports on a raised boss, set upstream so the mix atomizes
Nozzle thread depths checked to keep the spray pattern clear of the bore
Constant tube diameter along the full run
Black powder coat that looks at home in a BMW engine bay
Silicone couplers and stainless clamps in the kit

Applications

BMW 335i: F30 | 2012-2015 | 3.0L N55
BMW 435i: F32 | 2014-2016 | 3.0L N55
BMW M2: F87 | 2016-2018 | 3.0L N55
BMW M235i: F22 | 2014-2016 | 3.0L N55

Notes

The Charge Pipe for F30 BMW 335i, F32 435i, F22 M235i and F87 M2 does not fit xDrive models, for which Active Autowerke makes a separate xDrive charge pipe
The factory throttle clip and O-ring are not included. Both move across from the original pipe.
The N55 carries its diverter valves inside the turbo compressor housings, so this pipe has no blow-off valve provision
Pairs with the Active Autowerke AFlow Catted Downpipe for N55 and GESI Catted Downpipe for N55

Frequently Asked Questions

Does the Charge Pipe for F30 335i fit xDrive cars? No. Active Autowerke states that the Charge Pipe for F30 BMW 335i, F32 435i, F22 M235i and F87 M2 is not compatible with xDrive models. It is built for the rear-drive cars, and the F87 M2 was only offered in rear-drive form. Active Autowerke makes a separate charge pipe for xDrive N55 cars.
Can a blow-off valve be added to this N55 charge pipe? No. Unlike the N54 before it, the N55 has no external diverter valves on the charge pipe. Its diverter valves are built into the turbo compressor housings, so Active Autowerke gives this pipe no flange or provision for a larger blow-off valve. The factory valves continue to do that job.
What happens when the factory N55 charge pipe cracks? The factory N55 pipe is all plastic, and when it splits at a seam the engine computer detects a large air leak and switches to limp mode. The car then feels flat, much like an engine running on a misfiring cylinder, until the pipe is replaced. Active Autowerke treats the failure as a question of when, not if.
Which factory parts are reused during installation? The factory throttle clip and O-ring are not supplied, so both come off the original pipe and go onto the new one. The machined throttle body end is shaped to seal on that factory O-ring. Silicone couplers and stainless clamps for the other connections are supplied with the pipe.
What are the two threaded ports on the pipe for? They are mounting points for water methanol injection nozzles. Active Autowerke notes that the N55 otherwise offers no reliable place to fit them. The raised boss sits upstream so the spray can atomize before reaching the engine, and the threads are depth-checked so the nozzle pattern is not clipped.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
