Do I need a tune with the GESI Catted Downpipe for N55?

No. Active Autowerke sells the GESI Catted Downpipe for N55 as a part that needs no performance tune. Its higher converter rating matters most once the engine is tuned or carries a larger turbo, which is where the GESI unit earns its price over the AFlow version.

Will the GESI downpipe cause a check engine light?

Active Autowerke states that this downpipe will not produce a catalyst efficiency code. The GESI converter uses a 400 cell metallic substrate with proprietary precious metal loading and reaches operating efficiency within 9 seconds of startup, so the downstream sensor reads a working catalyst early.

Why choose GESI over AFlow on an N55?

Choose GESI when power is the priority. Its UHO converter is rated from 500 to 850 horsepower against up to 800 for the AFlow, and Active Autowerke positions it for high output forced induction builds. The AFlow version costs less and carries a written two-year replacement guarantee against efficiency codes.

Does it fit the M2 Competition?

No. This downpipe fits the N55-powered F87 M2 built from 2016 to 2018. The M2 Competition uses the twin-turbo S55 engine instead, which takes a separate pair of Active Autowerke catted downpipes shared with the F80 M3 and F82 M4.

What is the downpipe made from?

The tubing is 304 stainless steel with a 1.5mm wall, TIG welded in Miami, Florida. The GESI converter body and its substrate are 304 stainless as well, with the substrate furnace brazed to the mantle, so the catalyst core is metal rather than ceramic.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

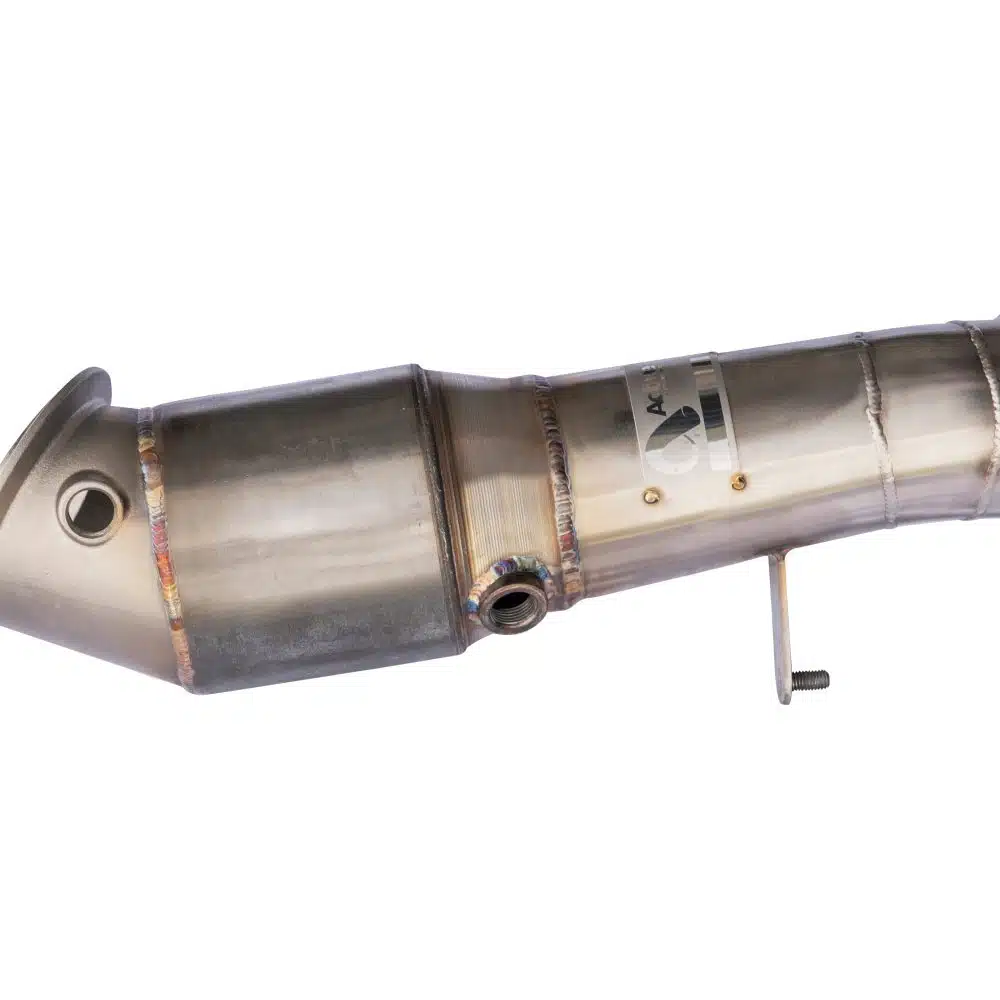

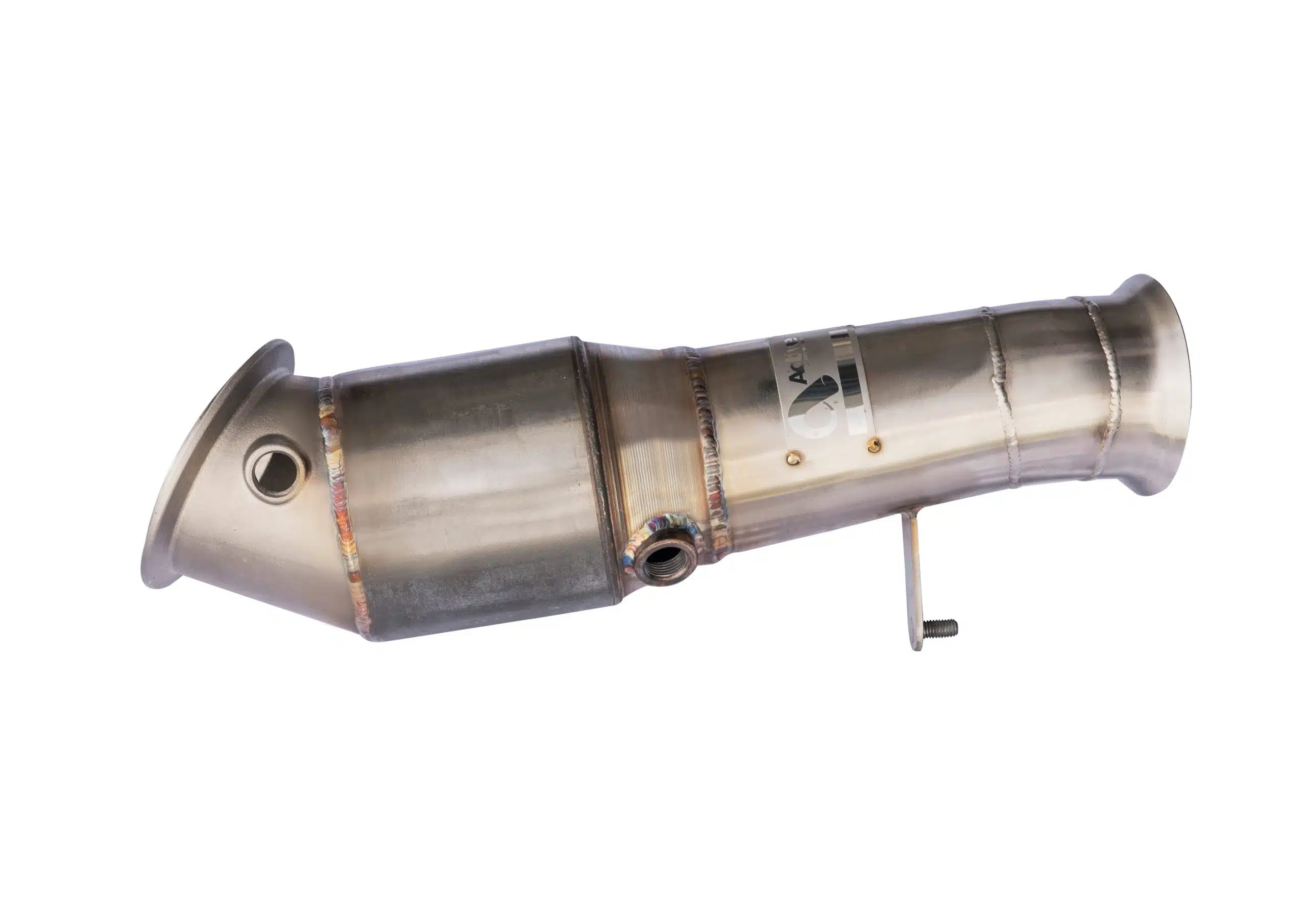

Active Autowerke GESI Catted Downpipe for N55 BMW M235i, 335i, 435i and F87 M2

Active Autowerke’s GESI Catted Downpipe for N55 BMW M235i, 335i, 435i and F87 M2 pairs the company’s 3.5 inch Signature pipework with a 4.5 inch GESI G-Sport UHO converter, a unit rated from 500 to 850 horsepower and aimed at N55 builds that have moved well past factory boost. Shell, substrate and tubing are all 304 stainless, the substrate is furnace brazed to its mantle, and every joint is TIG welded in Miami, Florida. A stock-turbo car gains little from that converter headroom, and the AFlow Catted Downpipe for N55 serves it for less; for an upgraded turbo or a build still gaining power, fit this version once.

Design and Performance

Active Autowerke settled the pipe at 3.5 inches with as few bends as possible, then shaped it to sit in the factory position so the swap stays a bolt-on job. A 1.5mm stainless wall and a converter rated to 1500F suit the exhaust heat of a tuned N55.

Features

GESI G-Sport UHO high flow converter on a 304 stainless substrate
EPA registered and OBD2 compliant converter
No catalyst efficiency check engine light, per Active Autowerke
Runs on factory software with no performance tune needed
Bolts into the factory location with no cutting or welding
Made in Miami, Florida

Specifications

Piping diameter: 3.5 in
Wall thickness: 1.5mm
Converter diameter: 4.5 in
Catalyst cell density: 400 cpsi
Rated output: 500 to 850 hp
Heat tolerance: Up to 1500F
Light-off time: Within 9 seconds of startup

Applications

BMW 335i: F30 | 2014-2015 | 3.0L N55
BMW 435i: F32 / F33 / F36 | 2014-2016 | 3.0L N55
BMW M2: F87 | 2016-2018 | 3.0L N55
BMW M235i: F22 / F23 | 2014-2016 | 3.0L N55

Notes

Active Autowerke confirms fitment of the GESI Catted Downpipe for N55 on US-model cars produced from 09/2013
Owners of the S55 M2 Competition need the GESI Catted Downpipes for F87 M2 Competition
Covered for 5 years or 50,000 miles on the shell and tube ends and 2 years or 25,000 miles on the converter core, for the original buyer. Burble tuned beyond stock voids that cover because it destroys the core.
Completes an N55 exhaust with the Gen 2 N55 Valved Rear Exhaust for F30 and F32 or the Gen 2 Valved Rear Exhaust for F22 M235i

Frequently Asked Questions

Do I need a tune with the GESI Catted Downpipe for N55? No. Active Autowerke sells the GESI Catted Downpipe for N55 as a part that needs no performance tune. Its higher converter rating matters most once the engine is tuned or carries a larger turbo, which is where the GESI unit earns its price over the AFlow version.
Will the GESI downpipe cause a check engine light? Active Autowerke states that this downpipe will not produce a catalyst efficiency code. The GESI converter uses a 400 cell metallic substrate with proprietary precious metal loading and reaches operating efficiency within 9 seconds of startup, so the downstream sensor reads a working catalyst early.
Why choose GESI over AFlow on an N55? Choose GESI when power is the priority. Its UHO converter is rated from 500 to 850 horsepower against up to 800 for the AFlow, and Active Autowerke positions it for high output forced induction builds. The AFlow version costs less and carries a written two-year replacement guarantee against efficiency codes.
Does it fit the M2 Competition? No. This downpipe fits the N55-powered F87 M2 built from 2016 to 2018. The M2 Competition uses the twin-turbo S55 engine instead, which takes a separate pair of Active Autowerke catted downpipes shared with the F80 M3 and F82 M4.
What is the downpipe made from? The tubing is 304 stainless steel with a 1.5mm wall, TIG welded in Miami, Florida. The GESI converter body and its substrate are 304 stainless as well, with the substrate furnace brazed to the mantle, so the catalyst core is metal rather than ceramic.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
