Does the N55 Valved Rear Exhaust work with the factory exhaust valve?

Yes. Active Autowerke redesigned the Gen 2 N55 Valved Rear Exhaust around the BMW valve system, so the engine computer opens and closes the flap just as it did from the factory, using the original actuator. The sound changes character every time the valve moves, quiet when shut and loud when open.

Is the exhaust loud with the valve closed?

No. Active Autowerke describes the closed-valve sound as a rich, mellow tone that stays out of the way during normal driving. When the engine computer opens the valve, the straight-through muffler can delivers its maximum volume and a proper sport sound, which is the whole idea behind the Gen 2 design.

Which cars does this exhaust fit?

Active Autowerke lists the N55 F30 335i sedan, the F32 435i coupe, the F33 435i convertible and the F36 435i, in rear-drive and xDrive form. The B58 340i and 440i use a separate Gen 2 exhaust, and so does the F22 M235i, because the rear sections differ.

How much power does it add?

Active Autowerke measured gains of 12 to 15 horsepower over the stock configuration, with improved torque through the rev range and the clearest gains in the midrange. The exhaust also trims 5.0 lb from the rear of the car, weighing 22.0 lb against 27.0 lb for the factory section.

How hard is the installation?

Active Autowerke designed the system to go on in much the same way as the factory rear exhaust. TORCA-style clamps make the joints, the mounting brackets adjust for height, and an illustrated instruction manual is supplied. A lift makes the job far easier, and the factory section can be refitted later.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Active Autowerke Gen 2 N55 Valved Rear Exhaust for F30 BMW 335i and F32 / F33 / F36 435i

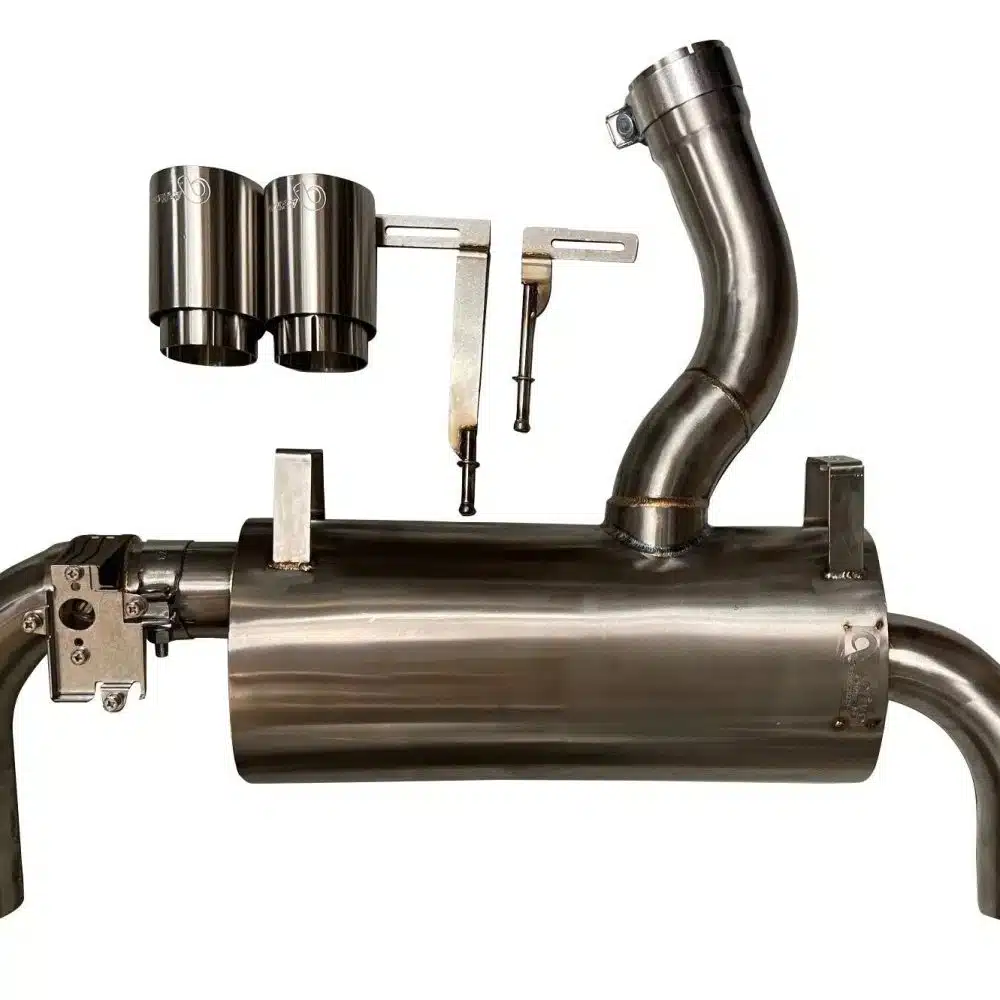

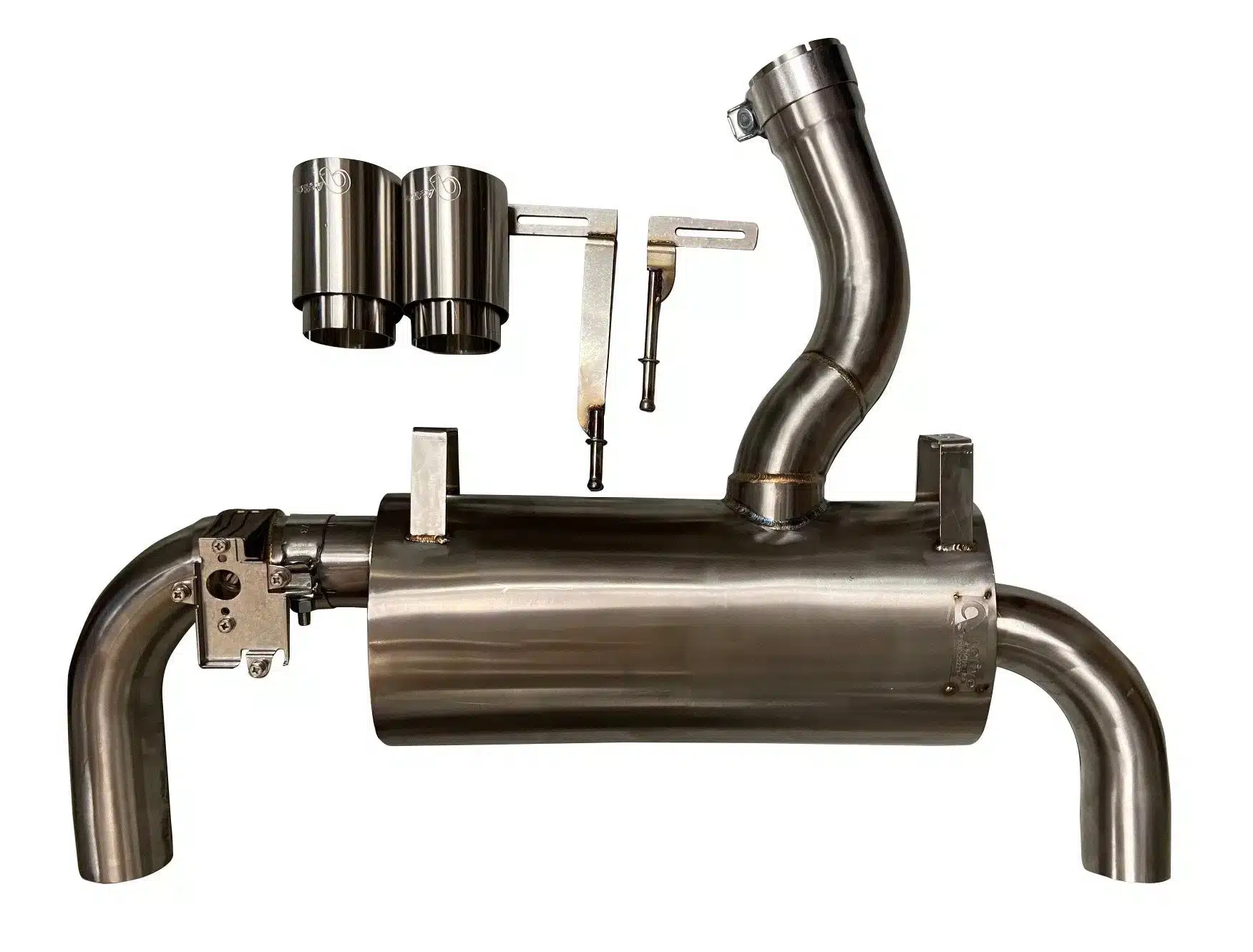

Active Autowerke’s Gen 2 N55 Valved Rear Exhaust for F30 BMW 335i and F32 / F33 / F36 435i keeps BMW’s own exhaust valve in command, so the turbocharged inline six stays composed with the flap shut and turns loud and open once the engine computer swings it wide. The Miami firm builds it from brushed 304 stainless, with large mandrel-bent piping feeding a straight-through muffler can, and at 22.0 lb it undercuts the 27.0 lb factory rear section. Active Autowerke chose a compact rear section over a complete system to keep the cost sensible. It suits an N55 owner after real sound and a measured 12 to 15 horsepower; those chasing bigger numbers should start at the turbo with the AFlow Catted Downpipe for N55.

Design and Performance

Gen 2 differs from the first version in one respect that matters every day: it was reworked around the OEM valve, so the factory actuator and its control logic carry over untouched. Heavy TORCA-style band clamps make the joints, sealing more tightly than a conventional clamp, and the height-adjustable hangers let the installer square the tips in the bumper.

Features

Works with the factory exhaust valve, which the engine computer still opens and closes
Straight-through muffler can with large-diameter mandrel-bent piping
Brushed 304 stainless steel throughout
Double-walled adjustable tips embossed with the Active Autowerke logo, offered in brushed, black, carbon fiber or carbon over black
Active Autowerke measured 12 to 15 horsepower over stock, with the strongest gains in the midrange
Lightweight: 22.0 lb against 27.0 lb for the factory rear section
Illustrated instructions and a two-year warranty

Applications

BMW 335i: F30 | 2013-2015 | 3.0L N55
BMW 435i: F32 | 2014-2016 | 3.0L N55
BMW 435i: F33 | 2014-2016 | 3.0L N55
BMW 435i: F36 | 2015-2016 | 3.0L N55

Notes

The N55 Valved Rear Exhaust replaces the rear section only; no downpipe or mid-pipe is included
For a fuller N55 system, add the AFlow Catted Downpipe for N55 or the GESI Catted Downpipe for N55
The F22 M235i takes the Gen 2 Valved Rear Exhaust for F22, and the B58 340i and 440i take the Gen 2 B58 Valved Rear Exhaust

Frequently Asked Questions

Does the N55 Valved Rear Exhaust work with the factory exhaust valve? Yes. Active Autowerke redesigned the Gen 2 N55 Valved Rear Exhaust around the BMW valve system, so the engine computer opens and closes the flap just as it did from the factory, using the original actuator. The sound changes character every time the valve moves, quiet when shut and loud when open.
Is the exhaust loud with the valve closed? No. Active Autowerke describes the closed-valve sound as a rich, mellow tone that stays out of the way during normal driving. When the engine computer opens the valve, the straight-through muffler can delivers its maximum volume and a proper sport sound, which is the whole idea behind the Gen 2 design.
Which cars does this exhaust fit? Active Autowerke lists the N55 F30 335i sedan, the F32 435i coupe, the F33 435i convertible and the F36 435i, in rear-drive and xDrive form. The B58 340i and 440i use a separate Gen 2 exhaust, and so does the F22 M235i, because the rear sections differ.
How much power does it add? Active Autowerke measured gains of 12 to 15 horsepower over the stock configuration, with improved torque through the rev range and the clearest gains in the midrange. The exhaust also trims 5.0 lb from the rear of the car, weighing 22.0 lb against 27.0 lb for the factory section.
How hard is the installation? Active Autowerke designed the system to go on in much the same way as the factory rear exhaust. TORCA-style clamps make the joints, the mounting brackets adjust for height, and an illustrated instruction manual is supplied. A lift makes the job far easier, and the factory section can be refitted later.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
