Is the Street Side Splitter Kit for ZN6 as effective as the composite version?

Yes. Verus Engineering publishes the same figures for both: the Street Side Splitter Kit for ZN6 reduces the lift coefficient by 0.011 and the drag coefficient by 0.002. The difference lies in the horizontal splitters, which are hard, durable plastic here and carbon thermoplastic in the composite kit, and in the price.

Do side splitters affect drag?

Yes, they reduce it. Verus Engineering measured a 2 point drop in drag coefficient alongside an 11 point reduction in lift with this kit installed. The vertical skirt limits the high-pressure air that reaches the underside of the car, so the side splitters make downforce while the car moves through the air with less resistance.

How are the street side splitters installed?

They bolt to the pinch weld through twelve billet 6061-T6 aluminum mounts, with sheet aluminum brackets holding the stiff rubber skirts. Verus Engineering chose that mounting to avoid fixing anything into the underbody, and supplies stainless hardware, an install manual and an install video covering the Toyota 86, Scion FR-S and Subaru BRZ.

Which Verus aero package includes the side splitters?

The side splitters belong to the Verus Engineering Ventus 2 package for the 86, FR-S and BRZ, which reduces lift from the factory figure in an efficient and balanced way. Ventus 2 is the step beyond Ventus 1, the front splitter and rear diffuser combination Verus aims at regular track day drivers.

Can the street side splitters be adjusted?

Yes. Each side splitter and its vertical skirt can move in and out and up and down on the mounts, which lets the installer position them evenly along both sills. Verus Engineering developed the fit from in-house scan data, optimized the shape in CFD and builds the kit in the U.S.A.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Street Side Splitter Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ

Verus Engineering’s Street Side Splitter Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ delivers the same published aerodynamic result as the Verus composite kit using hard, durable plastic side splitters, the lower-cost route for a car that sees more road than circuit. Each side combines a horizontal splitter with a vertical underbody skirt to keep high-pressure air from reaching the underside. Verus puts the effect at 11 points less lift and 2 points less drag, so the kit makes downforce and trims drag at once.

Mounting and Adjustment

Twelve billet 6061-T6 aluminum pinch weld mounts hold the kit, a less invasive approach than fixing into the underbody. Both the splitter and the skirt adjust in and out and up and down, and the four stiff rubber skirt sections ride on sheet aluminum brackets. Verus built the fit from in-house scan data.

Features

Hard, durable plastic side splitters
Abrasion-resistant vertical skirts below the sills
Adjustable in and out, up and down
Billet 6061-T6 pinch weld mounts and sheet aluminum brackets
Made in the U.S.A. with stainless fasteners

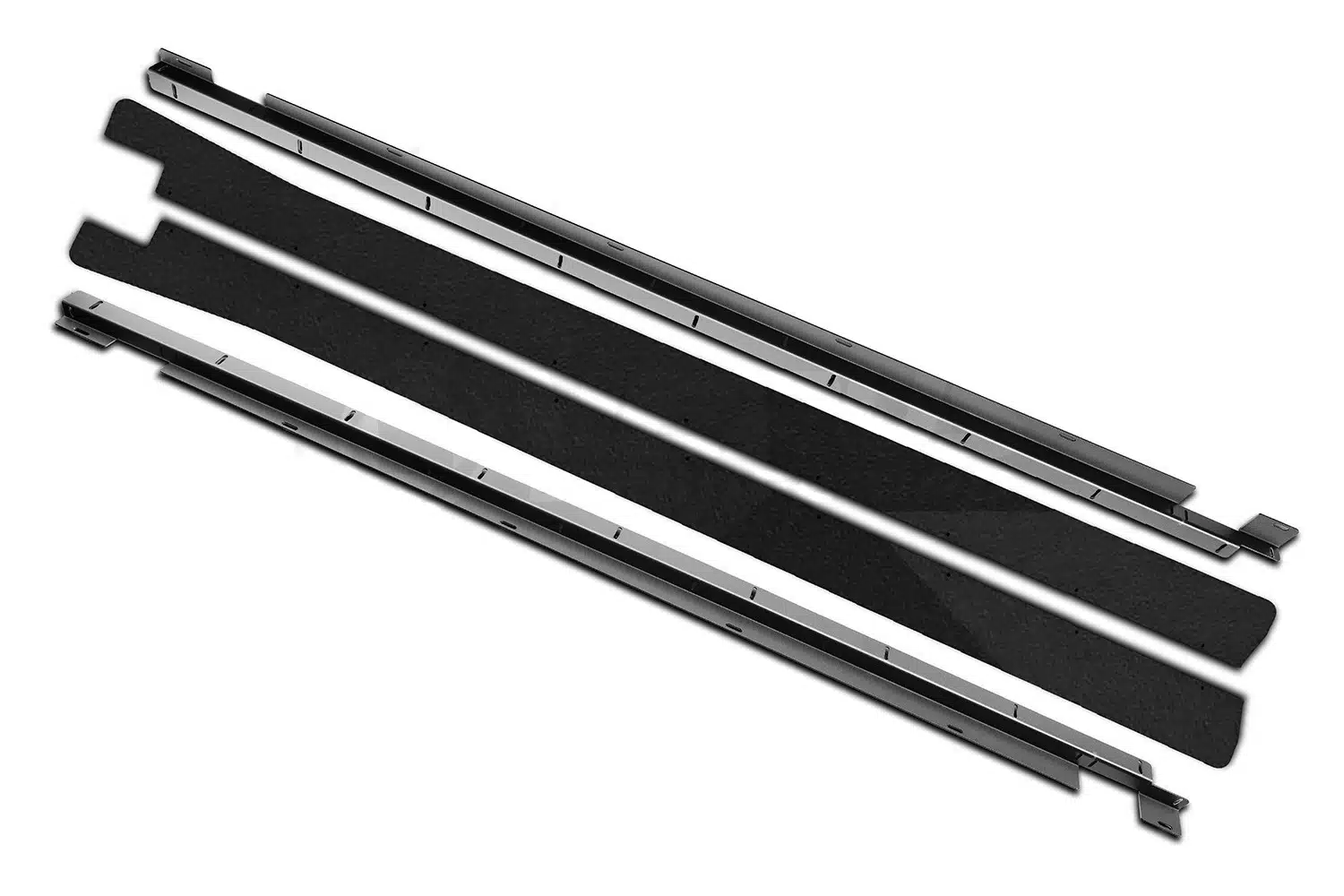

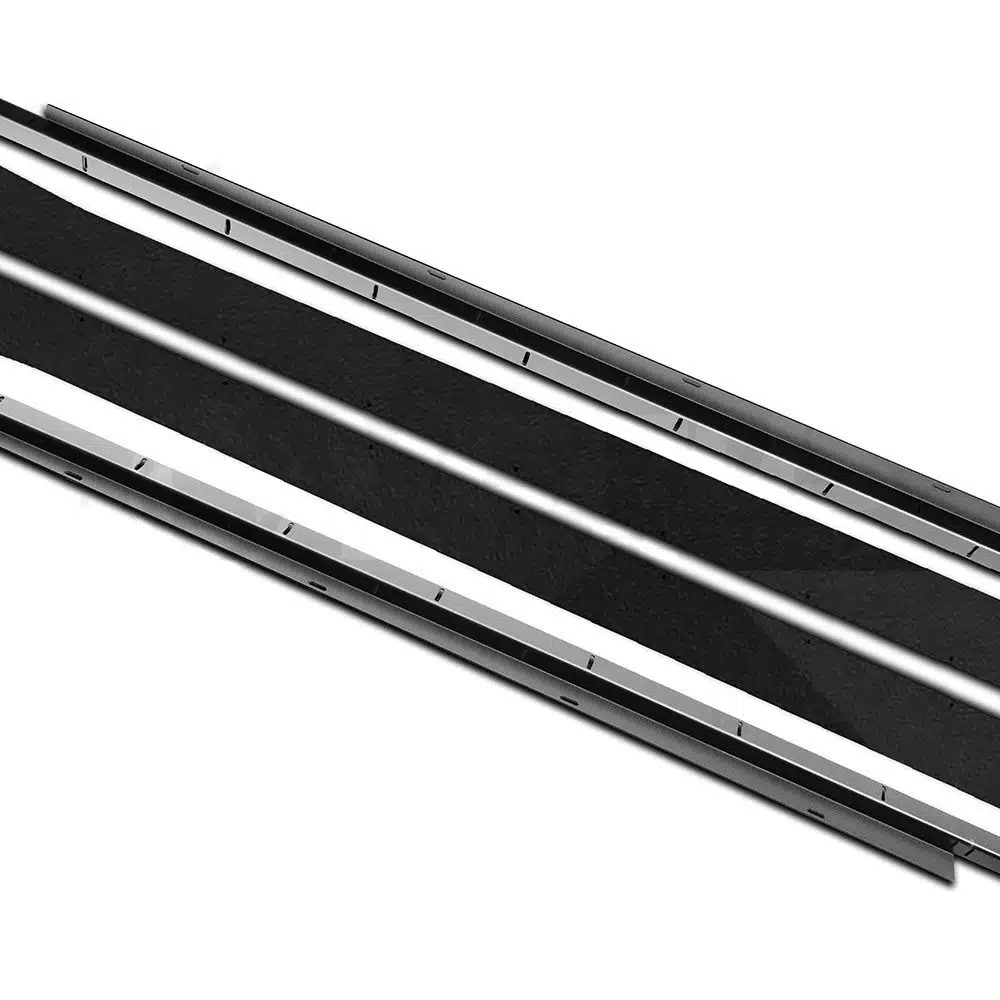

What’s Included

Plastic side splitters (x2)
Stiff rubber side skirts (x4)
Sheet aluminum side skirt brackets (x2)
Billet aluminum pinch weld mounts (x12)
Hardware kit with every piece for the install

Applications

Scion FR-S: ZN6 | 2013-2016
Subaru BRZ: ZC6 | 2013-2020
Toyota 86: ZN6 | 2017-2020

Notes

The Street Side Splitter Kit for ZN6 mounts at the pinch weld, so nothing is fixed into the underbody
For carbon thermoplastic side splitters with the same aero figures, see the Composite Side Splitter Kit
Verus includes side splitters in its Ventus 2 package, the step above the Ventus 1 front splitter and Rear Diffuser
Install documentation from Verus covers both a manual and a video
See every Verus Engineering part for the ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Is the Street Side Splitter Kit for ZN6 as effective as the composite version? Yes. Verus Engineering publishes the same figures for both: the Street Side Splitter Kit for ZN6 reduces the lift coefficient by 0.011 and the drag coefficient by 0.002. The difference lies in the horizontal splitters, which are hard, durable plastic here and carbon thermoplastic in the composite kit, and in the price.
Do side splitters affect drag? Yes, they reduce it. Verus Engineering measured a 2 point drop in drag coefficient alongside an 11 point reduction in lift with this kit installed. The vertical skirt limits the high-pressure air that reaches the underside of the car, so the side splitters make downforce while the car moves through the air with less resistance.
How are the street side splitters installed? They bolt to the pinch weld through twelve billet 6061-T6 aluminum mounts, with sheet aluminum brackets holding the stiff rubber skirts. Verus Engineering chose that mounting to avoid fixing anything into the underbody, and supplies stainless hardware, an install manual and an install video covering the Toyota 86, Scion FR-S and Subaru BRZ.
Which Verus aero package includes the side splitters? The side splitters belong to the Verus Engineering Ventus 2 package for the 86, FR-S and BRZ, which reduces lift from the factory figure in an efficient and balanced way. Ventus 2 is the step beyond Ventus 1, the front splitter and rear diffuser combination Verus aims at regular track day drivers.
Can the street side splitters be adjusted? Yes. Each side splitter and its vertical skirt can move in and out and up and down on the mounts, which lets the installer position them evenly along both sills. Verus Engineering developed the fit from in-house scan data, optimized the shape in CFD and builds the kit in the U.S.A.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
