How much does the Composite Side Splitter Kit for ZN6 reduce lift?

Verus Engineering reports that the Composite Side Splitter Kit for ZN6 lowers the lift coefficient of the car by 0.011 and the drag coefficient by 0.002, which it describes as 11 points of lift and 2 points of drag. The side splitters therefore add downforce and cut drag at the same time, working with the rest of the Ventus 2 package.

How do the side splitters attach to the car?

Twelve billet 6061-T6 aluminum mounts fix the kit to the pinch weld along each sill, and sheet aluminum brackets carry the stiff rubber skirts. Verus Engineering chose the pinch weld over the underbody for a less invasive install, and supplies an install manual, an install video and all of the stainless hardware.

What is the difference between the composite and street side splitter kits?

The two kits share their design, mounting system and published aero figures. The composite kit uses carbon thermoplastic for the horizontal side splitters, while the Street Side Splitter Kit uses a hard, durable plastic at a lower price. Both include stiff rubber skirts, sheet aluminum brackets and twelve billet pinch weld mounts from Verus Engineering.

Can the side splitters be adjusted?

Yes. Both the side splitter and the vertical skirt adjust in and out and up and down, so an owner can set them to suit the car. Verus Engineering optimized the design in CFD and built it from in-house scan data for a near OEM fit, then makes it in the U.S.A., fastening everything with stainless hardware.

Are side splitters only for looks?

No. Verus Engineering designed the kit to be functional as well as attractive. The vertical skirt reduces the amount of high-pressure air reaching the underside of the car, which lowers both lift and drag, and the horizontal splitter completes the side profile of the Toyota 86, Scion FR-S or Subaru BRZ.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Composite Side Splitter Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ

Verus Engineering’s Composite Side Splitter Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ pairs a horizontal carbon thermoplastic splitter with a vertical underbody skirt along each sill, limiting how much high-pressure air works its way under the car. Verus measured the result as an 11 point cut in lift and a 2 point cut in drag, so the kit adds downforce and trims drag together. Twelve billet aluminum mounts fix it to the pinch weld instead of the underbody. The side splitters belong to the Verus Ventus 2 package, so they suit an owner who already runs a front splitter and diffuser and wants the next step.

Features

Carbon thermoplastic side splitters with abrasion-resistant vertical skirts
Splitter and skirt adjust in and out and up and down
Pinch weld mounting machined from billet 6061-T6
Sheet aluminum skirt brackets and stainless hardware
CFD optimized and made in the U.S.A.

What’s Included

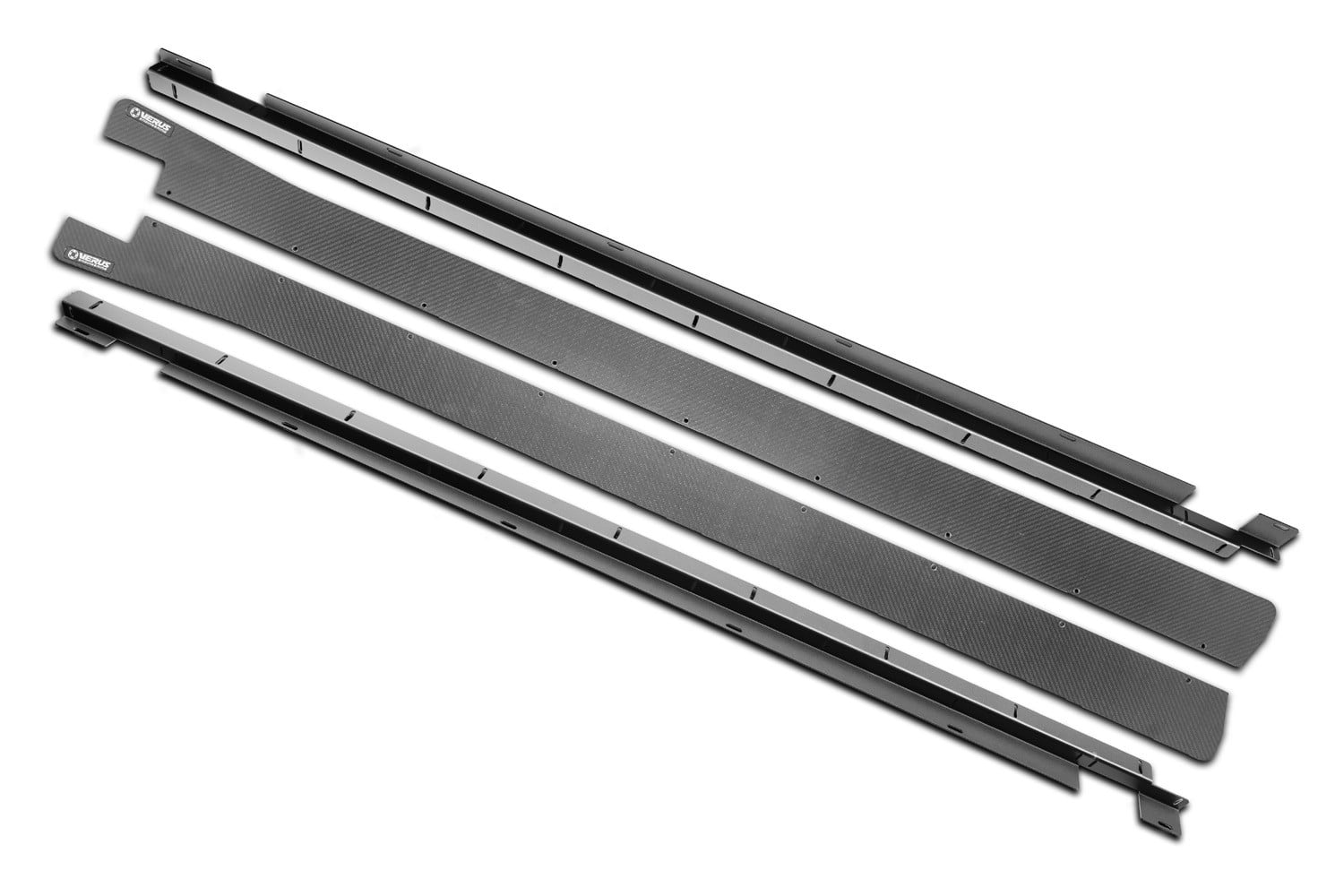

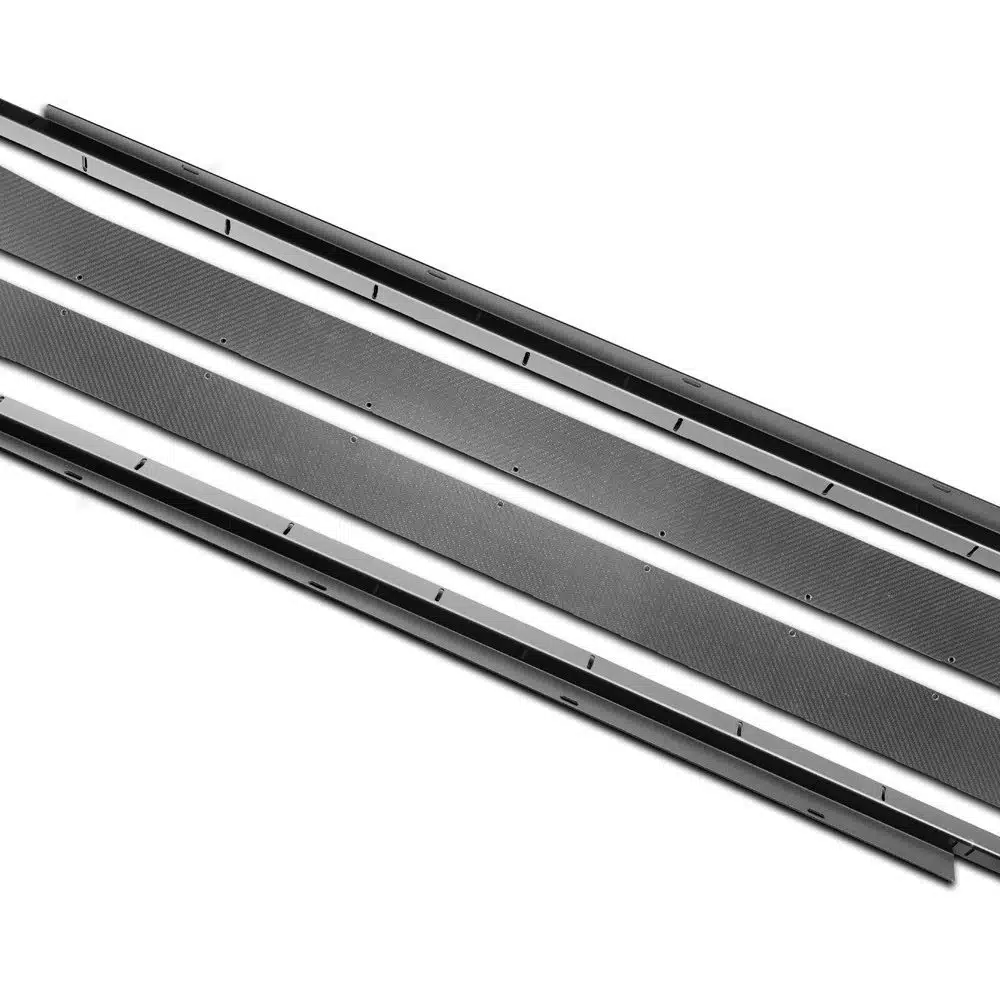

Carbon composite side splitters (x2)
Stiff rubber side skirts (x4)
Sheet aluminum side skirt brackets (x2)
Billet aluminum pinch weld mounts (x12)
Hardware kit with every piece needed for the install

Applications

Scion FR-S: ZN6 | 2013-2016
Subaru BRZ: ZC6 | 2013-2020
Toyota 86: ZN6 | 2017-2020

Notes

The Composite Side Splitter Kit for ZN6 bolts to the pinch weld instead of into the underbody, for a less invasive install
Part of the Verus Ventus 2 package, the step above the Ventus 1 front splitter and Rear Diffuser combination
The Street Side Splitter Kit shares this design and its published lift and drag figures, with hard plastic side splitters in place of carbon thermoplastic
Verus offers an install manual and an install video for the composite kit
See every Verus Engineering part for the ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

How much does the Composite Side Splitter Kit for ZN6 reduce lift? Verus Engineering reports that the Composite Side Splitter Kit for ZN6 lowers the lift coefficient of the car by 0.011 and the drag coefficient by 0.002, which it describes as 11 points of lift and 2 points of drag. The side splitters therefore add downforce and cut drag at the same time, working with the rest of the Ventus 2 package.
How do the side splitters attach to the car? Twelve billet 6061-T6 aluminum mounts fix the kit to the pinch weld along each sill, and sheet aluminum brackets carry the stiff rubber skirts. Verus Engineering chose the pinch weld over the underbody for a less invasive install, and supplies an install manual, an install video and all of the stainless hardware.
What is the difference between the composite and street side splitter kits? The two kits share their design, mounting system and published aero figures. The composite kit uses carbon thermoplastic for the horizontal side splitters, while the Street Side Splitter Kit uses a hard, durable plastic at a lower price. Both include stiff rubber skirts, sheet aluminum brackets and twelve billet pinch weld mounts from Verus Engineering.
Can the side splitters be adjusted? Yes. Both the side splitter and the vertical skirt adjust in and out and up and down, so an owner can set them to suit the car. Verus Engineering optimized the design in CFD and built it from in-house scan data for a near OEM fit, then makes it in the U.S.A., fastening everything with stainless hardware.
Are side splitters only for looks? No. Verus Engineering designed the kit to be functional as well as attractive. The vertical skirt reduces the amount of high-pressure air reaching the underside of the car, which lowers both lift and drag, and the horizontal splitter completes the side profile of the Toyota 86, Scion FR-S or Subaru BRZ.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
