Which exhausts work with the Rear Diffuser for ZN6?

Verus Engineering has confirmed the Rear Diffuser for ZN6 with the factory exhaust and a long list of aftermarket systems, including aFe, Borla, Corsa, Milltek, Perrin and TRD dual exit. Several 3 inch systems, among them Full-Race, Nameless and Tsudo, need the diffuser trimmed, and the Invidia R400 and X-Force systems do not fit.

What does non-aggressive mean on the Verus diffuser?

It refers to the strake design. Verus Engineering gave this diffuser a less aggressive strake layout so it sits as a subtle addition beneath the rear bumper of the 86, FR-S or BRZ, while still reducing drag and lift. The shape was developed with analysis software and fitted from OEM CAD data for a near factory appearance.

Does the diffuser fit with aftermarket bumper kits?

Yes, with some. Verus Engineering confirms fitment with the stock Scion FR-S, Subaru BRZ and Toyota 86 bumpers, the Scion Release Series 1.0 and the Nur-spec lip kit for the 2017 and later 86, as well as the 2017 and later BRZ bumper. For any other rear bumper or lip, confirm clearance with Verus before ordering.

Does the diffuser require cutting the bumper?

No. Verus Engineering designed the diffuser as a simple, non-invasive bolt-on that attaches through four brackets with stainless hardware supplied in the kit, backed by an install manual and video. The exception is the short list of exhausts that require trimming the diffuser itself to clear.

Should I fit a front splitter with the diffuser?

Yes, that is how Verus Engineering planned it. The diffuser forms the rear of the Ventus 1 package, and Verus designed its two-piece front splitters alongside it so front and rear loads stay matched. Owners wanting more downforce can move on to the Ventus 2, 3 and 4 packages, which add side splitters and rear wings.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

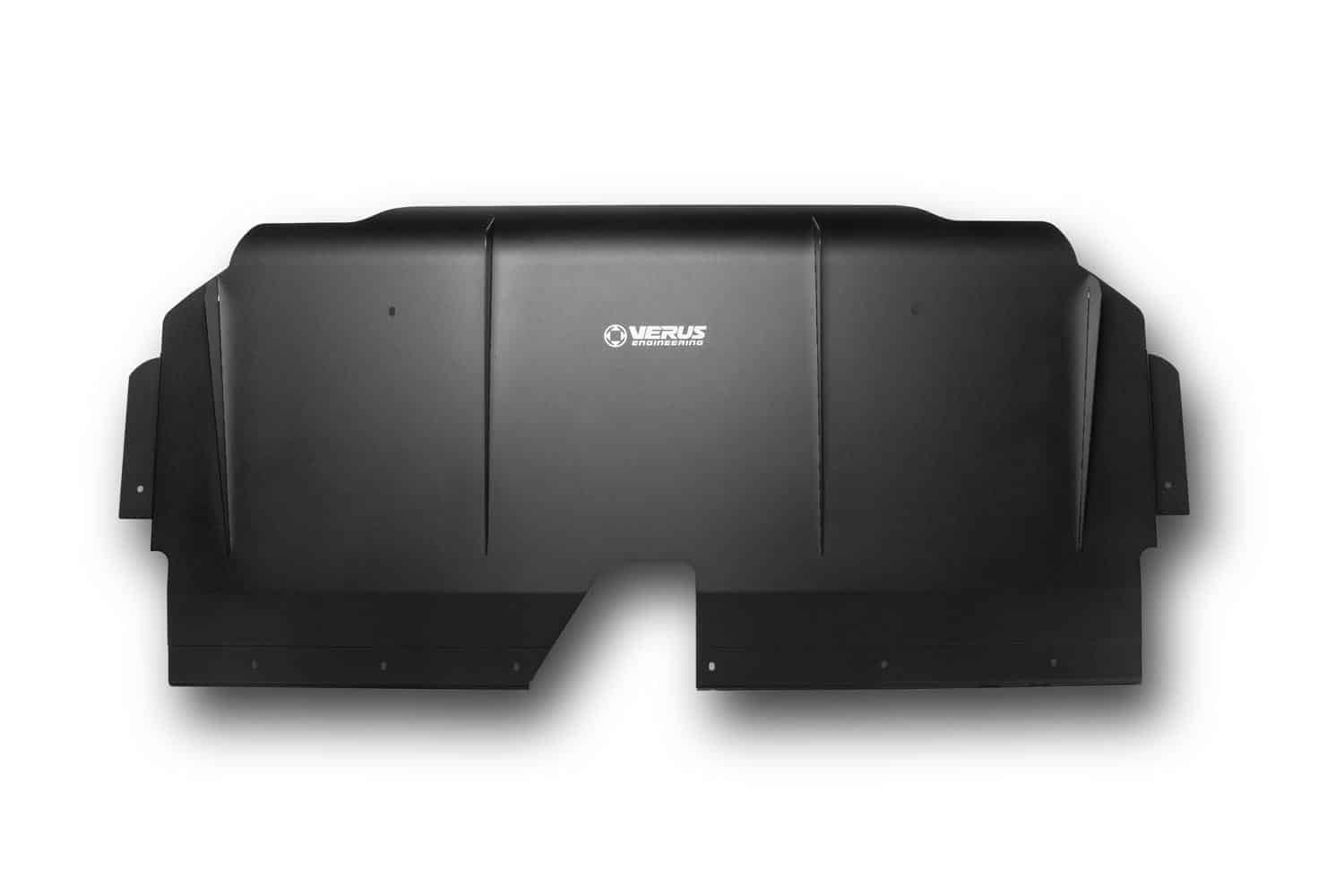

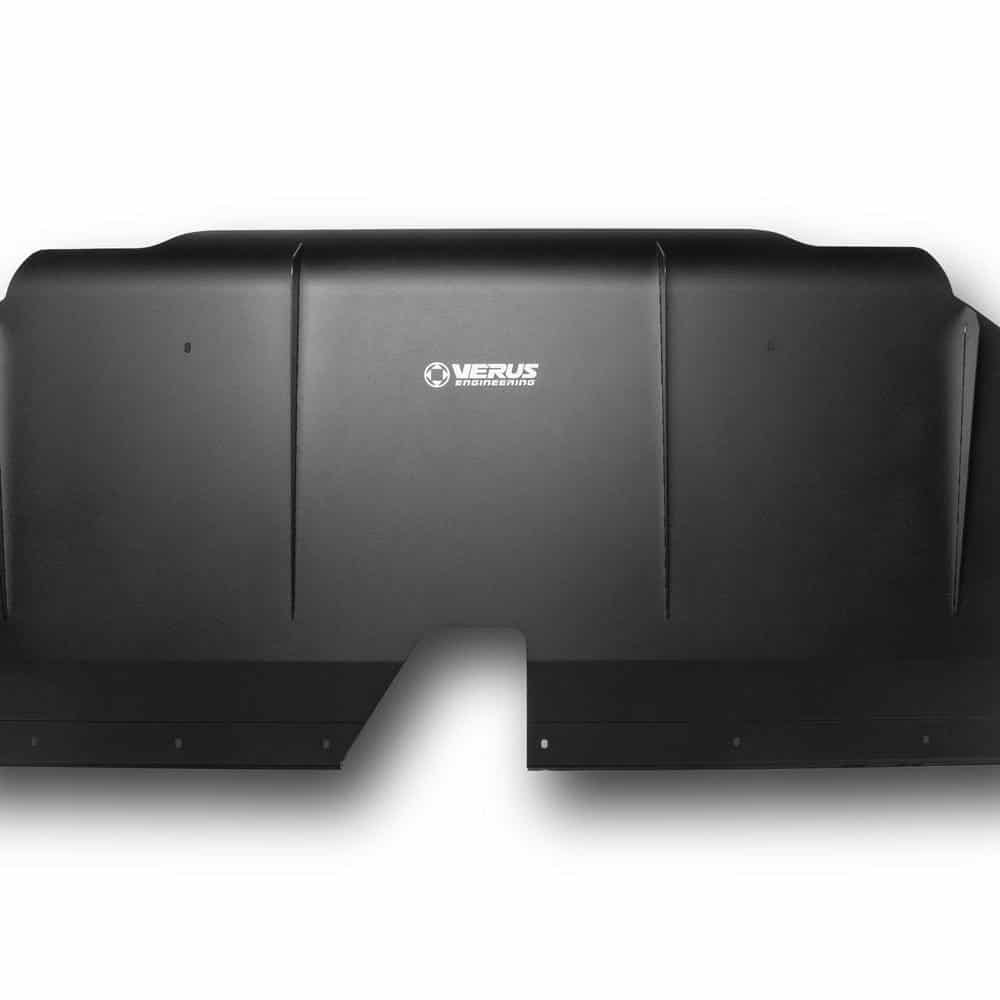

Verus Engineering Rear Diffuser for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ

Verus Engineering’s Rear Diffuser for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ is the Verus non-aggressive design, with a subtler strake layout for owners who want function without a race-car rear end. Verus shaped it with analysis software to raise downforce and cut drag within the space under the bumper, and fitted it from OEM CAD data for a near factory fit. It is CNC laser cut from 5052-H32 sheet aluminum, bent on a CNC press brake and powder coated in a low-gloss textured black. As the rear half of the Ventus 1 package it suits a track day car first.

Features

Cuts both lift and drag, raising the lift-to-drag ratio
Adds tire grip at speed
Unique strake-to-mainplane construction
Non-invasive design that bolts on
Stainless hardware, made in the U.S.A.

What’s Included

Rear diffuser
Rear diffuser brackets (x4)
Hardware kit with every component needed for the install

Applications

Scion FR-S: ZN6 | 2013-2016
Subaru BRZ: ZC6 | 2013-2020
Toyota 86: ZN6 | 2017-2020

Notes

Verus confirms the Rear Diffuser for ZN6 fits the stock exhaust and dozens of aftermarket systems, among them aFe, Borla, Corsa, Greddy Evo 3, HKS Legamax, Invidia Q300, Milltek, Perrin, Tomei Type 60S and 60R and TRD dual exit
Exhausts that need the diffuser trimmed: Greddy Revolution RS 3 inch, Tomei Type 80, Tsudo, Full-Race 3 inch, Nameless 3 inch, JDL, HKS Hi-Power single exit 32016-BT003 and CSG Competition
Verus reports the diffuser does not fit the Invidia R400 or X-Force exhausts
Confirmed bumpers: the factory FR-S, BRZ and 86 bumpers, the Scion Release Series 1.0, the Nur-spec lip kit for the 2017 and later 86, and the 2017 and later BRZ
Balance it with a Verus front splitter in the Ventus 1 package: the Two-Piece Front Splitter for 2013-2016 cars or the Two-Piece Front Splitter for 2017-2020 cars
See every Verus Engineering part for the ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Which exhausts work with the Rear Diffuser for ZN6? Verus Engineering has confirmed the Rear Diffuser for ZN6 with the factory exhaust and a long list of aftermarket systems, including aFe, Borla, Corsa, Milltek, Perrin and TRD dual exit. Several 3 inch systems, among them Full-Race, Nameless and Tsudo, need the diffuser trimmed, and the Invidia R400 and X-Force systems do not fit.
What does non-aggressive mean on the Verus diffuser? It refers to the strake design. Verus Engineering gave this diffuser a less aggressive strake layout so it sits as a subtle addition beneath the rear bumper of the 86, FR-S or BRZ, while still reducing drag and lift. The shape was developed with analysis software and fitted from OEM CAD data for a near factory appearance.
Does the diffuser fit with aftermarket bumper kits? Yes, with some. Verus Engineering confirms fitment with the stock Scion FR-S, Subaru BRZ and Toyota 86 bumpers, the Scion Release Series 1.0 and the Nur-spec lip kit for the 2017 and later 86, as well as the 2017 and later BRZ bumper. For any other rear bumper or lip, confirm clearance with Verus before ordering.
Does the diffuser require cutting the bumper? No. Verus Engineering designed the diffuser as a simple, non-invasive bolt-on that attaches through four brackets with stainless hardware supplied in the kit, backed by an install manual and video. The exception is the short list of exhausts that require trimming the diffuser itself to clear.
Should I fit a front splitter with the diffuser? Yes, that is how Verus Engineering planned it. The diffuser forms the rear of the Ventus 1 package, and Verus designed its two-piece front splitters alongside it so front and rear loads stay matched. Owners wanting more downforce can move on to the Ventus 2, 3 and 4 packages, which add side splitters and rear wings.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
