Do I need to drill the floor to fit a harness with the Floor Brace Bar for FL5?

No. Avoiding holes in the floor pan is the whole reason Spoon developed the part. The harness eyebolts mount to the bar, so the Floor Brace Bar for FL5 keeps the body intact and the car can go back to its factory belts later without patching or sealing any holes.

Should I buy one bar or the set?

Buy a single bar when only one seat gets a harness and the goal is simply a clean mounting point. Choose the set when both front seats will run harnesses, or when floor stiffness matters to you, because Spoon ties the rigidity improvement to bars fitted on the driver side and passenger side together.

Does it fit the FL1 hatchback and the FE1 Civic Si?

Yes. Spoon registers the bar for the FL1 hatchback and the FL5 Type R, and Go Tuning, the sole US distributor for Spoon, sells it for the FL1, FL5 and FE1. All three share the 11th generation Civic floor structure, so one part number covers each car.

Which option is the driver side on a US car?

The Left option is the driver side on a US left-hand-drive Civic, and the Right option is the passenger side. Go Tuning lists the parts the same way. On a right-hand-drive car from Japan the sides swap, so order by the seat that needs the harness, not by the label alone.

Is this a substitute for a roll cage or harness bar?

No. Spoon designed it as a floor-level anchor for harness eyebolts and as floor reinforcement, not as rollover protection. The rest of the harness installation still needs correct upper mounting points, set up by a shop that is familiar with motorsport restraints.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

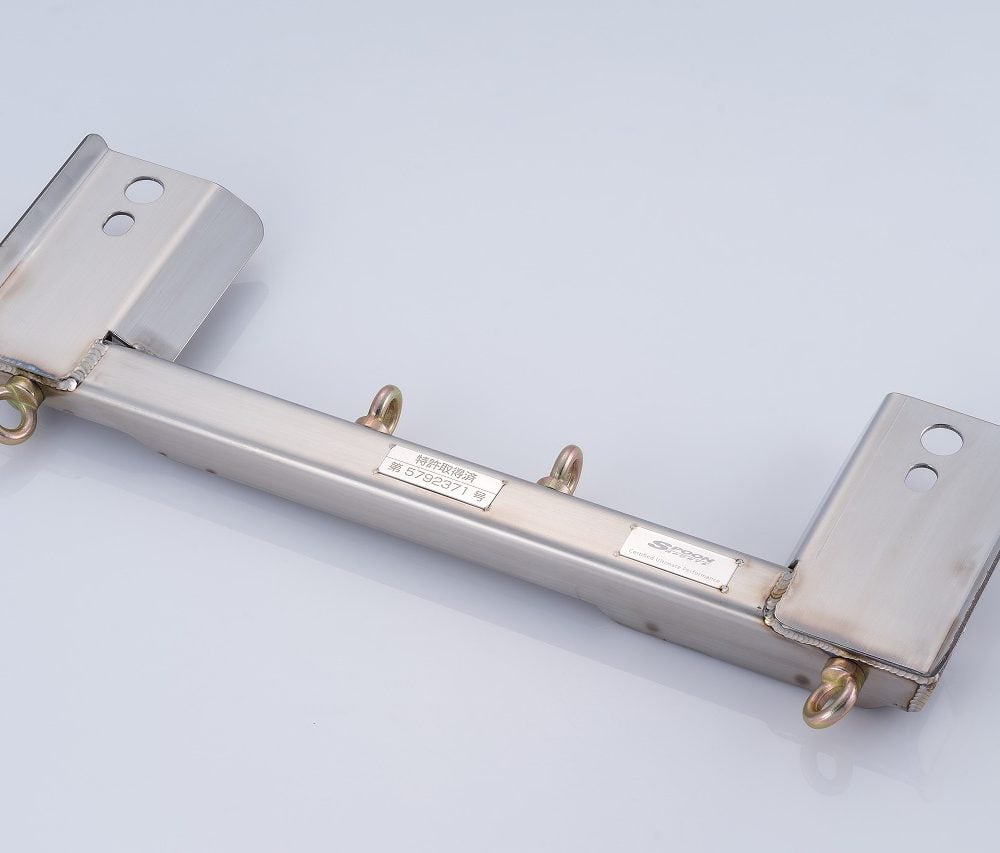

Spoon Sports Floor Brace Bar for FL5 Honda Civic Type R, FL1 Civic and FE1 Civic Si

The Spoon Sports Floor Brace Bar for FL5 Honda Civic Type R solves a problem every owner meets when a racing harness goes in: where to put the eyebolts without cutting into the floor pan. Spoon designed the bar so the eyebolts mount to it, which leaves the factory floor untouched and keeps the car easy to return to standard belts later. The same bar suits the FL1 hatchback and FE1 Civic Si. Fit one on each side and the bars also tie the floor together, a gain in body rigidity Spoon states for the pair. For a road car on factory seats and belts there is little reason to buy it; for an FL5 being set up with a fixed-back seat and harness for circuit days, it is the tidy way to do the job.

Features

Eyebolt mounting point for a racing harness without drilling the floor
Leaves the factory floor pan uncut and the car easy to return to standard
Adds floor rigidity when fitted on both sides, per Spoon
Offered as a matched left and right set or as single bars
Installation manual published by Spoon

Applications

Honda Civic Hatchback: FL1 | 2022-present | 1.5L L15B turbo
Honda Civic Si: FE1 | 2022-present | 1.5L L15B turbo
Honda Civic Type R: FL5 | 2023-present | 2.0L K20C1 turbo

Notes

The Left and Right Set includes both bars; the Left and Right options are one bar each
On US left-hand-drive cars the left bar sits on the driver side and the right bar on the passenger side
Spoon states the floor rigidity gain for bars fitted on both sides
The racing harness and seat are sold separately
Combine the Floor Brace Bar for FL5 with the Spoon Front Stiff Plate and the Spoon Motion Control Beam to stiffen the body at more points

Frequently Asked Questions

Do I need to drill the floor to fit a harness with the Floor Brace Bar for FL5? No. Avoiding holes in the floor pan is the whole reason Spoon developed the part. The harness eyebolts mount to the bar, so the Floor Brace Bar for FL5 keeps the body intact and the car can go back to its factory belts later without patching or sealing any holes.
Should I buy one bar or the set? Buy a single bar when only one seat gets a harness and the goal is simply a clean mounting point. Choose the set when both front seats will run harnesses, or when floor stiffness matters to you, because Spoon ties the rigidity improvement to bars fitted on the driver side and passenger side together.
Does it fit the FL1 hatchback and the FE1 Civic Si? Yes. Spoon registers the bar for the FL1 hatchback and the FL5 Type R, and Go Tuning, the sole US distributor for Spoon, sells it for the FL1, FL5 and FE1. All three share the 11th generation Civic floor structure, so one part number covers each car.
Which option is the driver side on a US car? The Left option is the driver side on a US left-hand-drive Civic, and the Right option is the passenger side. Go Tuning lists the parts the same way. On a right-hand-drive car from Japan the sides swap, so order by the seat that needs the harness, not by the label alone.
Is this a substitute for a roll cage or harness bar? No. Spoon designed it as a floor-level anchor for harness eyebolts and as floor reinforcement, not as rollover protection. The rest of the harness installation still needs correct upper mounting points, set up by a shop that is familiar with motorsport restraints.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
