Does the DC5 NTR-R1 Coilover Kit fit both the Acura RSX Type S and the Honda Integra Type R?

Yes. This Nitron kit is made for the DC5 Acura RSX Type S and Honda Integra Type R and covers the front and the OEM rear suspension.

What does the single adjuster on each damper change?

It raises or lowers compression and rebound resistance together. Turning it toward firm tightens the car’s response to weight transfer, and backing it off softens the ride over rougher surfaces.

How does the kit fit with the OEM rear suspension?

The rear keeps its original OEM suspension layout. The kit is built to suit that arrangement, so the Nitron spring and damper replace the factory parts in the same place.

How do I set ride height and corner weights?

Adjustable spring perches on each damper let you move every corner up or down independently. That gives you the overall height and the balance across the four wheels, and a corner weighting session will confirm the result.

Can I order other spring rates for the DC5?

Yes. Custom spring rates are available by contacting us directly, which is worth considering if the car is used mainly on track or has had weight added or removed.

Do I need an alignment after fitting the kit?

Yes. Adjustable top plates are included, and a professional alignment is required after installation so the new ride height and any camber changes are set correctly. The DC5 NTR-R1 is best paired with a proper setup session.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

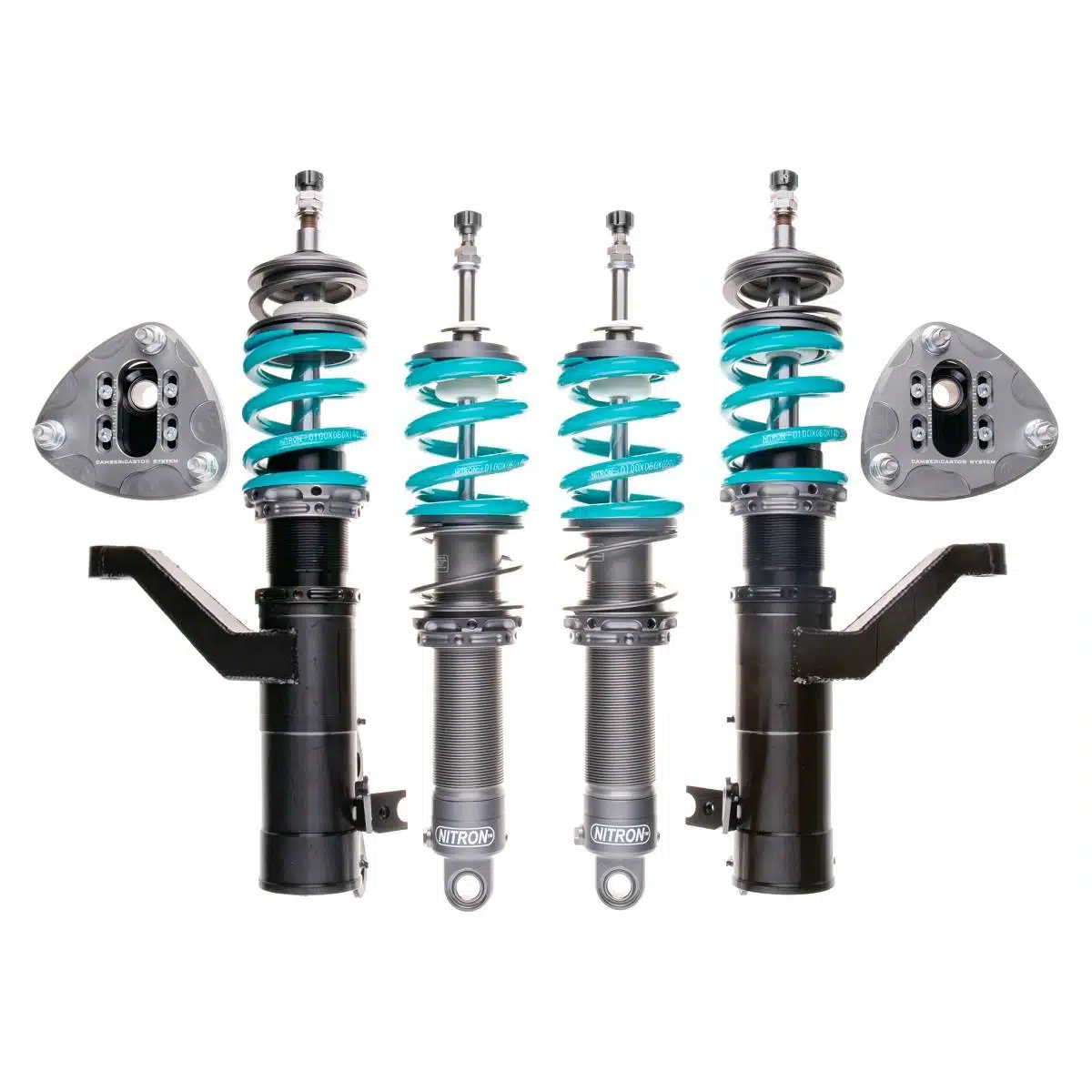

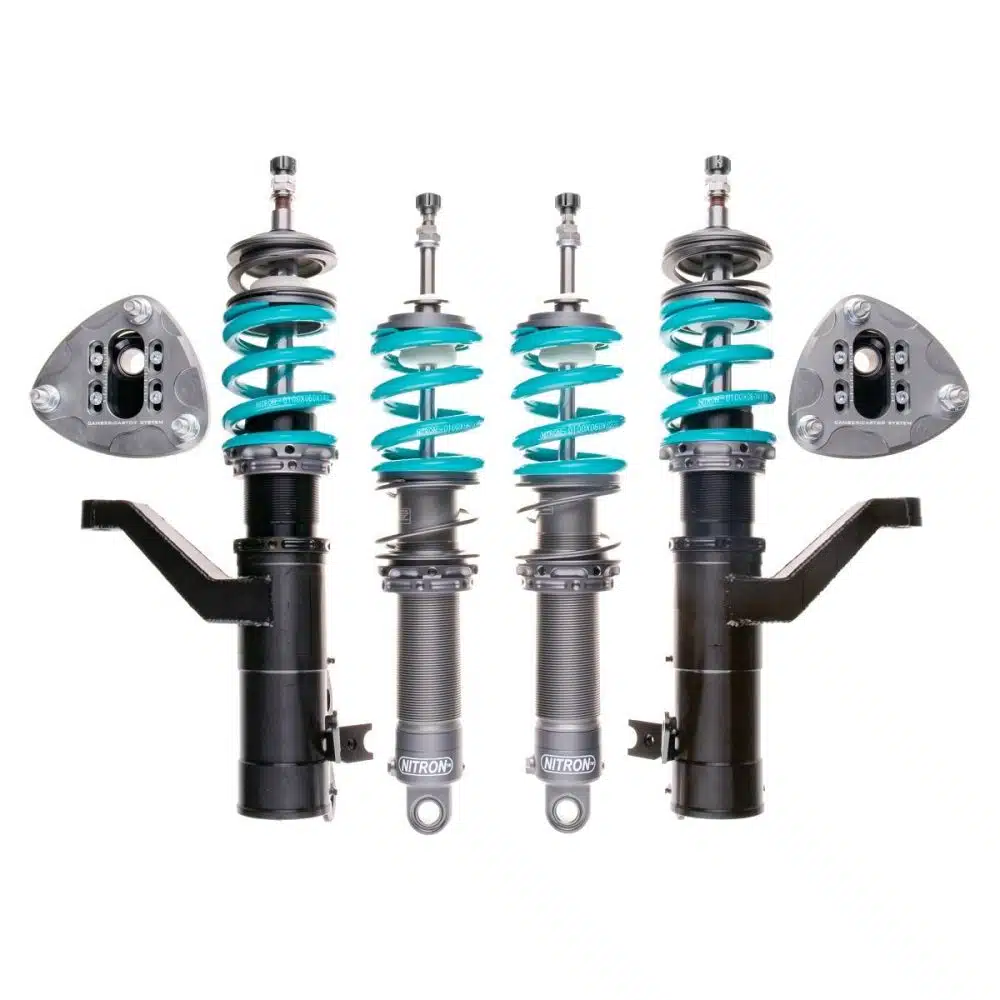

Nitron NTR-R1 Coilover Kit for DC5 Acura RSX Type S / Honda Integra Type R

A front-drive DC5 lives on front tire traction, and how the dampers handle weight transfer into and out of a corner decides how much of it you can use. The DC5 NTR-R1 Coilover Kit from Nitron gives the Acura RSX Type S and Honda Integra Type R a damper setup you can adjust to match how you drive, with a monotube damper at each corner, a single adjuster that moves compression and rebound together, and adjustable spring perches for ride height and corner weights. The kit is built for the OEM rear suspension type, so the car keeps its original layout while gaining dampers you can tune. It suits an owner who wants the DC5 sharper without turning the setup into a project.

Unique Technology

The NTR-R1 keeps the adjustment to one decision per corner. Turn the dial and compression and rebound move together, so the car gets firmer or softer in clear steps and you can see the effect of each change. The reservoir is built into the damper body, so there are no remote canisters or hoses to mount and nothing extra to protect. Inside is a nitrogen-pressurized monotube, hand assembled to order in the UK and paired with race springs. Custom spring rates can be arranged by contacting us directly if the car’s use calls for something different.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron builds this kit to suit the DC5 chassis, with damper length, stroke, and perch positions set for the car instead of reworked from a universal part. The rear stays as the OEM suspension type, and the Nitron spring and damper package fits into that layout. The factory geometry is left as it was, and the front and rear gain adjustment the original dampers never had.

Features

OEM rear suspension type
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 457lbs/inch (80N/mm)
  - Rear: 799lbs/inch (140N/mm)
- TDS – Track Day Spec:
  - Front: 685lbs/inch (120N/mm)
  - Rear: 1028lbs/inch (180N/mm)

Applications

Acura RSX Type S: DC5 | 2001-2006
Honda Integra Type R: DC5 | 2001-2006

Other Suspension Kits for DC5 Acura RSX Type S / Honda Integra Type R

NTR-R3 Coilover Kit

Notes

Custom spring rates also available
Please feel free to contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Does the DC5 NTR-R1 Coilover Kit fit both the Acura RSX Type S and the Honda Integra Type R? Yes. This Nitron kit is made for the DC5 Acura RSX Type S and Honda Integra Type R and covers the front and the OEM rear suspension.
What does the single adjuster on each damper change? It raises or lowers compression and rebound resistance together. Turning it toward firm tightens the car’s response to weight transfer, and backing it off softens the ride over rougher surfaces.
How does the kit fit with the OEM rear suspension? The rear keeps its original OEM suspension layout. The kit is built to suit that arrangement, so the Nitron spring and damper replace the factory parts in the same place.
How do I set ride height and corner weights? Adjustable spring perches on each damper let you move every corner up or down independently. That gives you the overall height and the balance across the four wheels, and a corner weighting session will confirm the result.
Can I order other spring rates for the DC5? Yes. Custom spring rates are available by contacting us directly, which is worth considering if the car is used mainly on track or has had weight added or removed.
Do I need an alignment after fitting the kit? Yes. Adjustable top plates are included, and a professional alignment is required after installation so the new ride height and any camber changes are set correctly. The DC5 NTR-R1 is best paired with a proper setup session.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
