Do I need the EDC cancellation kit with these coilovers?

Only on cars with factory electronic dampers, such as Adaptive M Suspension. Öhlins specifies its cancellation kit on those cars to prevent error messages once the factory dampers are removed, which for the F3X is part 35020-03. Cars on passive dampers do not need it.

Which cars do the Coilovers for F3X BMW 3 Series and 4 Series fit?

Öhlins lists kit BMS MU00S1 for the F30, F31, F34 and F35 3 Series and the F32, F33 and F36 4 Series, in rear-drive and xDrive form, so the Coilovers for F3X BMW sedans, wagons and coupes share one part number. The F80 M3 and F82 M4 use a different kit.

Does the kit fit xDrive cars?

Yes. The same struts, shocks and springs fit rear-drive and xDrive cars, and the Öhlins mounting instructions give one front height setting for F-series cars with either drivetrain. There are no drivetrain-specific parts to order, and ride height is then fine-tuned with the damper length adjusters.

What damping setting should I use?

Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 0 to 7 for track use. Each click changes compression and rebound together through the DFV valve, so one turn of the gold knob at each corner is all it takes to swap between road and circuit settings.

Can the dampers be serviced?

Yes. Every damper in the kit is rebuildable, so it can be serviced, refreshed or revalved for a different spring rate or driving style rather than replaced. The kit carries a 2-year Öhlins warranty, is TÜV approved and has passed ISO 9227 salt spray testing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

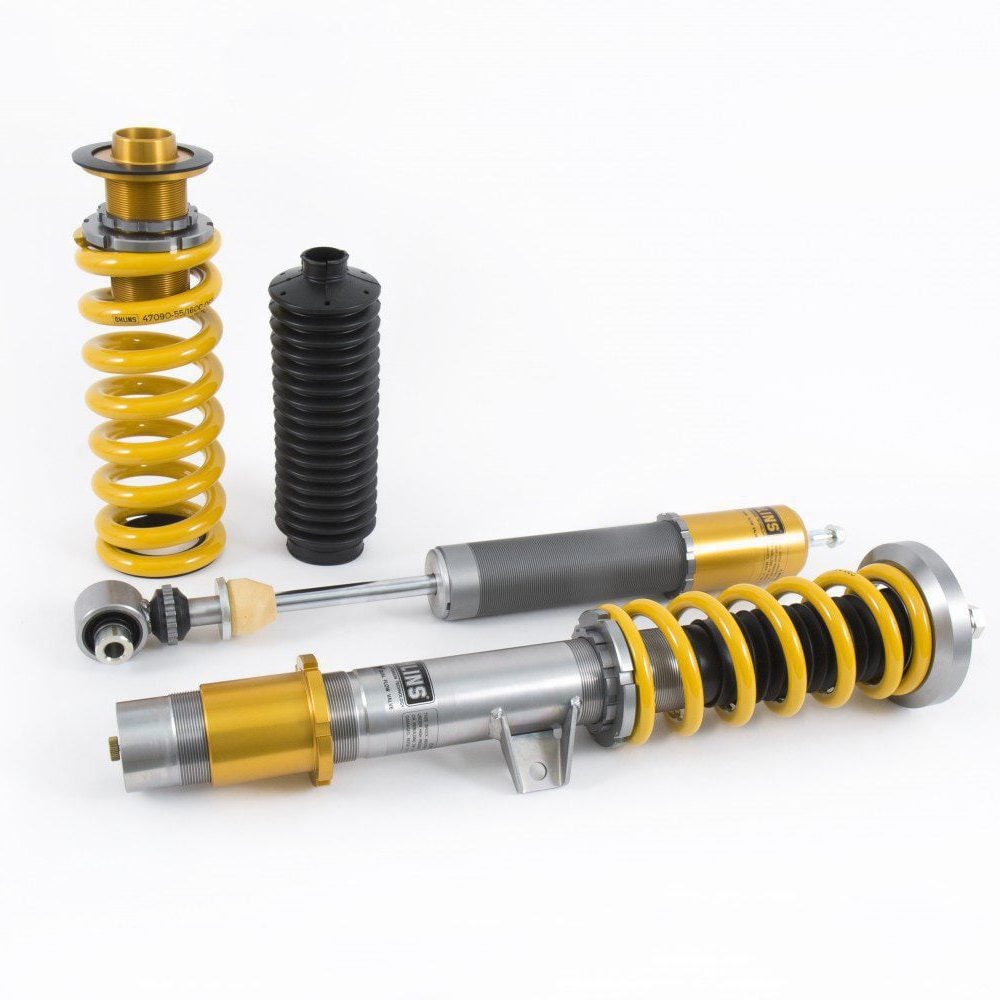

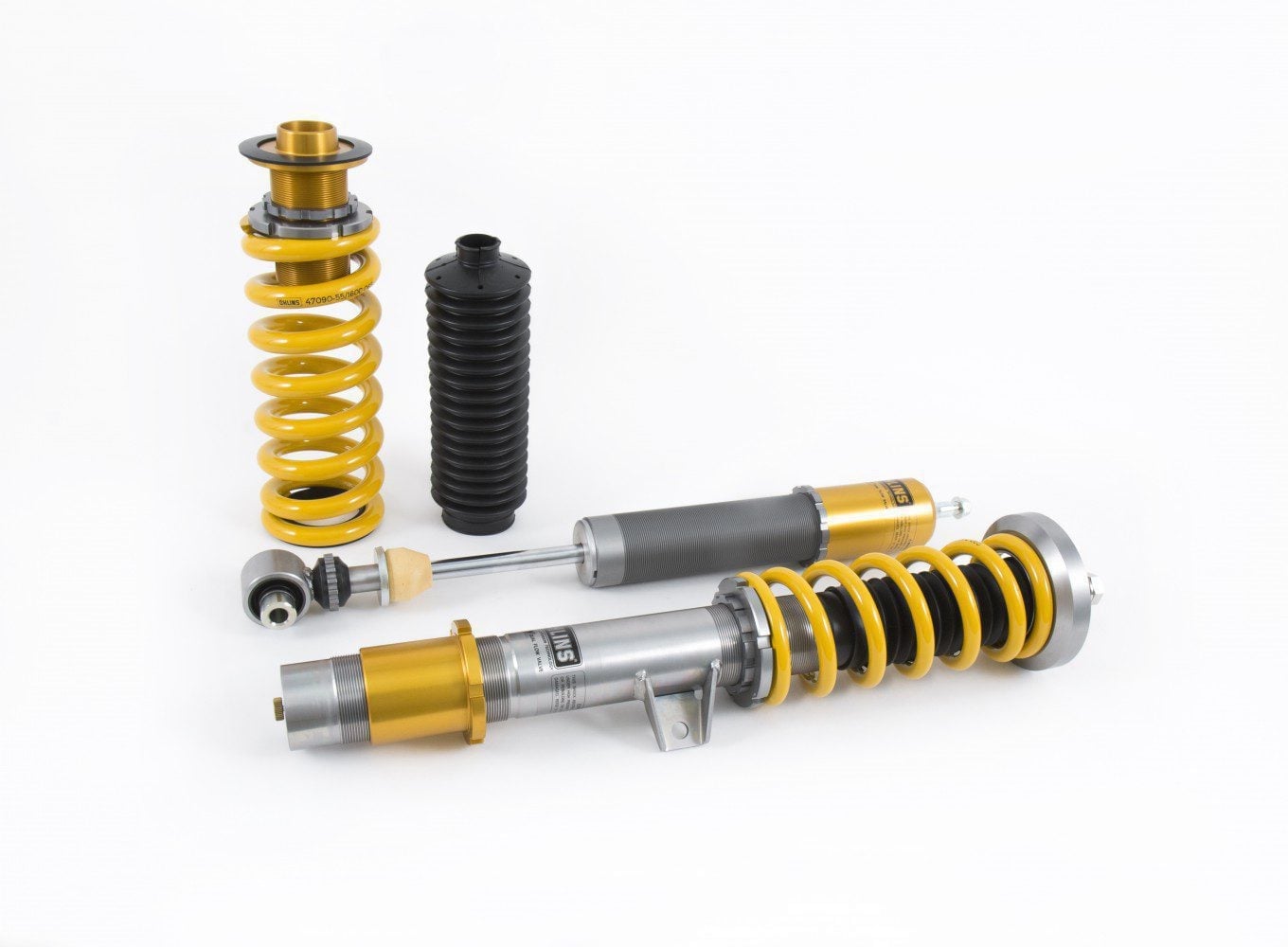

Öhlins DFV Road & Track Coilovers for F3X BMW 3 Series and 4 Series

Öhlins’ DFV Road & Track Coilovers for F3X BMW 3 Series and 4 Series replace all four dampers and springs on the F30 sedan, F31 Touring, F34 Gran Turismo and the F32, F33 and F36 4 Series with Öhlins kit BMS MU00S1, rear-drive and xDrive alike. A gold knob on each damper switches between street and track settings in seconds, and on Öhlins’ recommended settings the car sits 20 to 30 mm lower than stock. It suits the owner of a 328i, 335i or 440i who drives to the circuit and home again; a dedicated race car wants a fully adjustable damper.

Design and Performance

The Dual Flow Valve lets one adjuster shift low and high speed compression and rebound together, so road and track settings are a knob turn apart rather than a session of separate changes. Separate damper length and preload adjusters set ride height at each corner.

Features

DFV (Dual Flow Valve) damping technology
Single 25-click knob adjusts compression and rebound together
Inverted monotube McPherson struts up front
Aluminum monotube rear shock absorbers
Uses the factory top mounts
Rebuildable dampers for service and custom valving
Salt spray corrosion tested to ISO 9227
TÜV approved
2-year Öhlins warranty

Specifications

Front lowering range: approximately 0-35 mm
Rear lowering range: approximately 0-35 mm
Ride height at recommended settings: approximately 20-30 mm below stock
Front spring rate: 457 lb/in (80 N/mm)
Rear spring rate: 799 lb/in (140 N/mm)
Damping adjustment: 25 clicks, compression and rebound combined

What’s Included

Front struts (L/R)
Front springs (x2)
Rear shock absorbers (x2)
Rear springs (x2)
Rear spring seat adjusters, platforms and lock nuts (x2)
Spacers, dust boots, mounting hardware, C-spanners and Öhlins sticker kit
Owner’s manual and mounting instructions

Applications

BMW 3 Series: F30 / F31 / F34 / F35 | 2012-2019
BMW 4 Series: F32 / F33 / F36 | 2013-2020

Notes

Cars with factory electronic dampers also need the Öhlins EDC Cancellation Kit
Hybrid models such as the 330e need the heavier Öhlins 47010-55 rear springs (160 N/mm), sold separately
Not for the F80 M3 or F82 / F83 M4, which take the Öhlins DFV Road and Track Coilovers
Öhlins sells the same kit for the F2X BMW 2 Series and the G2X BMW 3 Series and 4 Series, listed separately
Professional installation and a four-wheel alignment are recommended when fitting the Coilovers for F3X BMW models

Frequently Asked Questions

Do I need the EDC cancellation kit with these coilovers? Only on cars with factory electronic dampers, such as Adaptive M Suspension. Öhlins specifies its cancellation kit on those cars to prevent error messages once the factory dampers are removed, which for the F3X is part 35020-03. Cars on passive dampers do not need it.
Which cars do the Coilovers for F3X BMW 3 Series and 4 Series fit? Öhlins lists kit BMS MU00S1 for the F30, F31, F34 and F35 3 Series and the F32, F33 and F36 4 Series, in rear-drive and xDrive form, so the Coilovers for F3X BMW sedans, wagons and coupes share one part number. The F80 M3 and F82 M4 use a different kit.
Does the kit fit xDrive cars? Yes. The same struts, shocks and springs fit rear-drive and xDrive cars, and the Öhlins mounting instructions give one front height setting for F-series cars with either drivetrain. There are no drivetrain-specific parts to order, and ride height is then fine-tuned with the damper length adjusters.
What damping setting should I use? Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 0 to 7 for track use. Each click changes compression and rebound together through the DFV valve, so one turn of the gold knob at each corner is all it takes to swap between road and circuit settings.
Can the dampers be serviced? Yes. Every damper in the kit is rebuildable, so it can be serviced, refreshed or revalved for a different spring rate or driving style rather than replaced. The kit carries a 2-year Öhlins warranty, is TÜV approved and has passed ISO 9227 salt spray testing.

About Öhlins

Öhlins was founded in 1976 by former motocross racer Kenth Öhlin and is based in Upplands Väsby, Sweden, where it develops dampers for motorcycles, cars and motorsport. Its suspension has won more than 300 world championship titles across motorcycle and car racing, its CES electronic damping went into series production on the Volvo S60R in 2003, and the company has been part of the Brembo group since 2025.
