Which cars do the Coilovers for F2X and G42 BMW 2 Series fit?

Öhlins lists kit BMS MU00S1 for the F22 and F23 2 Series and the G42 2 Series, in rear-drive and xDrive form, along with the F3X and G2X 3 Series and 4 Series. The F87 M2 and the F44 Gran Coupe are not on the list.

Do I need an EDC cancellation kit?

Only on cars with factory electronic dampers. Öhlins lists part 35020-03 for F-series cars and part 35020-30 for the G42 to prevent error messages once the factory dampers come out. Cars on passive dampers do not need either kit.

Does the kit fit xDrive cars?

Yes. The same struts, shocks and springs fit rear-drive and xDrive cars. The Öhlins mounting instructions give a different front height setting for G-series xDrive cars.

What damping setting should I use?

Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 0 to 7 for track use. Each click changes compression and rebound together through the DFV valve.

How low does the car sit on the Öhlins kit?

On the Öhlins recommended settings the car sits about 20 to 30 mm lower than stock. Öhlins gives a lowering range of roughly 0 to 35 mm, set with the separate damper length adjusters.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

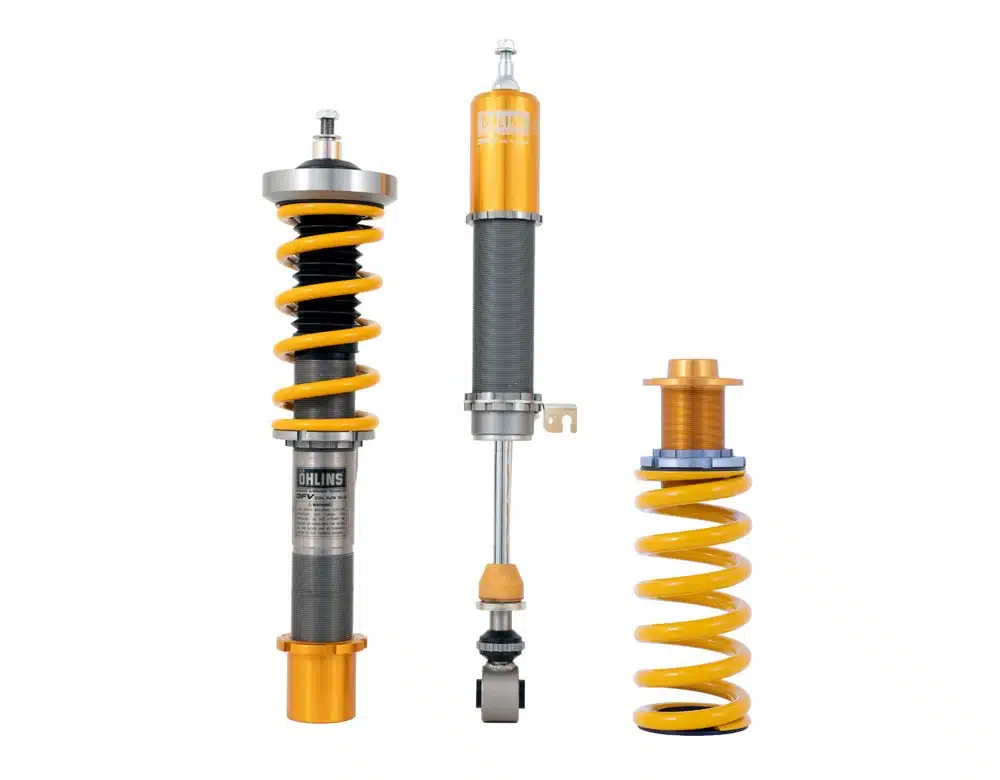

Öhlins DFV Road & Track Coilovers for F2X and G42 BMW 2 Series

Öhlins’ DFV Road & Track Coilovers for F2X and G42 BMW 2 Series coupes and convertibles replace all four dampers and springs with Öhlins kit BMS MU00S1, rear-drive and xDrive alike. The same kit covers the F22 and F23 and the later G42, from the 228i and 230i to the M235i and M240i. A gold knob on each damper switches between street and track settings in seconds, and on Öhlins’ recommended settings the car sits 20 to 30 mm lower than stock. It suits the owner who drives to the circuit and home again; a car trailered to every event wants a dedicated track damper.

Design and Performance

The Dual Flow Valve lets one adjuster shift low and high speed compression and rebound together, so road and track settings are a knob turn apart rather than a session of separate changes. The front uses upside-down monotube McPherson struts and the rear uses aluminum monotube shock absorbers, each with a spring preload adjuster and a separate damper length adjuster, so ride height and spring preload are set independently. Both ends keep the original BMW top mounts.

Features

DFV (Dual Flow Valve) damping technology
Single 25-click knob adjusts compression and rebound together
Upside-down monotube McPherson struts up front
Aluminum monotube rear shock absorbers
Spring preload and separate damper length adjusters front and rear
Uses the original top mounts front and rear
Rebuildable dampers for service and custom valving
Salt spray corrosion tested to ISO 9227
TÜV approved
2-year Öhlins warranty

Specifications

Ride height at recommended settings: approximately 20-30 mm below stock
Lowering range: approximately 0-35 mm, front and rear
Front spring rate: 457 lb/in (80 N/mm)
Rear spring rate: 799 lb/in (140 N/mm)
Damping adjustment: 25 clicks, compression and rebound combined

What’s Included

Front struts, left and right (x2)
Front springs (x2)
Rear shock absorbers (x2)
Rear springs (x2)
Rear spring seat adjusters, platforms and lock nuts (x2)
Spacers, dust boots, mounting hardware, C-spanners and Öhlins sticker kit
Owner’s manual and mounting instructions

Applications

BMW 2 Series coupe and convertible: F22 / F23 | 2014-2021
BMW 2 Series coupe: G42 | 2022-present
BMW 1 Series hatchback: F20 / F21 | 2011-2019
BMW 3 Series: F30 / F31 / F34 / F35 | 2012-2019
BMW 4 Series: F32 / F33 / F36 | 2013-2020
BMW 3 Series: G20 / G21 | 2019-present
BMW 4 Series: G22 / G23 / G26 | 2020-present

Notes

F22 and F23 cars with factory electronic dampers also need the Öhlins EDC Cancellation Kit for F-series BMW
G42 cars with factory electronic dampers need Öhlins cancellation kit 35020-30 instead, listed as the Öhlins EDC Cancellation Kit for G2X BMW
Not for the F87 M2 or the F44 2 Series Gran Coupe, which are not on the Öhlins list for this kit
Öhlins sells the same kit for the F3X BMW 3 Series and 4 Series and the G2X BMW 3 Series and 4 Series, listed separately
Professional installation and a four-wheel alignment are recommended when fitting the Coilovers for F2X and G42 BMW 2 Series models

Frequently Asked Questions

Which cars do the Coilovers for F2X and G42 BMW 2 Series fit? Öhlins lists kit BMS MU00S1 for the F22 and F23 2 Series and the G42 2 Series, in rear-drive and xDrive form, along with the F3X and G2X 3 Series and 4 Series. The F87 M2 and the F44 Gran Coupe are not on the list.
Do I need an EDC cancellation kit? Only on cars with factory electronic dampers. Öhlins lists part 35020-03 for F-series cars and part 35020-30 for the G42 to prevent error messages once the factory dampers come out. Cars on passive dampers do not need either kit.
Does the kit fit xDrive cars? Yes. The same struts, shocks and springs fit rear-drive and xDrive cars. The Öhlins mounting instructions give a different front height setting for G-series xDrive cars.
What damping setting should I use? Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 0 to 7 for track use. Each click changes compression and rebound together through the DFV valve.
How low does the car sit on the Öhlins kit? On the Öhlins recommended settings the car sits about 20 to 30 mm lower than stock. Öhlins gives a lowering range of roughly 0 to 35 mm, set with the separate damper length adjusters.

About Öhlins

Öhlins was founded in 1976 by former motocross racer Kenth Öhlin and is based in Upplands Väsby, Sweden, where it develops dampers for motorcycles, cars and motorsport. Its suspension has won more than 300 world championship titles across motorcycle and car racing, its CES electronic damping went into series production on the Volvo S60R in 2003, and the company has been part of the Brembo group since 2025.
