Do I need the EDC cancellation kit with these coilovers?

Only on cars with Adaptive M Suspension, the electronic damper control BMW offered on the F80 M3 and F82 and F83 M4. Without its dampers the system logs fault codes, which the Öhlins EDC Cancellation Kit, part 35020-02, prevents. Cars on passive dampers do not need it.

Which M3 and M4 models do the Coilovers for F80 BMW M3 fit?

Öhlins lists kit BMS MR40S1 for the 2015 to 2018 F80 M3 and the 2015 to 2020 F82 coupe and F83 convertible M4, so the Coilovers for F80 BMW M3 also fit the M4 coupe and convertible, Competition and CS models included. The same kit fits the F87 M2.

What damping setting should I use?

Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 2 to 7 for track use. Each click changes compression and rebound together through the DFV valve, so one turn of the gold knob at each corner is all it takes to swap between road and circuit settings.

How low does the car sit on the Öhlins kit?

On the recommended preload and height settings an M3 or M4 sits about 10 mm lower than on the factory suspension. The separate damper length adjusters give a lowering range of roughly 0 to 25 mm at each end, set without changing spring preload.

Can the dampers be serviced?

Yes. Every damper in the kit is rebuildable, so it can be serviced, refreshed or revalved for a different spring rate or driving style rather than replaced. The kit carries a 2-year Öhlins warranty, is TÜV approved and has passed ISO 9227 salt spray testing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

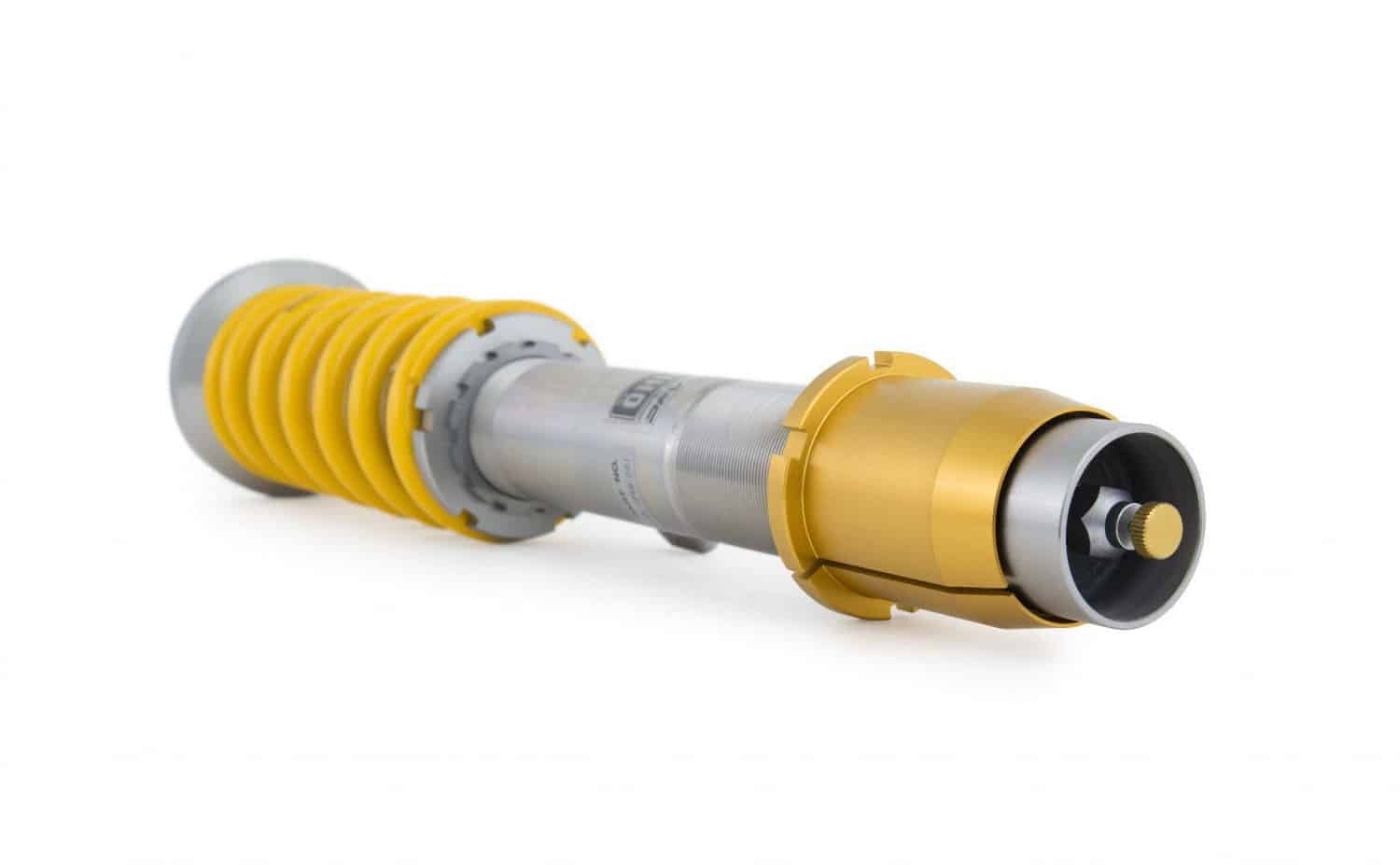

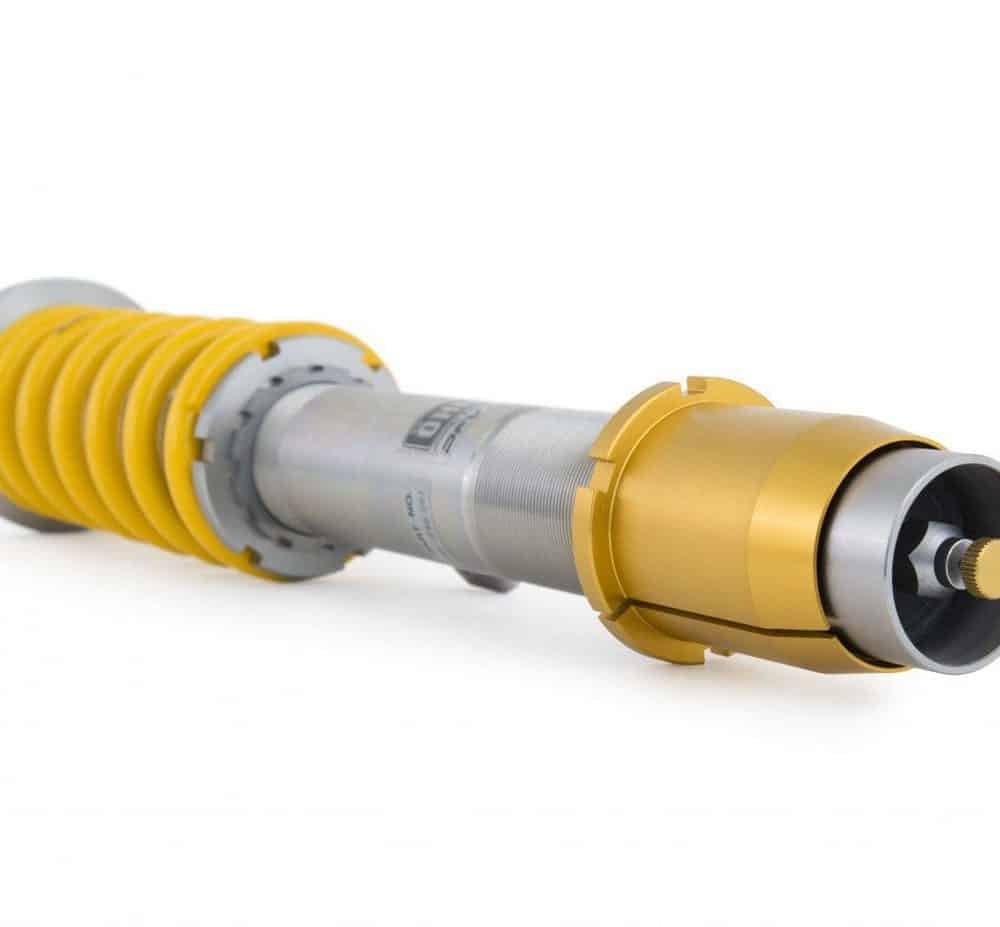

Öhlins DFV Road & Track Coilovers for F80 BMW M3 and F82 / F83 M4

Öhlins’ DFV Road & Track Coilovers for F80 BMW M3 and F82 / F83 M4 replace all four dampers and springs on the S55 coupe, sedan and convertible with Öhlins kit BMS MR40S1, and a gold knob on each damper switches it between street and track settings in seconds. The rear springs run more than twice the rate of the fronts, 1,085 lb/in against 514 lb/in. It suits the owner who drives to the circuit and home again; a dedicated race car is better served by a fully adjustable damper.

Design and Performance

The Dual Flow Valve lets one adjuster shift low and high speed compression and rebound together, so road and track settings are a knob turn apart rather than a session of separate changes. Separate damper length and preload adjusters set ride height at each corner.

Features

DFV (Dual Flow Valve) damping technology
Single 25-click knob adjusts compression and rebound together
Inverted monotube McPherson struts up front
Aluminum monotube rear shock absorbers
Uses the factory top mounts
Rebuildable dampers for service and custom valving
Salt spray corrosion tested to ISO 9227
TÜV approved
2-year Öhlins warranty

Specifications

Front lowering range: approximately 0-25 mm
Rear lowering range: approximately 0-25 mm
Ride height at recommended settings: approximately 10 mm below stock
Front spring rate: 514 lb/in (90 N/mm)
Rear spring rate: 1,085 lb/in (190 N/mm)
Damping adjustment: 25 clicks, compression and rebound combined

What’s Included

Front struts (x2)
Front springs (x2)
Rear shock absorbers (x2)
Rear springs (x2)
Rear spring preload adjusters, spring seats and lock rings (x2)
Accelerometer brackets for EDC cars (L/R)
Spacers, dust boots, mounting hardware, C-spanners and Öhlins sticker kit
Owner’s manual and mounting instructions

Applications

BMW M3: F80 | 2015-2018 | 3.0L S55
BMW M3 Competition: F80 | 2016-2018 | 3.0L S55
BMW M3 CS: F80 | 2018 | 3.0L S55
BMW M4: F82 / F83 | 2015-2020 | 3.0L S55
BMW M4 Competition: F82 / F83 | 2016-2020 | 3.0L S55
BMW M4 CS: F82 | 2018-2020 | 3.0L S55

Notes

Cars with Adaptive M Suspension, BMW’s factory electronic damper control, also need the Öhlins EDC Cancellation Kit
Öhlins sells the same kit for the F87 M2, listed separately as the Öhlins DFV Road and Track Coilovers
Professional installation and a four-wheel alignment are recommended when fitting the Coilovers for F80 BMW M3 or M4

Frequently Asked Questions

Do I need the EDC cancellation kit with these coilovers? Only on cars with Adaptive M Suspension, the electronic damper control BMW offered on the F80 M3 and F82 and F83 M4. Without its dampers the system logs fault codes, which the Öhlins EDC Cancellation Kit, part 35020-02, prevents. Cars on passive dampers do not need it.
Which M3 and M4 models do the Coilovers for F80 BMW M3 fit? Öhlins lists kit BMS MR40S1 for the 2015 to 2018 F80 M3 and the 2015 to 2020 F82 coupe and F83 convertible M4, so the Coilovers for F80 BMW M3 also fit the M4 coupe and convertible, Competition and CS models included. The same kit fits the F87 M2.
What damping setting should I use? Öhlins suggests 10 to 20 clicks for street driving, 5 to 10 for winding roads and 2 to 7 for track use. Each click changes compression and rebound together through the DFV valve, so one turn of the gold knob at each corner is all it takes to swap between road and circuit settings.
How low does the car sit on the Öhlins kit? On the recommended preload and height settings an M3 or M4 sits about 10 mm lower than on the factory suspension. The separate damper length adjusters give a lowering range of roughly 0 to 25 mm at each end, set without changing spring preload.
Can the dampers be serviced? Yes. Every damper in the kit is rebuildable, so it can be serviced, refreshed or revalved for a different spring rate or driving style rather than replaced. The kit carries a 2-year Öhlins warranty, is TÜV approved and has passed ISO 9227 salt spray testing.

About Öhlins

Öhlins was founded in 1976 by former motocross racer Kenth Öhlin and is based in Upplands Väsby, Sweden, where it develops dampers for motorcycles, cars and motorsport. Its suspension has won more than 300 world championship titles across motorcycle and car racing, its CES electronic damping went into series production on the Volvo S60R in 2003, and the company has been part of the Brembo group since 2025.
