Why does a supercharged Exige S race car need the Nitron Exige S RacePro 3?

An Exige S race car carries more speed, brakes harder and puts more torque down on corner exit, which raises the load and heat in every damper. The Nitron Exige S RacePro 3 adds independent 3-way adjustment and remote reservoirs to handle those conditions over a full race.

How does rebound adjustment on the Nitron Exige S RacePro 3 help on corner exit?

Rebound controls how quickly each corner extends. On the Nitron Exige S RacePro 3, adjusting front and rear rebound tunes how weight moves rearward as boost arrives. That helps the car put its torque down without pushing wide or stepping out.

How do the reservoirs keep the Nitron Exige S RacePro 3 consistent in long races?

The hose-mounted reservoirs add oil and gas volume, which helps the Nitron Exige S RacePro 3 hold stable pressure and temperature as heat builds. The damping, and the car's balance, stay the same late in a race as they were on lap one.

How are the reservoir hoses routed around the supercharger on the Nitron Exige S RacePro 3?

Nitron's Bi-Axis fittings swivel on two axes where each hose leaves the damper. The Nitron Exige S RacePro 3 hoses can be aimed cleanly around the supercharger plumbing, exhaust and suspension, and the included brackets let you place the reservoirs away from the hottest areas.

Is the Nitron Exige S RacePro 3 suited to a road-driven Exige S?

The Nitron Exige S RacePro 3 is built for competition, with springs and valving chosen for racing. An Exige S that's mainly driven on the road with occasional track days is better served by the Nitron NTR-R1 FastRoad or ClubSport kits.

What does the Nitron Exige S RacePro 3 need over a race season?

How often the Nitron Exige S RacePro 3 needs a rebuild depends on how busy your race calendar is. Every damper is fully serviceable and can be revalved at the same time if your tires, aero or class change.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

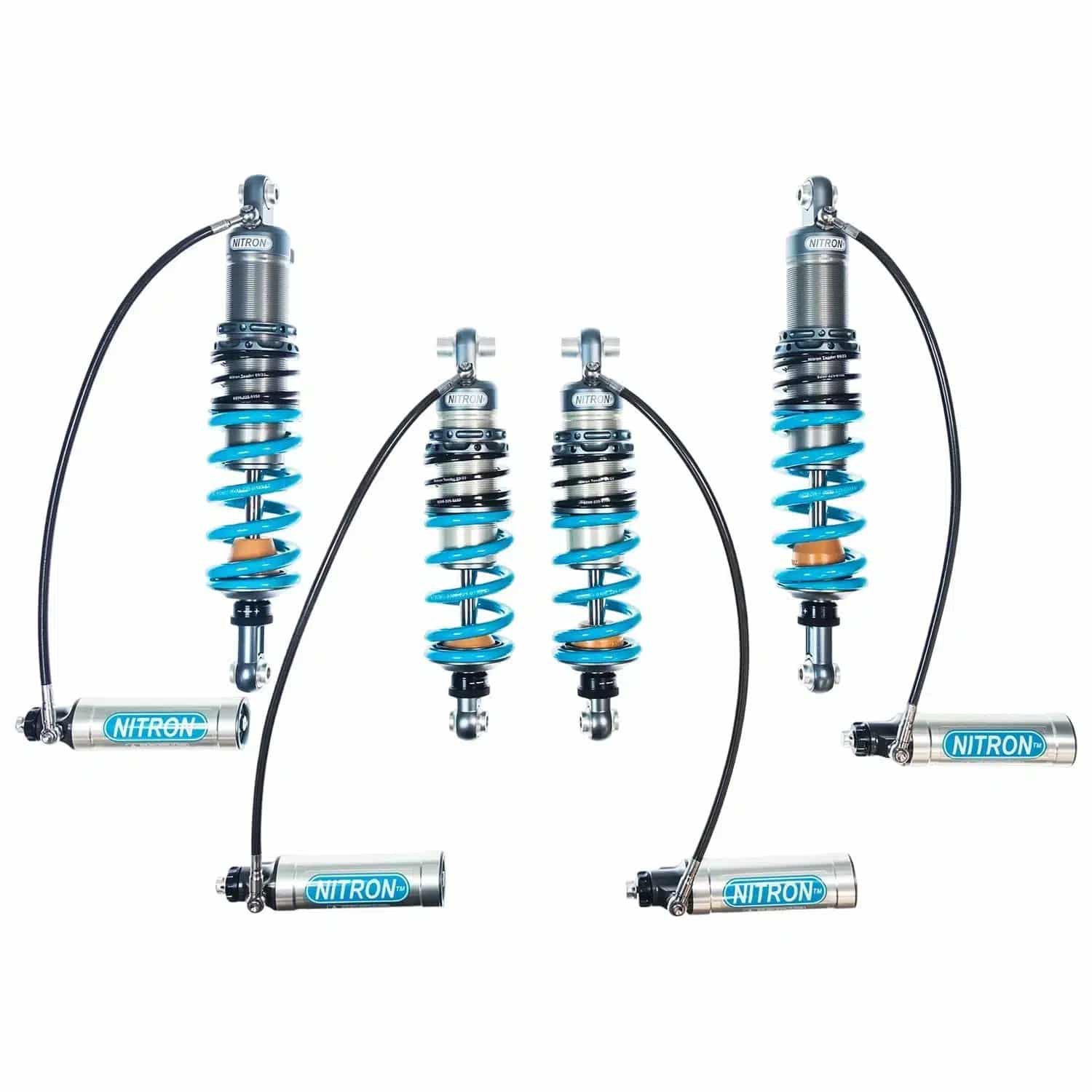

Nitron RacePro 3 Coilover Kit for S2 Lotus Exige S

Racing a supercharged Exige S puts more load through its dampers than the naturally aspirated cars see. The S reaches braking zones faster and drives out of corners harder on boost, and in a long race heat builds up everywhere. The Nitron Exige S RacePro 3 kit is Nitron’s full competition coilover package for this car. Rebound, low-speed compression and high-speed compression each have their own adjuster at all four corners, so you can tune how the car puts its torque down without upsetting how it turns in or rides the curbs. The Nitron Exige S RacePro 3 runs a 46mm piston for precise control under heavy braking and aero loads. The inverted dampers keep unsprung weight low, and hose-mounted reservoirs at both ends carry the extra oil and gas volume a hot, high-speed race calls for. Mounting brackets are included, supplied for your car’s drive side.

Specialized Bi-Axis Hose Fittings

Fitting reservoir hoses to an Exige S is harder than on the naturally aspirated car. At the rear, the hoses have to clear the subframe and exhaust, plus the supercharger and its plumbing in an engine bay that gets very hot. At the front, they run around the wishbones, steering rack and radiator ducting. On the Nitron Exige S RacePro 3, Nitron’s Bi-Axis fittings let each hose swivel on two axes where it leaves the damper. You can point the hose along its intended route from the start, with no tight bends and no rubbing on moving parts through full travel and steering lock. That freedom also lets you put the reservoirs where the adjusters are easy to reach and away from the hottest parts of the car.

Unique Technology

Nitron builds the Nitron Exige S RacePro 3 around its 46mm competition damper. Each of the three circuits handles one part of the car’s behavior. On a supercharged car, rebound is often the first setting to change. It controls how quickly the corners extend, which shapes how the weight transfers to the rear as boost arrives on exit and how settled the car stays as you trail-brake into the next corner. Low-speed compression controls roll and pitch from the driver’s inputs, so it sets how sharply the front responds and how flat the platform stays mid-corner. High-speed compression takes care of fast, sharp hits from curbs and seams, and backing it off lets the wheels ride over them without the rest of the setup changing. The remote reservoirs give the Nitron Exige S RacePro 3 more oil and gas volume. Pressure and temperature stay stable deep into a race, when a smaller damper would start to fade. Low internal friction and inverted mounting let each wheel react quickly and stay in contact with the track. Every click makes a defined change that you can repeat from one weekend to the next.
- Basic Damper Design:
  - End Eye / Top Mount
  - Damper Piston & Shim Stack
  - Shaft / Rod
  - Floating / Separator Piston
  - Suspension Oil
  - Compressed Nitrogen Gas

Bespoke Engineering

Each Nitron Exige S RacePro 3 kit is hand-built by Nitron only after it’s ordered. Springs and base valving are set for the car’s tires, aero, ballast and series regulations. That way the adjusters begin with useful range on either side of where the car needs to be, rather than at the limit of their travel. Titanium and hard-anodized components keep weight low at every corner and resist corrosion through a season of rain, pressure washing and storage. Every Nitron Exige S RacePro 3 damper is fully serviceable and can be revalved when your tire choice, aero or class rules change.

Features

Hose reservoir type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and mounting brackets (LHD or RHD)
Hand made to order

Specifications

Coilover Type: RacePro 3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Hose
Mounting Brackets: Included (LHD or RHD)
Recommended Spring Rates:
- Front: 550lbs/inch (96N/mm)
- Rear: 700lbs/inch (123N/mm)

Applications

Lotus Exige S: S2 | 2006-2011

Other Suspension Kits for S2 Lotus Exige S

Notes

Options for LHD or RHD mounting brackets
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

Why does a supercharged Exige S race car need the Nitron Exige S RacePro 3? An Exige S race car carries more speed, brakes harder and puts more torque down on corner exit, which raises the load and heat in every damper. The Nitron Exige S RacePro 3 adds independent 3-way adjustment and remote reservoirs to handle those conditions over a full race.
How does rebound adjustment on the Nitron Exige S RacePro 3 help on corner exit? Rebound controls how quickly each corner extends. On the Nitron Exige S RacePro 3, adjusting front and rear rebound tunes how weight moves rearward as boost arrives. That helps the car put its torque down without pushing wide or stepping out.
How do the reservoirs keep the Nitron Exige S RacePro 3 consistent in long races? The hose-mounted reservoirs add oil and gas volume, which helps the Nitron Exige S RacePro 3 hold stable pressure and temperature as heat builds. The damping, and the car’s balance, stay the same late in a race as they were on lap one.
How are the reservoir hoses routed around the supercharger on the Nitron Exige S RacePro 3? Nitron’s Bi-Axis fittings swivel on two axes where each hose leaves the damper. The Nitron Exige S RacePro 3 hoses can be aimed cleanly around the supercharger plumbing, exhaust and suspension, and the included brackets let you place the reservoirs away from the hottest areas.
Is the Nitron Exige S RacePro 3 suited to a road-driven Exige S? The Nitron Exige S RacePro 3 is built for competition, with springs and valving chosen for racing. An Exige S that’s mainly driven on the road with occasional track days is better served by the Nitron NTR-R1 FastRoad or ClubSport kits.
What does the Nitron Exige S RacePro 3 need over a race season? How often the Nitron Exige S RacePro 3 needs a rebuild depends on how busy your race calendar is. Every damper is fully serviceable and can be revalved at the same time if your tires, aero or class change.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
