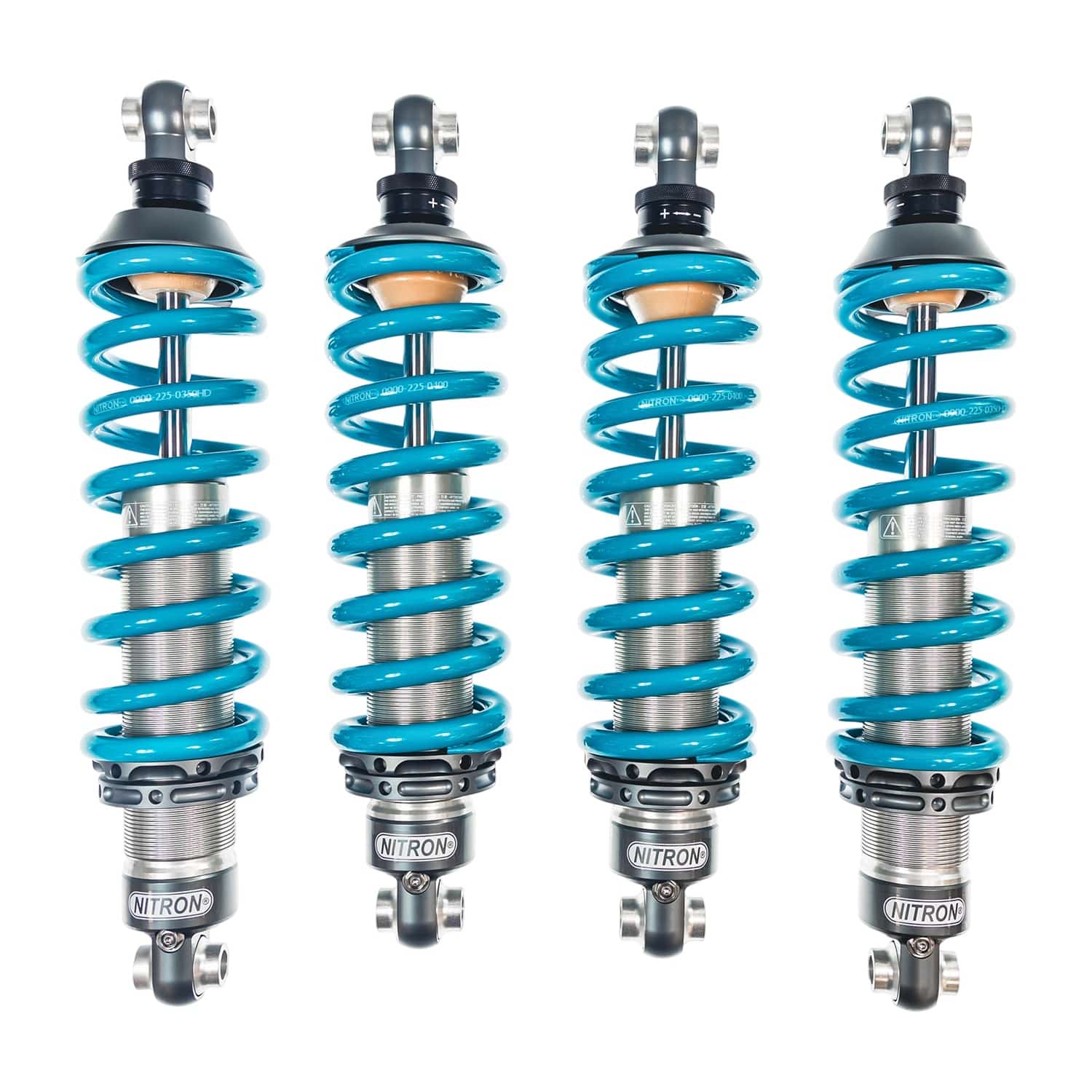

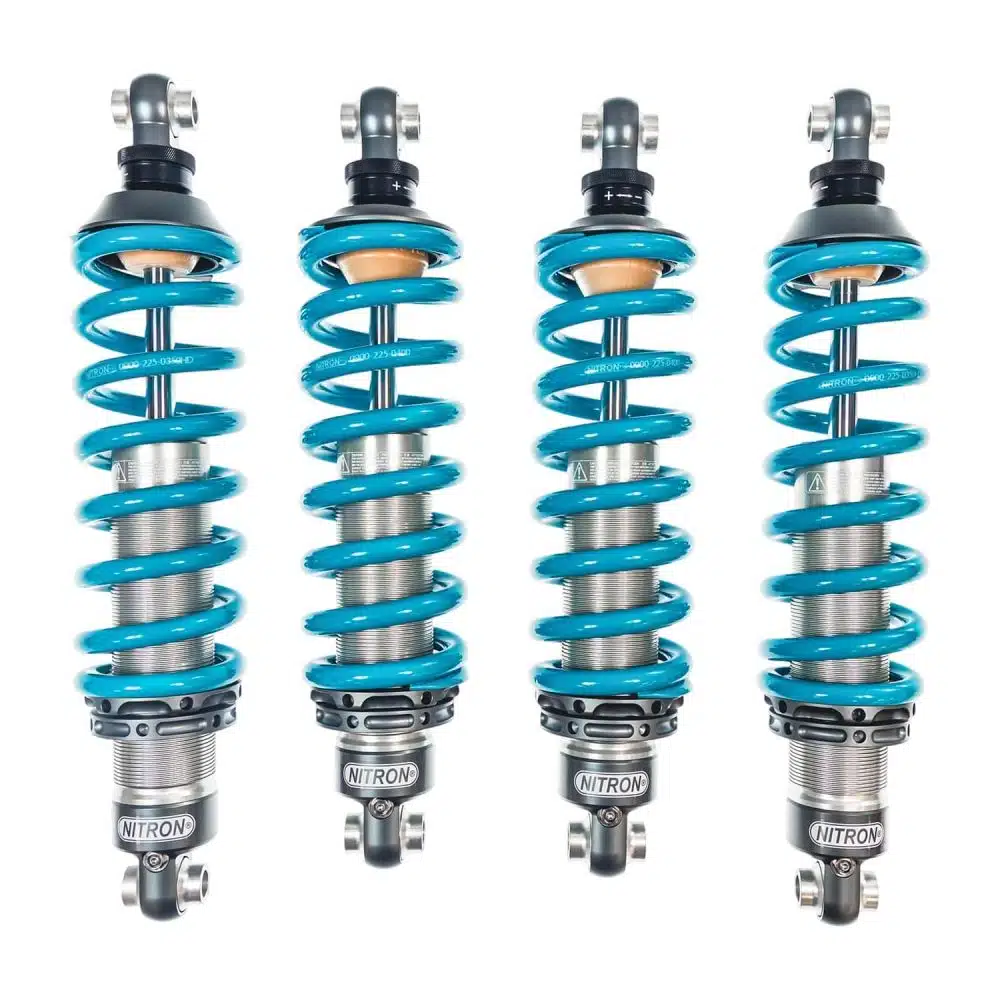

Nitron NTR-R1 FastRoad Coilover Kit for S2 Lotus Exige S

The supercharger changes how an Exige S uses its suspension. There’s strong torque from low revs, so the car reaches every corner faster and brakes harder into it than the naturally aspirated S2. Worn dampers struggle with that extra load. The nose dives under braking, the rear squats and wriggles on corner exit, and the car takes too long to settle over bumps at speed. The Nitron Exige S NTR-R1 FastRoad kit gives the S hand-built coilovers that are sprung and valved for fast road driving. Weight transfer under hard braking and hard acceleration stays under control, and the ride is still compliant enough for long drives. A single adjuster at each corner of the Nitron Exige S NTR-R1 sets bump and rebound together. You can firm it up for a quick mountain road or back it off for broken highway pavement in a few clicks. The kit also gives the factory splitter and rear wing a stable platform at speed. Mounting brackets are included, supplied for your car’s drive side.

Unique Technology

Inside each Nitron Exige S NTR-R1 damper is hardware developed in Nitron’s race department, much of it shared with the NTR-R3 that Nitron fields in international motorsport. The gas charge and oil sit within the damper body, which keeps the kit self-contained with no external canister. Each damper runs inverted. More of its mass is carried by the chassis rather than the wheel, so the tires can stay in contact over rough surfaces. Very low internal friction means the Nitron Exige S NTR-R1 begins damping with the first movement of the wheel. That’s how it settles the car the moment the supercharger’s torque arrives at corner exit, and how it absorbs small, sharp bumps that would otherwise come straight through the seat. Damping stays consistent when the oil is hot, too, so a long, fast run feels the same at the end as it did at the start.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron builds every Nitron Exige S NTR-R1 FastRoad kit by hand once the order is in, with springs and valving set for the Exige S and for a road-focused brief of grip, control and usable comfort. Titanium and hard-anodized components take weight out of each corner and resist corrosion from wet roads and winter storage. The Nitron Exige S NTR-R1 can grow with the car, too. Each damper is fully serviceable, and the kit can be upgraded to a firmer track or race specification later if the Exige S starts spending more time on circuits. If you’d like help deciding between the FastRoad and ClubSport kits, or want to talk about spring rates, contact us directly before ordering.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilover assemblies and mounting brackets (LHD or RHD)
Hand made to order

Specifications

Coilover Type: NTR-R1 FastRoad
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Mounting Brackets: Included (LHD or RHD)
Recommended Spring Rates:
- Front: 425lbs/inch (74N/mm)
- Rear: 550lbs/inch (96N/mm)

Applications

Lotus Exige S: S2 | 2006-2011

Other Suspension Kits for S2 Lotus Exige S

Notes

Options for LHD or RHD mounting brackets
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Why does the supercharged Exige S benefit from the Nitron Exige S NTR-R1 FastRoad? The Exige S reaches corners faster and brakes harder than the naturally aspirated S2, which puts more load on the dampers. The Nitron Exige S NTR-R1 FastRoad controls dive under braking and squat on corner exit, so the car stays settled when you use all of the supercharger’s torque.
Is the Nitron Exige S NTR-R1 FastRoad comfortable enough for long drives? Yes. The FastRoad setup is road-biased, and the low-friction Nitron Exige S NTR-R1 dampers absorb small bumps well. Softening the single adjuster makes the car more comfortable on rough highways and long trips.
Can the Nitron Exige S NTR-R1 FastRoad be made firmer later? Yes. If your Exige S starts doing more track days, the Nitron Exige S NTR-R1 FastRoad can be upgraded to a firmer track or race specification, so you don’t have to replace the kit.
Which mounting brackets come with the Nitron Exige S NTR-R1? The Nitron Exige S NTR-R1 includes mounting brackets supplied for your car’s drive side. Choose LHD or RHD from the drop-down when you order.
Does heat affect the Nitron Exige S NTR-R1 on long, fast runs? The Nitron Exige S NTR-R1 is built to resist fade, so damping stays consistent as the oil heats up. The car’s balance stays the same from the start of a long drive to the end.
What should be done after installing the Nitron Exige S NTR-R1? After the Nitron Exige S NTR-R1 is installed, set the ride height and then have a four-wheel alignment and corner weighting done. That way the car’s balance and tire wear are right from day one.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
