Does this set fit both the Lotus and the Celica?

Yes. Injector Dynamics lists application code 30.01 for the 2005 and later Lotus Elise and Exige and for the 2000 to 2005 Toyota Celica GT-S, all of which use the 1.8 liter 2ZZ-GE. The 60mm body, 11mm top and Denso lower cushion suit the factory injector bores in each car.

Will the ID2600-XDS Fuel Injector Set fit a V6 Exige?

No. The ID2600-XDS Fuel Injector Set is coded for the four cylinder 2ZZ-GE. Later Exige and Evora models use a Toyota V6, which Injector Dynamics does not list for this part number, so check the engine code on your car before ordering.

Is 2600cc too much for a 2ZZ-GE?

Yes, for most builds. The 2ZZ-GE is a 1.8 liter engine, and only a heavily boosted car on E85 or methanol will use this flow. Stock and lightly supercharged cars on gasoline idle and cruise more easily with the ID1300-XDS set for the same engine.

Do I need to retune after fitting?

Yes. The ECU must be told the new flow rate, offset and short pulse behavior. Injector Dynamics publishes the 2600 characterization data, including a 605 microsecond offset at 43.5 psi and 12 volts. Factory Lotus and Toyota ECUs need a reflash or a standalone system to use it.

Are the four injectors matched?

Yes. Injector Dynamics flow matches each set using Dual Slope Matching, which checks injectors in both the linear and the short pulse range. A failed injector under the one year defect warranty is replaced through Injector Dynamics so the set stays balanced, provided correct fuel and filtration were used.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

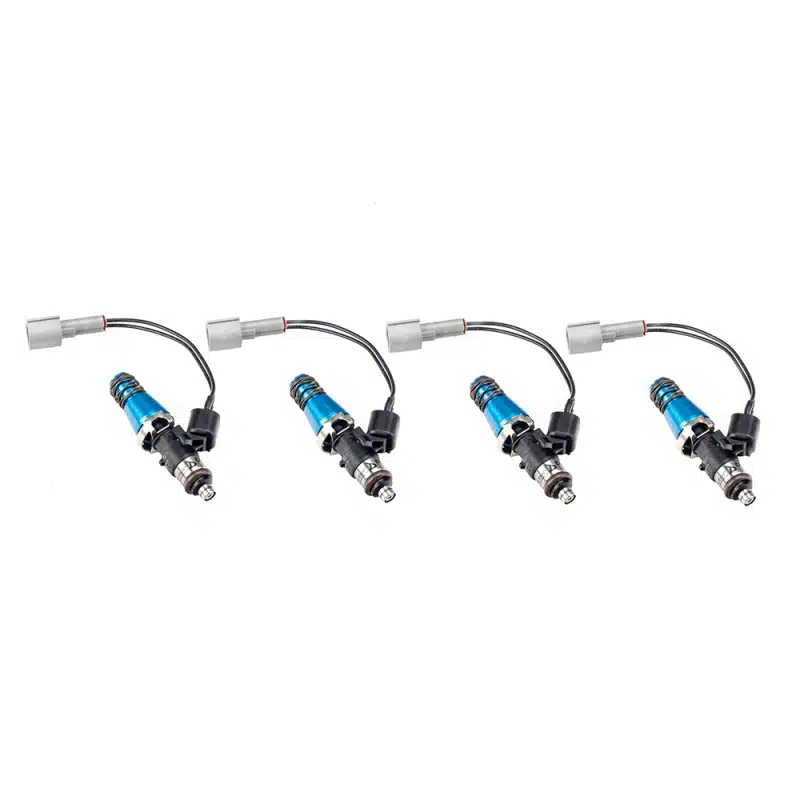

Injector Dynamics ID2600-XDS Fuel Injector Set for 2ZZ-GE Lotus Elise, Exige and Toyota Celica GT-S

For the 1.8L 2ZZ-GE in the Lotus Elise, Exige and Toyota Celica GT-S, this ID2600-XDS Fuel Injector Set supplies four 2600cc/min injectors on 60mm bodies with 11mm tops and Denso lower cushions. The 2ZZ-GE is a small, high-revving engine, so 2600cc per injector is only sensible on a heavily boosted car that has moved to E85 or methanol. On a stock or mildly supercharged Elise running gasoline, the injector is oversized, and the ID1300-XDS set for the same engine is the more practical choice. Matching in the short pulse range keeps idle fueling even across the four cylinders.

Configuration

The 30.01 is the Injector Dynamics application code for the 2ZZ-GE. The 60 is the 60mm body and the 11 is the 11mm top adapter, with a Denso cushion at the lower end to suit the factory injector bores on both the Lotus and Toyota installations.

Features

ID2600-XDS Fuel Injector Set matched as four for the 2ZZ-GE
Developed with Bosch Motorsport for liquid fuels, with corrosion-resistant internals
Rated to 9.0 bar differential pressure for high base pressure under boost

Specifications

Nominal flow: 2600cc/min
Maximum differential fuel pressure: 9.0 bar (130.5 psi)
Minimum voltage: 11 volts
Fuel compatibility: Methanol, ethanol, all known hydrocarbons; not ethers or nitromethane
Electrical connector: USCAR
Body length: 60mm
Top: 11mm adapter
Lower: Denso lower cushion

What’s Included

ID2600-XDS fuel injectors configured for the 2ZZ-GE (x4)

Applications

Lotus Elise and Exige: 2005+ | 1.8L 2ZZ-GE
Toyota Celica GT-S: 2000-2005 | 1.8L 2ZZ-GE

Notes

No connector adapters come with the USCAR plugs; a Denso-plug engine pairs with the Injector Dynamics USCAR to Denso PnP Adapter, and EV1 or OBD2 wiring needs the matching Injector Dynamics adapter
Coded for the 1.8L 2ZZ-GE only; confirm the engine code before ordering
An ECU recalibration is required after fitting, using the Injector Dynamics characterization data
Also offered as the ID1300-XDS Fuel Injector Set and the ID1750-XDS Fuel Injector Set for the same engine

Frequently Asked Questions

Does this set fit both the Lotus and the Celica? Yes. Injector Dynamics lists application code 30.01 for the 2005 and later Lotus Elise and Exige and for the 2000 to 2005 Toyota Celica GT-S, all of which use the 1.8 liter 2ZZ-GE. The 60mm body, 11mm top and Denso lower cushion suit the factory injector bores in each car.
Will the ID2600-XDS Fuel Injector Set fit a V6 Exige? No. The ID2600-XDS Fuel Injector Set is coded for the four cylinder 2ZZ-GE. Later Exige and Evora models use a Toyota V6, which Injector Dynamics does not list for this part number, so check the engine code on your car before ordering.
Is 2600cc too much for a 2ZZ-GE? Yes, for most builds. The 2ZZ-GE is a 1.8 liter engine, and only a heavily boosted car on E85 or methanol will use this flow. Stock and lightly supercharged cars on gasoline idle and cruise more easily with the ID1300-XDS set for the same engine.
Do I need to retune after fitting? Yes. The ECU must be told the new flow rate, offset and short pulse behavior. Injector Dynamics publishes the 2600 characterization data, including a 605 microsecond offset at 43.5 psi and 12 volts. Factory Lotus and Toyota ECUs need a reflash or a standalone system to use it.
Are the four injectors matched? Yes. Injector Dynamics flow matches each set using Dual Slope Matching, which checks injectors in both the linear and the short pulse range. A failed injector under the one year defect warranty is replaced through Injector Dynamics so the set stays balanced, provided correct fuel and filtration were used.

About Injector Dynamics

Injector Dynamics is an Arizona injector specialist and an authorized technical partner of Bosch Motorsport, developing its injectors to its own specification rather than modifying production parts. It introduced slope and offset matching in 2007, and its Dual Slope Matching, developed by engineer Aaron Looft, extends matching into the short pulse widths that boosted and ethanol engines rely on. Its flow benches are built in house and calibrated against a NIST-traceable flow prover. Injector Dynamics supplied the emissions-compliant injectors for the twin-turbo Noble M600, and its injectors were fitted to the first seven-second Nissan GT-R and the first 300 mph motorcycle.
