Is the Nitron 340R RacePro 3 the only 3-way kit Nitron offers for the 340R?

Yes. The Nitron 340R RacePro 3 is the only 3-way adjustable Nitron kit for the Lotus 340R. It’s built to full-race specification around a 46mm piston, with independent rebound, low-speed compression and high-speed compression adjustment. For road-focused driving, Nitron offers the NTR-R1 FastRoad and ClubSport kits instead.

What does the 46mm piston do on the Nitron 340R RacePro 3?

The 46mm piston in the Nitron 340R RacePro 3 moves a larger volume of oil for every millimeter of travel. That gives the damper more precise control as loads build under heavy braking and through fast corners. On a car as light as the 340R, it also means each adjuster click makes a clear, repeatable change.

How are the reservoirs mounted on the Nitron Lotus 340R RacePro 3?

The Nitron Lotus 340R RacePro 3 uses hose-mounted reservoirs at both ends, each connected to its damper by a hose. Nitron’s Bi-Axis fittings let each hose leave the damper at the correct angle, which keeps routing neat on a car where the suspension is on full display. Plan reservoir locations before installation so the adjusters stay easy to reach.

Can the Nitron 340R RacePro 3 be used on the road?

The Nitron 340R RacePro 3 is a full-race setup, and its valving isn’t designed around road comfort. It can be driven on the road, but owners who regularly use their Lotus 340R on public roads will be better served by the Nitron NTR-R1 FastRoad or ClubSport kits, which are set up with road driving in mind.

How often should the Nitron 340R RacePro 3 be serviced?

Service intervals depend on how hard and how often the car runs. Many owners have their Nitron 340R RacePro 3 dampers rebuilt between seasons, or sooner on a busy calendar. Every unit is fully serviceable, and revalving can be done at the same time if your tires, events or series change.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

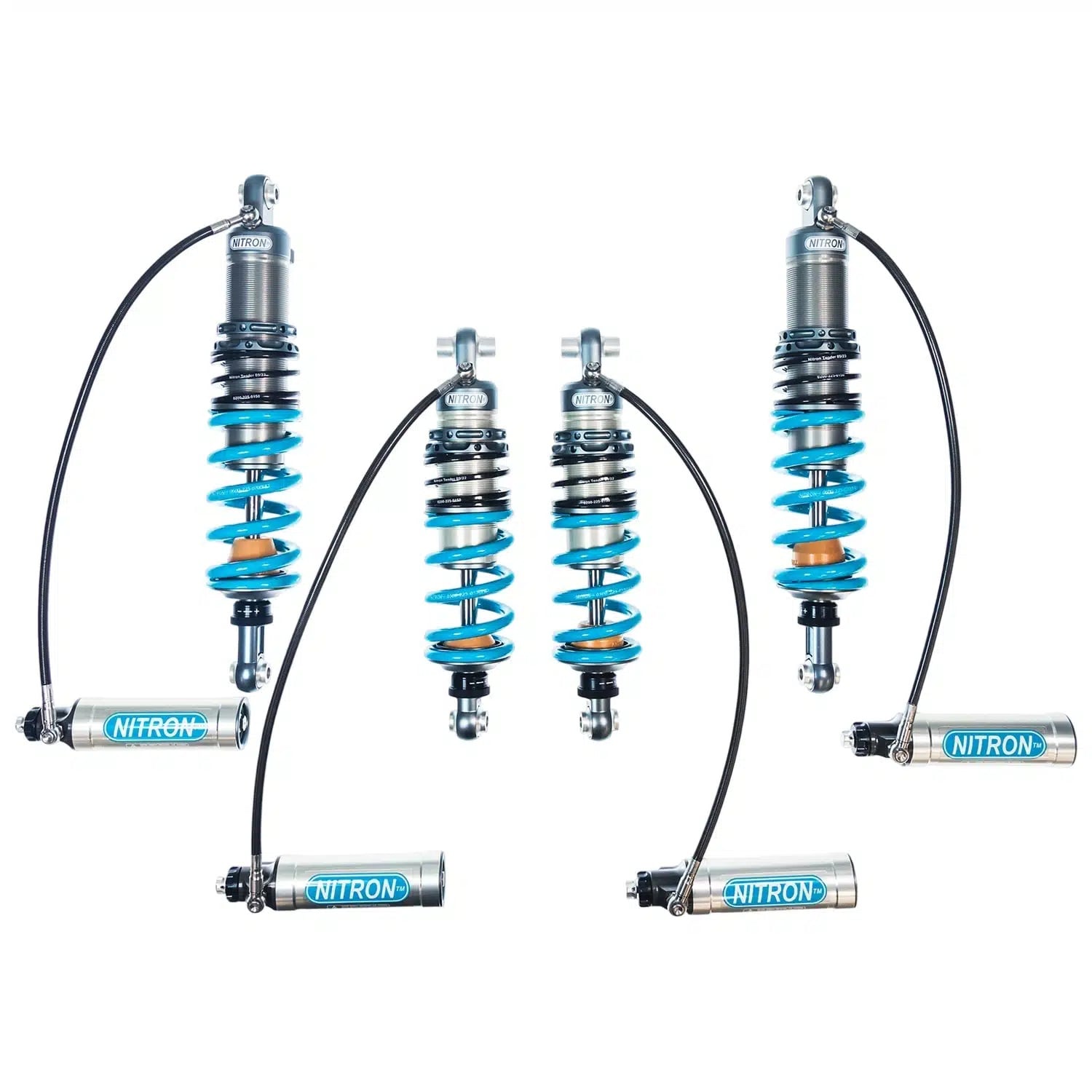

Nitron RacePro 3 Coilover Kit for 111 Lotus 340R

The 340R was always closer to a track car than a road car, and the Nitron 340R RacePro 3 coilover kit takes it the rest of the way. It’s the only 3-way adjustable Nitron kit for the car, and the only one built to full-race specification. A 46mm piston sits at the center of each damper, and each corner has independent adjustment of rebound, low-speed compression and high-speed compression. On a car with so little mass over each wheel, small changes in damping are felt right away. Separating them lets you deal with one handling trait without disturbing another. Low-speed compression and rebound govern how the body pitches into the braking zone and settles through the corner. High-speed compression governs how the wheels react to curbs and sharp bumps. Hose-mounted reservoirs front and rear put the compression adjusters within reach, and the 340R’s open bodywork makes them easier to get at than on almost any other car. Mounting brackets are included, so the Nitron Lotus 340R RacePro 3 bolts into the double wishbone suspension without sourcing extra hardware.

Specialized Bi-Axis Hose Fittings

The 340R’s exposed chassis leaves little room to hide anything, and reservoirs front and rear mean four hoses that each need a clean, secure route past the wishbones, brake lines and bodywork. Nitron’s exclusive Bi-Axis fittings swivel on two planes where each hose leaves the damper. On the Nitron Lotus 340R RacePro 3, every hose can point straight toward its reservoir instead of being forced into a tight bend. The installation looks neat on a car where the suspension is on full display, and the hoses stay clear through full bump, full droop and full steering lock.

Unique Technology

The defining part of the Nitron RacePro 3 is its 46mm piston. Each millimeter of shaft travel pushes a larger volume of oil through the valving, so the damper builds force more accurately and holds more control in reserve when the chassis is heavily loaded. On the 340R, that shows up most under threshold braking and through fast, loaded corners on slicks or sticky track tires. The car stays settled instead of bobbing or wallowing, and each adjuster click makes a clear, repeatable difference. The hose-mounted reservoirs add oil volume away from the damper body, which keeps damping consistent through a long session or a full race. Because high- and low-speed compression adjust independently on each reservoir, the Nitron 340R RacePro 3 gives you full control at every phase of the corner.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Every Nitron 340R RacePro 3 kit is hand-built to order and set up around the car’s competition role. Springs and valving are specified for the tires, events and driving involved, whether that’s a dedicated track-day 340R, a car prepared for sprints and hill-climbs or one entered in circuit racing. Hard-anodized components and titanium hardware keep weight off a car built around minimal mass, and they resist corrosion on an open car that’s exposed to every wet paddock it visits. With only 340 cars built, the parts on a 340R need to last. Each Nitron RacePro 3 damper can be fully serviced and rebuilt, and it can be revalved for new tires, events or regulations, so the kit stays matched to the car season after season.

Features

Hose reservoir type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and mounting brackets
Hand made to order

Specifications

Coilover Type: RacePro 3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Hose
Mounting Brackets: Included
Recommended Spring Rates:
- Front: 550lbs/inch (96N/mm)
- Rear: 650lbs/inch (114N/mm)

Applications

Lotus 340R: 111 | 2000

Other Suspension Kits for Lotus 340R

Notes

Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

Is the Nitron 340R RacePro 3 the only 3-way kit Nitron offers for the 340R? Yes. The Nitron 340R RacePro 3 is the only 3-way adjustable Nitron kit for the Lotus 340R. It’s built to full-race specification around a 46mm piston, with independent rebound, low-speed compression and high-speed compression adjustment. For road-focused driving, Nitron offers the NTR-R1 FastRoad and ClubSport kits instead.
What does the 46mm piston do on the Nitron 340R RacePro 3? The 46mm piston in the Nitron 340R RacePro 3 moves a larger volume of oil for every millimeter of travel. That gives the damper more precise control as loads build under heavy braking and through fast corners. On a car as light as the 340R, it also means each adjuster click makes a clear, repeatable change.
How are the reservoirs mounted on the Nitron Lotus 340R RacePro 3? The Nitron Lotus 340R RacePro 3 uses hose-mounted reservoirs at both ends, each connected to its damper by a hose. Nitron’s Bi-Axis fittings let each hose leave the damper at the correct angle, which keeps routing neat on a car where the suspension is on full display. Plan reservoir locations before installation so the adjusters stay easy to reach.
Does the Nitron 340R RacePro 3 include mounting brackets? Yes. Mounting brackets come with every Nitron 340R RacePro 3 kit, so the dampers fit the Lotus 340R’s double wishbone suspension without sourcing extra hardware. Everything needed to mount the coilovers arrives together, which keeps the installation straightforward.
Can the Nitron 340R RacePro 3 be used on the road? The Nitron 340R RacePro 3 is a full-race setup, and its valving isn’t designed around road comfort. It can be driven on the road, but owners who regularly use their Lotus 340R on public roads will be better served by the Nitron NTR-R1 FastRoad or ClubSport kits, which are set up with road driving in mind.
How often should the Nitron 340R RacePro 3 be serviced? Service intervals depend on how hard and how often the car runs. Many owners have their Nitron 340R RacePro 3 dampers rebuilt between seasons, or sooner on a busy calendar. Every unit is fully serviceable, and revalving can be done at the same time if your tires, events or series change.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
