Why do firmer springs help a Lotus 340R on track?

With sticky tires, a 340R rolls enough in long corners to pull the camber away from where the tires grip best. The Nitron 340R NTR-R1 ClubSport uses firmer spring rates than the FastRoad kit, so the body moves less and the double wishbone geometry stays closer to its static settings. That gives the tires a more even contact patch and more consistent grip.

Who should choose the Nitron 340R NTR-R1 ClubSport over the FastRoad?

The Nitron 340R NTR-R1 ClubSport suits Lotus 340R owners who spend more time on circuit than on the road, run sticky tires or want tighter body control. Both kits use the same Nitron NTR-R1 damper with combined 2-way adjustment. The ClubSport adds slightly stiffer springs, while the FastRoad keeps softer rates for road compliance.

Does the Nitron Lotus 340R NTR-R1 ClubSport require mounting brackets?

No. The Nitron Lotus 340R NTR-R1 ClubSport fits the car’s double wishbone suspension directly, with no mounting brackets required. The install stays simple, and the car’s original mounting points are left exactly as they are, which matters on a car as rare as the 340R.

Can you soften the Nitron NTR-R1 ClubSport for the drive to the track?

Yes. Each Nitron NTR-R1 damper has a single adjuster that sets bump and rebound together, so a few clicks per corner take the edge off for the road. You can firm the 340R back up in the paddock without balancing separate damping circuits, and back off again for the drive home.

Can the Nitron 340R NTR-R1 ClubSport be serviced and revalved?

Yes. Every Nitron 340R NTR-R1 ClubSport damper is fully serviceable, so it can be rebuilt after a season of track days, revalved or fitted with different springs. If the Lotus 340R moves toward competition or back toward road use, the setup can be updated to match.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

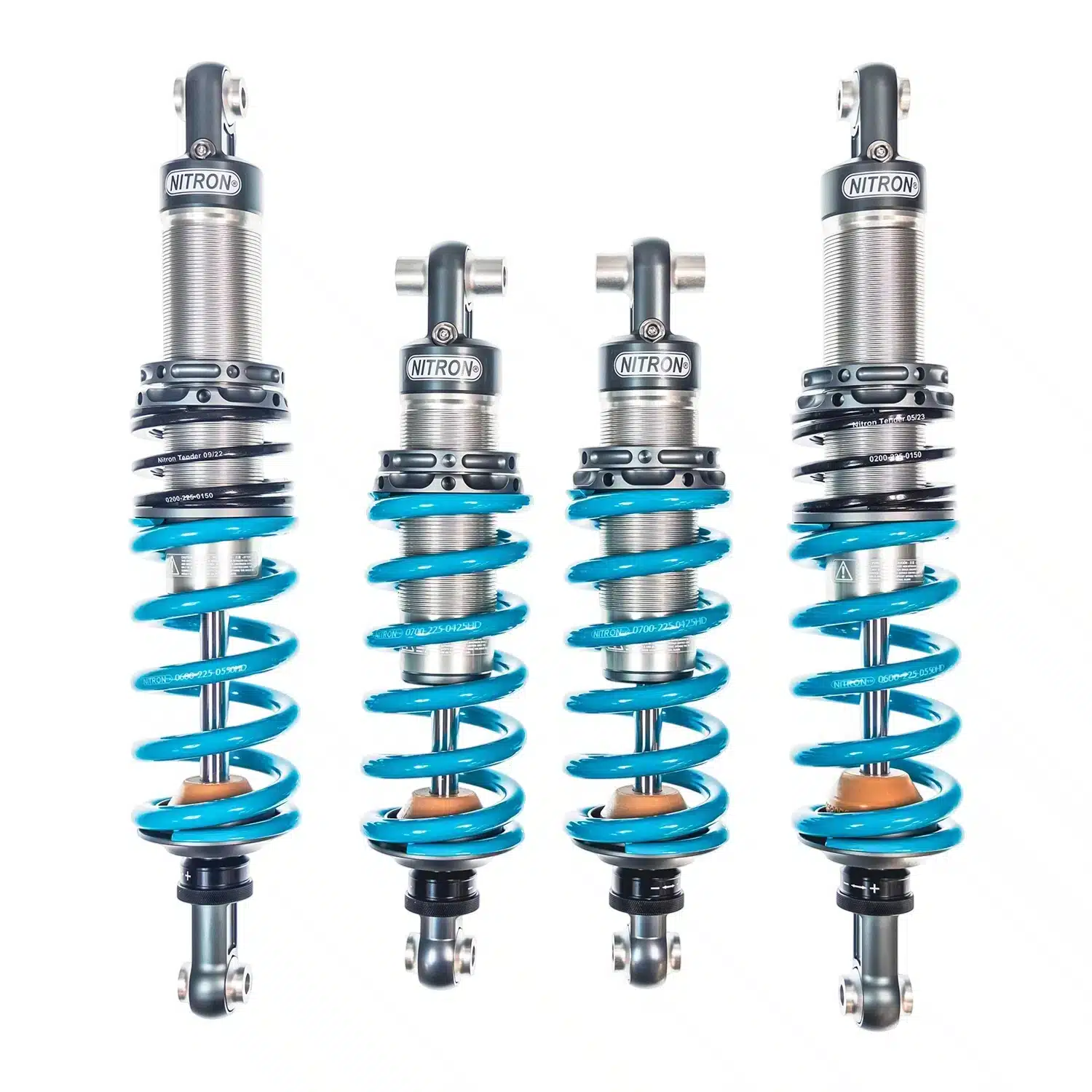

Nitron NTR-R1 ClubSport Coilover Kit for 111 Lotus 340R

On sticky tires, a 340R on track rolls enough to change how its tires meet the road. As the body leans, the wishbones move through their arc, and the camber Lotus designed into the geometry drifts away from where the tire works best. The Nitron 340R NTR-R1 ClubSport coilover kit stiffens that up. Its spring rates are a step firmer than the FastRoad kit’s, so the body moves less, the geometry stays closer to its static settings and the tires keep a more even contact patch through long, loaded corners. The car is still usable on the road, but the ClubSport is clearly set up for owners whose 340R sees more circuit laps than road miles. One adjuster per corner sets bump and rebound together. You can turn it softer for the drive to the track and firmer once you get there. No mounting brackets are needed, so the Nitron Lotus 340R NTR-R1 ClubSport goes straight into the double wishbone suspension.

Unique Technology

The Nitron NTR-R1 comes from Nitron’s race program and shares a large share of its internals with the NTR-R3 that Nitron races internationally. There’s no remote canister, which keeps every damper compact and tidy alongside the 340R’s exposed wishbones. Firmer springs only work if the dampers can control them. The low-friction internals of the Nitron NTR-R1 respond quickly to the higher loads the ClubSport springs produce, so the tires stay planted over curbs and bumpy braking zones instead of skipping. Fade resistance matters here too. A car this light on sticky rubber can lap hard for a long time, and the Nitron 340R NTR-R1 ClubSport holds its damping from the first lap of a session to the last.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Every Nitron 340R NTR-R1 ClubSport kit is assembled by hand to order, with springs and valving matched to the Lotus 340R and a track-leaning brief. That suits owners who drive to the circuit, run a full day on sticky tires and drive home again, as well as cars that are trailered to every event. Hard-anodized and titanium-finish components keep weight off a car built around minimal mass, and they protect against corrosion on an open car that gets caught in the rain at track days. On a car this rare, the suspension needs to be something you maintain rather than throw away. Each Nitron NTR-R1 damper can be fully serviced and revalved, and the springs can be changed. If the car’s use moves further toward competition, or back toward the road, the setup can move with it.

Features

Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilover assemblies
Hand made to order

Specifications

Coilover Type: NTR-R1 ClubSport
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Mounting Brackets: Not required
Recommended Spring Rates:
- Front: 450lbs/inch (79N/mm)
- Rear: 525lbs/inch (92N/mm)

Applications

Lotus 340R: 111 | 2000

Other Suspension Kits for Lotus 340R

Notes

Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

Why do firmer springs help a Lotus 340R on track? With sticky tires, a 340R rolls enough in long corners to pull the camber away from where the tires grip best. The Nitron 340R NTR-R1 ClubSport uses firmer spring rates than the FastRoad kit, so the body moves less and the double wishbone geometry stays closer to its static settings. That gives the tires a more even contact patch and more consistent grip.
Who should choose the Nitron 340R NTR-R1 ClubSport over the FastRoad? The Nitron 340R NTR-R1 ClubSport suits Lotus 340R owners who spend more time on circuit than on the road, run sticky tires or want tighter body control. Both kits use the same Nitron NTR-R1 damper with combined 2-way adjustment. The ClubSport adds slightly stiffer springs, while the FastRoad keeps softer rates for road compliance.
Does the Nitron Lotus 340R NTR-R1 ClubSport require mounting brackets? No. The Nitron Lotus 340R NTR-R1 ClubSport fits the car’s double wishbone suspension directly, with no mounting brackets required. The install stays simple, and the car’s original mounting points are left exactly as they are, which matters on a car as rare as the 340R.
Can you soften the Nitron NTR-R1 ClubSport for the drive to the track? Yes. Each Nitron NTR-R1 damper has a single adjuster that sets bump and rebound together, so a few clicks per corner take the edge off for the road. You can firm the 340R back up in the paddock without balancing separate damping circuits, and back off again for the drive home.
Can the Nitron 340R NTR-R1 ClubSport be serviced and revalved? Yes. Every Nitron 340R NTR-R1 ClubSport damper is fully serviceable, so it can be rebuilt after a season of track days, revalved or fitted with different springs. If the Lotus 340R moves toward competition or back toward road use, the setup can be updated to match.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
