What does Nitron's Mark II Escort NTR-R1 kit fix on a Mark II?

Factory-style dampers and soft springs let the body roll, the nose wander and the axle skip over bumps. The passive Nitron NTR-R1 uses monotube nitrogen-pressurized dampers and race springs to control all of that.

How many damping adjusters does the Mark II Escort NTR-R1 have?

There is one adjuster per corner. It changes compression and rebound together, so setup stays simple.

Does the Mark II Escort NTR-R1 kit include coilovers for all four corners?

Yes. The kit comes with four coilovers, one for each corner, built for the OEM rear suspension type.

Are top plates included in the kit?

Yes. Adjustable top plates are included with the kit.

Can I get different spring rates?

Yes. Custom spring rates are available by contacting us directly, and we can help choose a rate for road or track use.

Is an alignment needed after installing the kit?

Yes. A professional alignment is required after installation.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

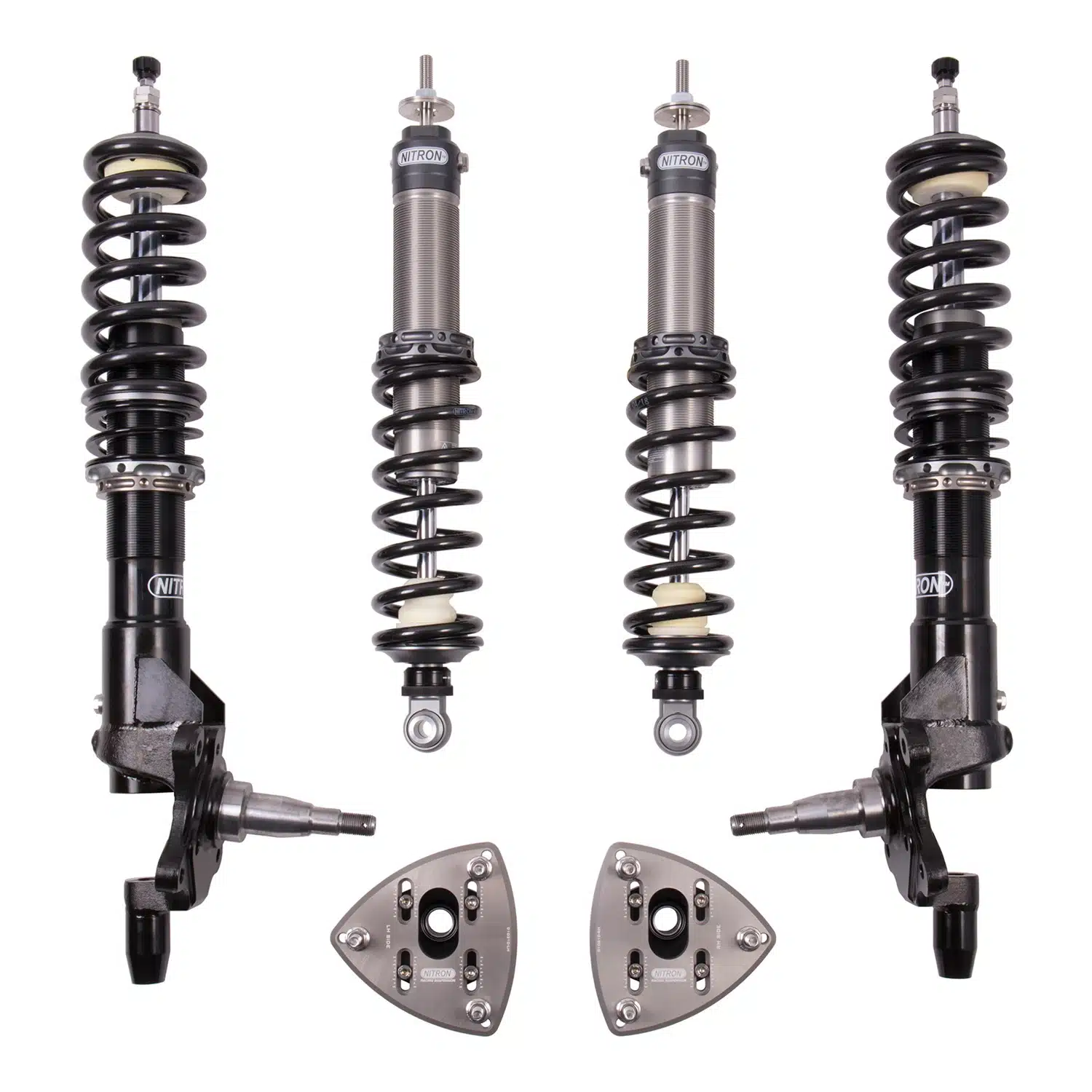

Nitron NTR-R1 Coilover Kit for Mark II Ford Escort

A Mark II Escort that gets driven properly shows its age in the suspension first. The Mark II Escort NTR-R1 Coilover Kit from Nitron is built for the gap between a 1970s road car and the way people use these cars now. Factory-style springs and worn dampers leave it rolling, with a nervous nose and an axle that skips over bumps. The passive Nitron Mark II Escort NTR-R1 Coilover Kit puts a monotube nitrogen-pressurized damper and a race spring at each of the four corners, built for the OEM rear suspension type. It keeps the car settled and gives you a setup you can adjust for fast road driving, club events or historic rallying.

Unique Technology

The Mark II Escort NTR-R1 damper keeps its reservoir inside the body, which means no hoses, no brackets and nothing extra to find room for in an Escort’s engine bay or boot. A single adjuster at each corner moves compression and rebound together, so a change at the car takes seconds and the result is easy to read. Threaded spring perches set the ride height, and the race springs are there to control the body without turning the car into a plank on rough surfaces.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Each kit is hand assembled to order in the UK rather than pulled from a shelf. The Escort covers a huge range of use, from a tidy road car to a stripped club racer, and a single spring rate will not suit all of it. Nitron Mark II Escort NTR-R1 dampers are built around the car they are fitted to, which is a big part of why the finished setup feels coherent instead of like parts that happen to bolt on.

Features

OEM rear suspension type
Internal reservoir type
2-way combined adjustment
Full alloy body
Preload adjuster
Combined 24 clicks of adjustment
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R1
Adjustment Type: 2-way combined
Adjustment: 24 clicks combined
Rear Suspension Types: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 513lbs/inch (90N/mm)
  - Rear: 225lbs/inch (40N/mm)
- TDS – Track Day Spec:
  - Front: 628lbs/inch (110N/mm)
  - Rear: 275lbs/inch (48N/mm)

Applications

Ford Escort: Mark II | 1975-1980

Other Suspension Kits for Mark II Ford Escort

NTR-R3 Coilover Kit

Notes

Please let us know your Escort Mark II sub-model when ordering; a Bulletproof Automotive specialist will contact you directly if anything further is needed
Custom spring rates also available
Please feel free to contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.
Precision bearing spacers supplied as required

Frequently Asked Questions

What does Nitron’s Mark II Escort NTR-R1 kit fix on a Mark II? Factory-style dampers and soft springs let the body roll, the nose wander and the axle skip over bumps. The passive Nitron NTR-R1 uses monotube nitrogen-pressurized dampers and race springs to control all of that.
How many damping adjusters does the Mark II Escort NTR-R1 have? There is one adjuster per corner. It changes compression and rebound together, so setup stays simple.
Does the Mark II Escort NTR-R1 kit include coilovers for all four corners? Yes. The kit comes with four coilovers, one for each corner, built for the OEM rear suspension type.
Are top plates included in the kit? Yes. Adjustable top plates are included with the kit.
Can I get different spring rates? Yes. Custom spring rates are available by contacting us directly, and we can help choose a rate for road or track use.
Is an alignment needed after installing the kit? Yes. A professional alignment is required after installation.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
