How does the elec-TRON R1 interact with PASM on the 997?

The kit installs as a direct bolt-in replacement and integrates with PASM rather than bypassing it. PASM continues to manage damping inputs as it always has, now through Nitron's solenoid valve hardware instead of the factory damper internals. All PASM modes and functionality are retained; the hardware underneath is simply significantly more capable.

Does this kit work on both PASM and non-PASM equipped 997 models?

This kit is designed specifically for 997 models equipped with PASM. If your car was not optioned with PASM, the NTR-R1 is the correct kit for your application.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

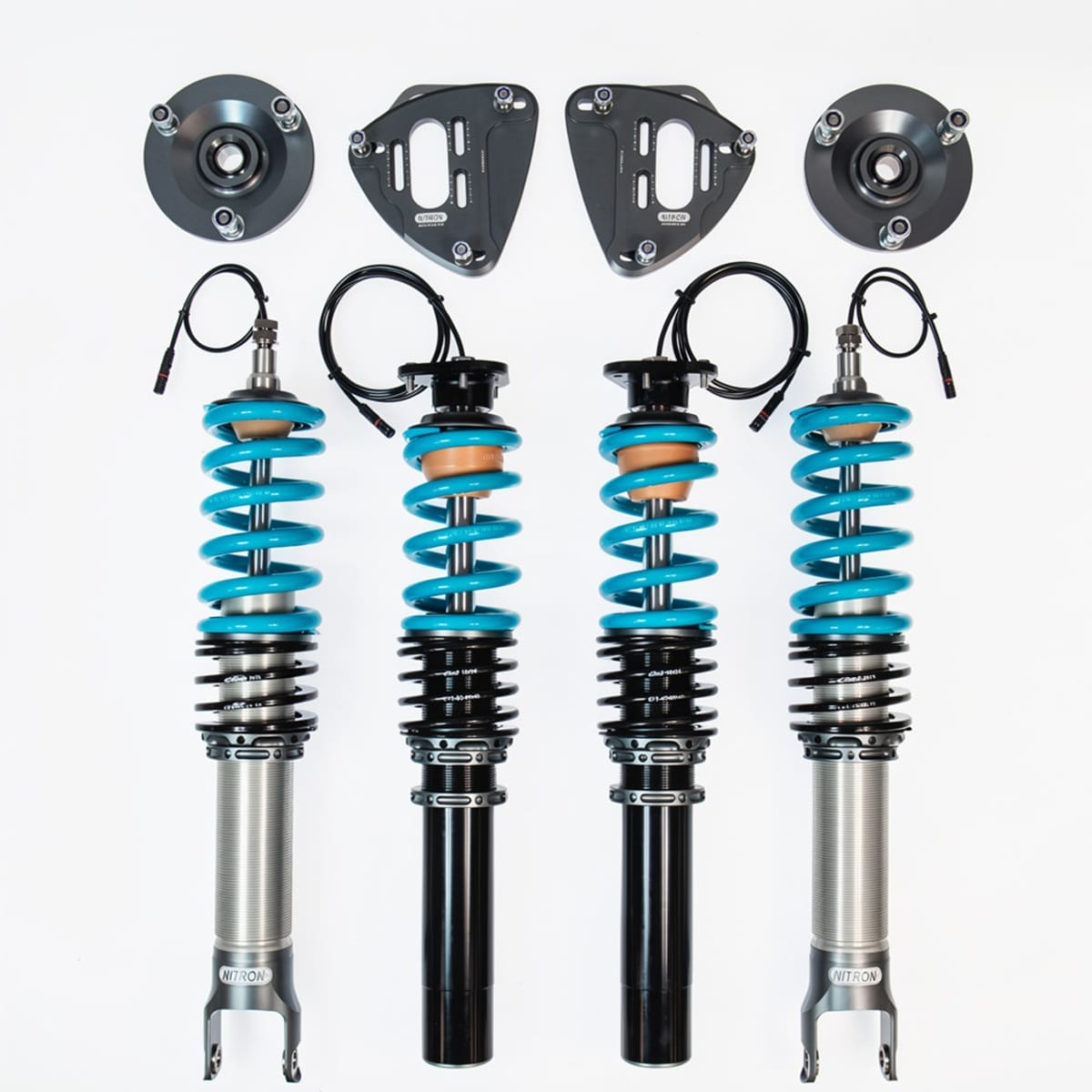

Nitron elec-TRON R1 Coilover Kit for 997 Porsche 911 Carrera / Carrera GTS / Carrera S

The Nitron elec-TRON R1 coilover kit for the 997 Porsche 911 Carrera, Carrera GTS, and Carrera S integrates directly with Porsche’s PASM electronic damping system, adding Nitron’s proprietary proportional solenoid valve to each shock for precise, independent damping control at every corner. No additional controller is required; PASM manages the system as it always has, now through significantly more capable hardware. The hardware traces directly back to the R3 platform, so what you’re getting is proven race-derived componentry packaged into a more accessible, straightforward setup; one that works particularly well on the 997, where the chassis already provides a strong handling foundation and the suspension just needs to keep up with precision rather than complexity. Every kit is custom built, custom sprung, and fully serviceable.

elec-TRON

The elec-TRON R1 for the 997 Porsche 911 Carrera, Carrera GTS, and Carrera S integrates with Porsche’s PASM electronic damping system rather than replacing it. Each shock carries its own proprietary proportional solenoid valve, giving PASM precise, independent damping control at every corner simultaneously. The system monitors g-load, vehicle speed, road conditions, and driver inputs all at once, making damping adjustments every 5 milliseconds. For reference, a human eye blink takes somewhere between 100 and 150 milliseconds. The suspension is reacting to what the road and the driver are doing in real time, not catching up after the fact.

Integration with OEM Electronic Systems

The Nitron elec-TRON R1 installs as a direct bolt-in replacement on the 997 Porsche 911 Carrera, Carrera GTS, and Carrera S, integrating with Porsche’s PASM system without modification. PASM continues to operate as intended, retaining full factory damping system functionality, just with significantly more capable hardware doing the work underneath the car. No additional controller is required.

Unique Technology

Nitron builds every shock around precision components that go through a thorough design and development process long before final assembly. The modular construction gives engineers the room to develop each application properly on its own terms, without cutting corners on part quality or how components work together under load. Everything is machined to tight tolerances and inspected individually by trained technicians; quality control isn’t a final step here, it runs through the entire process. New materials, finishes, and processes are validated extensively before they’re brought into production, with proprietary Nitron technologies woven throughout to produce shocks that hold up against the competition on both road and track. That level of engineering discipline is what the brand has been built on.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t start with a generic damper and work backward from there. Every application is developed from the ground up, with components, spring rates, and damping characteristics determined by the specific platform rather than borrowed from something adjacent. The geometry, weight distribution, and suspension travel of the 997 Porsche 911 Carrera, Carrera GTS, and Carrera S shape the design from the start, not as corrections added later. That’s what separates a kit engineered for these cars from one that was simply made to fit them.

Features

Shares core technology with the R3 kit
No manual damping adjustments are required, fully controlled by the solenoid valve
Internal reservoir type
Full alloy body
Preload adjuster
Nitrogen gas charged
Precision bearing spacers supplied as required
Consists of 4 coilovers and adjustable top mounts
Hand made to order

Specifications

Coilover Type: elec-TRON R1
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 400lbs/inch (70N/mm)
  - Rear: 799lbs/inch (140N/mm)
- TDS – Track Day Spec:
  - Front: 571lbs/inch (100N/mm)
  - Rear: 913lbs/inch (160N/mm)

Applications

Porsche 911 Carrera: 997.1, 997.2 | 2005-2013
Porsche 911 Carrera GTS: 997.2 | 2011-2013
Porsche 911 Carrera S: 997.1, 997.2 | 2005-2013

Other Suspension Kits for 997 Carrera / GTS / S

Notes

Works with Porsche PASM so no additional products are required
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

How does the elec-TRON R1 interact with PASM on the 997? The kit installs as a direct bolt-in replacement and integrates with PASM rather than bypassing it. PASM continues to manage damping inputs as it always has, now through Nitron’s solenoid valve hardware instead of the factory damper internals. All PASM modes and functionality are retained; the hardware underneath is simply significantly more capable.
Does this kit work on both PASM and non-PASM equipped 997 models? This kit is designed specifically for 997 models equipped with PASM. If your car was not optioned with PASM, the NTR-R1 is the correct kit for your application.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
