How does the elec-TRON system work alongside the R3's manual compression adjusters on the 997?

PASM manages overall damping through the solenoid valve at 200Hz, but the high and low speed compression adjusters on the hose reservoirs remain fully independent and accessible. The elec-TRON layer works alongside the mechanical adjustment, not instead of it. You can establish a mechanical baseline suited to a specific circuit and let PASM handle the dynamic damping around it in real time.

Does this kit work on both PASM and non-PASM equipped 997 models?

This kit is designed specifically for 997 models equipped with PASM. If your car was not optioned with PASM, the NTR-R3 is the correct kit for your application.

Can the elec-TRON R3 be progressively developed over time the way a manually adjusted R3 can?

Yes. PASM handles the active damping layer automatically, but the manual compression adjusters on the hose reservoirs remain fully independent. That means you can still develop a mechanical baseline over time, circuit by circuit, while PASM optimizes dynamically within whatever character you set. The two layers work independently and don't compete with each other.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

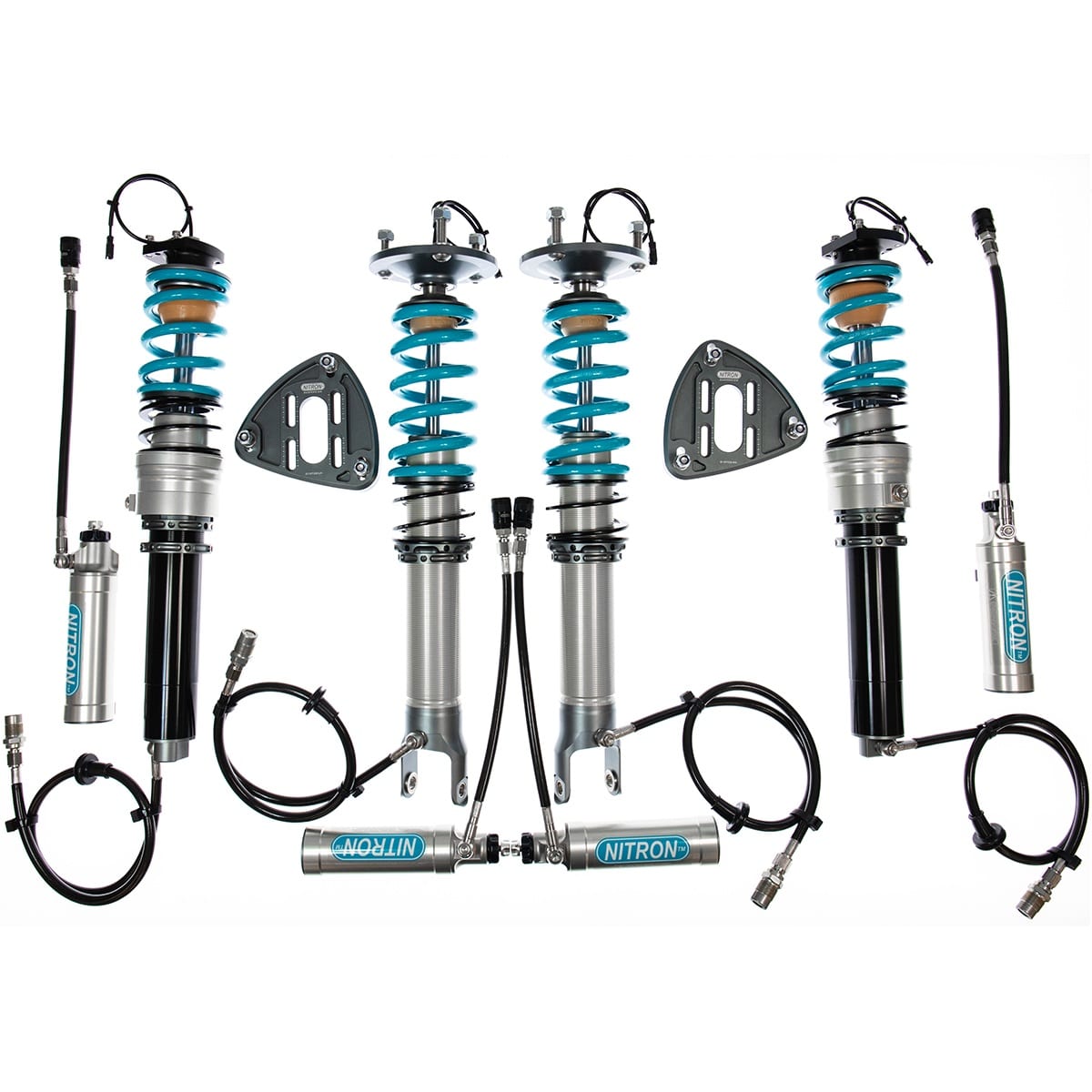

Nitron elec-TRON R3 Coilover Kit for 997 Porsche 911 Carrera / Carrera GTS / Carrera S

The Nitron elec-TRON R3 coilover kit for the 997 Porsche 911 Carrera, Carrera GTS, and Carrera S combines electronic damping control through Nitron’s proportional solenoid valve with independent manual compression adjustment, giving drivers and engineers control over both the active and mechanical sides of the damping setup simultaneously. The system integrates directly with Porsche’s PASM electronic damping system; no additional controller is required. Hose mounted reservoirs front and rear allow for straightforward independent adjustment of high and low speed compression, while PASM handles overall damping in real time through Nitron’s valve hardware. The kit is built for drivers who want to extract the most from the 997’s rear-engine platform on road or track without leaving performance on the table. Every kit is custom built, custom sprung, and fully serviceable.

elec-TRON

Nitron’s elec-TRON system is built around a proprietary proportional solenoid valve fitted to each shock individually on the 997 Porsche 911 Carrera, Carrera GTS, and Carrera S, working in conjunction with Porsche’s PASM electronic damping system. G-load, vehicle speed, road conditions, and driver inputs are all monitored simultaneously, with damping adjustments made every 5 milliseconds. A human eye blink takes somewhere between 100 and 150 milliseconds; the elec-TRON system is working at a fraction of that. The suspension is responding to the road and the driver in real time, not reacting after the fact.

Integration with OEM Electronic Systems

The Nitron elec-TRON R3 installs as a direct bolt-in replacement on the 997 Porsche 911 Carrera, Carrera GTS, and Carrera S, integrating with Porsche’s PASM system without modification. PASM continues to operate as intended, retaining full factory damping system functionality, just with significantly more capable hardware doing the work underneath the car. No additional controller is required.

Specialized Bi-Axis Hose Fittings

Nitron R3 hose shocks use Nitron’s own 720-degree Bi-Axis fittings exclusively; a proprietary design that makes for clean, precise installation without the compromises that come with conventional end fittings.

Unique Technology

Nitron starts every shock with precision components that go through a thorough design and development process long before final assembly. The modular construction gives engineers the flexibility to approach each application on its own terms, without compromising part quality or how components perform together under real load. Everything is machined to tight tolerances and inspected individually by trained technicians; that standard of quality control runs through every stage of production, not just the end of it. New materials, finishes, and processes go through extensive validation before they’re adopted, with proprietary Nitron technologies built in throughout to produce shocks that consistently hold up against the competition on road and track. That’s the engineering foundation the brand has been built on since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t adapt a generic damper to fit the 997 Porsche 911 Carrera, Carrera GTS, and Carrera S; they engineer one around each platform. Every application goes through a dedicated development process where components, spring rates, and damping characteristics are shaped by the specific variant, not carried over from something similar enough to work. The geometry, weight distribution, and suspension travel of each model are part of the design from day one, not corrections introduced later. That’s the difference between suspension that works with a car and suspension that was purpose-built for it.

Features

Hose reservoir type
No manual damping adjustments are required, fully controlled by the solenoid valve
Preload adjuster
Full alloy body
Consists of 4 coilovers, reservoirs, hoses, and adjustable top mounts
Hand made to order

Specifications

Coilover Type: elec-TRON R3
Reservoir Type: Hose
Rear Suspension Type: OEM
Droplinks Included: No

Applications

Porsche 911 Carrera: 997.1, 997.2 | 2005-2013
Porsche 911 Carrera GTS: 997.2 | 2011-2013
Porsche 911 Carrera S: 997.1, 997.2 | 2005-2013

Other Suspension Kits for 997 Carrera / GTS / S

Notes

Works with Porsche PASM so no additional products are required
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

How does the elec-TRON system work alongside the R3’s manual compression adjusters on the 997? PASM manages overall damping through the solenoid valve at 200Hz, but the high and low speed compression adjusters on the hose reservoirs remain fully independent and accessible. The elec-TRON layer works alongside the mechanical adjustment, not instead of it. You can establish a mechanical baseline suited to a specific circuit and let PASM handle the dynamic damping around it in real time.
Does this kit work on both PASM and non-PASM equipped 997 models? This kit is designed specifically for 997 models equipped with PASM. If your car was not optioned with PASM, the NTR-R3 is the correct kit for your application.
Can the elec-TRON R3 be progressively developed over time the way a manually adjusted R3 can? Yes. PASM handles the active damping layer automatically, but the manual compression adjusters on the hose reservoirs remain fully independent. That means you can still develop a mechanical baseline over time, circuit by circuit, while PASM optimizes dynamically within whatever character you set. The two layers work independently and don’t compete with each other.

About Nitron Suspension

Nitron Suspension has been at the forefront of precision suspension engineering since 1998, founded by Guy Evans with the goal of building high-performance shocks for enthusiasts and professionals alike. Over 200 dealers now carry Nitron products across Europe, Asia, the US, Australasia, and Africa. In 2008, the company moved into a dedicated facility in the UK’s Motorsport Valley, adding dynamometers, 5-axis CNC machines, and 3D CAD capabilities to support both growing demand and continued product development. A second expansion came in 2023 with a new office in Murrieta, California. The team behind every Nitron product draws from deep backgrounds in machining, materials technology, hydraulics, bike engineering, and F1 racing, with many engineers bringing firsthand experience as competitive drivers and riders. That depth of knowledge across both the technical and competitive sides of motorsport shapes every product Nitron develops.
