Can the R3 be used as a starting point and refined progressively across different circuits?

Yes. Every kit is custom sprung to order, and the three independent adjustment circuits give you the range to start from a road-biased baseline and progressively refine the setup as you learn the car across different circuits and conditions. The FAL adds no constraints to that process; it operates independently and has no interaction with the damper setup or spring rates.

Does the FAL system work regardless of how aggressively the car is lowered?

Yes. The FAL operates independently of the damper setup and works within the suspension travel available at whatever ride height the car is running. It is not limited to a specific height range within the coilover's adjustment and does not interact with spring rates or valving in any way.

What are the front dry-breaks and why do they matter?

Dry-breaks are quick-release fittings on the hose reservoir lines that allow the reservoir to be disconnected cleanly and quickly without fluid loss. On the front units they are fitted as standard, making reservoir removal and reinstallation straightforward during setup changes or maintenance. They are available as an add-on for the rear units as well.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

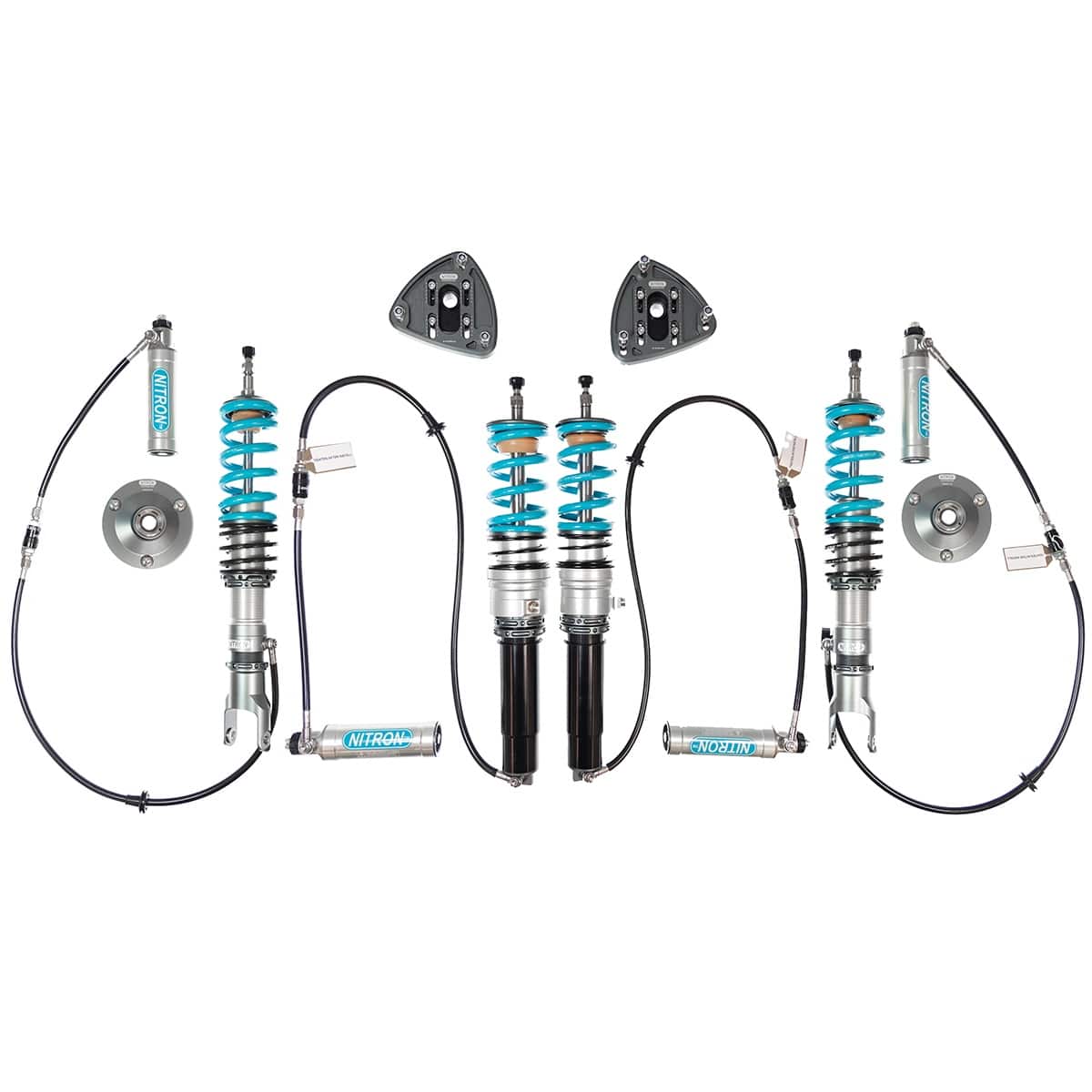

Nitron NTR-R3 Coilover Kit with Standalone FAL for 997 Porsche 911 Carrera / Carrera GTS / Carrera S

The 997 Porsche 911 Carrera, Carrera GTS, and Carrera S share a platform with genuine performance capability, and the factory suspension, while capable, leaves real performance on the table when the driving gets serious. The Nitron NTR-R3 coilover kit, supplied here with Nitron’s Standalone Front Axle Lift system, is built for that level of development work; independent 3-way damping adjustment with separate high and low speed compression control gives drivers and engineers the range needed to properly dial the car in across different circuits and conditions. A large diameter piston and ultra-strong piston rod sit at the core of the design, providing the damping control and feedback that serious setups depend on. Both front and rear units use hose mounted reservoirs; the fronts feature quick-release dry-breaks as standard, with the option to add them to the rears as well, keeping high and low speed compression adjustment accessible at both ends. The included FAL addresses the practical challenge of running a lowered 997 on public roads, raising the front axle 25mm at the shock to clear driveways, speed bumps, and parking obstacles without affecting the suspension setup or how the car drives once conditions return to normal. The R3 is a proven race winner with lap records across a wide range of international motorsport formulas, and every kit is custom built, custom sprung, and fully serviceable.

The Nitron Front Axle Lift (FAL)

Running a lowered 997 Porsche 911 Carrera, Carrera GTS, or Carrera S on the road comes with a familiar set of frustrations; steep driveways, speed bumps, and parking lot ramps that sit just low enough to make every approach a calculation. The Nitron Standalone Front Axle Lift system is built around that specific problem. With 25mm of lift available at the front axle, it clears the obstacles that lowered ride heights make problematic without requiring any changes to the suspension setup and without affecting how the car performs once you’re back on the road or circuit. It’s a practical addition to a performance suspension package, not a compromise of one.
- 250W pump
- 25mm lift height
- Typical lift time under 3-seconds
- Audible in-cabin warning system
- Switch with built-in warning light
- Auto off function
- Protects your car from damage caused by steep driveways and speed bumps
- Compatible with a wide range of suspension setups

Specialized Bi-Axis Hose Fittings

Nitron R3 hose shocks use Nitron’s own 720-degree Bi-Axis fittings exclusively; a proprietary design that makes for clean, precise installation without the compromises that come with conventional end fittings.

Unique Technology

Nitron builds every shock from precision components that go through a thorough design and development process long before final assembly. The modular construction gives engineers the flexibility to approach each application on its own terms without cutting corners on part quality or how components perform together under load. Everything is machined to tight tolerances and inspected individually by trained technicians; that quality control runs through every stage of production rather than being concentrated at the end. New materials, finishes, and processes are validated extensively before adoption, with proprietary Nitron technologies integrated throughout to produce shocks that consistently hold up against the competition on road and track. That engineering standard is what the brand has been built on since 1998.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron doesn’t adapt a generic damper to fit the 997 Porsche 911 Carrera, Carrera GTS, and Carrera S; they engineer one around each platform. Every application goes through a dedicated development process where components, spring rates, and damping characteristics are determined by the specific variant, not borrowed from something close enough. The geometry, weight distribution, and suspension travel of each model are part of the design from the beginning, not corrections introduced later. That’s the difference between suspension that works with a car and suspension that was developed for it.

Features

Hose reservoir type
Dry-breaks for front reservoirs, optional for the rear
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body
Nitron FAL raises 25mm at the shock
Consists of 4 coilovers, reservoirs, hoses, and top mounts (+FAL kit)
FAL kit contains all components (cylinders, hydraulic lines, pump, wiring loom and controller)
Hand made to order

Specifications

Coilover Type: NTR-R3 with standalone FAL
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Hose
Rear Suspension Type: OEM
Droplinks Included: No

Applications

Porsche 911 Carrera: 997.1, 997.2 | 2005-2013
Porsche 911 Carrera GTS: 997.2 | 2011-2013
Porsche 911 Carrera S: 997.1, 997.2 | 2005-2013

Other Suspension Kits for 997 Carrera / GTS / S

Notes

If your 911 was equipped with PASM the Nitron Electronic Damping Delete Kit can prevent the error codes and warning lights associated with switching to a non-electronic suspension system
Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Frequently Asked Questions

Can the R3 be used as a starting point and refined progressively across different circuits? Yes. Every kit is custom sprung to order, and the three independent adjustment circuits give you the range to start from a road-biased baseline and progressively refine the setup as you learn the car across different circuits and conditions. The FAL adds no constraints to that process; it operates independently and has no interaction with the damper setup or spring rates.
Does the FAL system work regardless of how aggressively the car is lowered? Yes. The FAL operates independently of the damper setup and works within the suspension travel available at whatever ride height the car is running. It is not limited to a specific height range within the coilover’s adjustment and does not interact with spring rates or valving in any way.
What are the front dry-breaks and why do they matter? Dry-breaks are quick-release fittings on the hose reservoir lines that allow the reservoir to be disconnected cleanly and quickly without fluid loss. On the front units they are fitted as standard, making reservoir removal and reinstallation straightforward during setup changes or maintenance. They are available as an add-on for the rear units as well.
