Does the DC5 NTR-R3 Coilover Kit fit both the Acura RSX Type S and the Honda Integra Type R?

Yes. This Nitron kit is made for the DC5 Acura RSX Type S and Honda Integra Type R and covers the front and the OEM rear suspension, with hose-connected reservoirs at both ends.

How should I keep track of four settings per damper?

Write them down. Record the high speed and low speed compression and rebound for each corner, along with the tires and the conditions. When you change one thing at a time and note the result, you build a record you can return to for the next track or the next set of tires.

What should I know about the reservoir hoses?

Each reservoir is connected to its damper by a hose with Bi-Axis fittings that rotate 720 degrees across two axes. Route the hoses on a clean line, secure them, and keep them clear of moving suspension parts and hot components.

How does the kit fit with the OEM rear suspension?

The rear keeps its original OEM suspension layout. The kit is built to suit that arrangement, so the Nitron spring and damper replace the factory parts in the same place.

Can I order other spring rates for the DC5?

Yes. Custom spring rates are available by contacting us directly, which is worth considering if the car is used mainly on track or has had weight added or removed.

Do I need an alignment after fitting the kit?

Yes. Adjustable top plates are included, and a professional alignment is required after installation so the new ride height and any camber changes are set correctly. The DC5 NTR-R3 gives you more to adjust, so a proper setup session is worth the time.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Nitron NTR-R3 Coilover Kit for DC5 Acura RSX Type S / Honda Integra Type R

A DC5 changes character with the tires you put on it and the surface you drive it on, and a damper with one setting cannot follow that. The DC5 NTR-R3 Coilover Kit from Nitron gives the Acura RSX Type S and Honda Integra Type R four adjustments at each corner, high speed and low speed for both compression and rebound, so the dampers can be set for a grippy circuit one weekend and a rougher road the next. Hose-connected reservoirs are used at the front and rear, and adjustable spring perches set ride height and corner weights. The kit is built for the OEM rear suspension type, and it is aimed at owners who plan to keep adjusting the car as they learn what it wants.

Specialized Bi-Axis Hose Fittings

On a remote reservoir damper, the hose is the part that does not forgive a bad angle. Nitron fits Bi-Axis connectors that rotate 720 degrees on two axes, so the hose can be turned to leave the damper in the direction it needs to go. It can then run to the reservoir on a natural line, not forced round a tight bend or left pulling on the fitting. That keeps the install cleaner and keeps stress off the hose as the suspension works.

Unique Technology

The NTR-R3 gives you control over what each damper does at two different speeds of movement. Low speed compression and rebound manage the car’s body motion, meaning how it rolls into a corner, dives under braking, and squats on the throttle. High speed compression and rebound manage sharp, sudden inputs, such as a bump, a curb, or a ripple in the road. Because the four settings do not depend on each other, you can change one without undoing the others, and you can keep a record of your settings for each track or tire. The dampers are passive nitrogen-pressurized monotubes with remote reservoirs, hand assembled to order in the UK and supplied with race springs. Custom spring rates are available by contacting us directly.
- Basic Damper Design:
  1. End Eye / Top Mount
  2. Damper Piston & Shim Stack
  3. Shaft / Rod
  4. Floating / Separator Piston
  5. Suspension Oil
  6. Compressed Nitrogen Gas

Bespoke Engineering

Nitron sizes the kit to the DC5 chassis, choosing damper length, stroke, hose length, and perch positions for this car instead of cutting down a universal damper. The rear remains the OEM suspension type, and the Nitron spring and damper package fits into that layout. The factory geometry stays in place, while the front and rear gain a level of adjustment the original dampers did not offer.

Features

Hose reservoir type
OEM rear suspension type
16 clicks of high compression
26 clicks of low compression
24 clicks of rebound
Preload adjuster
3-way independent adjustment
Full alloy body

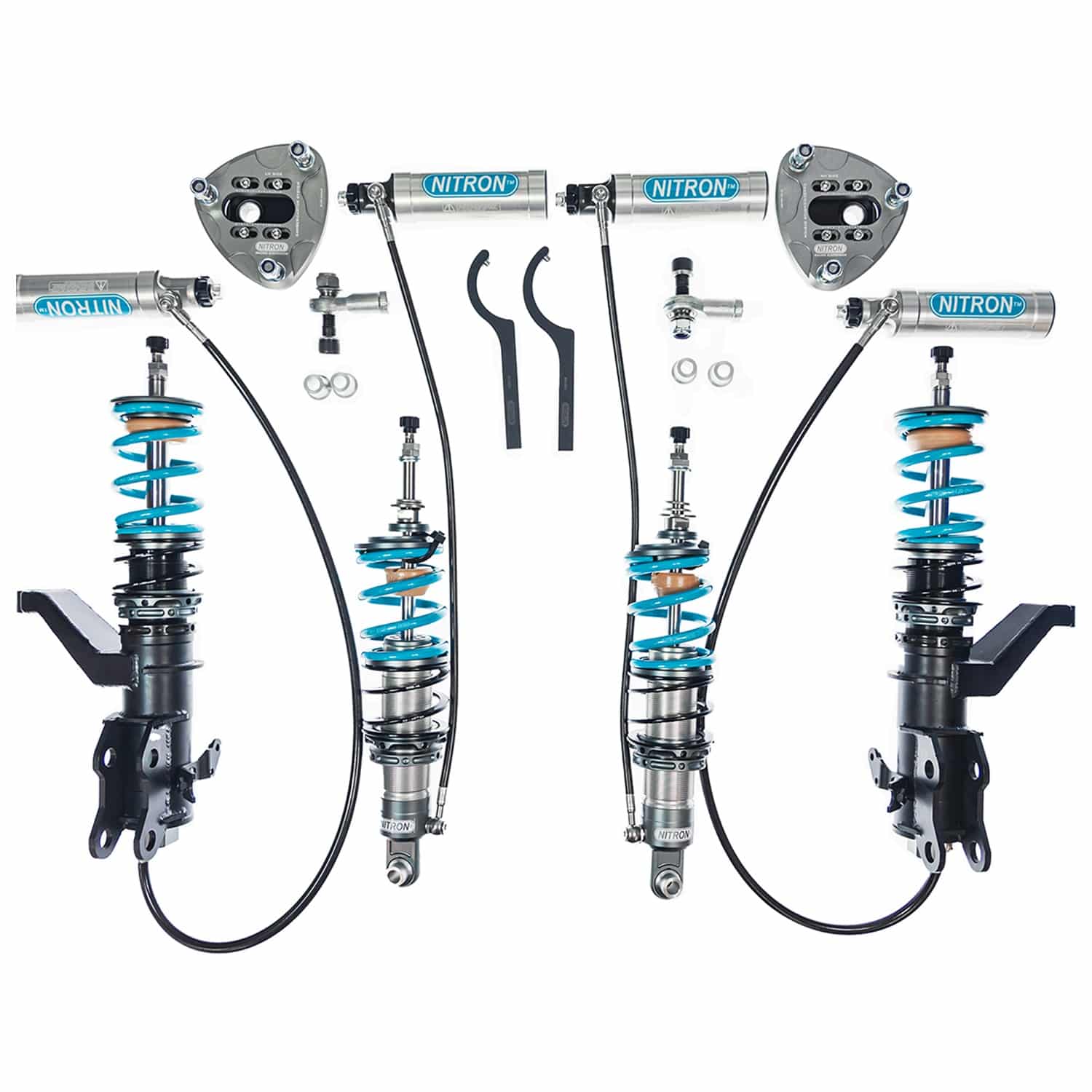

Consists of 4 coilovers, reservoirs, hoses, and top mounts
Hand made to order

Specifications

Coilover Type: NTR-R3
Adjustment Type: 3-way independent
Adjustment: 16 clicks of high compression / 26 clicks of low compression / 24 clicks of rebound
Reservoir Type: Hose
Rear Suspension Type: OEM
Droplinks Included: No
Recommended Spring Rates:
- FRS – Fast Road Spec:
  - Front: 457lbs/inch (80N/mm)
  - Rear: 799lbs/inch (140N/mm)
- TDS – Track Day Spec:
  - Front: 685lbs/inch (120N/mm)
  - Rear: 1028lbs/inch (180N/mm)

Applications

Acura RSX Type S: DC5 | 2001-2006
Honda Integra Type R: DC5 | 2001-2006

Other Suspension Kits for DC5 Acura RSX Type S / Honda Integra Type R

NTR-R1 Coilover Kit

Notes

Custom spring rates also available, please contact us directly here for more information or for a consultation on custom rates
Images used for illustration purposes only; specific details, finishes and end fittings may differ from that shown

Frequently Asked Questions

Does the DC5 NTR-R3 Coilover Kit fit both the Acura RSX Type S and the Honda Integra Type R? Yes. This Nitron kit is made for the DC5 Acura RSX Type S and Honda Integra Type R and covers the front and the OEM rear suspension, with hose-connected reservoirs at both ends.
How should I keep track of four settings per damper? Write them down. Record the high speed and low speed compression and rebound for each corner, along with the tires and the conditions. When you change one thing at a time and note the result, you build a record you can return to for the next track or the next set of tires.
What should I know about the reservoir hoses? Each reservoir is connected to its damper by a hose with Bi-Axis fittings that rotate 720 degrees across two axes. Route the hoses on a clean line, secure them, and keep them clear of moving suspension parts and hot components.
How does the kit fit with the OEM rear suspension? The rear keeps its original OEM suspension layout. The kit is built to suit that arrangement, so the Nitron spring and damper replace the factory parts in the same place.
Can I order other spring rates for the DC5? Yes. Custom spring rates are available by contacting us directly, which is worth considering if the car is used mainly on track or has had weight added or removed.
Do I need an alignment after fitting the kit? Yes. Adjustable top plates are included, and a professional alignment is required after installation so the new ride height and any camber changes are set correctly. The DC5 NTR-R3 gives you more to adjust, so a proper setup session is worth the time.
