Which Lotus Emira models do the Moton 2-Way Clubsport Coilovers for Lotus Emira fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for Lotus Emira for the Lotus Emira V6 (Type 131, 2022 to 2025). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the Emira V6?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the Emira V6. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an Emira V6 that tracks regularly.

Does the V6 kit fit the four-cylinder Emira?

No. MOTON lists this part number for the Emira with the 3.5-litre V6. The four-cylinder Emira 2.0 takes a separate MOTON 3-way set, so confirm the engine before ordering. Both versions are built on the same bonded aluminum chassis but differ in weight.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, built to order for the Emira V6. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the Emira V6 kit?

Each damper in the Emira V6 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

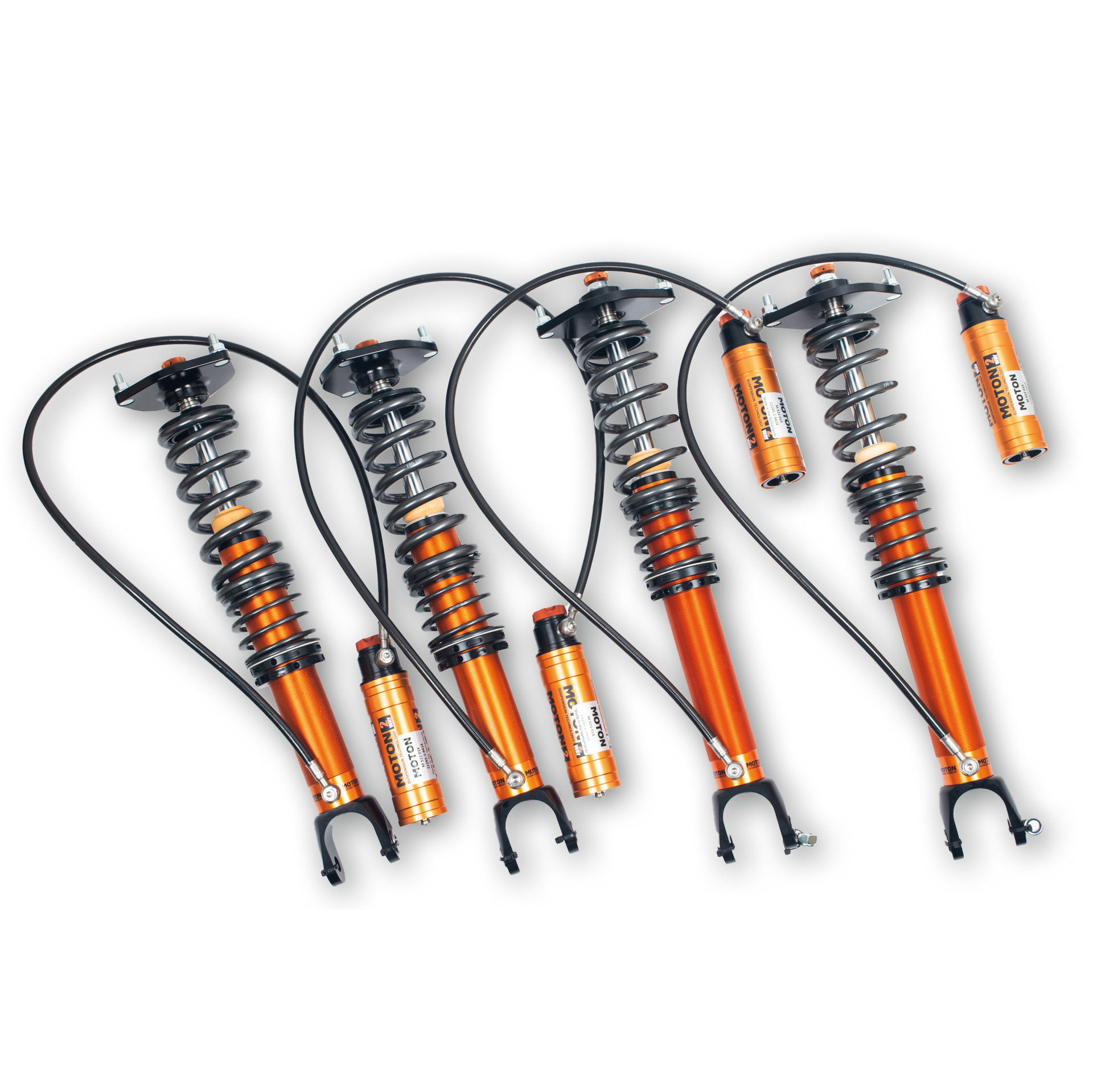

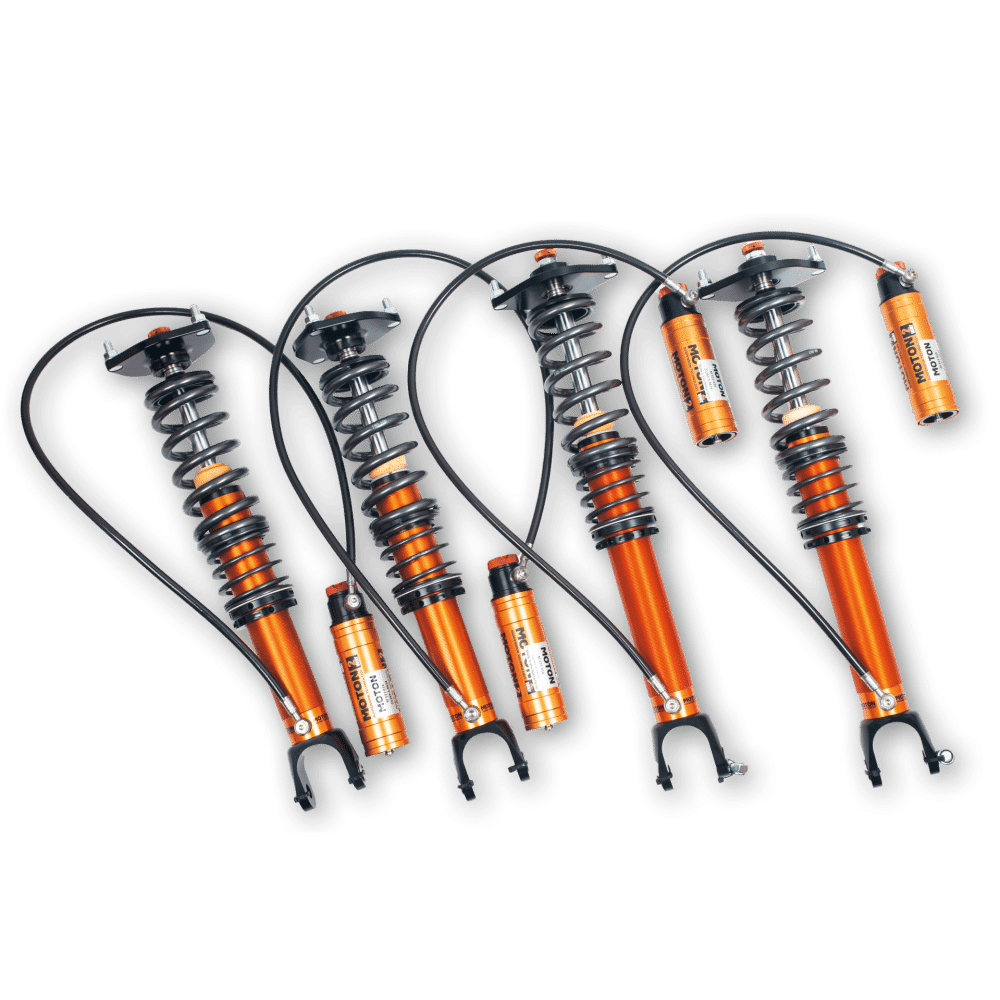

Moton 2-Way Clubsport Coilovers for Lotus Emira V6

Moton’s 2-Way Clubsport Coilovers for Lotus Emira V6 give the Emira V6 separate rebound and compression adjustment, with compression set on an external reservoir at each corner. The Emira V6 uses a supercharged 3.5-litre Toyota-sourced V6 and a bonded aluminum chassis, and MOTON lists this 2-way set for it. Moving compression to the reservoir puts the adjuster where it is easy to reach and gives the Emira V6 more oil volume to hold temperature on track. It fits the owner who tracks an Emira V6 often and wants to tune grip and body control between sessions.

Design and Performance

Separating compression from rebound lets a driver change how the Emira V6 takes a kerb or loads its outside tire without changing how it recovers. Separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers, the race kit for the Emira V6.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Lotus Emira V6: Type 131 | 2022-2025

Notes

The Moton 2-Way Clubsport Coilovers for Lotus Emira V6 set fits the 3.5-litre car only; the four-cylinder Emira takes the Moton 3-Way Motorsport Coilovers for Lotus Emira 2.0
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Lotus Emira models do the Moton 2-Way Clubsport Coilovers for Lotus Emira fit? MOTON lists the Moton 2-Way Clubsport Coilovers for Lotus Emira for the Lotus Emira V6 (Type 131, 2022 to 2025). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the Emira V6? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the Emira V6. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for an Emira V6 that tracks regularly.
Does the V6 kit fit the four-cylinder Emira? No. MOTON lists this part number for the Emira with the 3.5-litre V6. The four-cylinder Emira 2.0 takes a separate MOTON 3-way set, so confirm the engine before ordering. Both versions are built on the same bonded aluminum chassis but differ in weight.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, built to order for the Emira V6. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the Emira V6 kit? Each damper in the Emira V6 kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
