Which Lotus Emira models do the Moton 3-Way Motorsport Coilovers for Lotus Emira fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for Lotus Emira for the Lotus Emira V6 (Type 131, 2022 to 2025). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the Emira V6?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the Emira V6. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the Emira V6 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.

Is the 3-way kit suited to an Emira V6 track car?

Yes, for a car that runs a serious track program. Separate low-speed and high-speed compression let the Emira be tuned for body control and kerb compliance independently. For road use with occasional track days, the 2-Way Clubsport Emira V6 set is easier to live with.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the Emira V6. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the Emira V6 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an Emira V6 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 3-Way Motorsport Coilovers for Lotus Emira V6

Moton’s 3-Way Motorsport Coilovers for Lotus Emira V6 give the Emira V6 three damping adjustments per corner, rebound and two compression circuits, with the compression pair on external reservoirs. MOTON lists this 3-way set for the Emira V6, the car that replaced the Evora, Exige and Elise in the Lotus range. With slow and fast compression on separate adjusters, the Emira V6 can be set up for one circuit and one tire, ideally with data or a setup engineer. It is built for an Emira V6 that races or runs a serious track program.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the Emira V6, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and the Moton 2-Way Clubsport Coilovers suit regular track days with less to set up.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

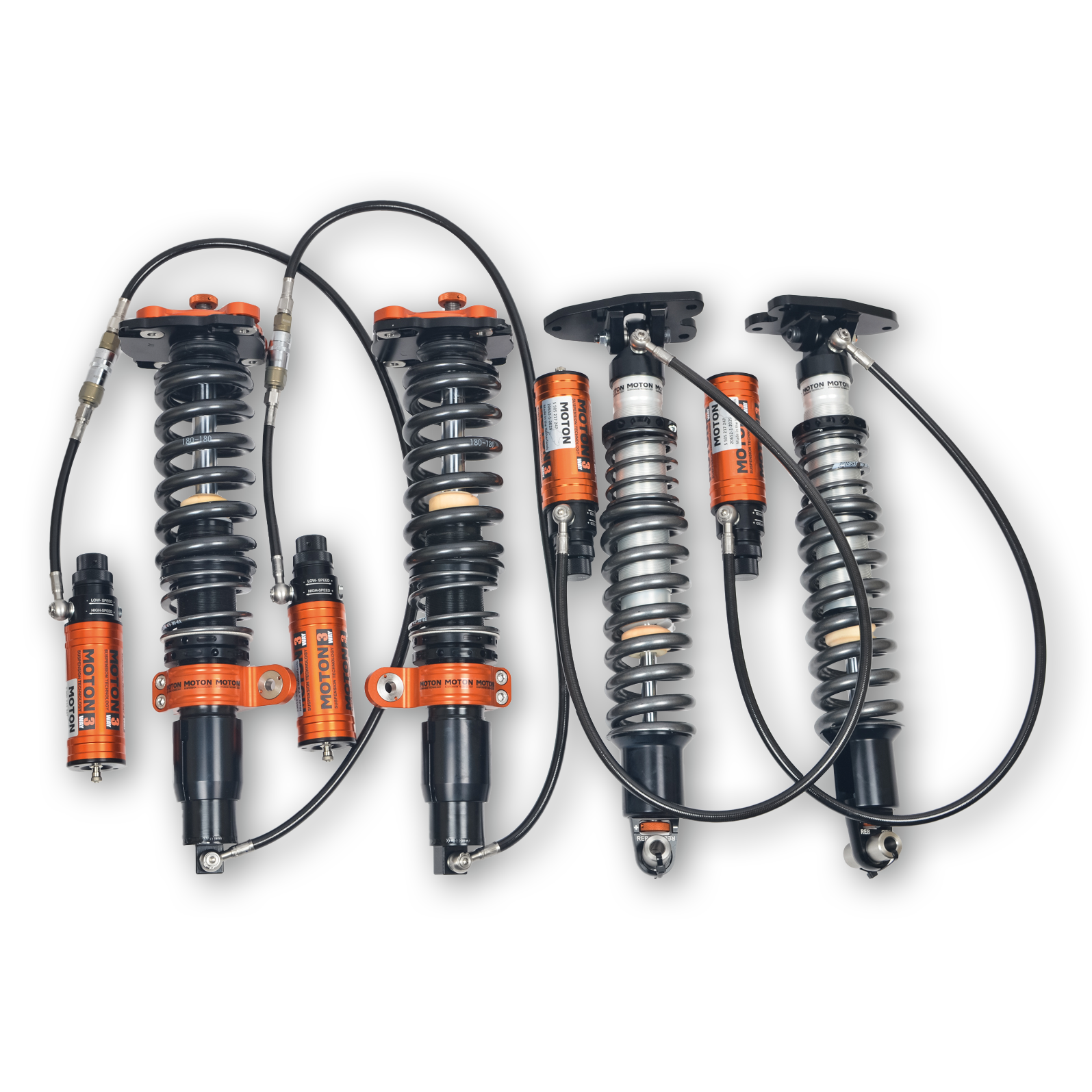

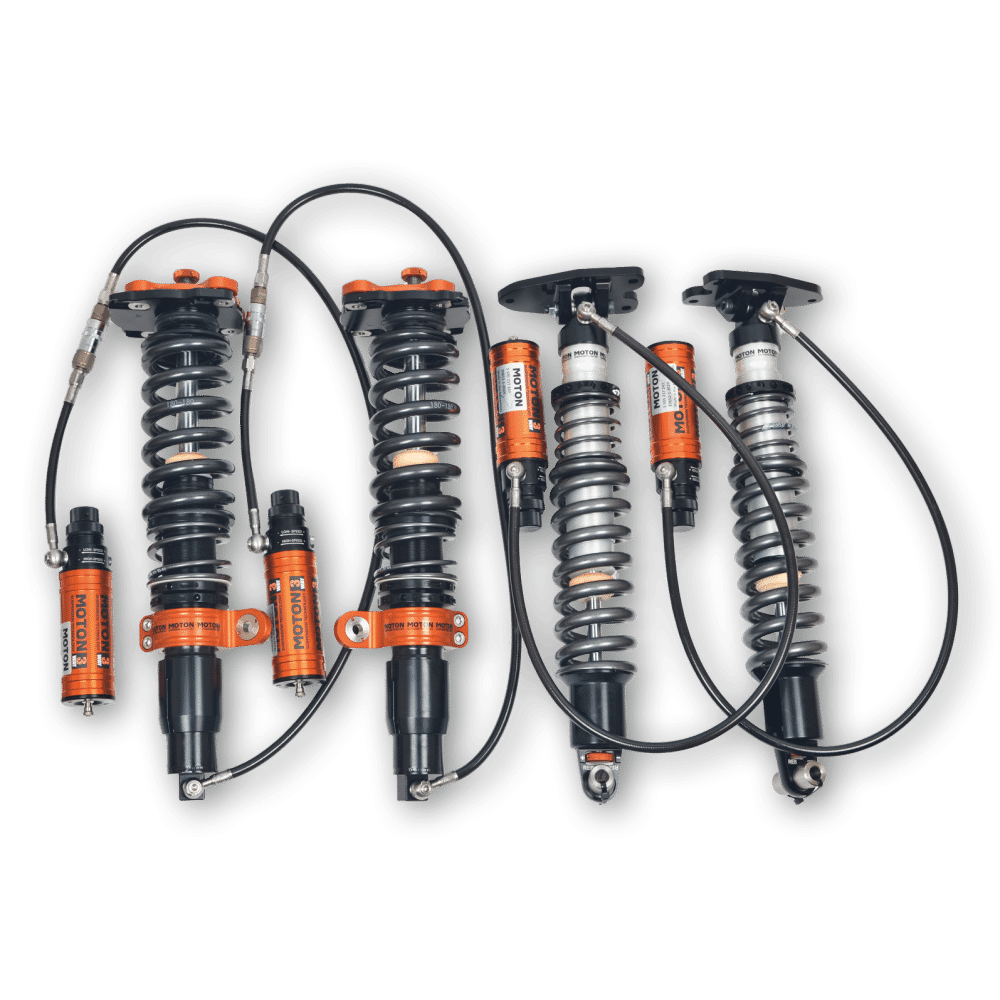

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Lotus Emira V6: Type 131 | 2022-2025

Notes

The Moton 3-Way Motorsport Coilovers for Lotus Emira V6 set fits the 3.5-litre car only; the four-cylinder Emira takes the Moton 3-Way Motorsport Coilovers for Lotus Emira 2.0
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Lotus Emira models do the Moton 3-Way Motorsport Coilovers for Lotus Emira fit? MOTON lists the Moton 3-Way Motorsport Coilovers for Lotus Emira for the Lotus Emira V6 (Type 131, 2022 to 2025). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the Emira V6? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the Emira V6. The 2-Way Clubsport keeps compression as one adjuster and is quicker to set up. On the Emira V6 it is the kit for racing and data-led setup work, and it rewards time spent with a setup engineer.
Is the 3-way kit suited to an Emira V6 track car? Yes, for a car that runs a serious track program. Separate low-speed and high-speed compression let the Emira be tuned for body control and kerb compliance independently. For road use with occasional track days, the 2-Way Clubsport Emira V6 set is easier to live with.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the Emira V6. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the Emira V6 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an Emira V6 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
