Which Lotus Emira models do the Moton 3-Way Motorsport Coilovers for Lotus Emira fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for Lotus Emira for the Lotus Emira 2.0 (four-cylinder; Type 131, 2023 onward). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

What does the 3-Way Motorsport kit adjust on the Emira 2.0?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the Emira 2.0. It suits a car prepared for racing rather than one driven mostly on the road. On the Emira 2.0 it is the kit for racing and data-led setup work.

Why is there a separate kit for the Emira 2.0?

MOTON lists the four-cylinder Emira 2.0 and the Emira V6 on different part numbers. The cars share the bonded aluminum chassis but differ in engine and weight, so the dampers and springs are specified separately. Confirm the engine before ordering and we will check the part number for you.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the Emira 2.0. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the Emira 2.0 dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an Emira 2.0 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

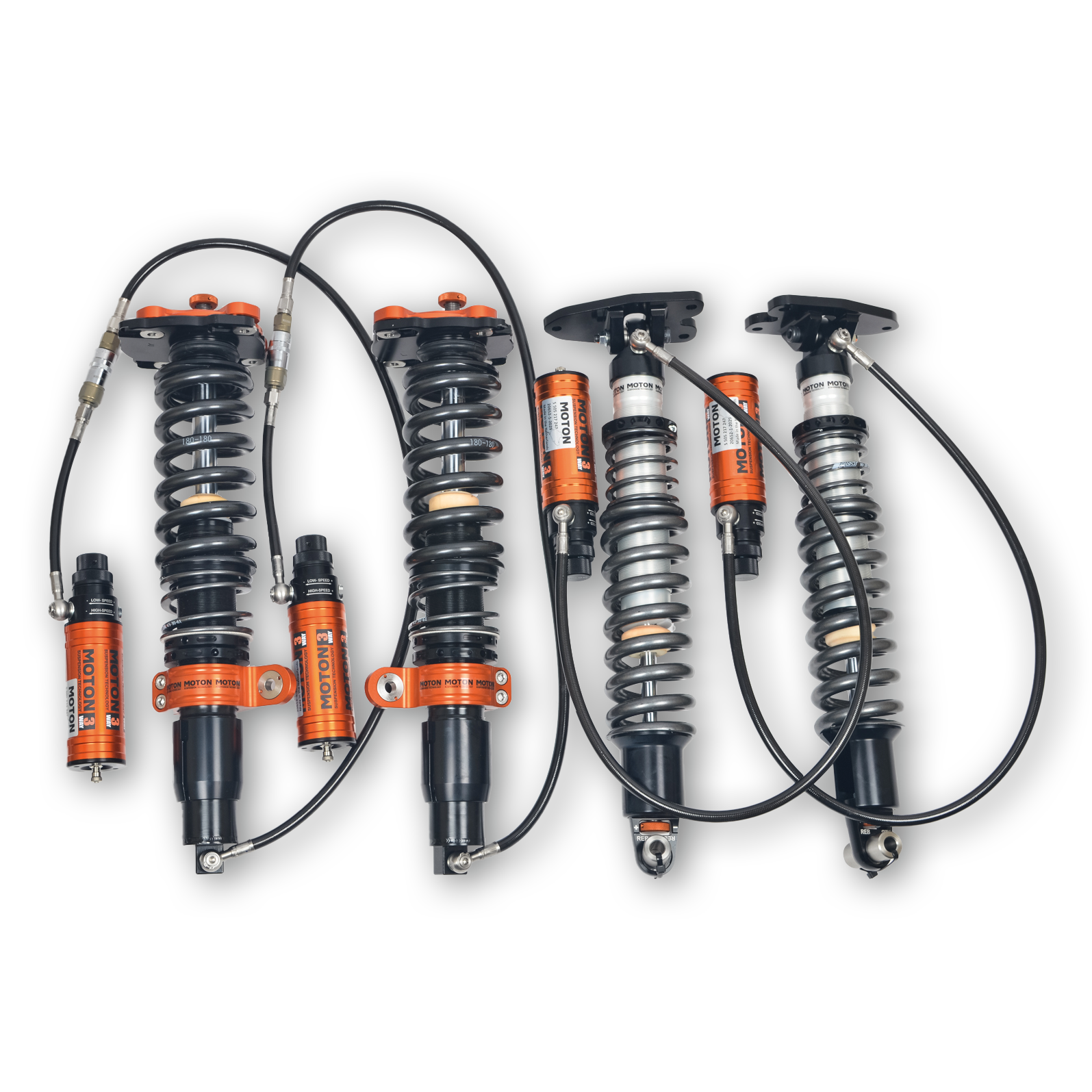

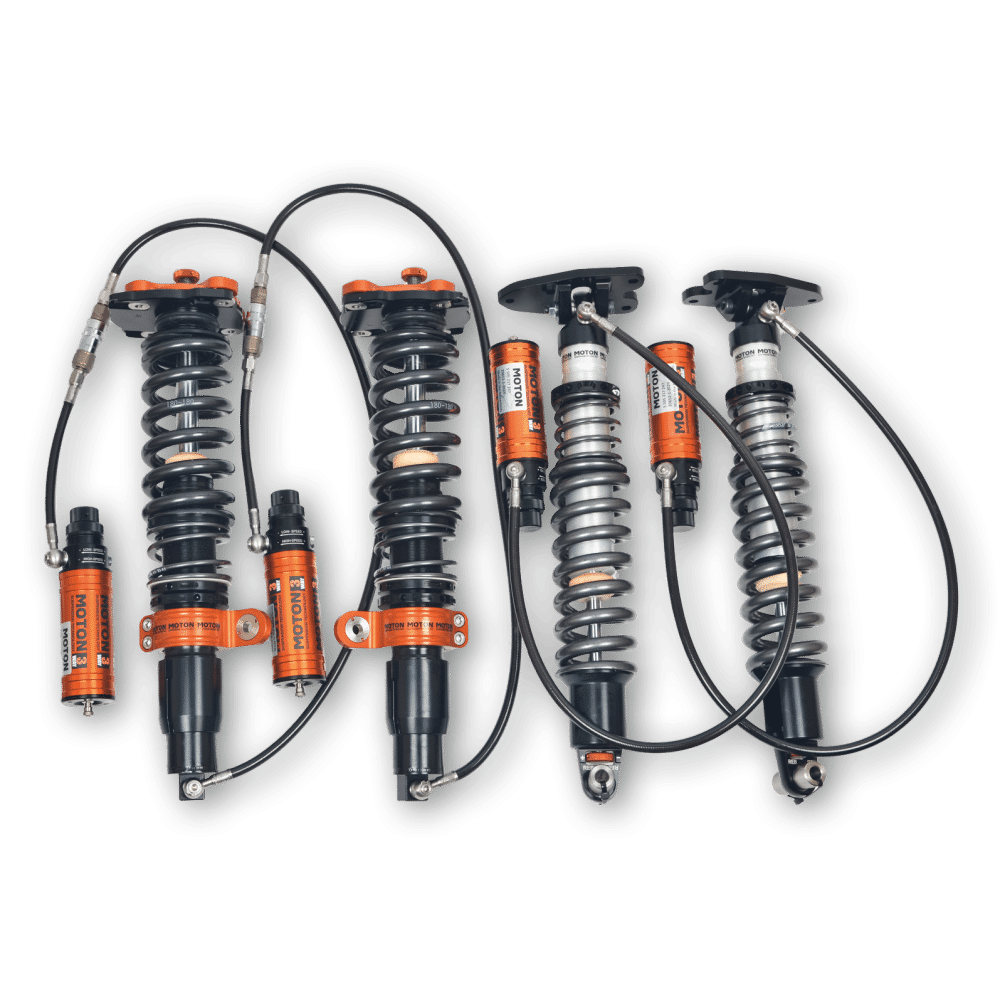

Moton 3-Way Motorsport Coilovers for Lotus Emira 2.0

Moton’s 3-Way Motorsport Coilovers for Lotus Emira 2.0 bring the full MOTON race specification to the Emira 2.0: rebound, low-speed compression and high-speed compression each on its own adjuster. The Emira 2.0 uses a Mercedes-AMG turbocharged four-cylinder in the same bonded aluminum chassis as the V6, and MOTON lists this 3-way set specifically for it. Low-speed compression governs roll and pitch on the Emira 2.0, while high-speed compression governs kerbs and sharp bumps, and each can be set without disturbing the other. On an Emira 2.0 that competes, it gives a setup engineer every adjustment MOTON offers.

Design and Performance

Two compression circuits separate the response to slow inputs, such as roll and pitch under braking, from fast ones such as kerbs and ripples. On the Emira 2.0, body control can be firmed up without making the car skip over bumps. It is overkill on a road car, and MOTON builds it for racing and data-led setup work.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs

Applications

Lotus Emira 2.0 (four-cylinder): Type 131 | 2023-present

Notes

The Moton 3-Way Motorsport Coilovers for Lotus Emira 2.0 set fits the four-cylinder car; the V6 takes the Moton 3-Way Motorsport Coilovers for Lotus Emira V6
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Lotus Emira models do the Moton 3-Way Motorsport Coilovers for Lotus Emira fit? MOTON lists the Moton 3-Way Motorsport Coilovers for Lotus Emira for the Lotus Emira 2.0 (four-cylinder; Type 131, 2023 onward). Each Motorsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
What does the 3-Way Motorsport kit adjust on the Emira 2.0? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the Emira 2.0. It suits a car prepared for racing rather than one driven mostly on the road. On the Emira 2.0 it is the kit for racing and data-led setup work.
Why is there a separate kit for the Emira 2.0? MOTON lists the four-cylinder Emira 2.0 and the Emira V6 on different part numbers. The cars share the bonded aluminum chassis but differ in engine and weight, so the dampers and springs are specified separately. Confirm the engine before ordering and we will check the part number for you.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, built to order for the Emira 2.0. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the Emira 2.0 dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on an Emira 2.0 that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
