Which Subaru Impreza models do the Moton 2-Way Clubsport Coilovers for GD fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for GD for the Subaru Impreza WRX / WRX STI (5x114.3; GD / GG, 2005 to 2007). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the 5x114.3 Impreza?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the 5x114.3 Impreza. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. It is the kit for a 5x114.3 Impreza that tracks regularly.

Does the kit fit the GG wagon?

Yes. MOTON lists the GG WRX and WRX STI alongside the GD sedan on this part number, provided the car has the 5x114.3 hub pattern. The wagon carries its weight differently from the sedan, so mention the body style when ordering and we will pass it on with the order.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, built to order for the 5x114.3 Impreza. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the 5x114.3 Impreza kit?

Each damper in the 5x114.3 Impreza kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

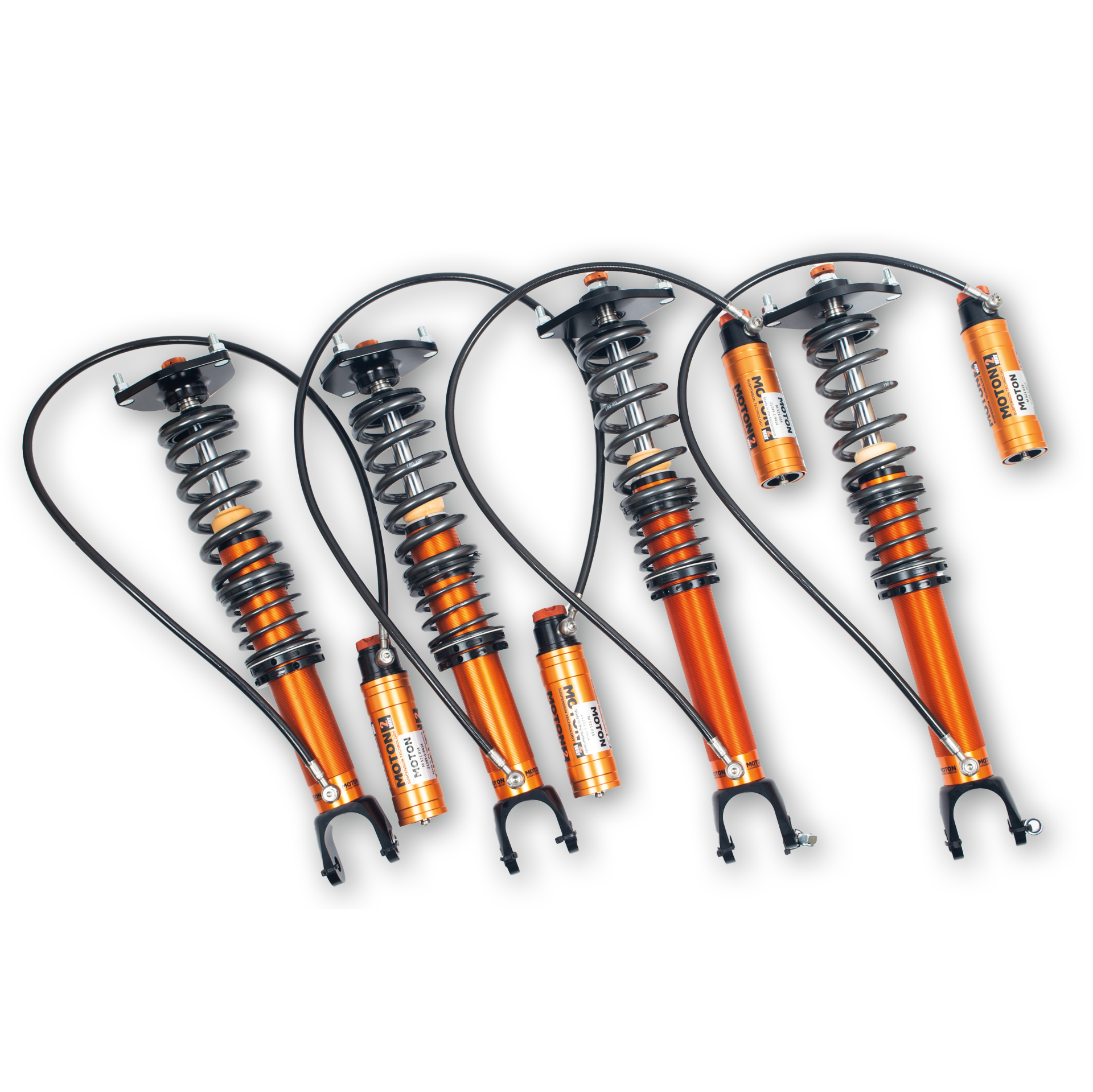

Moton 2-Way Clubsport Coilovers for GD / GG Subaru Impreza WRX and STI, 5×114.3

Moton’s 2-Way Clubsport Coilovers for GD / GG Subaru Impreza WRX and STI, 5×114.3 are the Clubsport damper MOTON builds for the 5×114.3 GD and GG Impreza, adjustable for rebound and for compression on a remote reservoir, with springs supplied. MOTON splits its GD kits by hub pattern, and this 2-way set is for the 5×114.3 GD and GG WRX and STI built from 2005 to 2007. Because compression and rebound are separate, the 5×114.3 Impreza can be softened over kerbs or firmed for fast corners without changing how it settles. It is aimed at a 5×114.3 Impreza that goes on track regularly and is tuned circuit by circuit.

Design and Performance

Separating compression from rebound lets a driver change how the 5×114.3 Impreza takes a kerb or loads its outside tire without changing how it recovers. A road car with two track days a year will not use it, and the Moton 1-Way Coilovers cover that brief for less.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Subaru Impreza WRX / WRX STI (5×114.3): GD / GG | 2005-2007

Notes

The Moton 2-Way Clubsport Coilovers for GD fit 5×114.3 GD and GG cars; 5×100 cars take the Moton 2-Way Clubsport Coilovers for GD Subaru Impreza WRX, STI, RS and TS, 5×100
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Subaru Impreza models do the Moton 2-Way Clubsport Coilovers for GD fit? MOTON lists the Moton 2-Way Clubsport Coilovers for GD for the Subaru Impreza WRX / WRX STI (5×114.3; GD / GG, 2005 to 2007). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the 5×114.3 Impreza? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the 5×114.3 Impreza. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. It is the kit for a 5×114.3 Impreza that tracks regularly.
Does the kit fit the GG wagon? Yes. MOTON lists the GG WRX and WRX STI alongside the GD sedan on this part number, provided the car has the 5×114.3 hub pattern. The wagon carries its weight differently from the sedan, so mention the body style when ordering and we will pass it on with the order.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, built to order for the 5×114.3 Impreza. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the 5×114.3 Impreza kit? Each damper in the 5×114.3 Impreza kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
