Which Subaru Impreza models do the Moton 2-Way Clubsport Coilovers for GD fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for GD for the Subaru Impreza RS / TS / WRX / WRX STI (5x100; GD, 2000 to 2007). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

What does the 2-Way Clubsport kit adjust on the 5x100 GD Impreza?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the 5x100 GD Impreza. MOTON builds it for drivers who track the 5x100 GD Impreza often and want to tune it between sessions, with threaded ride height and springs included.

Does this kit fit a 5x114.3 GD STI?

No. MOTON builds separate GD sets by hub pattern, and this one is for 5x100 cars: the RS, TS, WRX and the earlier STI. The 2005-on STI and GG cars with 5x114.3 hubs take a different set, so check the wheel bolt pattern before ordering.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, built to order for the 5x100 GD Impreza. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the 5x100 GD Impreza kit?

Each damper in the 5x100 GD Impreza kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 2-Way Clubsport Coilovers for GD Subaru Impreza WRX, STI, RS and TS, 5×100

Moton’s 2-Way Clubsport Coilovers for GD Subaru Impreza WRX, STI, RS and TS, 5×100 give the 5×100 GD Impreza separate rebound and compression adjustment, with compression set on an external reservoir at each corner. MOTON lists this 2-way set for 5×100 GD Imprezas, from the RS and TS to the WRX and the early STI, built between 2000 and 2007. Moving compression to the reservoir puts the adjuster where it is easy to reach and gives the 5×100 GD Impreza more oil volume to hold temperature on track. It fits the owner who tracks a 5×100 GD Impreza often and wants to tune grip and body control between sessions.

Design and Performance

Separating compression from rebound lets a driver change how the 5×100 GD Impreza takes a kerb or loads its outside tire without changing how it recovers. It is the MOTON kit for drivers who track the 5×100 GD Impreza often and want both adjusters within reach.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

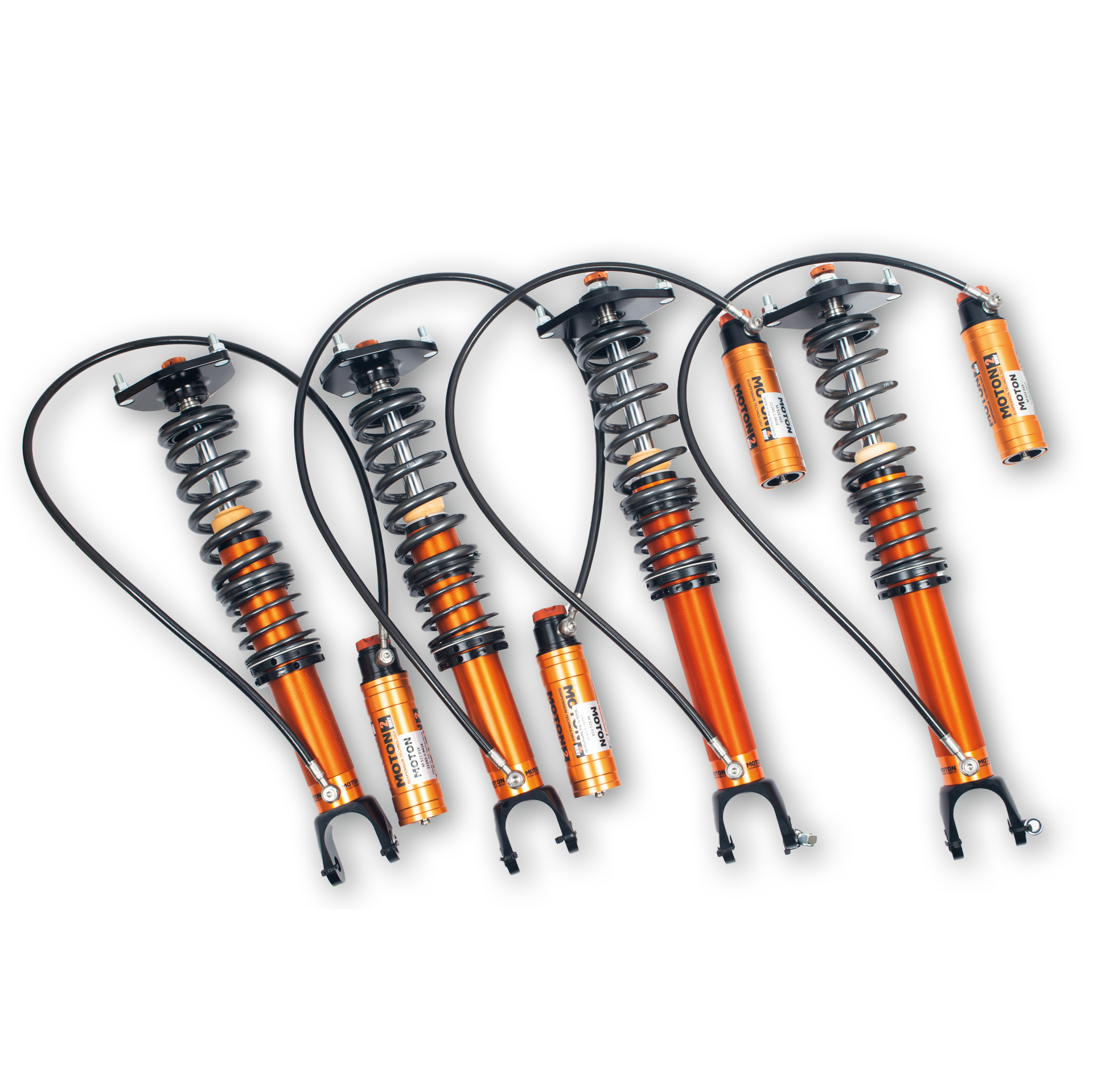

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Subaru Impreza RS / TS / WRX / WRX STI (5×100): GD | 2000-2007

Notes

The Moton 2-Way Clubsport Coilovers for GD fit 5×100 GD cars; 5×114.3 cars take the Moton 2-Way Clubsport Coilovers for GD / GG Subaru Impreza WRX and STI, 5×114.3
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Subaru Impreza models do the Moton 2-Way Clubsport Coilovers for GD fit? MOTON lists the Moton 2-Way Clubsport Coilovers for GD for the Subaru Impreza RS / TS / WRX / WRX STI (5×100; GD, 2000 to 2007). Each Clubsport set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
What does the 2-Way Clubsport kit adjust on the 5×100 GD Impreza? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the 5×100 GD Impreza. MOTON builds it for drivers who track the 5×100 GD Impreza often and want to tune it between sessions, with threaded ride height and springs included.
Does this kit fit a 5×114.3 GD STI? No. MOTON builds separate GD sets by hub pattern, and this one is for 5×100 cars: the RS, TS, WRX and the earlier STI. The 2005-on STI and GG cars with 5×114.3 hubs take a different set, so check the wheel bolt pattern before ordering.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, built to order for the 5×100 GD Impreza. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the 5×100 GD Impreza kit? Each damper in the 5×100 GD Impreza kit is connected by hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
