Which Subaru Impreza models do the Moton 1-Way Coilovers for GD fit?

MOTON lists the Moton 1-Way Coilovers for GD for the Subaru Impreza WRX / WRX STI (5x114.3; GD / GG, 2005 to 2007). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 1-Way kit compare with the other MOTON kits for the 5x114.3 Impreza?

The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the 5x114.3 Impreza. The 2-Way Clubsport adds compression adjustment on a remote reservoir. Every MOTON kit for the 5x114.3 Impreza shares threaded ride height, non-inverted monotube construction and springs in the box.

How do I know which hub pattern my Impreza has?

Check the wheel bolt pattern: the later GD STI and the cars MOTON lists here use 5x114.3, while earlier GD cars use 5x100. MOTON builds separate sets for the two, so measure or check the wheel specification before ordering, especially on a car with swapped hubs.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, built to order for the 5x114.3 Impreza. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

How difficult is installation on the 5x114.3 Impreza?

It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the 5x114.3 Impreza is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

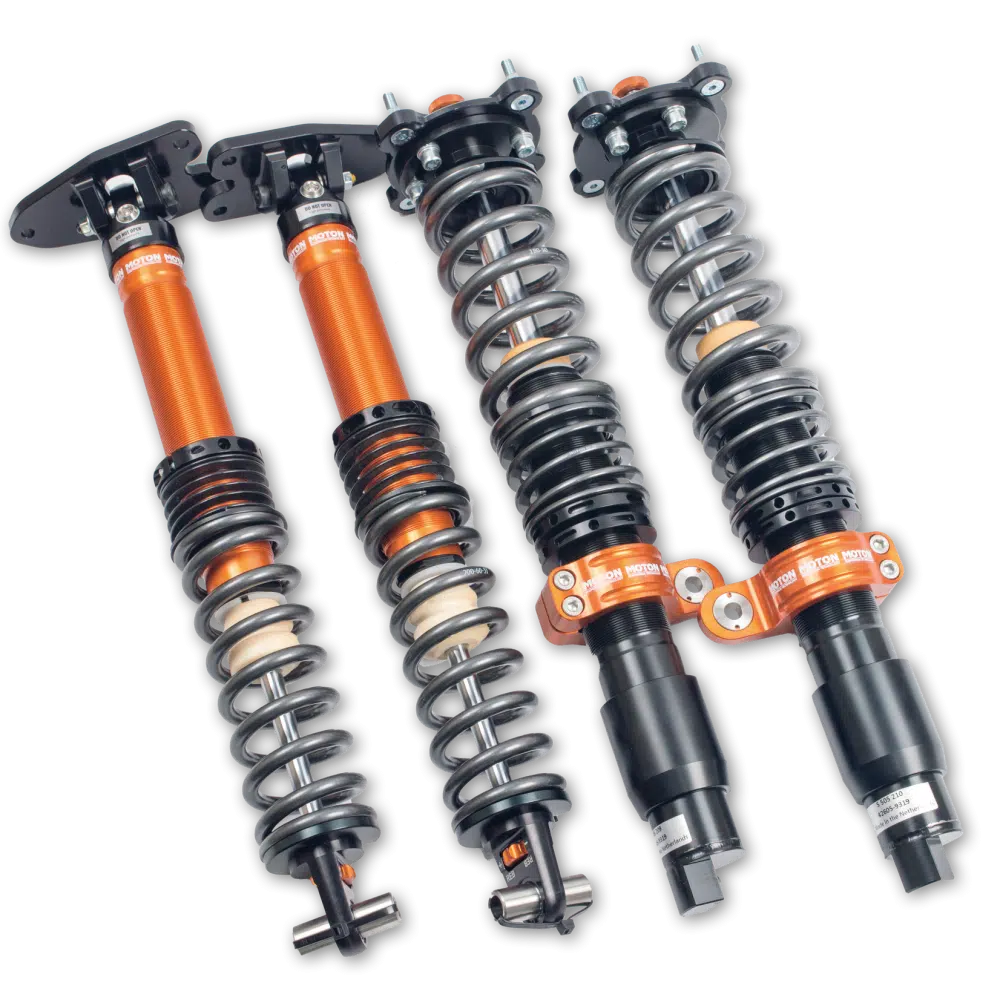

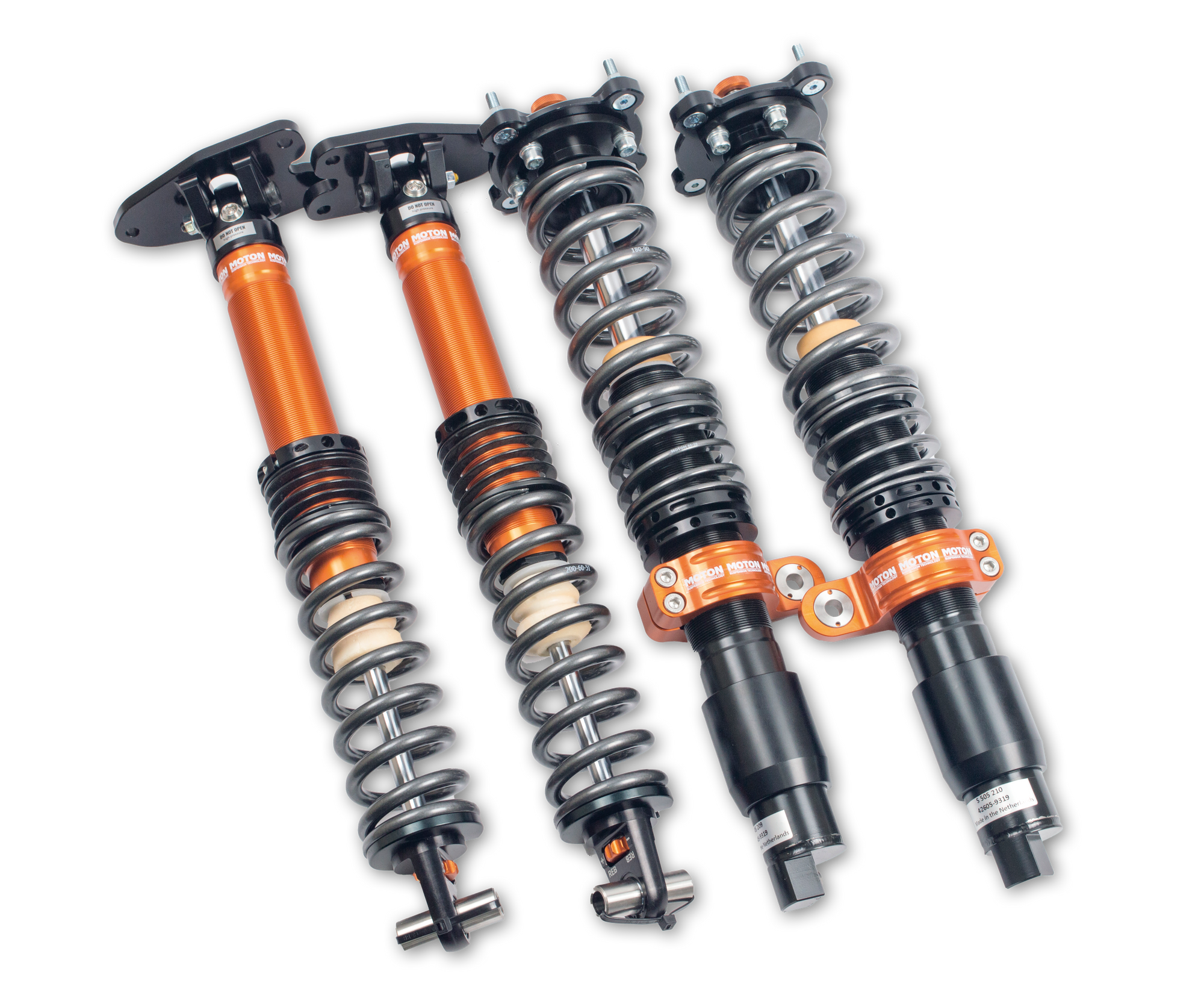

Moton 1-Way Coilovers for GD / GG Subaru Impreza WRX and STI, 5×114.3

Moton’s 1-Way Coilovers for GD / GG Subaru Impreza WRX and STI, 5×114.3 fit the 5×114.3 GD and GG Impreza with non-inverted monotube dampers that adjust for rebound and ride height and arrive with springs. Subaru moved the GD STI to a 5×114.3 hub pattern from 2005, and MOTON lists this set for the GD and GG WRX and STI on that pattern. Compression is left to MOTON’s fixed valving, so the one choice at the car is how quickly each corner of the 5×114.3 Impreza settles after a bump. For a 5×114.3 Impreza that sees mostly road miles and a few track days a year, it is the right amount of adjustment.

Design and Performance

Rebound sets how quickly each damper extends after compressing, which decides how the 5×114.3 Impreza settles after crests and kerbs. The 1-Way gives one adjuster per corner for exactly that and leaves compression to MOTON’s valving, the right amount of adjustment for a road car with occasional track days. For compression control, step up to the Moton 2-Way Clubsport Coilovers for the 5×114.3 Impreza.

Features

Non-inverted monotube dampers, adjustable for rebound
Threaded ride height at all four corners
Pillowball front camber plates
Elevated top guide with helper piston
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers (L/R)
Rear coilovers (L/R)
Front and rear springs
Pillowball front camber plates (L/R)

Applications

Subaru Impreza WRX / WRX STI (5×114.3): GD / GG | 2005-2007

Notes

The Moton 1-Way Coilovers for GD fit 5×114.3 GD and GG cars; 5×100 cars take the Moton 2-Way Clubsport Coilovers for GD Subaru Impreza WRX, STI, RS and TS, 5×100
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which Subaru Impreza models do the Moton 1-Way Coilovers for GD fit? MOTON lists the Moton 1-Way Coilovers for GD for the Subaru Impreza WRX / WRX STI (5×114.3; GD / GG, 2005 to 2007). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 1-Way kit compare with the other MOTON kits for the 5×114.3 Impreza? The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the 5×114.3 Impreza. The 2-Way Clubsport adds compression adjustment on a remote reservoir. Every MOTON kit for the 5×114.3 Impreza shares threaded ride height, non-inverted monotube construction and springs in the box.
How do I know which hub pattern my Impreza has? Check the wheel bolt pattern: the later GD STI and the cars MOTON lists here use 5×114.3, while earlier GD cars use 5×100. MOTON builds separate sets for the two, so measure or check the wheel specification before ordering, especially on a car with swapped hubs.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, built to order for the 5×114.3 Impreza. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
How difficult is installation on the 5×114.3 Impreza? It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the 5×114.3 Impreza is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
