Which BMW M3 and M4 xDrive models do the Moton 2-Way Clubsport Coilovers for G8X xDrive fit?

MOTON lists the Moton 2-Way Clubsport Coilovers for G8X xDrive for the BMW M3 xDrive (G80, 2021 onward), BMW M3 Touring xDrive (G81, 2021 onward), BMW M4 xDrive (G82, 2021 onward) and BMW M4 Convertible xDrive (G83, 2021 onward). Confirm the exact model and year with us before ordering.

How does the 2-Way Clubsport kit compare with the other MOTON kits for the G8X xDrive?

The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the G8X xDrive. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for a G8X xDrive that tracks regularly.

Does this kit fit a rear-drive M3 or M4?

No. MOTON lists separate kits for rear-drive G8X cars, with different front hardware. This part number is for xDrive M3, M3 Touring, M4 and M4 Convertible models only, and rear-drive M3, M4 and M2 owners should order the RWD G8X kit in the same series.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the G8X xDrive. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

What do the remote reservoirs do on the G8X xDrive kit?

Each damper in the G8X xDrive kit is connected by hose to an external reservoir holding extra oil, the gas charge and the compression adjuster. The added volume keeps damping consistent as the damper heats up, and the adjuster is easy to reach.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 2-Way Clubsport Coilovers for G8X xDrive BMW M3 / M4

Moton’s 2-Way Clubsport Coilovers for G8X xDrive BMW M3 / M4 give the xDrive G8X M3 and M4 separate rebound and compression adjustment, with compression set on an external reservoir at each corner. MOTON lists separate kits for rear-drive and xDrive G8X cars, and this 2-way set is the xDrive version.

Design and Performance

Separating compression from rebound changes how the G8X xDrive takes a kerb without changing how it recovers. A road car with two track days a year will not use it, and the Moton 1-Way Coilovers cover that brief for less; separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Quick-disconnect couplings at the front
Adjustable aluminum front droplinks, DLA-10-288-306, M10, 288 mm to 306 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW M3 xDrive: G80 | 2021-present
BMW M3 Touring xDrive: G81 | 2021-present
BMW M4 xDrive: G82 | 2021-present
BMW M4 Convertible xDrive: G83 | 2021-present

Notes

The Moton 2-Way Clubsport Coilovers for G8X xDrive fit xDrive cars only; rear-drive M3, M4 and M2 take the Moton 2-Way Clubsport Coilovers for G8X BMW M2 / M3 / M4 RWD
Cars with Adaptive M Suspension (EDC) need a cancellation kit, sold separately: the KW ESC Module or Öhlins Cancellation Kit
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order

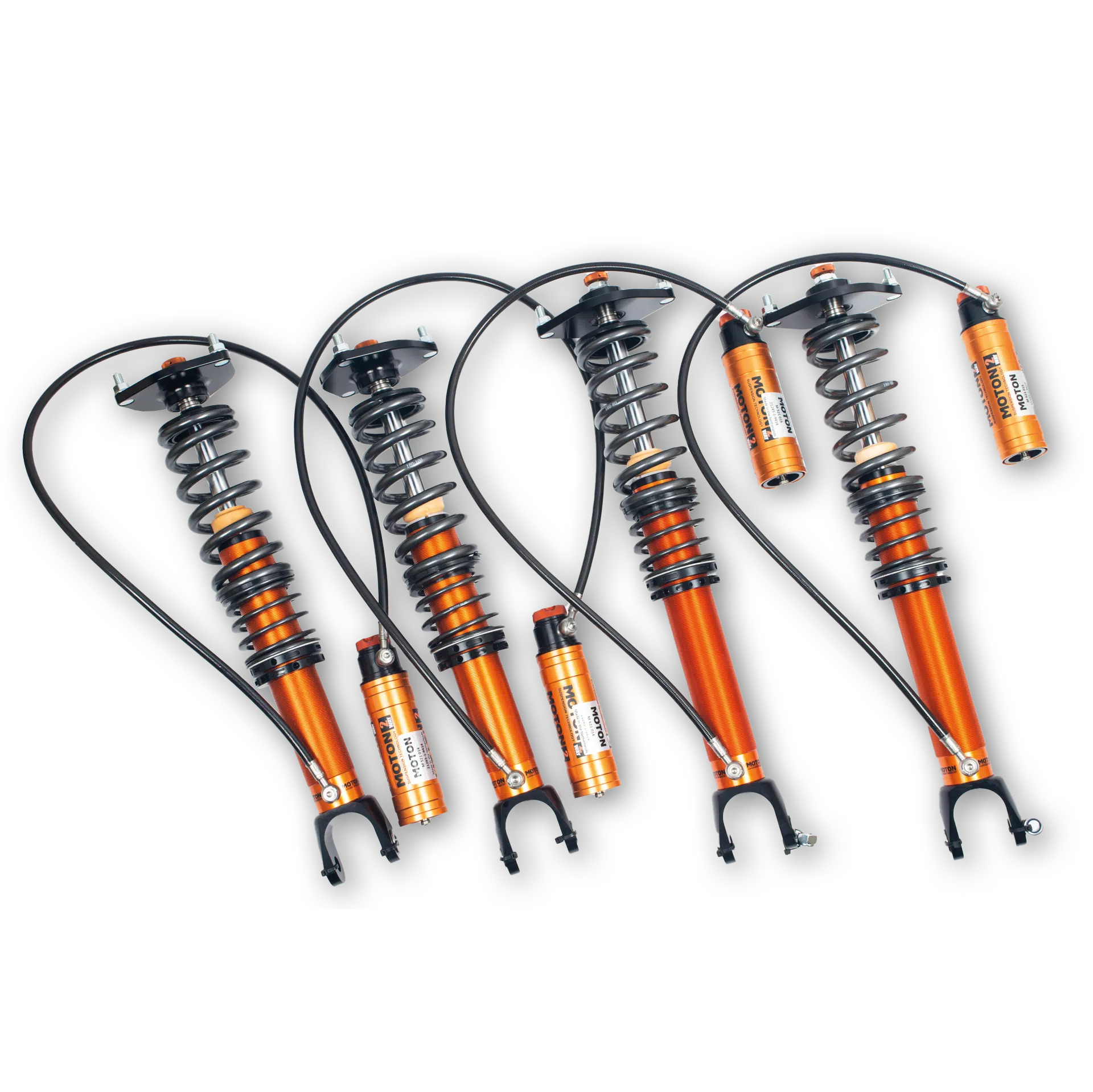

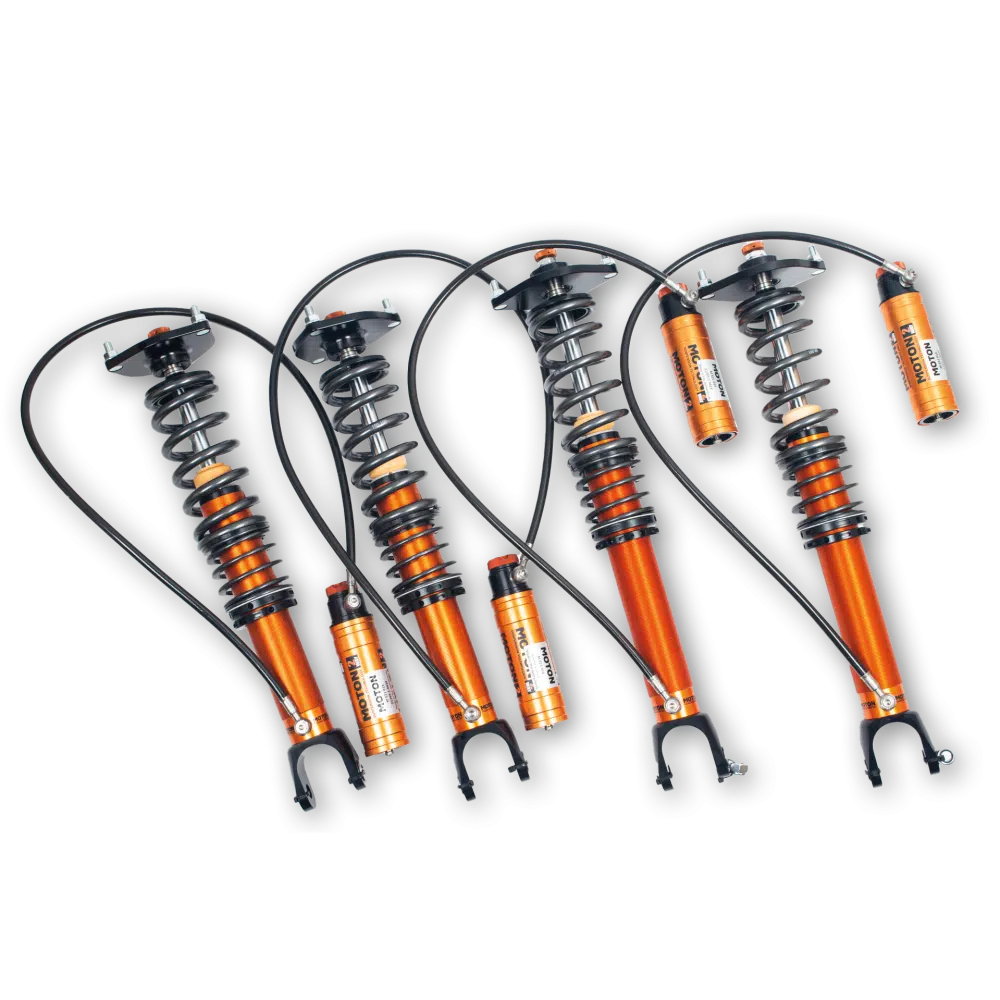

Images show representative MOTON kits

Frequently Asked Questions

Which BMW M3 and M4 xDrive models do the Moton 2-Way Clubsport Coilovers for G8X xDrive fit? MOTON lists the Moton 2-Way Clubsport Coilovers for G8X xDrive for the BMW M3 xDrive (G80, 2021 onward), BMW M3 Touring xDrive (G81, 2021 onward), BMW M4 xDrive (G82, 2021 onward) and BMW M4 Convertible xDrive (G83, 2021 onward). Confirm the exact model and year with us before ordering.
How does the 2-Way Clubsport kit compare with the other MOTON kits for the G8X xDrive? The 2-Way Clubsport adjusts rebound on the damper and compression on a remote reservoir, so the two can be tuned independently on the G8X xDrive. Against the 1-Way it adds that compression adjuster and the extra oil volume of the reservoir. Against the 3-Way Motorsport it keeps compression as one circuit rather than two, which makes it quicker to set up. It is the kit for a G8X xDrive that tracks regularly.
Does this kit fit a rear-drive M3 or M4? No. MOTON lists separate kits for rear-drive G8X cars, with different front hardware. This part number is for xDrive M3, M3 Touring, M4 and M4 Convertible models only, and rear-drive M3, M4 and M2 owners should order the RWD G8X kit in the same series.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a rebound adjuster and a reservoir-mounted compression adjuster, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the G8X xDrive. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
What do the remote reservoirs do on the G8X xDrive kit? Each damper in the G8X xDrive kit is connected by hose to an external reservoir holding extra oil, the gas charge and the compression adjuster. The added volume keeps damping consistent as the damper heats up, and the adjuster is easy to reach.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
