Do the Moton 2-Way Clubsport Coilovers for G8X need an EDC cancellation kit?

Yes, on any car with Adaptive M Suspension. The Moton 2-Way Clubsport Coilovers for G8X are adjusted by hand, so the factory damper control must be cancelled to avoid suspension fault warnings. MOTON does not supply that part; Bulletproof Automotive carries the KW ESC Module and the Öhlins Cancellation Kit for the M3 and M4.

Is a 2-way coilover worth it over a 1-way?

It is for a driver who tracks the car often. Rebound and compression can be tuned separately, so the car can be softened over kerbs or firmed up for fast corners without upsetting how it settles afterwards. For one or two track days a year, the MOTON 1-Way gives most of the benefit for less.

What do the remote reservoirs do?

Each damper is connected by a hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.

Can the 2-Way Clubsport kit be used on the road?

Yes. It is a height-adjustable coilover with springs and front camber plates, and MOTON lists it for the road-registered G8X cars. It is built around motorsport use, though, so an owner who never goes on track will get better value from the MOTON 1-Way kit.

What comes in the box?

Four non-inverted monotube coilovers with remote reservoirs and springs, pillowball front camber plates and a pair of adjustable aluminum front droplinks with M10 threads. The rear is a true coilover. The EDC cancellation kit, wheel spacers and the alignment are not included.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

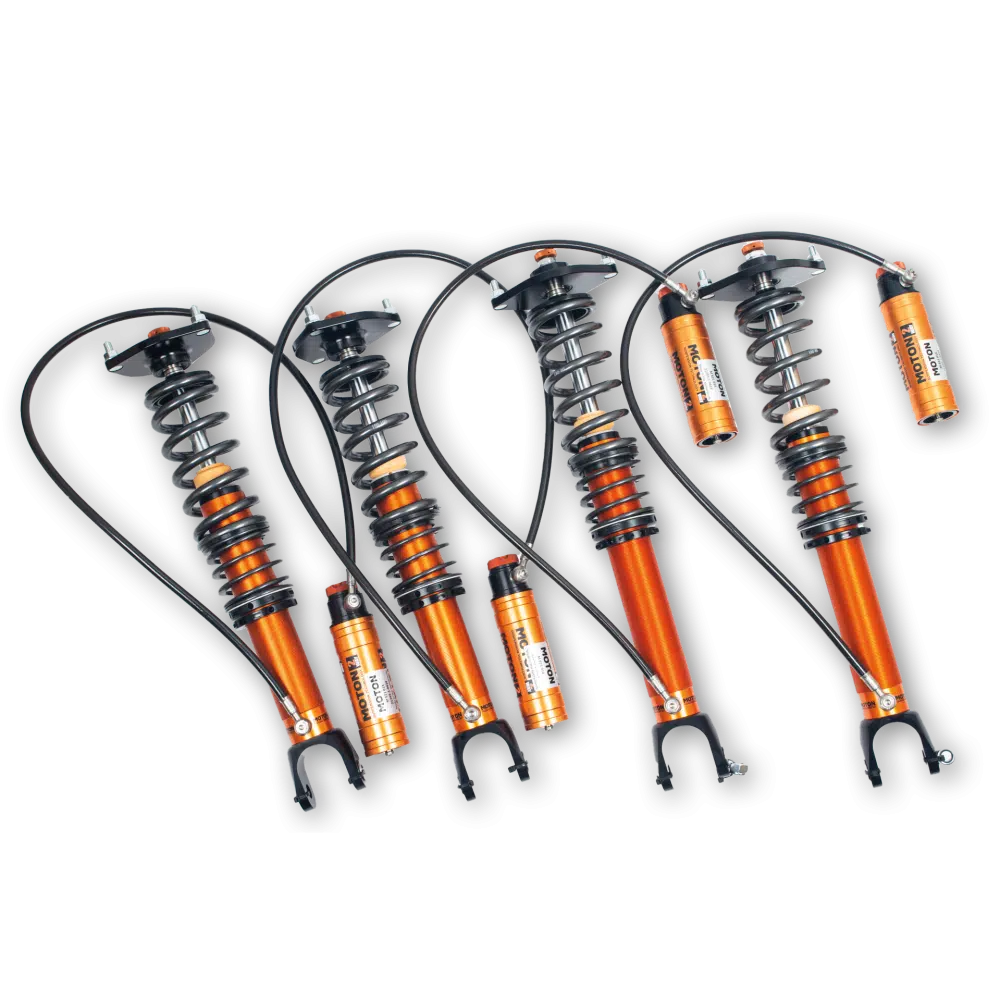

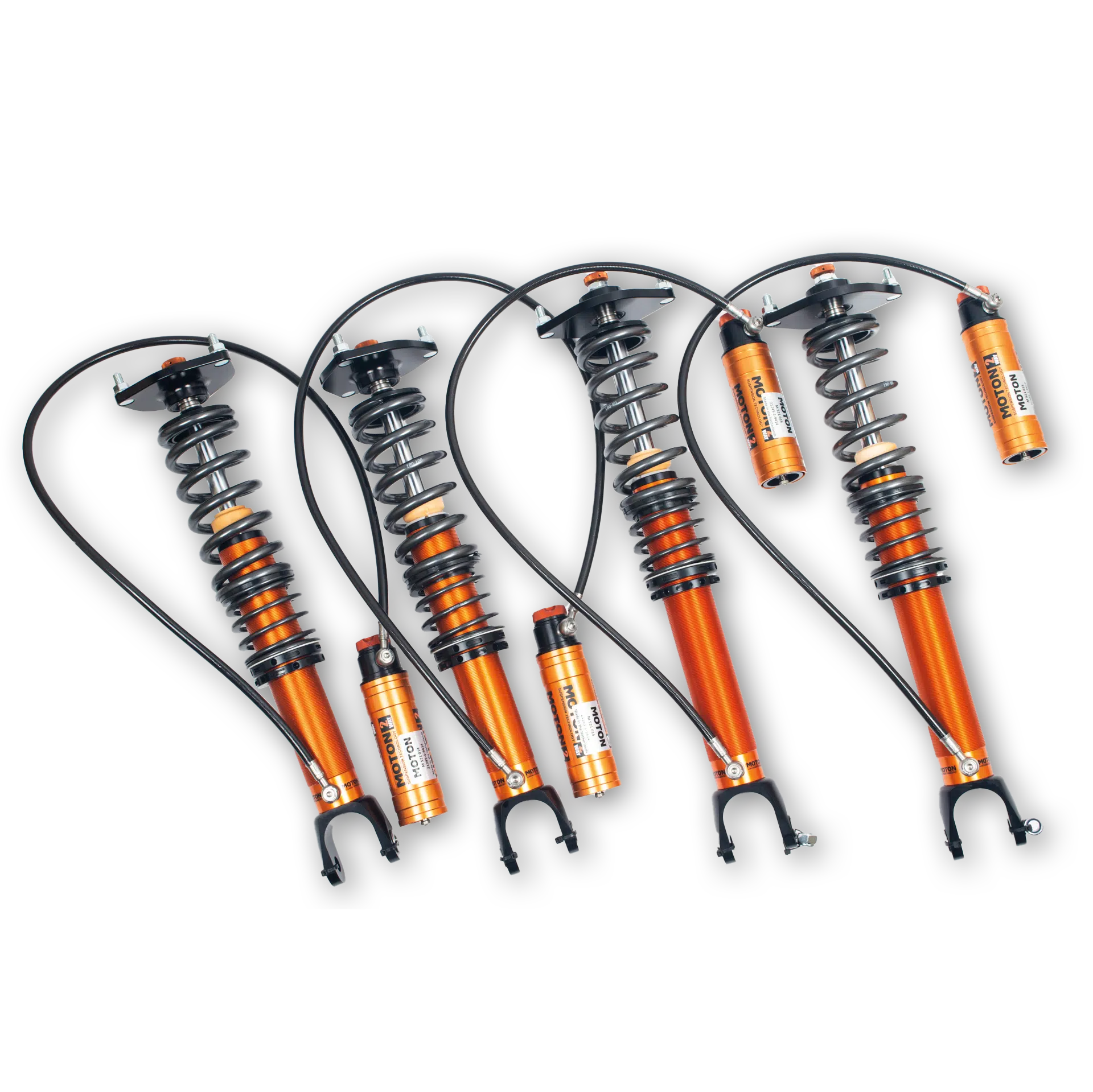

Moton 2-Way Clubsport Coilovers for G8X BMW M2 / M3 / M4 RWD

Moton’s 2-Way Clubsport Coilovers for G8X BMW M2, M3 and M4 RWD come from the damper line that has won in GT and touring car racing since 1999. Rebound and compression adjust independently, with compression set on an external reservoir whose extra oil and gas volume keeps damping consistent as the units heat through a long session. It is the kit for an owner who tracks the car regularly and wants to tune grip and body control circuit by circuit.

Design and Performance

Separating compression from rebound lets a driver change how the car takes a kerb or loads its outside tire without changing how it recovers. A road car with two track days a year will not use it, and the Moton 1-Way Coilovers cover that brief for less; separate high-speed and low-speed compression is the job of the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound and compression
Compression adjuster on an external remote reservoir
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, M10, 288 mm to 306 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW M2: G87 | 2023-present
BMW M3: G80 | 2021-present
BMW M3 Touring: G81 | 2021-present
BMW M4: G82 | 2021-present
BMW M4 Convertible: G83 | 2021-present

Notes

The Moton 2-Way Clubsport Coilovers for G8X fit rear-wheel-drive cars only; xDrive models take the Moton 2-Way Clubsport Coilovers for G8X xDrive BMW M3 / M4
Cars with Adaptive M Suspension (EDC) need a cancellation kit, sold separately: the KW ESC Module or Öhlins Cancellation Kit
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Do the Moton 2-Way Clubsport Coilovers for G8X need an EDC cancellation kit? Yes, on any car with Adaptive M Suspension. The Moton 2-Way Clubsport Coilovers for G8X are adjusted by hand, so the factory damper control must be cancelled to avoid suspension fault warnings. MOTON does not supply that part; Bulletproof Automotive carries the KW ESC Module and the Öhlins Cancellation Kit for the M3 and M4.
Is a 2-way coilover worth it over a 1-way? It is for a driver who tracks the car often. Rebound and compression can be tuned separately, so the car can be softened over kerbs or firmed up for fast corners without upsetting how it settles afterwards. For one or two track days a year, the MOTON 1-Way gives most of the benefit for less.
What do the remote reservoirs do? Each damper is connected by a hose to an external reservoir that holds extra oil and the gas charge and carries the compression adjuster. The added volume helps the damper stay consistent as it heats up over a long session, and it puts the adjuster where it is easy to reach.
Can the 2-Way Clubsport kit be used on the road? Yes. It is a height-adjustable coilover with springs and front camber plates, and MOTON lists it for the road-registered G8X cars. It is built around motorsport use, though, so an owner who never goes on track will get better value from the MOTON 1-Way kit.
What comes in the box? Four non-inverted monotube coilovers with remote reservoirs and springs, pillowball front camber plates and a pair of adjustable aluminum front droplinks with M10 threads. The rear is a true coilover. The EDC cancellation kit, wheel spacers and the alignment are not included.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
