Which BMW M3 and M4 xDrive models do the Moton 3-Way Motorsport Coilovers for G8X xDrive fit?

MOTON lists the Moton 3-Way Motorsport Coilovers for G8X xDrive for the BMW M3 xDrive (G80, 2021 onward), BMW M3 Touring xDrive (G81, 2021 onward), BMW M4 xDrive (G82, 2021 onward) and BMW M4 Convertible xDrive (G83, 2021 onward). Confirm the exact model and year with us before ordering.

How does the 3-Way Motorsport kit compare with the other MOTON kits for the G8X xDrive?

The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the G8X xDrive. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the G8X xDrive it is the kit for racing and data-led setup work.

Does the kit fit the M3 Touring?

Yes. MOTON lists the G81 M3 Touring xDrive on this part number alongside the G80 M3, G82 M4 and G83 M4 Convertible xDrive. The Touring carries more weight over the rear axle than the sedan, so mention the body style when ordering and we will pass it on with the order.

What comes in the box?

Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the G8X xDrive. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

Are the G8X xDrive dampers rebuildable, and is there a warranty?

Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a G8X xDrive that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Moton 3-Way Motorsport Coilovers for G8X xDrive BMW M3 / M4

Moton’s 3-Way Motorsport Coilovers for G8X xDrive BMW M3 / M4 give the xDrive G8X M3 and M4 three damping adjustments per corner, rebound and two compression circuits, with the compression pair on external reservoirs. The M3 Touring was the first M3 estate, xDrive only, and this 3-way set covers it with the other xDrive cars.

Design and Performance

Two compression circuits let body control on the G8X xDrive be firmed up without making the car skip over bumps. It is overkill on a road car; the Moton 1-Way Coilovers suit that use, and the Moton 2-Way Clubsport Coilovers sit between the two.

Features

Non-inverted monotube dampers, adjustable for rebound and separate high-speed and low-speed compression
Compression adjusters on external remote reservoirs
Threaded ride height at all four corners
True coilover layout front and rear
Pillowball front camber plates
Elevated top guide with helper piston
Quick-disconnect couplings at the front
Adjustable aluminum front droplinks, DLA-10-288-306, M10, 288 mm to 306 mm
Fully rebuildable, 24-month AST x MOTON warranty

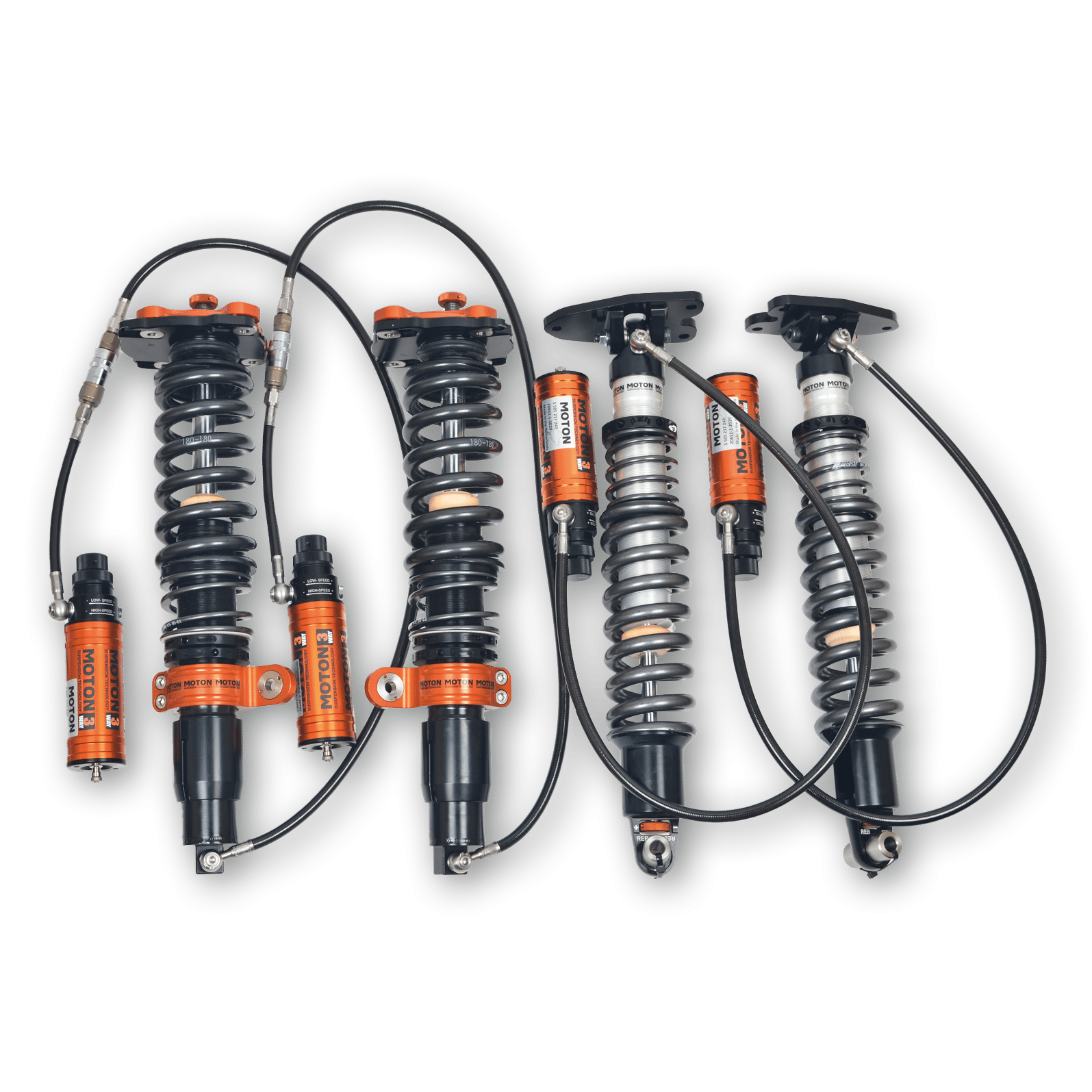

What’s Included

Front coilovers with remote reservoirs (L/R)
Rear coilovers with remote reservoirs (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW M3 xDrive: G80 | 2021-present
BMW M3 Touring xDrive: G81 | 2021-present
BMW M4 xDrive: G82 | 2021-present
BMW M4 Convertible xDrive: G83 | 2021-present

Notes

The Moton 3-Way Motorsport Coilovers for G8X xDrive fit xDrive cars only; rear-drive M3, M4 and M2 take the Moton 3-Way Motorsport Coilovers for G8X BMW M2 / M3 / M4 RWD
Cars with Adaptive M Suspension (EDC) need a cancellation kit, sold separately: the KW ESC Module or Öhlins Cancellation Kit
Route reservoir hoses clear of moving parts and secure them at the banjo
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which BMW M3 and M4 xDrive models do the Moton 3-Way Motorsport Coilovers for G8X xDrive fit? MOTON lists the Moton 3-Way Motorsport Coilovers for G8X xDrive for the BMW M3 xDrive (G80, 2021 onward), BMW M3 Touring xDrive (G81, 2021 onward), BMW M4 xDrive (G82, 2021 onward) and BMW M4 Convertible xDrive (G83, 2021 onward). Confirm the exact model and year with us before ordering.
How does the 3-Way Motorsport kit compare with the other MOTON kits for the G8X xDrive? The 3-Way Motorsport adds a second compression circuit, so low-speed and high-speed compression are set separately on the reservoir at each corner of the G8X xDrive. The 2-Way Clubsport keeps compression as one adjuster, and the 1-Way adjusts rebound alone. On the G8X xDrive it is the kit for racing and data-led setup work.
Does the kit fit the M3 Touring? Yes. MOTON lists the G81 M3 Touring xDrive on this part number alongside the G80 M3, G82 M4 and G83 M4 Convertible xDrive. The Touring carries more weight over the rear axle than the sedan, so mention the body style when ordering and we will pass it on with the order.
What comes in the box? Four non-inverted monotube coilovers with springs and remote reservoirs, each adjustable for rebound, low-speed compression and high-speed compression, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the G8X xDrive. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
Are the G8X xDrive dampers rebuildable, and is there a warranty? Yes to both. MOTON designs every damper to be serviced and refreshed rather than replaced, which matters on a G8X xDrive that sees heavy track use. AST x MOTON covers its coilover kits with a 24-month warranty, registered with the order ID on the product certificate or on a damper.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
