Which BMW M3 and M4 xDrive models do the Moton 1-Way Coilovers for G8X xDrive fit?

MOTON lists the Moton 1-Way Coilovers for G8X xDrive for the BMW M3 xDrive (G80, 2021 onward), BMW M3 Touring xDrive (G81, 2021 onward), BMW M4 xDrive (G82, 2021 onward) and BMW M4 Convertible xDrive (G83, 2021 onward). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.

How does the 1-Way kit compare with the other MOTON kits for the G8X xDrive?

The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the G8X xDrive. The 2-Way Clubsport adds compression adjustment on a remote reservoir. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits.

Do the xDrive cars need an EDC cancellation kit?

Yes, on any car with Adaptive M Suspension. The MOTON dampers have no electronic valves, so the factory damper control must be cancelled to avoid suspension fault warnings. MOTON does not supply that part; Bulletproof Automotive carries the KW ESC Module and the Öhlins Cancellation Kit for the G8X M3 and M4.

What comes in the box?

Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the G8X xDrive. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.

How difficult is installation on the G8X xDrive?

It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the G8X xDrive is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

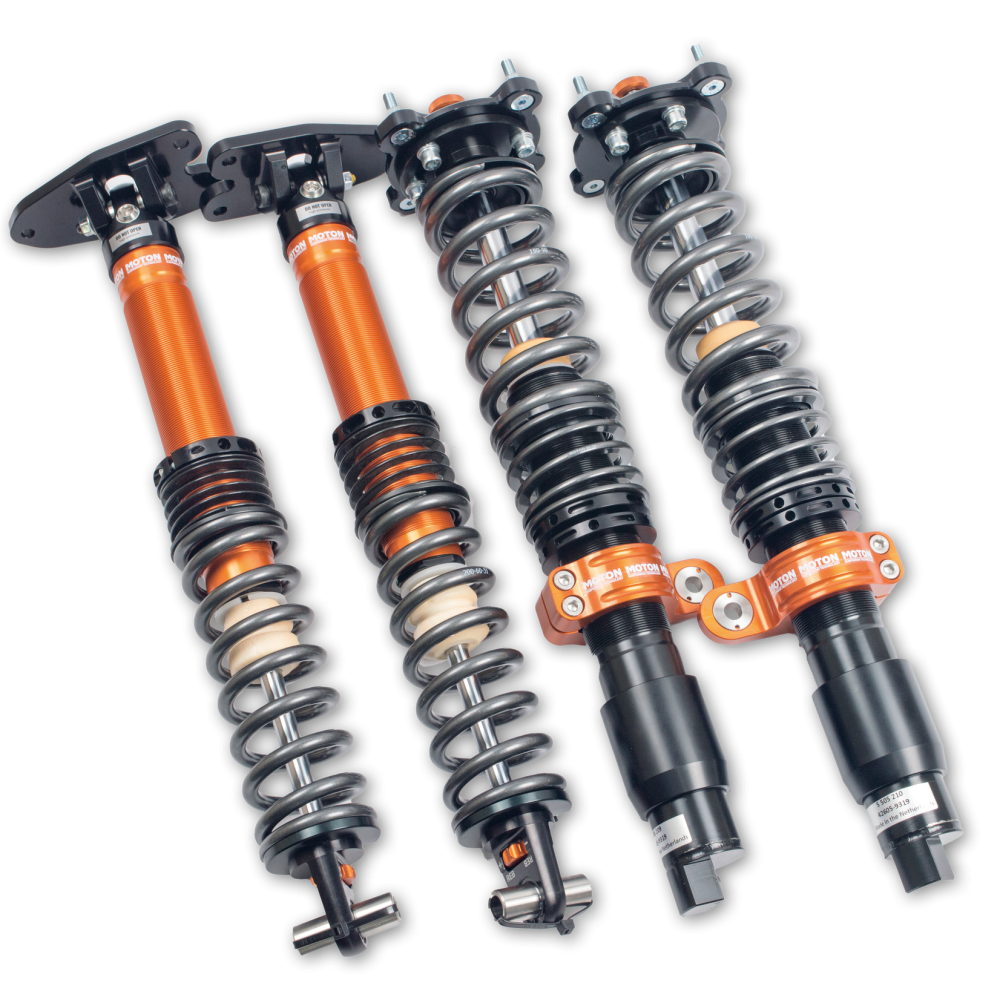

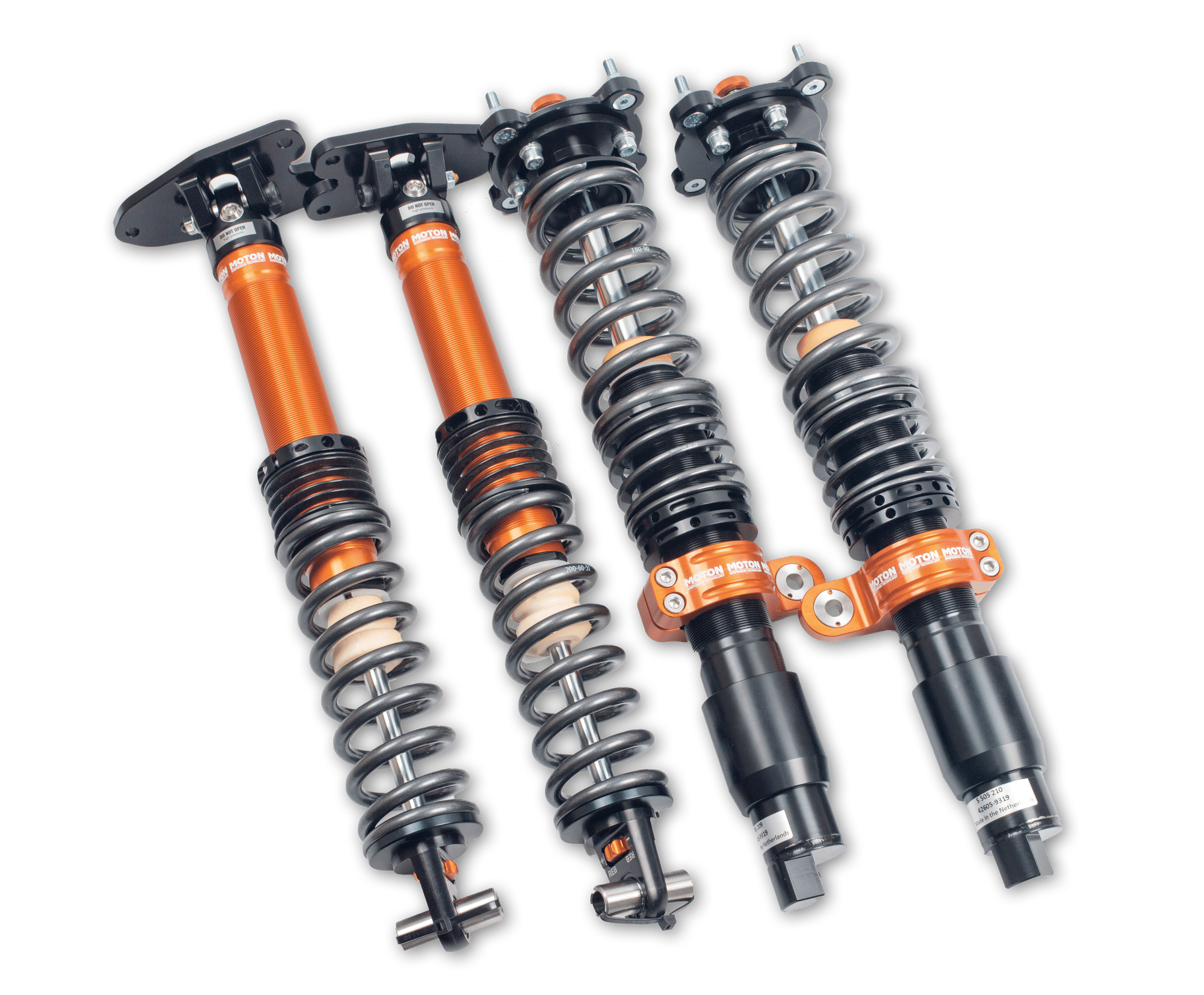

Moton 1-Way Coilovers for G8X xDrive BMW M3 / M4

Moton’s 1-Way Coilovers for G8X xDrive BMW M3 / M4 fit the xDrive G8X M3 and M4 with non-inverted monotube dampers that adjust for rebound and ride height and arrive with springs. M xDrive sends drive to all four wheels with a rear-biased split and a 2WD mode, and MOTON builds this 1-way set for the xDrive G80 M3, G81 M3 Touring, G82 M4 and G83 M4 Convertible.

Design and Performance

The 1-Way gives the G8X xDrive one rebound adjuster per corner and leaves compression to MOTON’s valving, the right amount of adjustment for a road car with occasional track days. For compression control on the G8X xDrive, step up to the Moton 2-Way Clubsport Coilovers or the Moton 3-Way Motorsport Coilovers.

Features

Non-inverted monotube dampers, adjustable for rebound
Threaded ride height at all four corners
Pillowball front camber plates
Elevated top guide with helper piston
Adjustable aluminum front droplinks, DLA-10-288-306, M10, 288 mm to 306 mm
Fully rebuildable, 24-month AST x MOTON warranty

What’s Included

Front coilovers (L/R)
Rear coilovers (L/R)
Front and rear springs
Pillowball front camber plates (L/R)
Adjustable front droplinks (x2)

Applications

BMW M3 xDrive: G80 | 2021-present
BMW M3 Touring xDrive: G81 | 2021-present
BMW M4 xDrive: G82 | 2021-present
BMW M4 Convertible xDrive: G83 | 2021-present

Notes

The Moton 1-Way Coilovers for G8X xDrive fit xDrive cars only; rear-drive M3, M4 and M2 take the Moton 1-Way Coilovers for G8X BMW M2 / M3 / M4 RWD
Cars with Adaptive M Suspension (EDC) need a cancellation kit, sold separately: the KW ESC Module or Öhlins Cancellation Kit
Keep at least 5 mm between wheel and damper; some factory wheels need a spacer
Kits are built to order in the Netherlands; lead time is confirmed at order
Images show representative MOTON kits

Frequently Asked Questions

Which BMW M3 and M4 xDrive models do the Moton 1-Way Coilovers for G8X xDrive fit? MOTON lists the Moton 1-Way Coilovers for G8X xDrive for the BMW M3 xDrive (G80, 2021 onward), BMW M3 Touring xDrive (G81, 2021 onward), BMW M4 xDrive (G82, 2021 onward) and BMW M4 Convertible xDrive (G83, 2021 onward). Each 1-Way set is built to order in the Netherlands for that fitment, so confirm the exact model, year and any previous suspension changes with us before ordering.
How does the 1-Way kit compare with the other MOTON kits for the G8X xDrive? The 1-Way adjusts rebound only and leaves compression to MOTON valving, which makes it the simplest kit to set up on the G8X xDrive. The 2-Way Clubsport adds compression adjustment on a remote reservoir. The 3-Way Motorsport splits compression into separate low-speed and high-speed circuits.
Do the xDrive cars need an EDC cancellation kit? Yes, on any car with Adaptive M Suspension. The MOTON dampers have no electronic valves, so the factory damper control must be cancelled to avoid suspension fault warnings. MOTON does not supply that part; Bulletproof Automotive carries the KW ESC Module and the Öhlins Cancellation Kit for the G8X M3 and M4.
What comes in the box? Four non-inverted monotube coilovers with springs, each with a single rebound adjuster on the damper body, pillowball front camber plates, and a pair of adjustable aluminum front droplinks with M10 threads, built to order for the G8X xDrive. Wheel spacers, any electronic damper cancellation and the alignment are not included, and the kit ships without spring preload set.
How difficult is installation on the G8X xDrive? It is a job for a qualified shop with a lift and a calibrated torque wrench. The kit arrives with no spring preload, so preload is set before the G8X xDrive is lowered and ride height is measured afterwards. Overtightening the spring platform can deform the damper body, and an alignment should follow.

About Moton

MOTON Suspension Technology was founded in the Netherlands in 1999, and by June 2000 around 30 percent of the cars at the 24 Hours of Le Mans ran its dampers. MOTON has since won in the FIA GT and FIA Sportscar championships, the ETCC and WTCC, Grand-Am and World Challenge. AST Suspension acquired the brand in 2011, and every MOTON damper is now developed, tested and built by the AST x MOTON team in the Netherlands, part of the Roosen Industries group since 2016.
