How much cooler does the Type-V Aero Hood actually run?

At Suzuka International Racing Course, J's Racing measured a 15C reduction in maximum intake air temperature and a 10C reduction in average temperature versus the factory hood. Water and oil temperatures drop along with it, thanks to roughly 150cm2 of functional duct area.

Do I need hood pins with it?

No. The Type-V Aero Hood bolts to the factory latch and hinges, and J's Racing proved its strength at speeds above 220 km/h without a bonnet pin. The mounting hardware comes pre-installed on the hood.

What is the difference between the three versions?

Construction and weight. Full FRP weighs 7.8 kg and requires painting; half carbon half FRP weighs 7.2 kg; full carbon is the lightest at 6.8 kg with an exposed weave finish. All three share identical ducting and fitment.

What happens when it rains with those big ducts?

J's Racing makes a dedicated Inner Rain Protector that clips beneath the center duct to keep water out of the engine bay, plus an Aluminum Net that keeps debris out. Both are sold separately and are best ordered with the hood.

Will the Type-V Aero Hood fit my washer nozzles?

Yes. A supplied clip lets you reuse the factory washer nozzle and hose on the new hood, so no washer function is lost in the swap.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

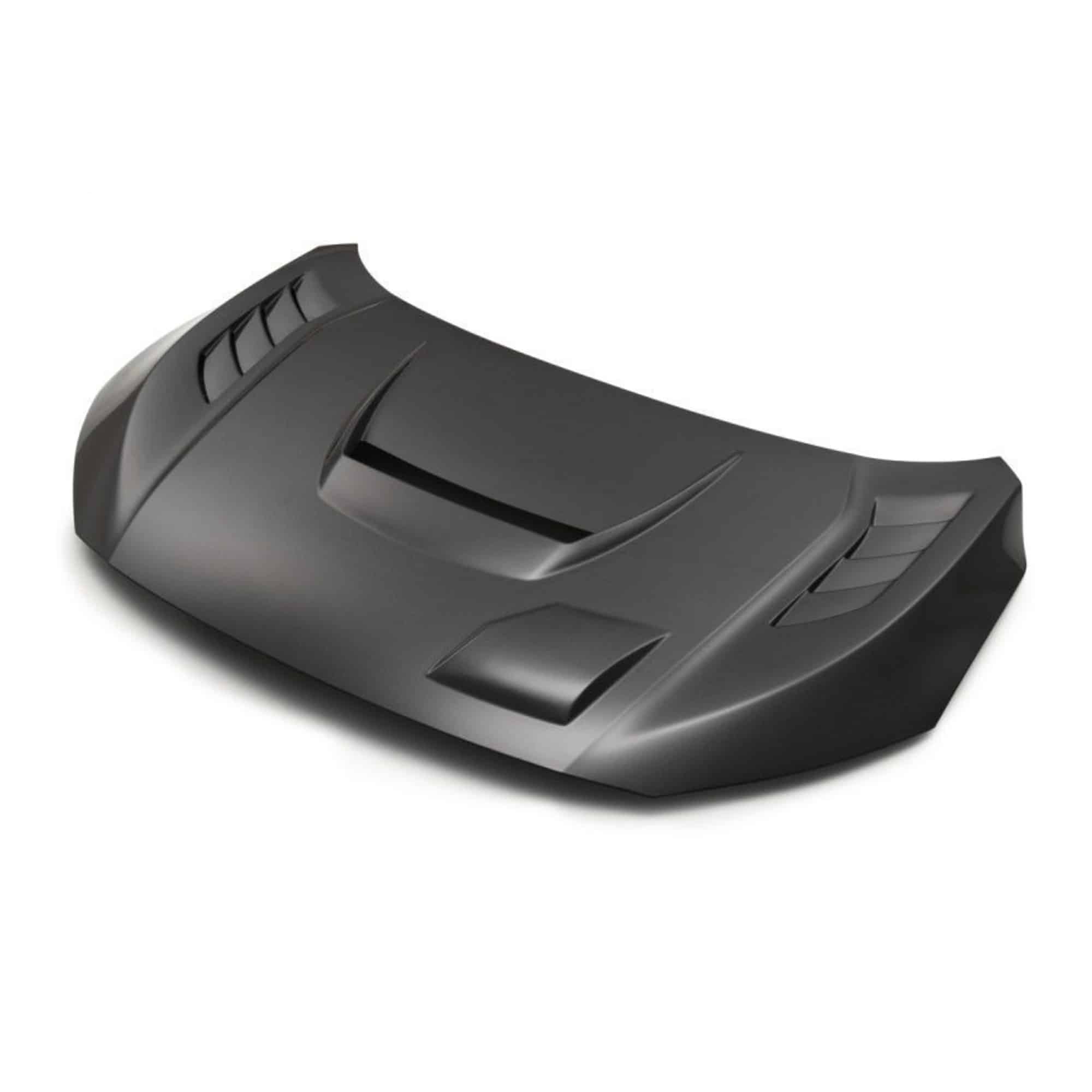

J’s Racing Type-V Aero Hood for FK8 Honda Civic Type R

The J’s Racing Type-V Aero Hood for the FK8 Honda Civic Type R was engineered around one problem: heat. A widened intake channel feeds the engine more effectively, while V-shaped ducts and main ducts flanking the K20C engine and turbine create negative pressure that pulls hot air out of the bay. J’s Racing validated the design at Suzuka International Racing Course, where the hood cut maximum intake air temperature by 15C and average temperature by 10C against the factory hood.

Development and Testing

The roughly 150cm2 of total duct area does more than dump heat; it lowers water temperature, oil temperature, and intake air temperature together, letting the K20C perform to its full potential lap after lap. Strength testing proved the hood stable at speeds above 220 km/h even without a bonnet pin, and it bolts to the factory hinges and latch with no pin installation required.

Features

Bolts on using the genuine bonnet catch, with metal fittings and bolts already installed
No bonnet pins required, with strength proven above 220 km/h
Three constructions available: full FRP, half carbon, or full carbon
V-shaped and main ducts create negative pressure to extract engine bay heat
Widened intake channel feeds the K20C1 more effectively

Specifications

Full FRP Weight: 7.8 kg
Half Carbon / Half FRP Weight: 7.2 kg
Full Carbon Weight: 6.8 kg
Total Duct Area: approximately 150 cm2
Suzuka-Tested Intake Temperature Reduction: 15C maximum, 10C average (versus the factory hood)

Applications

Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 Turbo

Notes

The center duct Inner Rain Protector and Aluminum Net are sold separately
Use the clip provided to reuse the factory washer nozzle and hose
The full FRP version requires painting before installation
For the complete hood package with rain protector and net, contact us

Frequently Asked Questions

How much cooler does the Type-V Aero Hood actually run? At Suzuka International Racing Course, J’s Racing measured a 15C reduction in maximum intake air temperature and a 10C reduction in average temperature versus the factory hood. Water and oil temperatures drop along with it, thanks to roughly 150cm2 of functional duct area.
Do I need hood pins with it? No. The Type-V Aero Hood bolts to the factory latch and hinges, and J’s Racing proved its strength at speeds above 220 km/h without a bonnet pin. The mounting hardware comes pre-installed on the hood.
What is the difference between the three versions? Construction and weight. Full FRP weighs 7.8 kg and requires painting; half carbon half FRP weighs 7.2 kg; full carbon is the lightest at 6.8 kg with an exposed weave finish. All three share identical ducting and fitment.
What happens when it rains with those big ducts? J’s Racing makes a dedicated Inner Rain Protector that clips beneath the center duct to keep water out of the engine bay, plus an Aluminum Net that keeps debris out. Both are sold separately and are best ordered with the hood.
Will the Type-V Aero Hood fit my washer nozzles? Yes. A supplied clip lets you reuse the factory washer nozzle and hose on the new hood, so no washer function is lost in the swap.

About J’s Racing

J’s Racing is one of Japan’s most respected Honda tuning houses, developing parts the hard way: on real race tracks in Super Taikyu endurance competition and time attack rather than on paper. From aero and titanium exhausts to suspension and driveline components, every product carries lessons learned from decades of racing Hondas at the limit. Bulletproof Automotive imports J’s Racing parts directly from Japan, bringing authentic, race-proven JDM engineering to enthusiasts in the US and worldwide.
