Does the Rear Diffuser for FK8 clear popular aftermarket exhausts?

Yes, many of them. Verus Engineering confirms the Rear Diffuser for FK8 clears the factory exhaust, HKS Spec-L and Remus USA among others, and the HKS Street Exhaust fits with all spacers plus extra 45mm button head cap screws. Blitz, Greddy, HKS Legamax and Invidia R400 systems need the diffuser trimmed.

Why does the diffuser have a separate center section?

Verus Engineering made the center section tilt so it can clear a range of mufflers, and it can be left off altogether if a muffler hangs too low. The complete diffuser can also move up or down by one inch, which lets one design suit the stock Type R as well as many aftermarket exhaust systems.

Is the Verus Civic Type R diffuser made from carbon fiber?

No. Verus Engineering forms it from 5052-H32 aluminum sheet, cut by CNC laser, shaped on a press brake and finished in a textured black powder coat with a low sheen. Verus picked aluminum to keep weight down and longevity up, uses stainless hardware throughout and makes the diffuser in the U.S.A. with its own strake-to-mainplane construction.

Is the diffuser a bolt-on part?

Yes. Verus Engineering describes it as a simple, non-invasive bolt-on for the Civic Type R. Two front brackets and four rear brackets locate the three main plane sections and two strakes, the hardware kit covers every fastener, and Verus publishes an install manual and an install video to guide the work.

Which Ventus packages use the FK8 diffuser?

The diffuser features in both the Ventus 1 and Ventus 2 packages for the Civic Type R. Verus Engineering aimed Ventus 1 at drivers who want the car balanced at speed without a major drag penalty, while Ventus 2 adds the front splitter for a substantial gain in downforce at the cost of a slight rise in drag.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Rear Diffuser for FK8 Honda Civic Type R

Verus Engineering’s Rear Diffuser for FK8 Honda Civic Type R adds downforce and trims drag while keeping a low profile on a car whose factory styling is already aggressive. Verus chose less aggressive strakes for exactly that reason, and built the diffuser from 5052-H32 sheet aluminum to keep weight down and service life long. What sets it apart is fitment: a three-piece main plane with a tilting center section, and one inch of vertical adjustment for the whole diffuser, so it works with a long list of exhausts.

Construction and Package

The sections are cut by CNC laser and shaped on a press brake, and a low-gloss textured black powder coat covers every surface. Verus developed the shape from its own scan data and CFD work on the FK8, and every fastener in the kit is stainless.

Features

Trims drag while adding rear downforce
Center section tilts to clear different mufflers and can be left off entirely
Whole diffuser shifts vertically by an inch for fitment
Low-key strakes for a subtle rear view
Simple, non-invasive bolt-on design

What’s Included

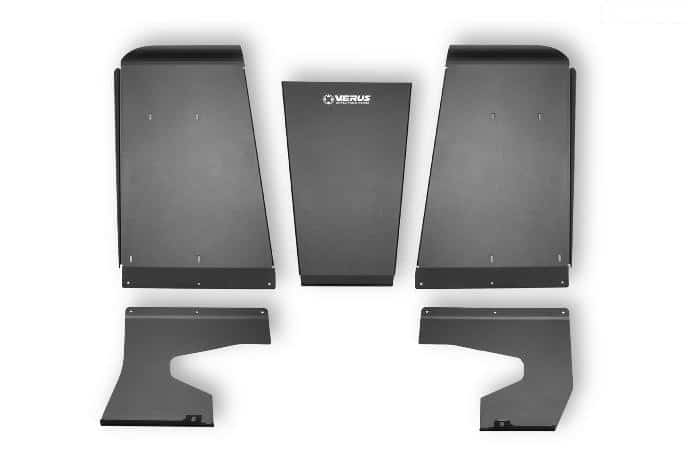

Rear diffuser main plane sections (x3)
Front brackets (x2)
Rear brackets (x4)
Diffuser strakes (x2)
Hardware kit with all components for the install

Applications

Honda Civic Type R: FK8 | 2017-2021

Notes

Verus confirms the Rear Diffuser for FK8 fits the factory exhaust, several muffler-less setups and exhausts from HKS (Spec-L), J’s Racing and Remus USA
The HKS Street Exhaust fits once all the spacers are used along with extra 45mm button head cap screws
The diffuser needs trimming to clear the Blitz Nur-Spec, Greddy DD-R, Greddy Supreme SP, HKS Legamax and Invidia R400; on the Greddy DD-R only the rear center plane needs a slight trim
It pairs with the Verus Engineering Front Splitter Kit for FK8 Honda Civic Type R in Ventus 2
For more rear downforce, Verus builds the UCW Rear Wing Kit
See every Verus Engineering part for the FK8 Honda Civic Type R
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the Rear Diffuser for FK8 clear popular aftermarket exhausts? Yes, many of them. Verus Engineering confirms the Rear Diffuser for FK8 clears the factory exhaust, HKS Spec-L and Remus USA among others, and the HKS Street Exhaust fits with all spacers plus extra 45mm button head cap screws. Blitz, Greddy, HKS Legamax and Invidia R400 systems need the diffuser trimmed.
Why does the diffuser have a separate center section? Verus Engineering made the center section tilt so it can clear a range of mufflers, and it can be left off altogether if a muffler hangs too low. The complete diffuser can also move up or down by one inch, which lets one design suit the stock Type R as well as many aftermarket exhaust systems.
Is the Verus Civic Type R diffuser made from carbon fiber? No. Verus Engineering forms it from 5052-H32 aluminum sheet, cut by CNC laser, shaped on a press brake and finished in a textured black powder coat with a low sheen. Verus picked aluminum to keep weight down and longevity up, uses stainless hardware throughout and makes the diffuser in the U.S.A. with its own strake-to-mainplane construction.
Is the diffuser a bolt-on part? Yes. Verus Engineering describes it as a simple, non-invasive bolt-on for the Civic Type R. Two front brackets and four rear brackets locate the three main plane sections and two strakes, the hardware kit covers every fastener, and Verus publishes an install manual and an install video to guide the work.
Which Ventus packages use the FK8 diffuser? The diffuser features in both the Ventus 1 and Ventus 2 packages for the Civic Type R. Verus Engineering aimed Ventus 1 at drivers who want the car balanced at speed without a major drag penalty, while Ventus 2 adds the front splitter for a substantial gain in downforce at the cost of a slight rise in drag.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
