Does the Tsuchinoko Chamber for Early CL7 cars fit a late Euro R?

No. The Tsuchinoko Chamber for Early CL7 cars covers chassis numbers CL7-100, 110, 300 and 310. Cars numbered CL7-120, 130 or 320 take the separate late version, so check the number on the chassis plate of your Euro R before you order, or send it to us to confirm.

Will rain reach the filter?

The bulkhead plate is shaped so rain cannot fall directly onto the filter, and the manufacturer reports that the system passed road testing in heavy rain. The intake still draws outside air through the bumper, so avoid driving through deep standing water.

How do the Carbon and FRP kits differ?

Only the heat shield cover changes. The Carbon version uses a carbon FRP cover that shows the weave under the hood, while the FRP version uses an FRP cover. The chamber body, bulkhead plate, duct and filter are the same in both kits.

How much power does it add?

The manufacturer does not publish horsepower or torque figures. It compared the stock airbox, an aftermarket air cleaner and this chamber on the same car with a stock engine, and points to a dramatic torque improvement. It also expects more gain on the move, since ram air was not simulated.

What do I need besides the kit?

Everything needed to install it is in the box: the heat shield cover, chamber body, bulkhead plate, bumper duct, filter joint, dedicated filter, hoses, joints, bands, bolts, a gold emblem and an installation manual. Installation means working inside the bumper and the fender.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

J’s Racing Tsuchinoko Chamber for Early CL7 Honda Accord Euro R

J’s Racing’s Tsuchinoko Chamber for Early CL7 Accord Euro R models came out of roughly a year of development and repeated trial and error, aimed at a dependable power gain from the K20A. The chamber and filter sit inside a heat shield cover shaped to use the cramped engine bay, so the engine breathes fresh air instead of hot underhood air. On one stock-engined car, J’s Racing ran the factory airbox, an aftermarket air cleaner and the chamber back to back, and the chamber’s torque gain stood out. It suits an early Euro R owner who wants measured intake gains; for looks alone it is overkill.

Design and Performance

A supplied duct mounts inside the front bumper and sends air through the fender, which a dedicated bulkhead plate turns into a large-volume intake box feeding ram air to a large-diameter filter. The bulkhead shape keeps rain from hitting the filter directly, and the system passed J’s Racing’s road tests in heavy rain.

Features

Heat shield cover isolates the chamber and filter from engine bay heat
Bumper-mounted duct supplies cool outside air
Bulkhead plate turns the fender into a large-volume intake box
Large-diameter dedicated air filter
Bulkhead shape shields the filter from rain

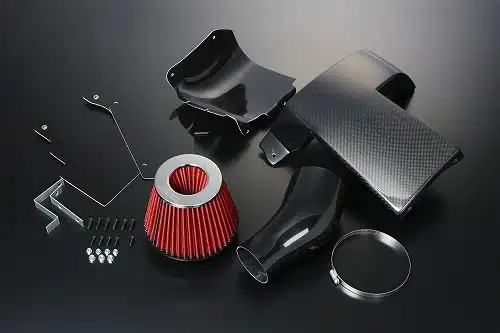

What’s Included

Heat shield cover, carbon FRP or FRP by option
FRP chamber body
FRP bulkhead plate
Dedicated air duct
Filter joint
Dedicated air filter
Hoses
J’s Racing gold emblem
Joints, bands and bolts
Installation manual

Applications

Honda Accord Euro R: CL7 | 2002-2008 | 2.0L K20A

Notes

Options: Carbon uses a carbon FRP heat shield cover and FRP uses an FRP cover; the chamber body and bulkhead plate are FRP in both
This early version fits CL7-100, 110, 300 and 310 chassis numbers; later cars need the Tsuchinoko Chamber for the late CL7 Accord Euro R
J’s Racing USA files this kit under the TSX, while J’s Japan lists the CL7 Euro R plus the Japanese-market CL9 Accord; check Acura TSX fitment with us before ordering
Produced in Japan once ordered and shipped via J’s Racing USA; Bulletproof Automotive confirms availability and lead time at that point

Frequently Asked Questions

Does the Tsuchinoko Chamber for Early CL7 cars fit a late Euro R? No. The Tsuchinoko Chamber for Early CL7 cars covers chassis numbers CL7-100, 110, 300 and 310. Cars numbered CL7-120, 130 or 320 take the separate late version, so check the number on the chassis plate of your Euro R before you order, or send it to us to confirm.
Will rain reach the filter? The bulkhead plate is shaped so rain cannot fall directly onto the filter, and the manufacturer reports that the system passed road testing in heavy rain. The intake still draws outside air through the bumper, so avoid driving through deep standing water.
How do the Carbon and FRP kits differ? Only the heat shield cover changes. The Carbon version uses a carbon FRP cover that shows the weave under the hood, while the FRP version uses an FRP cover. The chamber body, bulkhead plate, duct and filter are the same in both kits.
How much power does it add? The manufacturer does not publish horsepower or torque figures. It compared the stock airbox, an aftermarket air cleaner and this chamber on the same car with a stock engine, and points to a dramatic torque improvement. It also expects more gain on the move, since ram air was not simulated.
What do I need besides the kit? Everything needed to install it is in the box: the heat shield cover, chamber body, bulkhead plate, bumper duct, filter joint, dedicated filter, hoses, joints, bands, bolts, a gold emblem and an installation manual. Installation means working inside the bumper and the fender.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
