Which chassis numbers does the Tsuchinoko Chamber for Late CL7 cars fit?

The Tsuchinoko Chamber for Late CL7 cars fits Accord Euro R chassis numbers CL7-120, CL7-130 and CL7-320. Earlier cars numbered CL7-100, 110, 300 or 310 need the separate early version, so read the number on the chassis plate before ordering, or send it to us and we will check it.

Does the kit include its own air filter?

Yes. A dedicated large-diameter filter and filter joint are included, along with the chamber body, heat shield cover, bulkhead plate, bumper duct, hoses, all joints, bands and bolts, a gold emblem and an installation manual. Nothing else needs to be bought to complete the installation.

Why does the intake air come from the bumper?

Air inside the bumper is cooler than air in the engine bay. The duct collects it there, the fender cavity acts as a large intake box, and the heat shield cover keeps the filter away from engine heat, so the engine always breathes outside air.

Was the chamber tested in wet weather?

Yes. The partition is shaped to stop rain from hitting the filter directly, and the manufacturer drove the car through testing in heavy rain to confirm it. As with any intake that draws from low in the bumper, deep standing water should still be avoided.

Which material should I pick?

Pick by appearance, since only the heat shield cover differs. The Carbon kit has a carbon FRP cover that looks at home in a detailed engine bay, and the FRP kit is the lower-cost route. Performance, fitment and the rest of the parts are identical.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

J’s Racing Tsuchinoko Chamber for Late CL7 Honda Accord Euro R

J’s Racing’s Tsuchinoko Chamber for Late CL7 Accord Euro R cars takes its air from inside the front bumper and routes it through the fender. A bulkhead plate turns the inside of the fender into a large-volume intake box, delivering ram air to a large-diameter filter that sits with the chamber under a heat shield cover. Developed over about a year for the CL7 alone, it beat both the factory box and an aftermarket cleaner for torque in back-to-back dyno runs on one stock car. It is for late Euro R owners chasing measured gains rather than intake noise.

Development and Testing

The dyno comparison was deliberately run without a fan blowing into the intake, so it measured the chamber on its own merits; J’s Racing expects more power and torque at speed, where the bumper duct is fed by moving air.

Features

Fresh air enters through a duct hidden inside the front bumper
Fender cavity sealed off by a bulkhead plate to form an intake box
Chamber and filter enclosed under a heat shield cover
Large-diameter filter made for this kit
Rain-deflecting partition, proven in wet-weather testing

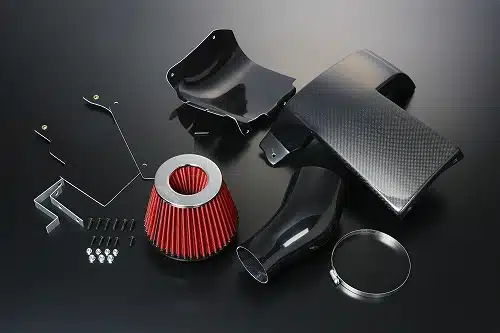

What’s Included

Heat shield cover in carbon FRP or FRP
FRP chamber body
FRP bulkhead plate
Dedicated air duct
Filter joint
Dedicated air filter
Hoses
J’s Racing gold emblem
Joints, bands and bolts
Installation manual

Applications

Honda Accord Euro R: CL7 | 2002-2008 | 2.0L K20A

Notes

Options: the Carbon kit has a carbon FRP heat shield cover and the FRP kit an FRP one; all other parts are shared
Late version for chassis numbers CL7-120, 130 and 320; earlier cars use the Tsuchinoko Chamber for the early CL7 Accord Euro R
The US price list shows this kit under the TSX; J’s Japan names the CL7 Euro R and the Japanese CL9 Accord, so Acura TSX fitment is confirmed with J’s Racing USA before ordering
Each kit is built after the order reaches Japan and comes in through J’s Racing USA; we confirm the lead time with them for you

Frequently Asked Questions

Which chassis numbers does the Tsuchinoko Chamber for Late CL7 cars fit? The Tsuchinoko Chamber for Late CL7 cars fits Accord Euro R chassis numbers CL7-120, CL7-130 and CL7-320. Earlier cars numbered CL7-100, 110, 300 or 310 need the separate early version, so read the number on the chassis plate before ordering, or send it to us and we will check it.
Does the kit include its own air filter? Yes. A dedicated large-diameter filter and filter joint are included, along with the chamber body, heat shield cover, bulkhead plate, bumper duct, hoses, all joints, bands and bolts, a gold emblem and an installation manual. Nothing else needs to be bought to complete the installation.
Why does the intake air come from the bumper? Air inside the bumper is cooler than air in the engine bay. The duct collects it there, the fender cavity acts as a large intake box, and the heat shield cover keeps the filter away from engine heat, so the engine always breathes outside air.
Was the chamber tested in wet weather? Yes. The partition is shaped to stop rain from hitting the filter directly, and the manufacturer drove the car through testing in heavy rain to confirm it. As with any intake that draws from low in the bumper, deep standing water should still be avoided.
Which material should I pick? Pick by appearance, since only the heat shield cover differs. The Carbon kit has a carbon FRP cover that looks at home in a detailed engine bay, and the FRP kit is the lower-cost route. Performance, fitment and the rest of the parts are identical.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
