Which cars does the 1.5-Way LSD for EP3 fit?

The 1.5-Way LSD for EP3 is designed for the JDM EP3 Civic Type R with the K20A engine, and the manufacturer lists it for all EP3 models in its home market. It may not fit the US-market EP3 Civic Si, so confirm your transmission with Bulletproof Automotive before ordering.

What does 1.5-way mean?

A 1.5-way differential locks strongly under acceleration and more lightly when you lift off the throttle. Some locking effect remains under braking, which the manufacturer says makes the attitude of the car easier to control on the way into a corner while keeping the drive benefit on the way out.

Is it difficult to live with on the road?

No. The manufacturer uses disc springs and lets the lock follow throttle input instead of relying on high initial torque, which it says gives a stable feel that is not hard to handle while still working effectively. The initial setting is 6.5kg, measured cold when new.

Who should install it?

The manufacturer recommends installation by a professional shop, since the transmission has to be opened to fit the differential. After installation the LSD needs a thorough break-in before hard driving. Plan on fresh transmission oil at the same time, as it is not included.

Can I fit a final gear set at the same time?

Yes. The manufacturer also offers a final gear set for the EP3 in 5.1 and 5.3 ratios, and both parts are fitted with the transmission apart, so doing them together can save labor. Ask Bulletproof Automotive about pairing the two when you order.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

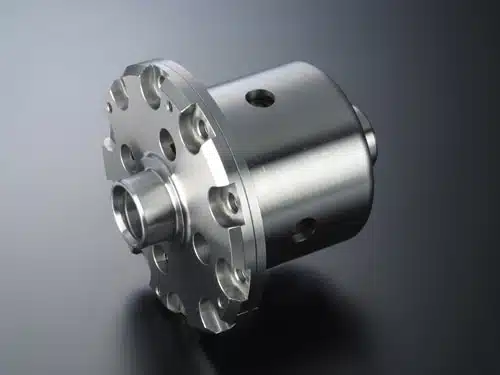

J’s Racing 1.5-Way LSD for EP3 Honda Civic Type R

J’s Racing’s 1.5-Way LSD for EP3 Civic Type R is a mechanical limited slip differential that the Osaka tuner sells as its High Traction LSD. It senses the difference in speed and torque between the front wheels and limits the differential action, so drive that would otherwise escape through the unloaded wheel goes into the road. It locks hard on throttle and more gently off throttle, with a moderate effect left under braking that makes the car’s attitude easier to manage. It suits an EP3 that sees circuit or sports driving, where putting power down out of corners decides lap times.

Design and Performance

The cam angle is 50-25 and the initial setting is 6.5kg, measured cold when new. Rather than relying on high initial torque, J’s Racing uses disc springs so the lock builds in proportion to throttle, giving smooth, predictable lockup and a stable feel that is not hard to manage. J’s Racing says the result is clearly better throttle control of the car through corners.

Features

Mechanical 1.5-way action: strong on throttle, lighter off throttle
50-25 cam angle
6.5kg initial setting, measured cold
Disc spring design for smooth lockup without depending on preload
Moderate effect under braking to help attitude control

Applications

Honda Civic Type R: EP3 | 2001-2005 | 2.0L K20A

Notes

J’s Racing designs this part for the JDM EP3 Civic Type R with the K20A engine; it may not fit the US-market EP3 Civic Si
J’s Racing lists the differential for all EP3 models in its home market
A thorough break-in is required after installation, and professional fitting is recommended
Transmission oil is not included
Shorter gearing is available separately with the Final Gear Set for the EP3 Honda Civic Type R
The differential ships from Japan via J’s Racing USA, and Bulletproof Automotive confirms availability and lead time once ordered

Frequently Asked Questions

Which cars does the 1.5-Way LSD for EP3 fit? The 1.5-Way LSD for EP3 is designed for the JDM EP3 Civic Type R with the K20A engine, and the manufacturer lists it for all EP3 models in its home market. It may not fit the US-market EP3 Civic Si, so confirm your transmission with Bulletproof Automotive before ordering.
What does 1.5-way mean? A 1.5-way differential locks strongly under acceleration and more lightly when you lift off the throttle. Some locking effect remains under braking, which the manufacturer says makes the attitude of the car easier to control on the way into a corner while keeping the drive benefit on the way out.
Is it difficult to live with on the road? No. The manufacturer uses disc springs and lets the lock follow throttle input instead of relying on high initial torque, which it says gives a stable feel that is not hard to handle while still working effectively. The initial setting is 6.5kg, measured cold when new.
Who should install it? The manufacturer recommends installation by a professional shop, since the transmission has to be opened to fit the differential. After installation the LSD needs a thorough break-in before hard driving. Plan on fresh transmission oil at the same time, as it is not included.
Can I fit a final gear set at the same time? Yes. The manufacturer also offers a final gear set for the EP3 in 5.1 and 5.3 ratios, and both parts are fitted with the transmission apart, so doing them together can save labor. Ask Bulletproof Automotive about pairing the two when you order.

About J’s Racing

J’s Racing was established in Osaka in 1989, as VTEC engines and lightweight Civics and Integras were changing what a Honda could do, and it has built parts for Hondas ever since. The company develops engine response, suspension, braking, cooling and aerodynamics together as one system, then proves the parts in time attack, gymkhana, endurance and circuit racing. Its Fit lapped Tsukuba Circuit in 1’00.459, and its naturally aspirated AP1 S2000, the Maou car, became the company’s reference build for the Honda roadster. Every J’s Racing part is designed and tested in Japan, and J’s Racing USA in Carson, California handles distribution in the United States.
